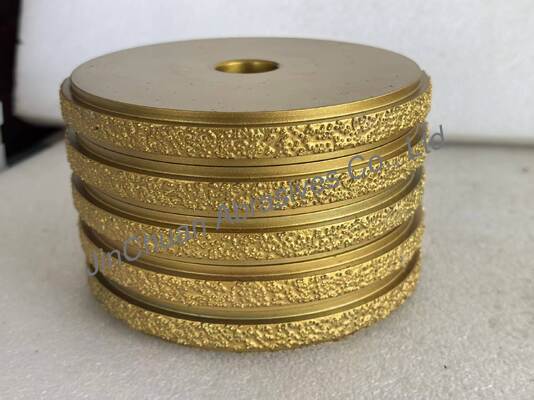

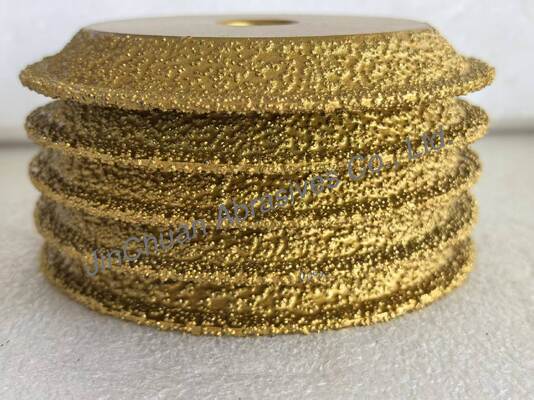

127mm Brazed Diamond Grinding Wheel D20/25 Thermal Damage Free for Carbide Precision Grinding

Brazed Diamond Grinding Wheel with Thermal Damage Prevention for Carbide Precision Grinding

The Brazed Diamond Grinding Wheel is a high-performance grinding solution specifically engineered to eliminate diamond thermal damage during carbide precision grinding. Diamond abrasive degradation through graphitization (above 700 degrees Celsius) and oxidation is a critical failure mechanism in conventional resin and electroplated diamond wheels. This wheel solves this problem through a vacuum-brazed metallurgical bond that fuses diamond particles directly to a precision steel core, creating a thermally conductive interface that rapidly dissipates frictional heat away from the diamond cutting tips while providing unmatched abrasive retention strength.

Key Features

• Vacuum Brazed Diamond Thermal Protection: The high-temperature vacuum brazing process creates a true metallurgical bond between diamond abrasive and the steel core, forming a continuous thermal pathway that efficiently conducts grinding heat from the cutting zone into the wheel body and coolant stream. Unlike resin bonds that insulate and trap heat at diamond tips, the brazed metal bond acts as a heat sink, maintaining diamond tip temperatures safely below the graphitization threshold even during aggressive dry or semi-dry grinding conditions.
• Heat Dissipation Metallurgical Bond: The brazed bond interface eliminates the thermal barrier present in resin and vitrified bond systems. Steel core thermal mass combined with the metallic bond layer creates a heat pipe effect, drawing thermal energy away from individual diamond grains and distributing it across the entire wheel structure. This active thermal management system ensures consistent cutting performance without the progressive diamond dulling caused by cumulative heat exposure in conventional diamond wheels.
• Carbide Grinding Diamond Degradation Free: By preventing localized hot spot formation, the brazed diamond wheel maintains 100% of its original diamond cutting capability from first use through end of life. Diamond grains cut cleanly through carbide workpieces without undergoing thermal softening or graphitization, delivering consistent material removal rates, superior surface finish quality, and dramatically reduced per-part abrasive cost compared to conventional diamond wheels suffering progressive thermal degradation.

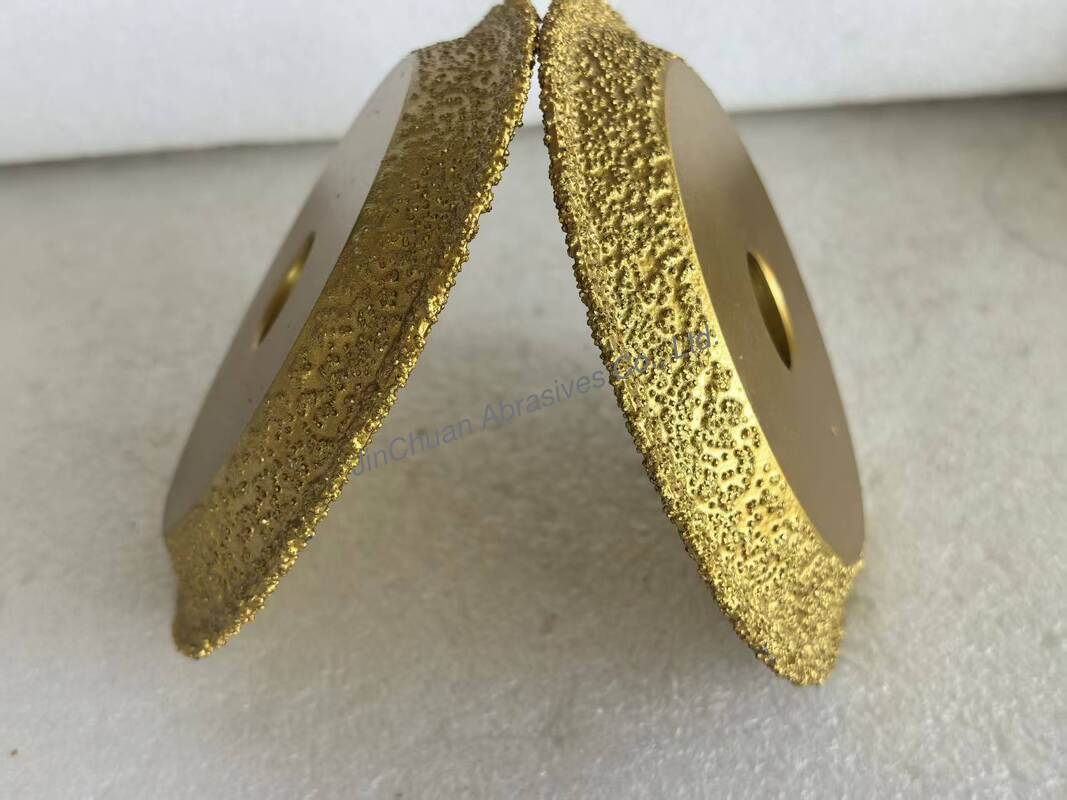

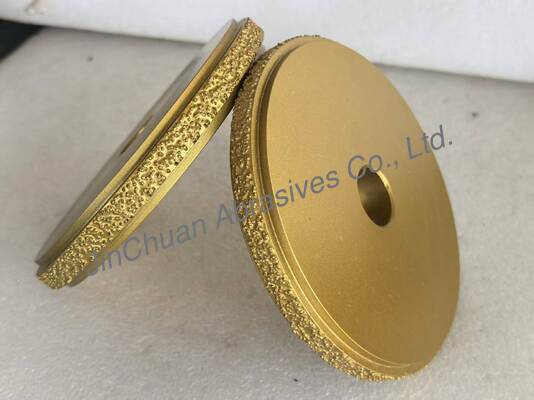

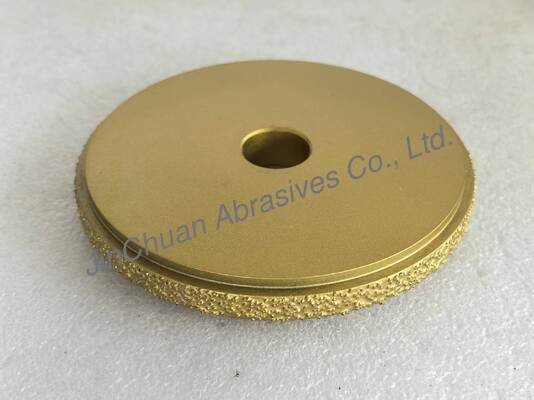

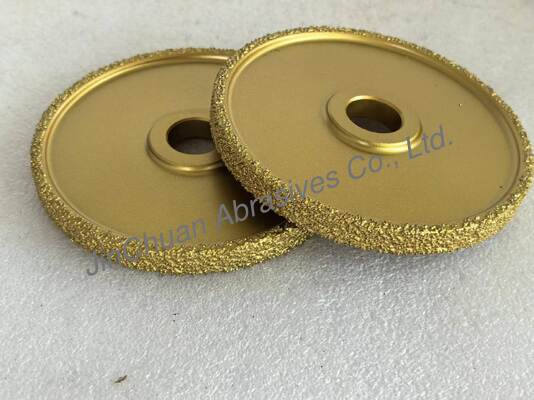

• Two Profile Configurations: Available as a 14A1 dish wheel for face and profile grinding applications, and a 1A1 edge-wrapped straight wheel with 4.8mm diamond edge band for peripheral and cylindrical grinding. Both configurations share the same vacuum-brazed diamond technology and thermal damage prevention capability, allowing optimization for different grinding machine setups and workpiece geometries.

Available Specifications

How Brazed Diamond Solves Thermal Damage

Applications

• Carbide insert face grinding with thermal damage prevention (14A1 dish wheel)
• Carbide end mill peripheral grinding (1A1 edge-wrapped straight wheel)
• Carbide tool profile grinding requiring diamond cutting edge preservation
• Precision carbide component grinding where surface integrity is critical
• High-speed carbide grinding operations where resin bonds fail from thermal overload

Why Choose Our Brazed Diamond Grinding Wheels

Manufactured under ISO 9001:2015 certified quality systems, our brazed diamond grinding wheels solve the fundamental challenge of diamond thermal damage through vacuum-brazed metallurgical bond technology that eliminates the thermal insulation problem inherent in resin and electroplated bond systems. The direct diamond-to-steel thermal pathway ensures diamond abrasives operate at temperatures far below graphitization and oxidation thresholds, preserving full cutting capability throughout the wheel's entire service life. Available in both 14A1 dish and 1A1 edge-wrapped configurations with D20/25 fine grit for precision carbide grinding, each wheel undergoes rigorous diamond distribution verification and bond integrity testing. Custom grit sizes, dimensions, and bond specifications available upon request to meet your specific thermal management and precision grinding requirements.
