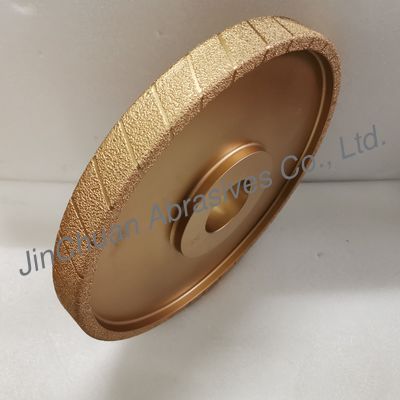

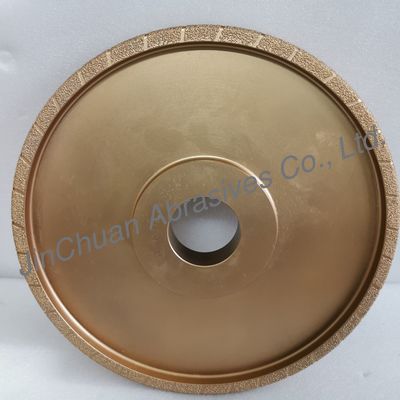

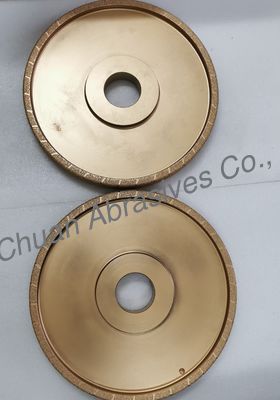

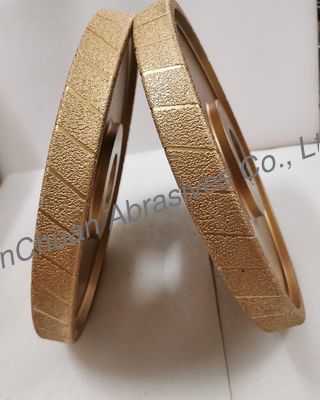

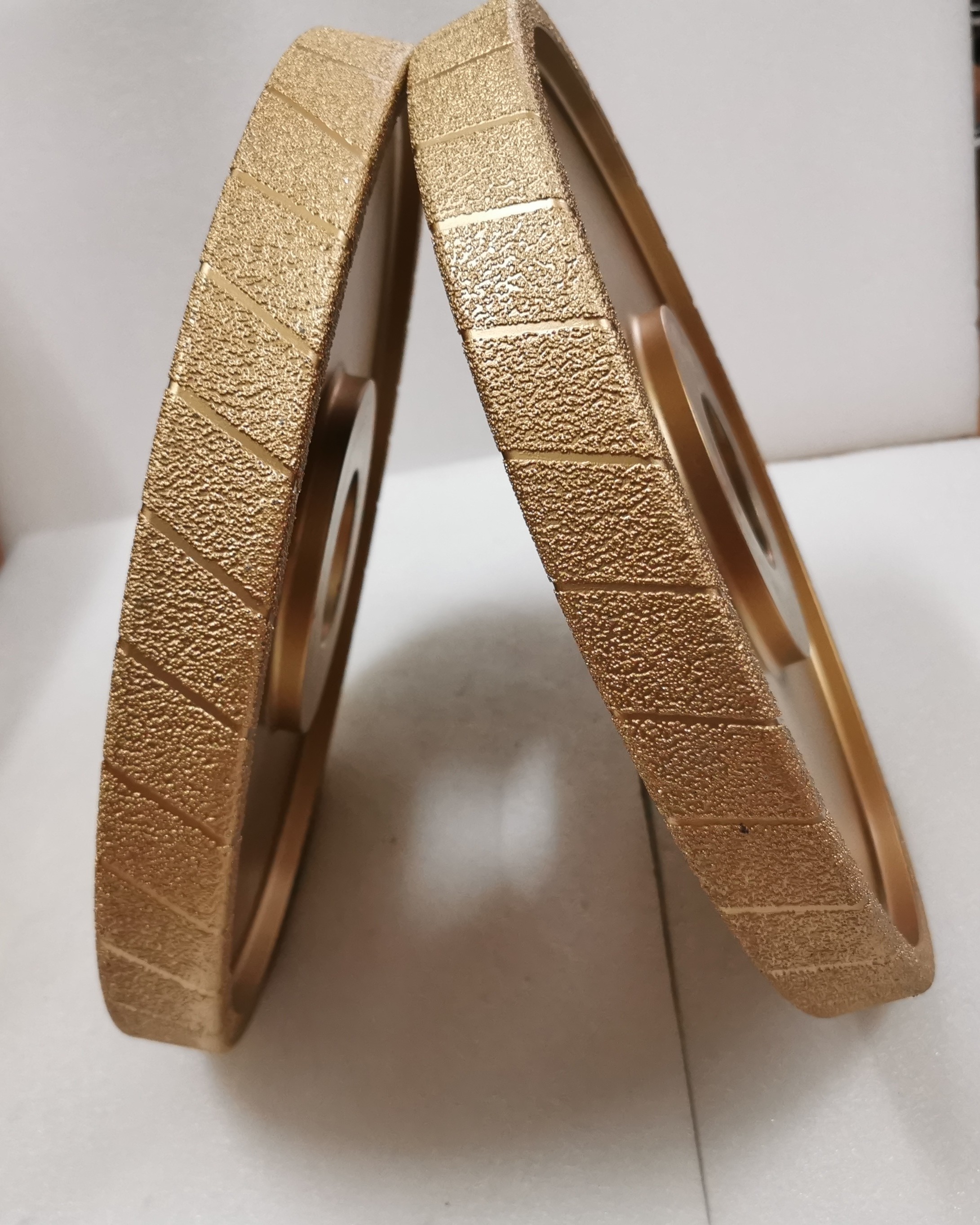

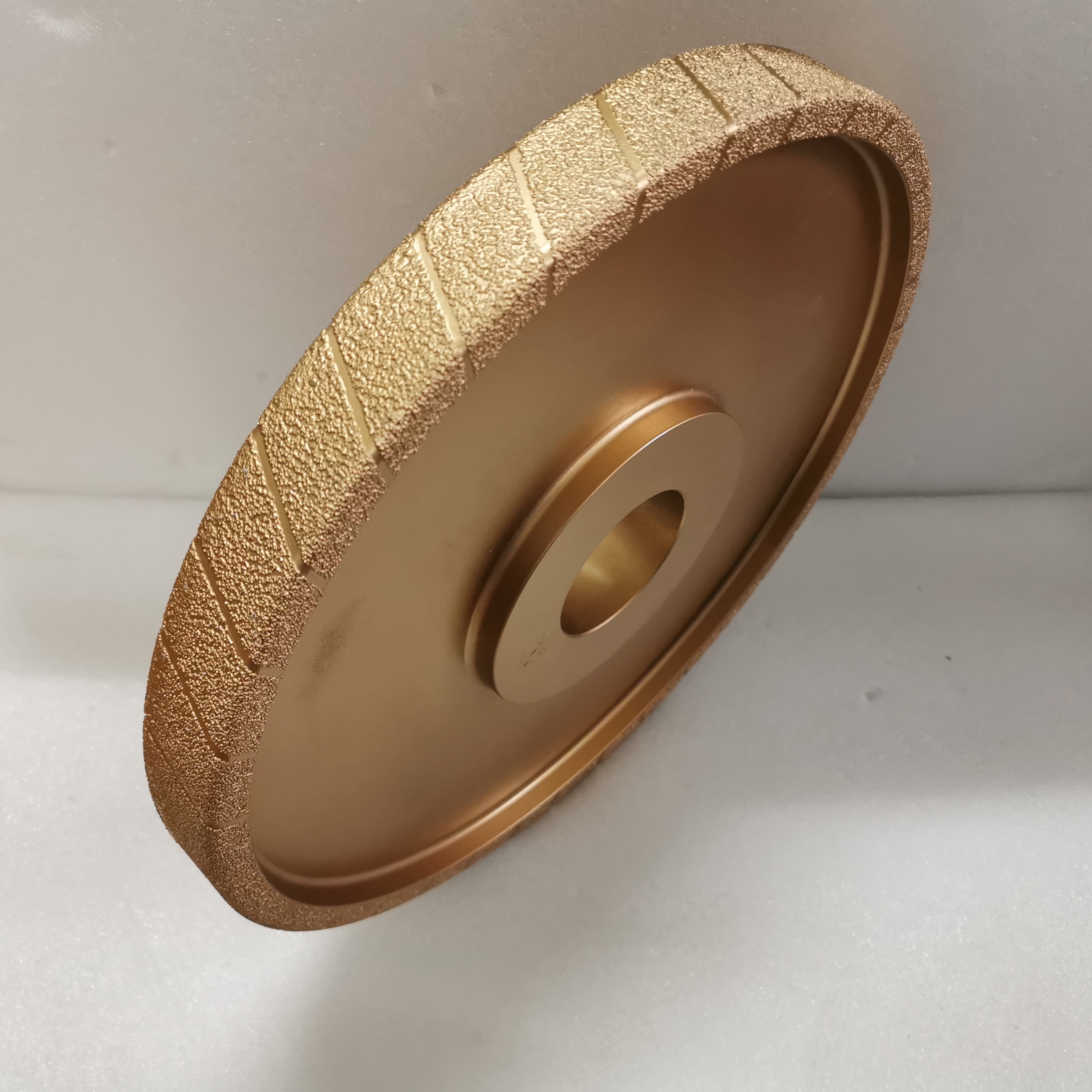

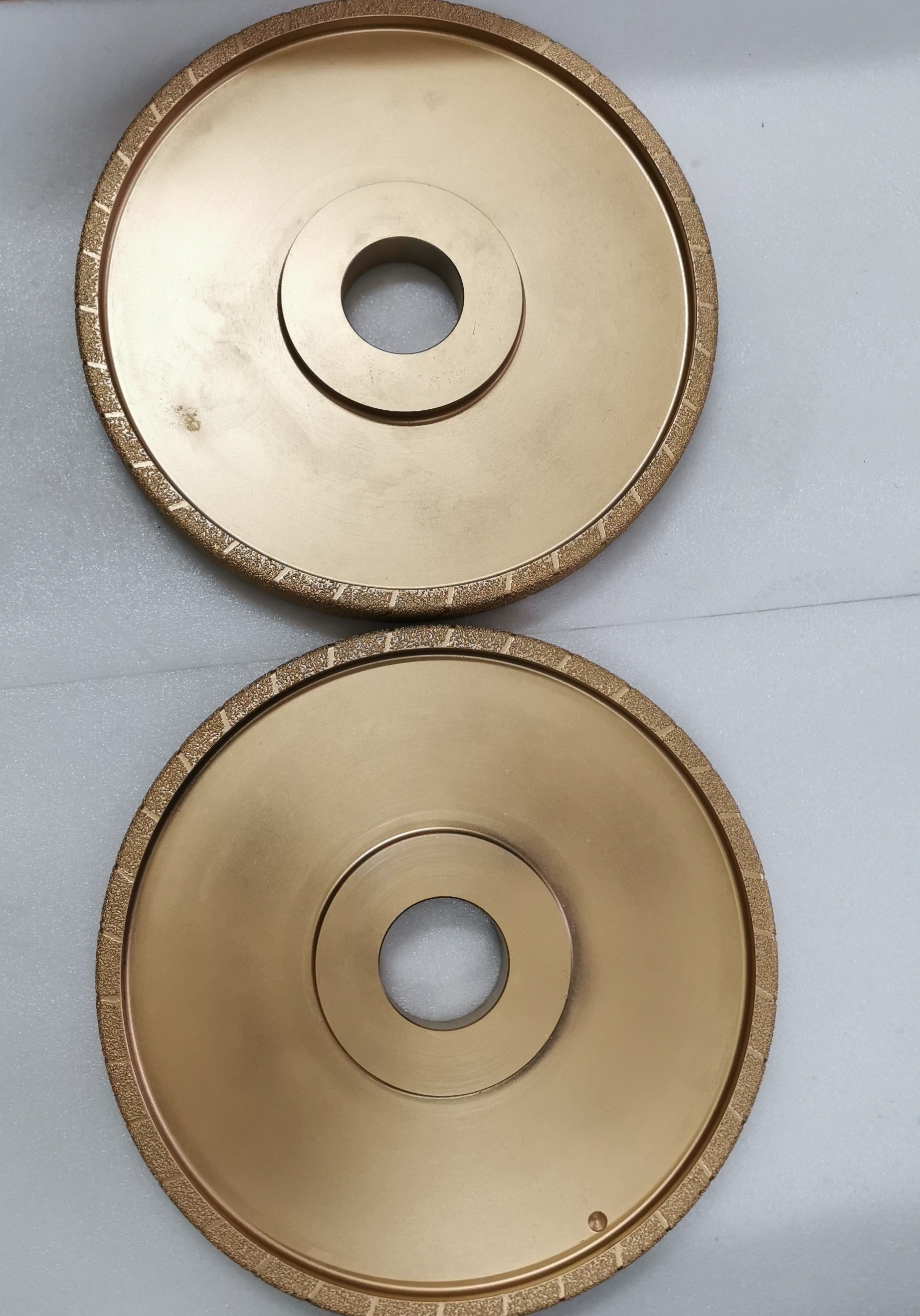

1A1 D400 Mm Vacuum Brazed Diamond Grinding Wheel
Product Details
| Material: | Diamond | Colour: | Gold, Silver |
|---|---|---|---|
| Appliacation: | Grinding Cast Iron | Weight: | 19kg |
| Diameter: | 400mm | HS Code: | 6804211000 |
| Highlight |
1A1 Vacuum Brazed Diamond Grinding Wheel,Vacuum Brazed Diamond Grinding Wheel |
||
Product Description
Product Description
Diamond are extremely sharp to give faster removal and grinding of hardened and non-hardened steel, carbides, ceramics, molds, die plates, punches, glass, quartz, carbon fiber, graphite, hard and precision stone.
Packing and shipping
We will use carton packing, if you need carton or other packing, we can also support your request.We support express delivery, air transportation and sea transportation.The express delivery includes DHL, FedEx, TNT, UPS, EMS, etc. Usually, we will arrange the delivery within 7 working days after confirming the contract.
1A1 product drawing
Standard size of 1A1 products
| D | T | H | X |
| 100 | 0.4~35 | 20, 22.23, 25.4, 31.75, 32 | 3,4,5,6 |
| 200 | 1~40 | 31.75, 32,40, 50.8, 75, 76.2 | 5,6,8,10,16 |
| 300 | 3~60 | 75, 76.2, 101.6, 127, 203 | 5,6,8,10,16,20 |
| 400 | 3.5~50 | 127, 203 | 5,6,8,10,16,20,25 |
| 450~750 | 12~60 | 203, 304,8, 305 | 5,6,8,10,12,15 |
| 800~900 | 18~60 | 132, 304.8, 305 |
Special size can be sustomized to customer requirement
Company profile
Zhengzhou Jinchuan abrasive abrasive co., LTD. Is committed to providing the most advanced diamond and cubic boron nitride products.
We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.
Our sophisticated production equipment and advanced testing equipment, so that our products good performance.Constantly pursue new technology and continuous improvement.
We look forward to our cooperation.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you
