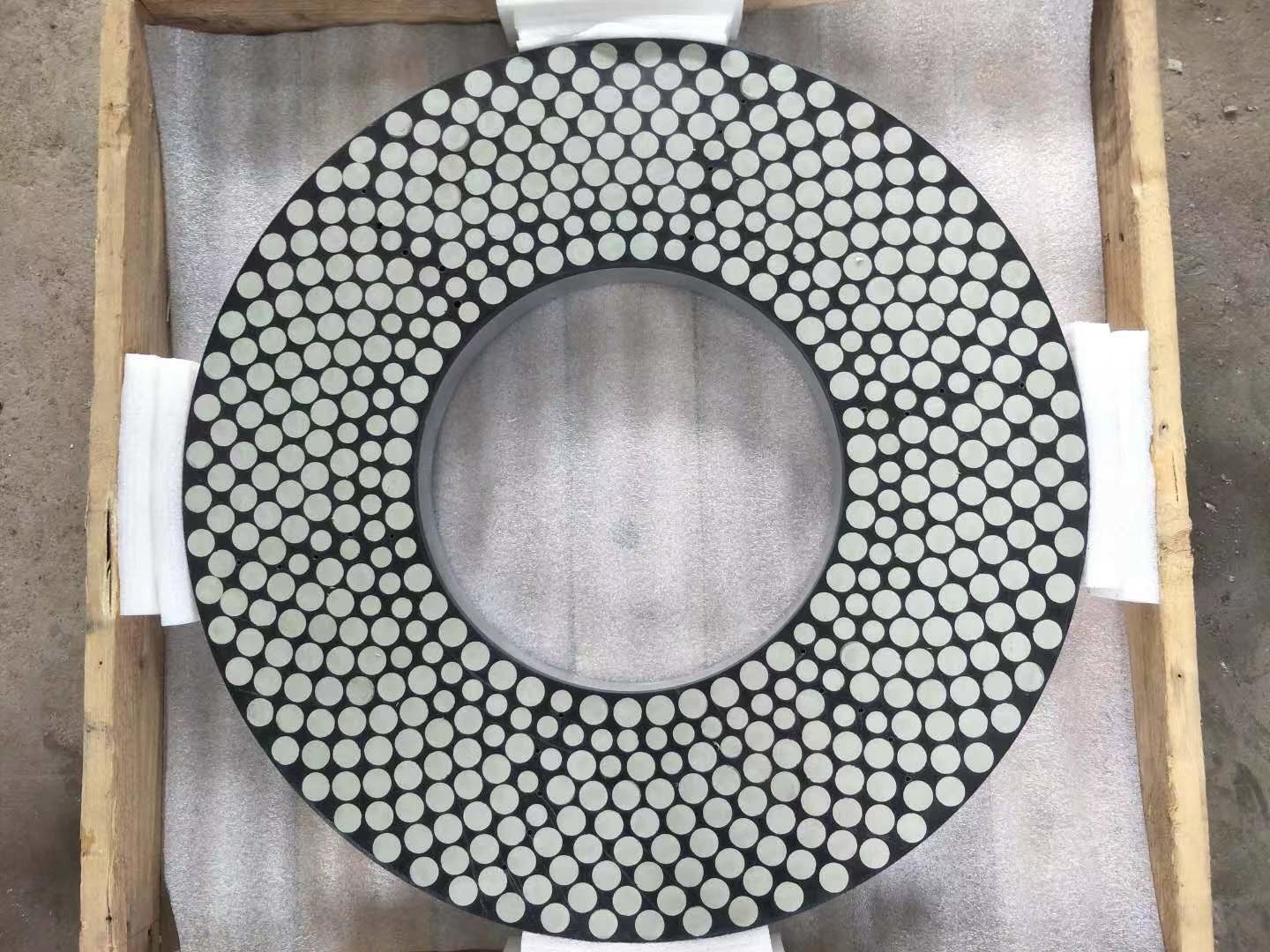

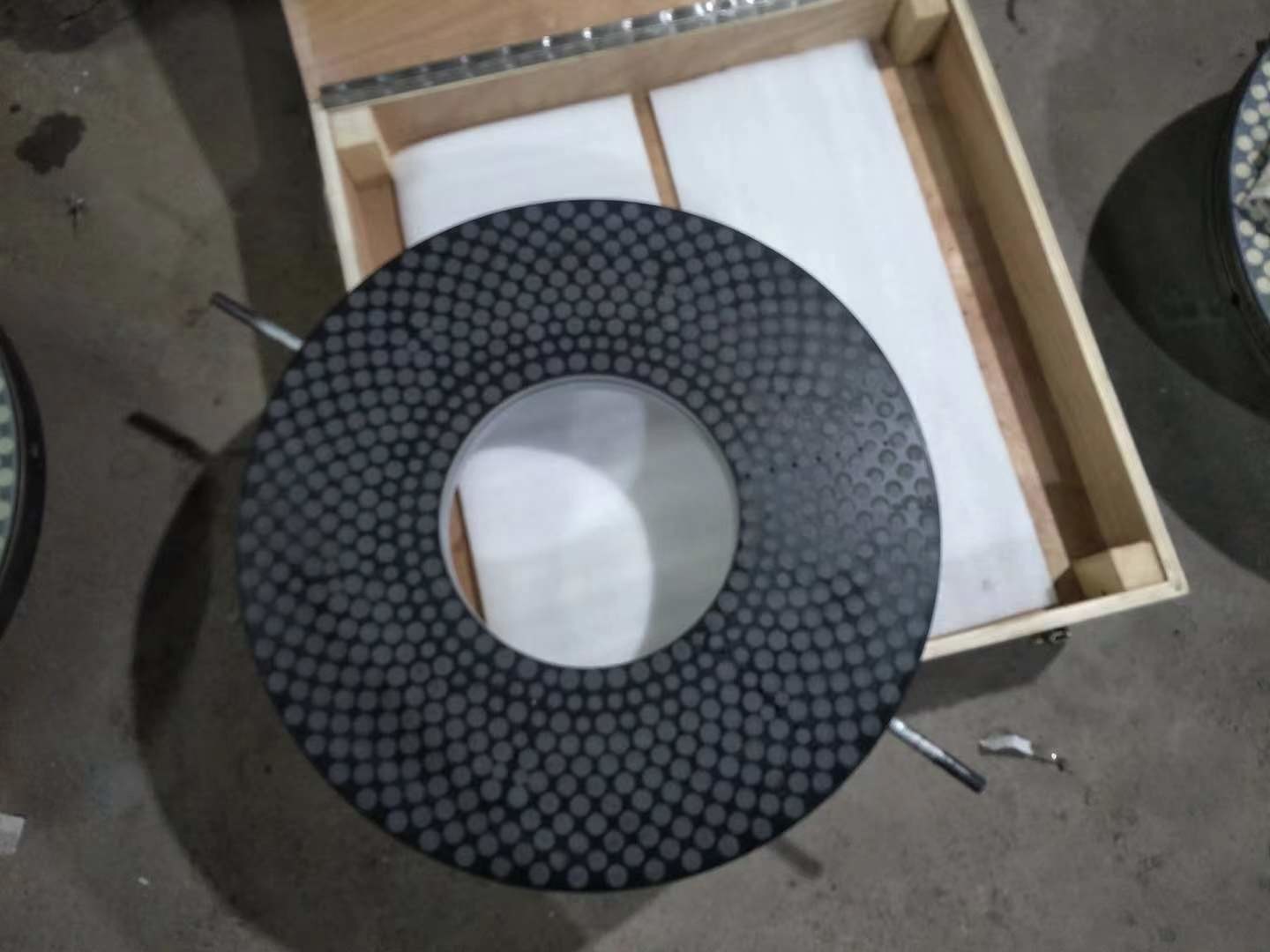

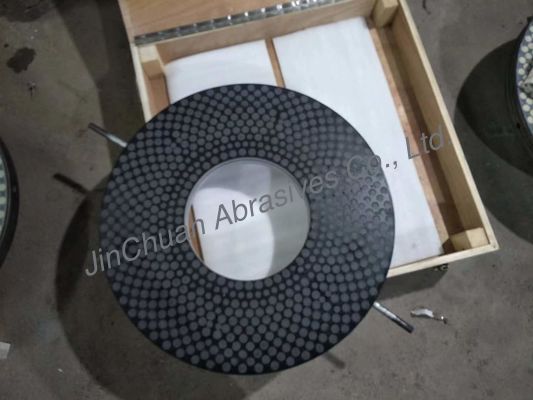

Vitrified Bond Double Disc Grinding Wheel For PCD PCBN grinder disc

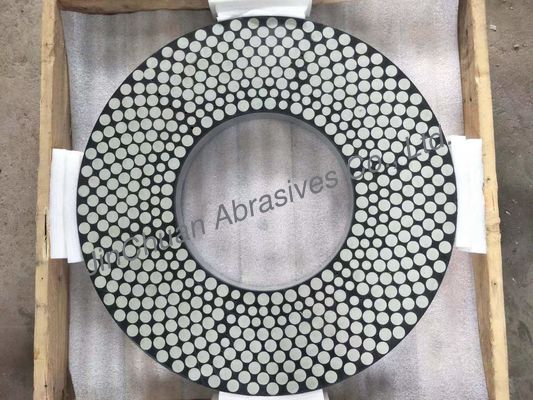

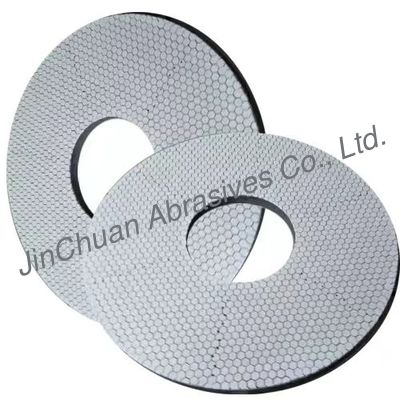

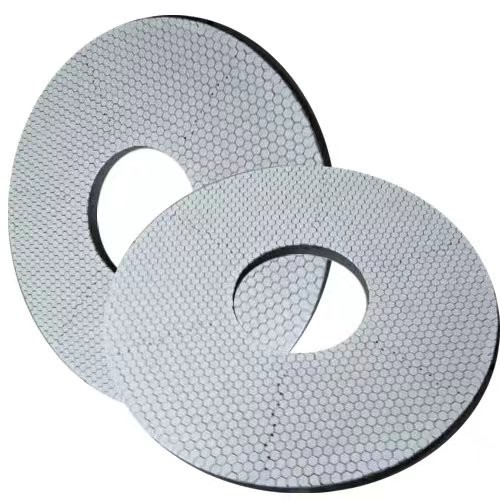

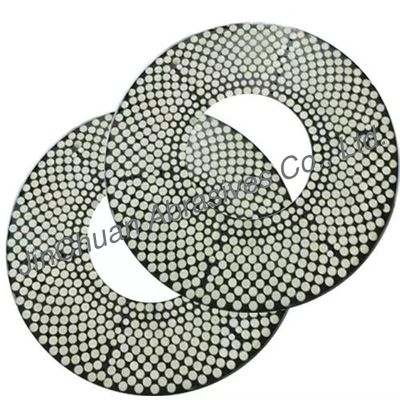

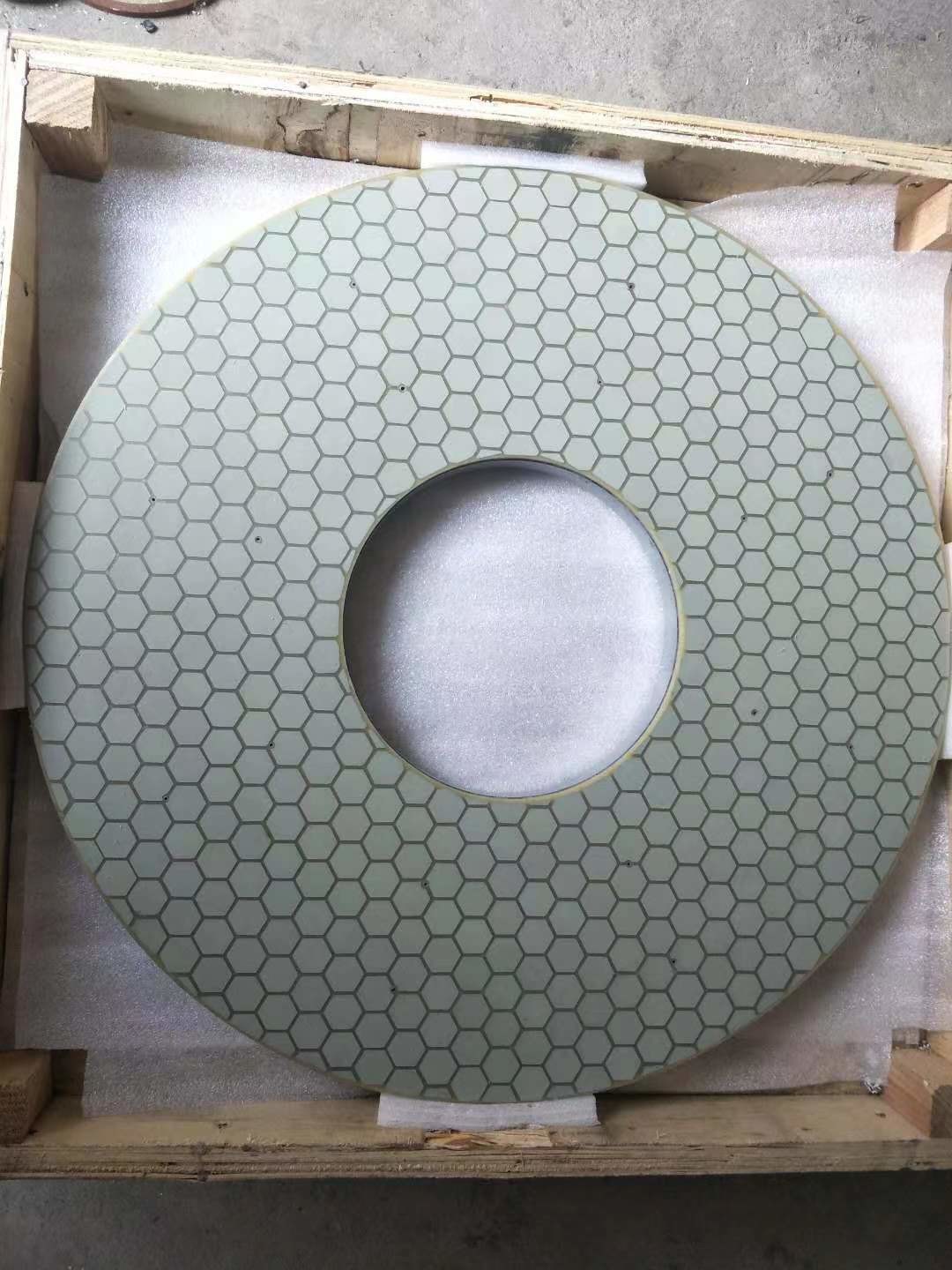

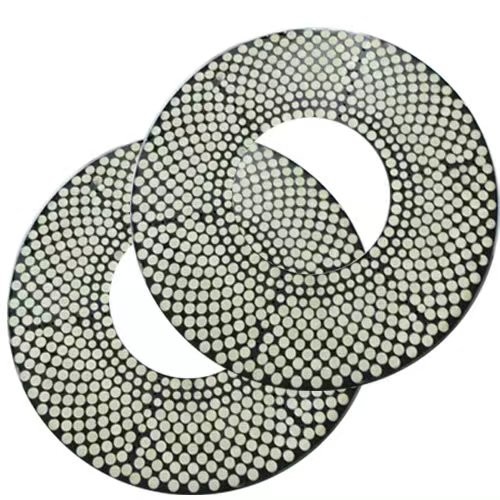

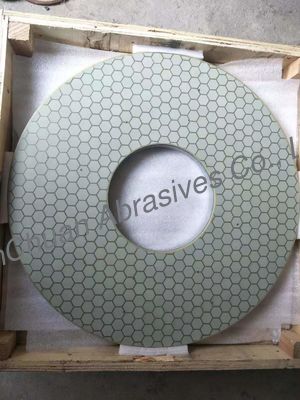

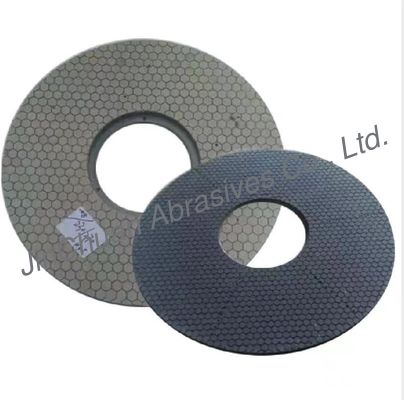

Vitrified Bond Double Disc Grinding Wheel For PCD PCBN Grinder Disc

Main Features

●Semi-fine,fine grinding process of double or single side grinding

●Requirement/Parallelism tolerence<0.003mm,flatness tolerence<0.003mm,Ra<0.05 μm

●High work piece precision,size error is 1-2μ m in single disc parts

●Low processing costclean working environment

Applications of vitrified bonded double grinding disc

Mainly used for processing key parts such as sealing components(silicon carbide,alumina ceramics,zirconia ceramics,cermets,etc.) tools(carbide,PCD,PCBN,high-speed steel,etc),ceramic valves,all kinds of powder me-tallurgy and series carbide.

Diamond grinding wheel, is suitable for grinding carbide, tungsten steel, PCBN high hardness of the workpiece ,ceramic , optical glass, sapphire glass and other nonmetal materials.

CBN grinding wheel, is suitable for high speed steel, bearing steel, tool steel, stainless steel , powder metallurgy, precision grinding mill cast iron and other hard materials.

modle	profile sketches	common size
1A2T		1A2T D*T*H*W*X
		D	250-1200
		W	10-350
		X	3-10
6A2B		6A2B D*T*H*W*X
		D	250-1200
		W	10-350
		X	3-10

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you
