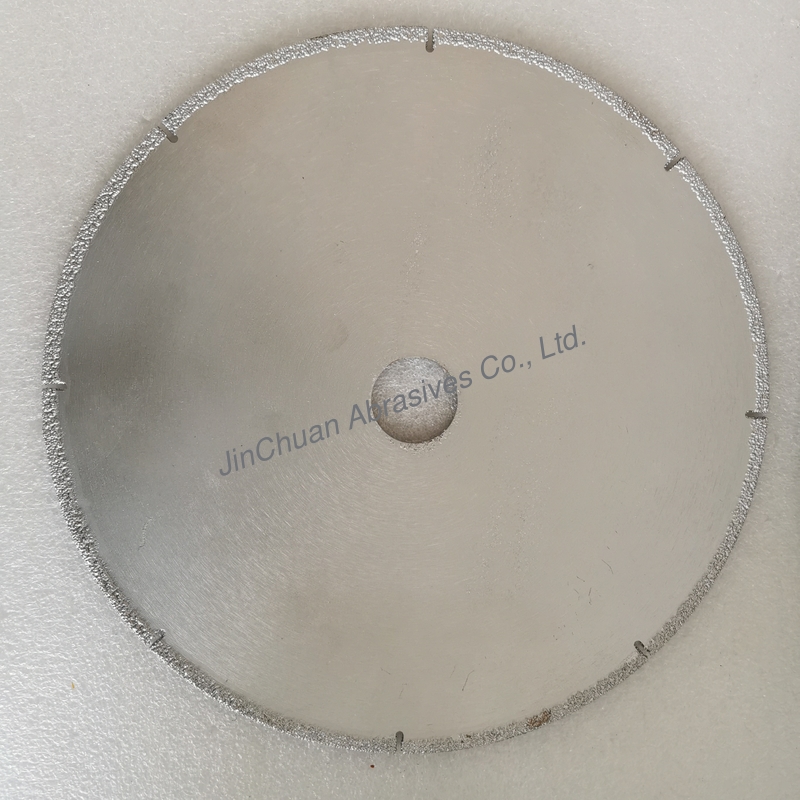

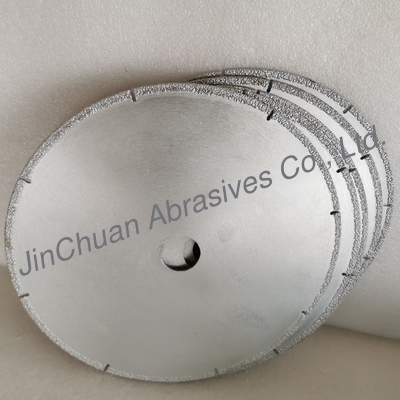

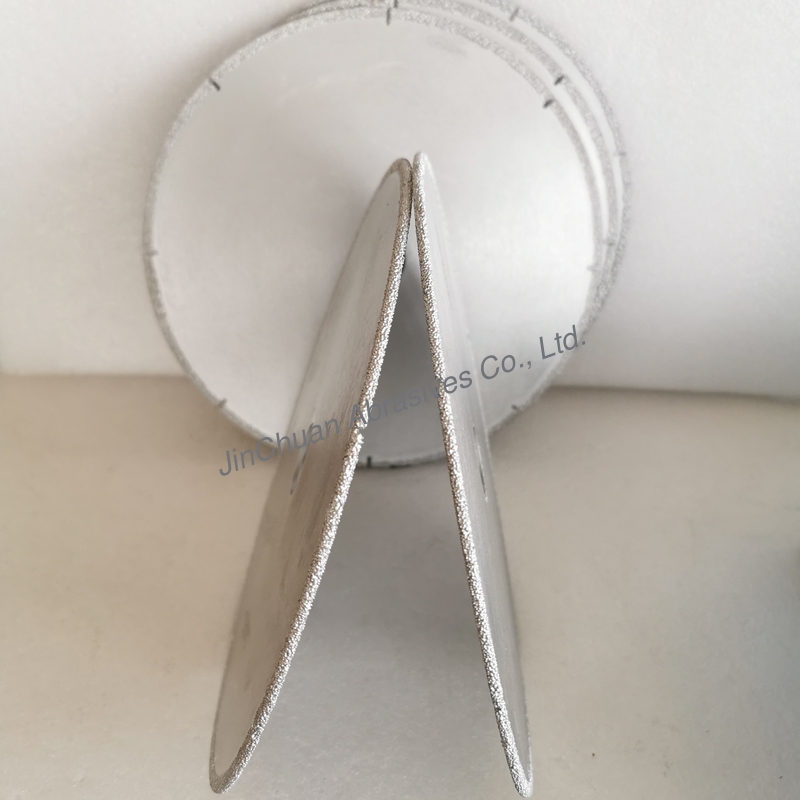

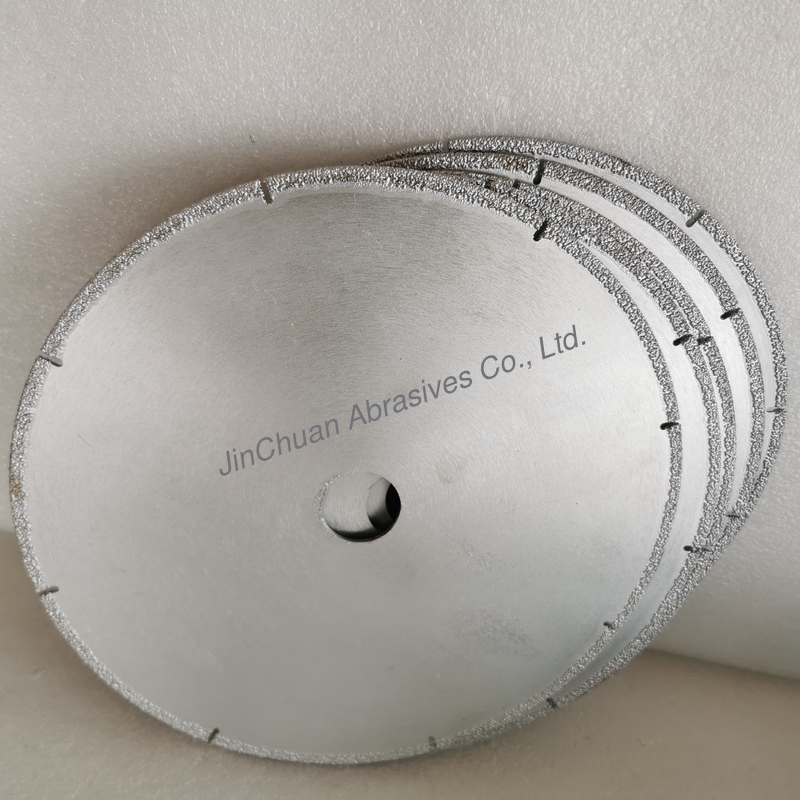

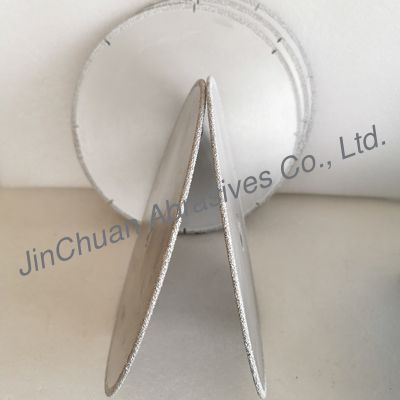

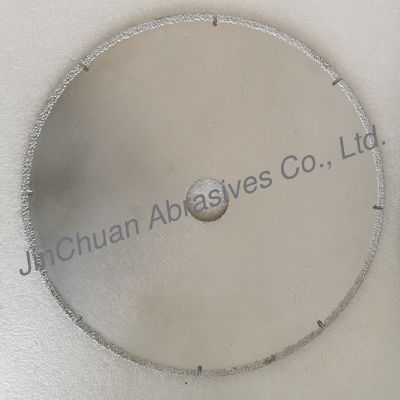

Diameter 250mm Brazed Diamond Saw Blade
Product Details
| Name: | Diamond Saw Blade | Size: | 250mm |
|---|---|---|---|
| Abrasive: | Diamond | Hardness: | High |
| Usage: | Grinding | Color: | Silver |
| Grit Size: | D25/30 | Viscosity: | As Required |
| Diamond Class: | First Class | Advantage: | High Efficient |
| Shape: | Round | Thickness: | 3.5mm |
| Application: | Grinding And Polishing | Technique: | Brazing |
| Feature: | Brazing Process | Precision: | High |
| Bond: | Metal | Inner Hole: | 32mm |
| Highlight |
250mm Diamond Saw Blade,Brazed Diamond Saw Blade,250mm Brazed Diamond Saw Blade |
||
Product Description
Diameter250mm brazed diamond saw blade product overview
Brazed diamond saw blade is a high-efficiency cutting tool that directly welds diamond abrasive grains to a metal substrate through a high-temperature brazing process. Its core advantage lies in the metallurgical bonding of diamond and substrate. Compared with traditional sintering or electroplating processes, it has higher bonding strength and longer service life, and is suitable for high-load, high-precision cutting needs.
Specification
| diameter | inner bore | thickness | Abrasive width |
granularity |
| 250mm | 32mm | 3.5mm | 5mm | D25/D30 |
Of course, if you need other sizes, we can customize them according to your drawings.
Core advantages:
1. Brazing process vs. traditional process (sintering/electroplating)
2. Bonding strength up to 300 MPa (electroplating only 50-100 MPa)
3. Diamond utilization rate Single-layer abrasive, 100% exposed, no binder wrapping
4. Heat resistance can withstand high temperatures above 800℃, no risk of threshing
5. Cutting life is extended by 3-5 times
6. Strong environmental protection, no electroplating pollution, and the brazing material is recyclable
Application
Straight-line cutting and special-shaped processing of granite and marble slabs.
Efficient and non-destructive cutting of reinforced concrete and asphalt pavement.
Precision cutting of zirconia and silicon carbide ceramic parts (edge chipping <0.1 mm).
Squaring of silicon ingots and sapphire substrate slicing.
High-precision cutting of CFRP (carbon fiber composite material) components.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
