Factory Diamond Wire Rope Saw For Marble Granite Bridge Stone Diamond Wire Saw Rope Cutting

Factory Diamond Wire Rope Saw For Marble Granite Bridge Stone Diamond Wire Saw Rope Cutting

  • High Light

    Marble Bridge Stone Diamond Wire Saw

    ,

    Granite Bridge Stone Diamond Wire Saw

  • Place of Origin
    China
  • Brand Name
    JC
  • Minimum Order Quantity
    50meters
  • Packaging Details
    carton box
  • Payment Terms
    T/T, Western Union, MoneyGram

Factory Diamond Wire Rope Saw For Marble Granite Bridge Stone Diamond Wire Saw Rope Cutting

Factory Diamond Wire Rope Saw For Marble Granite Bridge Stone Diamond Wire Saw Rope Cutting

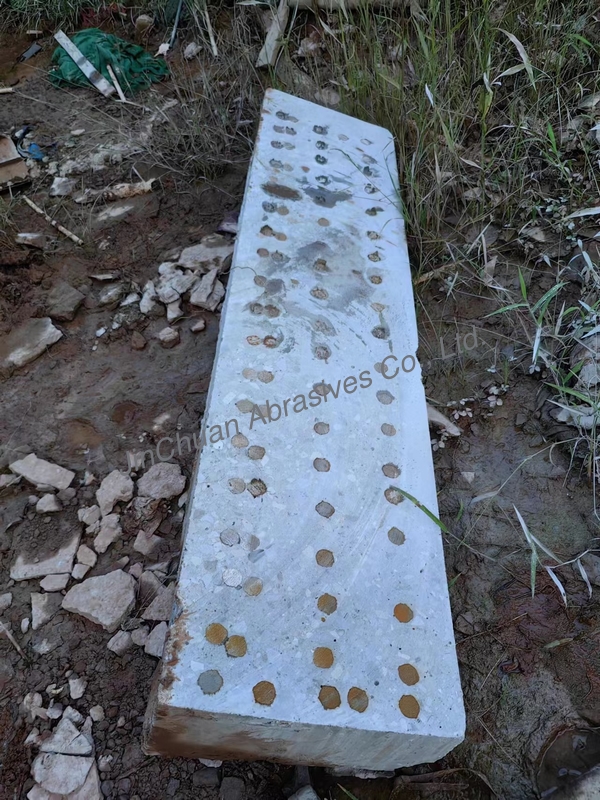

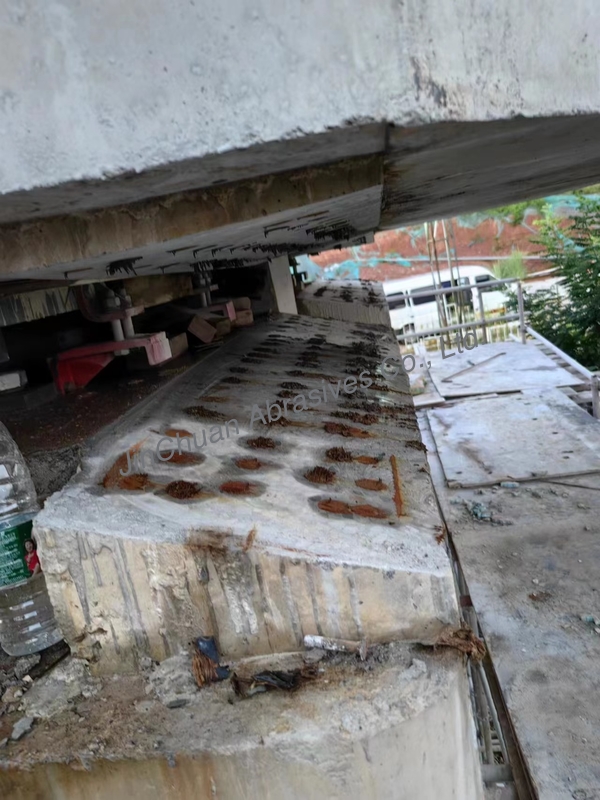

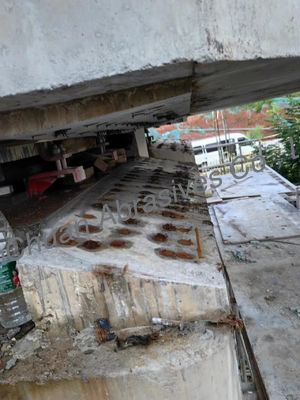

Diamond wire saw is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.



Diamond Saw Wire Rope Features:


By adopting latest technology and strong steel cable imported from Europe, our wire saw will present to you a safe, smooth and super cutting performance with fast speed and good life-span.
1) Diamond Wire Saw is one of the most advanced tools for quarrying,block squaring & profiling and concrete cutting.
2) Compared with traditional way,quarrying by diamond (coated) wire has the advantages of high efficiency,less waste of material,safety,low noice,etc.
3) Factory with more than 10 years experience in diamond tool industry
A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets, product quality has been recognized by overseas customers.
More than 100 sets hot-press, colde-press, wire saw machine and over 300 employees keet the high output and fast delivery time.





Diamond Wire Saw Main Information

1. Wire saw for cutting

Specification Coating Beads Cutting material Line speed Cutting speed Life

Φ11.5 mm

Φ11.0 mm

Φ10.5 mm

Rubber+Spring 40/meter Normally reinforced 20-30 m/s 2-5 m2/h 3-8 m2/m
Strengthening reinforced 20-25 m/s 1-2 m2/h 1-3 m2/m
Steels or metal structure 20-25 m/s 0.5-1.5 m2/h 0.5-1.5 m2/m



2. Wire saw for Granite quarrying



Specification Coating Beads Cutting material Line speed Cutting speed Life

Φ11.5 mm

Φ11.0 mm



Rubber/ Rubber Spring 40/meter Class 2-3 30-35 m/s 15-30 m2/h 20-35 m2/m
Class 3-4 25-30 m/s 10-25 m2/h 20-30 m2/m
Class4-6 20-25 m/s 3-10 m2/h 6-15 m2/m



Beads working layer height: 6.4MM; Support length:11.0MM
