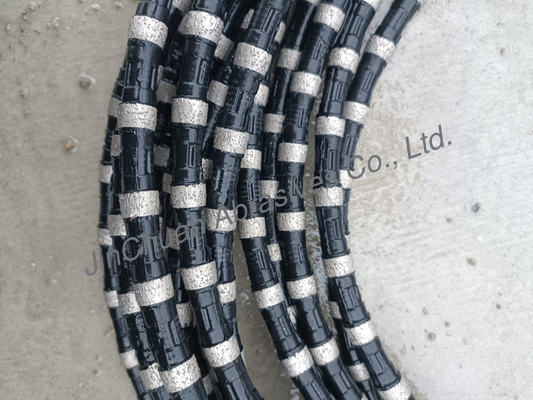

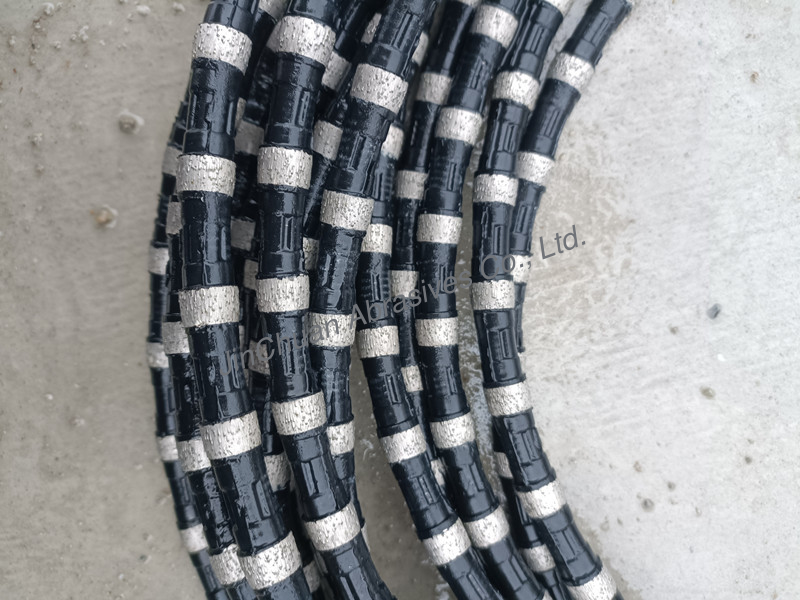

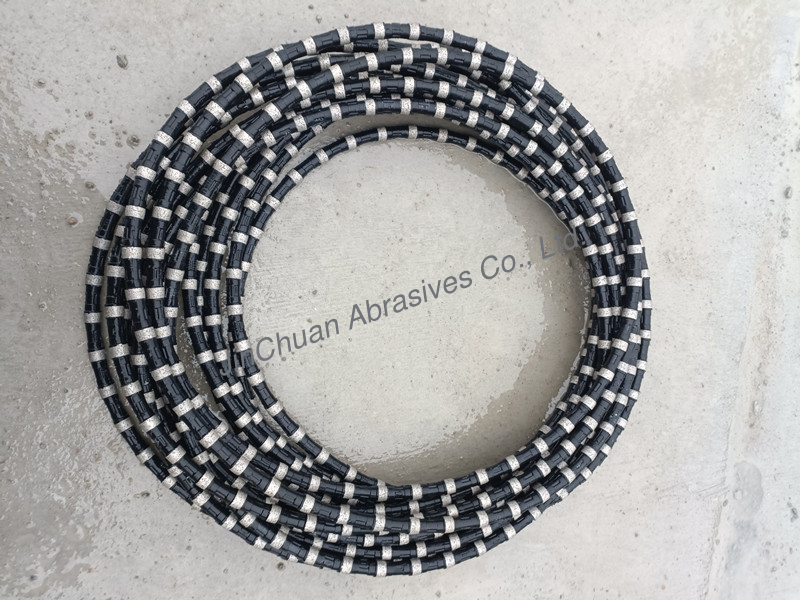

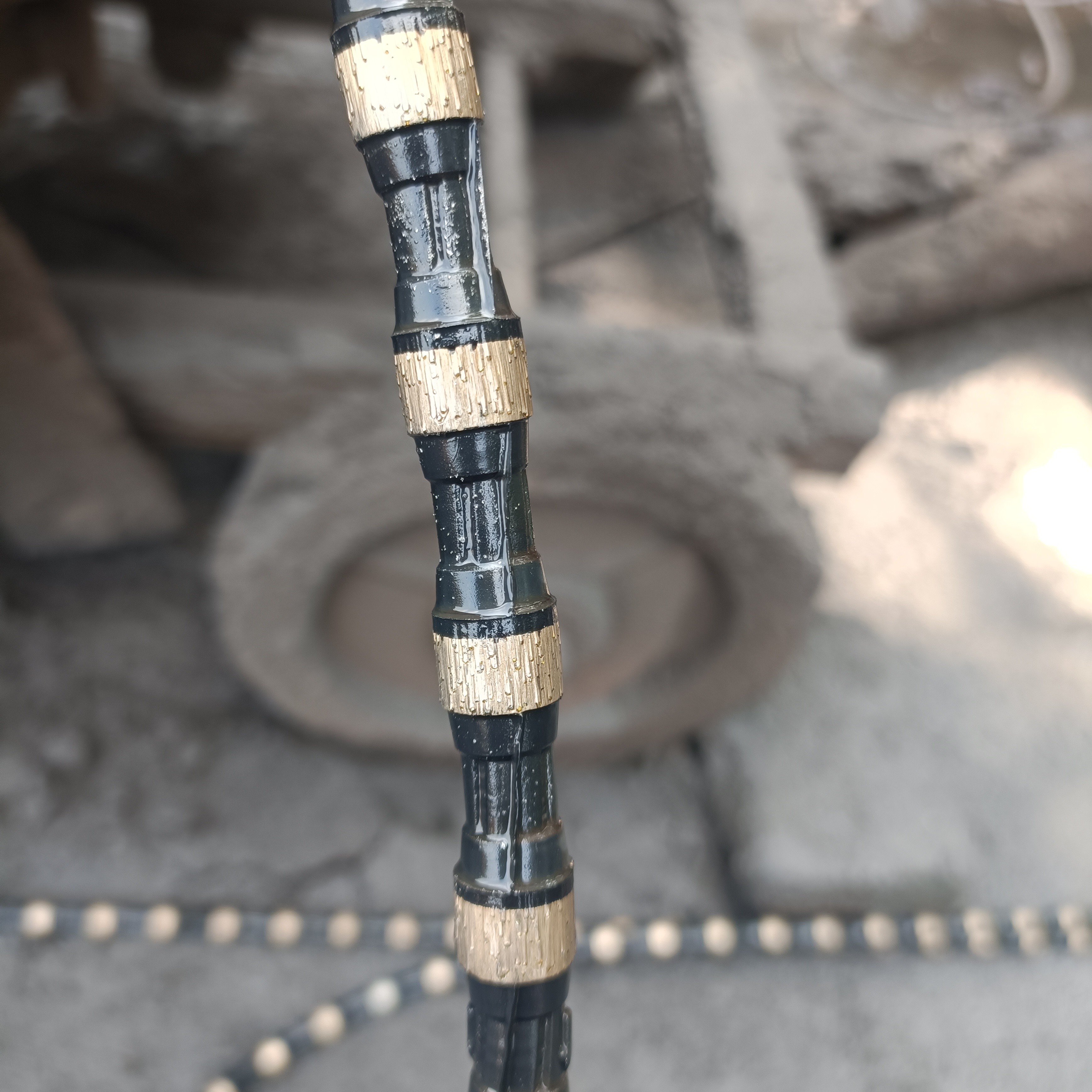

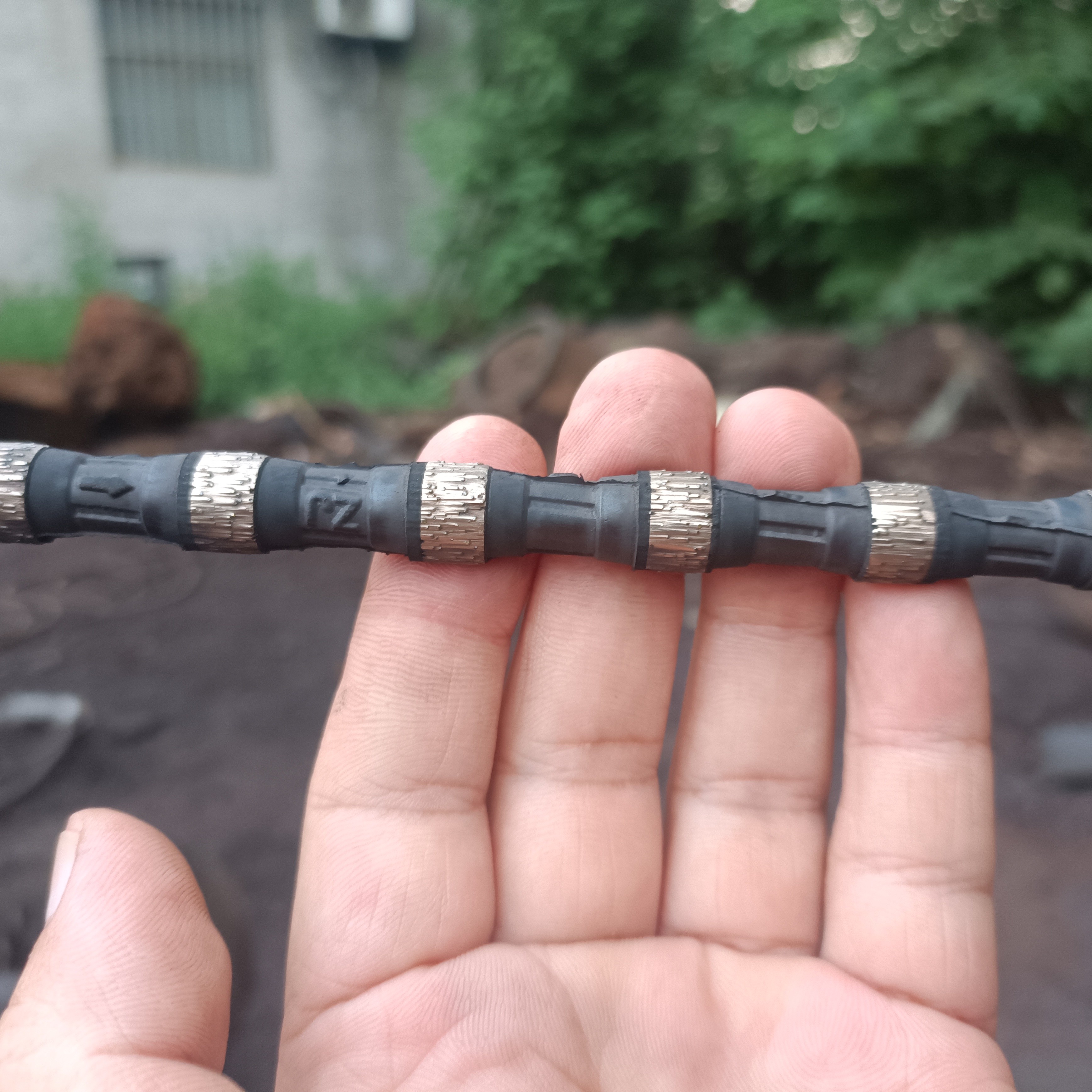

Description of Diamond Wire Saw
Type: Wire saw machine tool parts
Raw material: Diamond
Application: profiling
Reinforcement: Plastic
Other name: diamond wire rope, diamond rope saw
Main Advantages:
High effection, low cost, low waste
Cutting smooth and process accurate
Safe and environmental protection
Can cut a big and regular stock
Factory with more than 15 years experience in diamond tool industry
A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets,
product quality has been recognized by overseas customers.
More than 100 sets hot-press, colde-press, wire saw machine and over 300 employees keet the high output and fast delivery time.
Diamond Wire Saw Main Information
1. Wire saw for reinforced concrete cutting| Specification | Coating | Beads | Cutting material | Line speed | Cutting speed | Life |
|
Φ11.5 mm Φ11.0 mm Φ10.5 mm |
Rubber+Spring | 40/meter | Normally reinforced | 20-30 m/s | 2-5 m2/h | 3-8 m2/m |
| Strengthening reinforced | 20-25 m/s | 1-2 m2/h | 1-3 m2/m | |||
| Steels or metal structure | 20-25 m/s | 0.5-1.5 m2/h | 0.5-1.5 m2/m |
2. Wire saw for Granite quarrying
| Specification | Coating | Beads | Cutting material | Line speed | Cutting speed | Life |
|
Φ11.5 mm Φ11.0 mm
|
Rubber/ Rubber Spring | 40/meter | Class 2-3 | 30-35 m/s | 15-30 m2/h | 20-35 m2/m |
| Class 3-4 | 25-30 m/s | 10-25 m2/h | 20-30 m2/m | |||
| Class4-6 | 20-25 m/s | 3-10 m2/h | 6-15 m2/m |
Beads working layer height: 6.4MM; Support length:11.0MM
3. Wire saw for granite profiling
|
Bead diameter (MM) |
Bead/Meter | Application | Coating | Cutting material |
Wire speed (m/s) |
Cutting speed (m2/h) |
Cutting life (m2/m) |
| 8.8/9.0 | 37 | Granite profiling | High strength plastic | Class 2-3 | 30-33 | 0.8-1.5 | 9-20 |
| 8.2 | 37 | Class 3-4 | 28-32 | 0.5-0.9 | 6-10 | ||
| Class 4-5 | 25-32 | 0.3-0.6 | 3-8 | ||||
Our products are sold all over the world, you can rest assured.
