Home /Products/CBN Diamond Wheel/B151 Electroplated CBN Grinding Diamond Wheel 203.2 22.23 32 WM1030

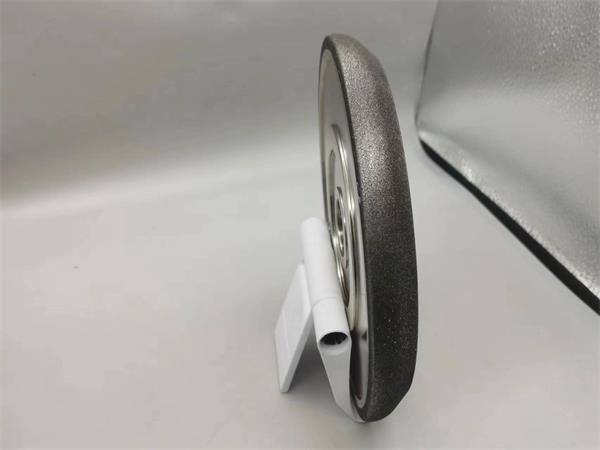

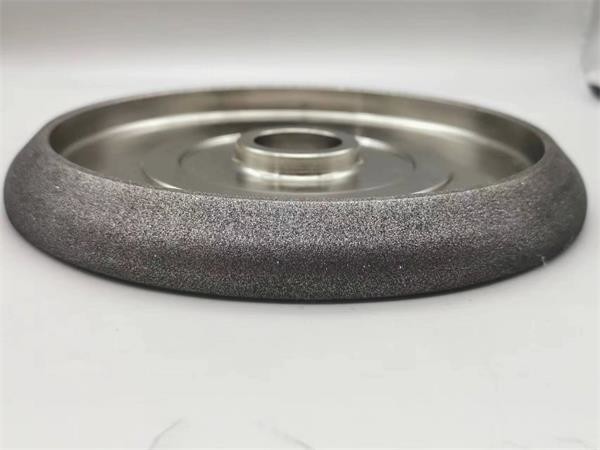

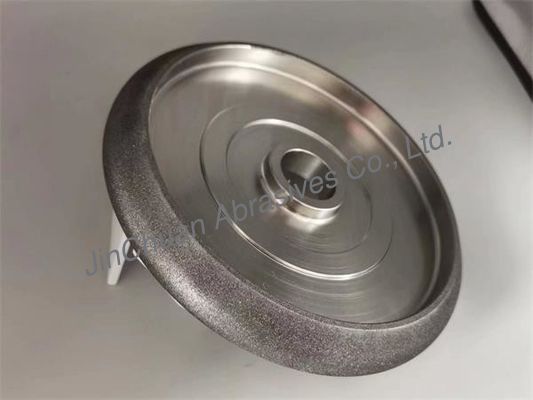

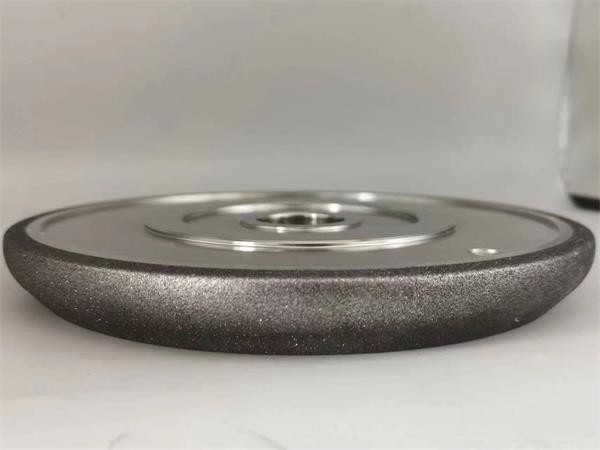

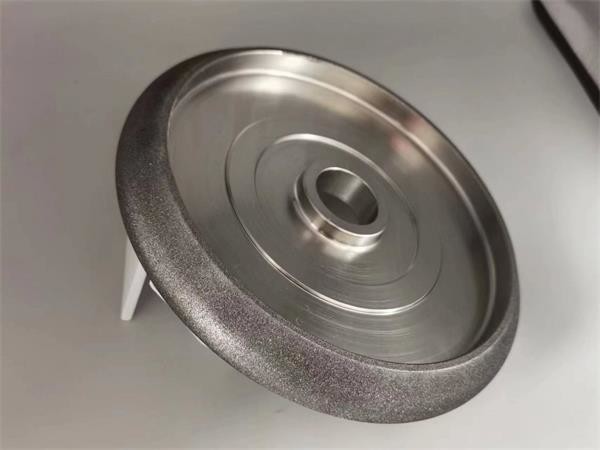

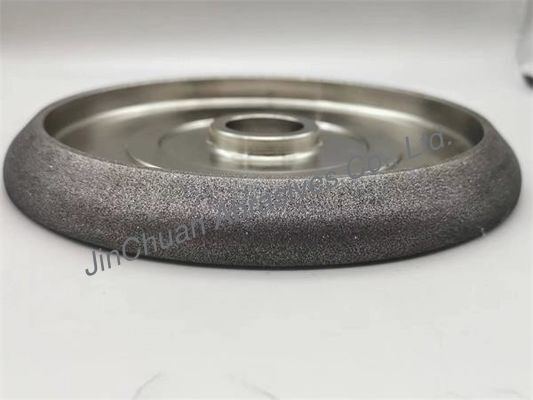

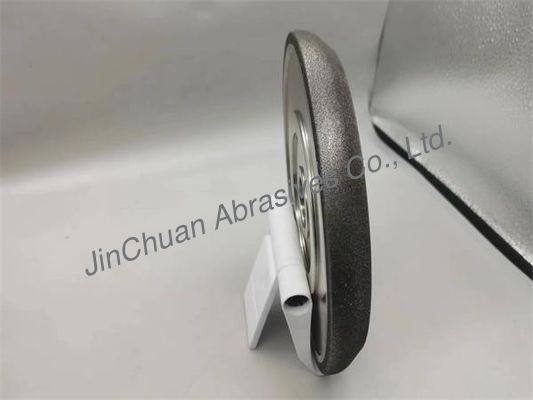

B151 Electroplated CBN Grinding Diamond Wheel 203.2 22.23 32 WM1030

1 piece
MOQ
B151 Electroplated CBN Grinding Diamond Wheel 203.2 22.23 32 WM1030
Features Gallery Product Description Request A Quote
Features
Specifications
Bonding Agent: Electroplated
Abrasive: CBN
Shape: Customized
Viscosity: As Required
Grit: B151
Highlight:

B151 Electroplated CBN Diamond Wheel

,

WM 1030 CBN Diamond Wheel

,

Electroplated CBN Grinding Diamond Wheel
Basic Infomation
Place of Origin: China
Brand Name: JC
Certification: ISO9001:2015,ISOCE16949
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-8days
Product Description

8 Inch CBN Grinding Wheels For Band Saw Sharpening W/M10/30 B151

Description:

Electroplated CBN grinding wheels are used for sharpening high-alloy bandsaw.

CBN grinding wheels are commonly used to process band saws brands, including

Wood-Mizer, Timberwolf, Simonds, Kasco, Morse, Lenox, Dakin Flathers/Ripper 37 and others

Specification:

* 10/30 - mostly used universal grinding wheel profile

* 9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood

* 13/29 - wheel profile which prepares band saws for soft wood cutting

* 4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting

* 7/34 the CBN wheels profile is recommended for hardwood

Drawing:

The drawing of CBN grinding wheels (galvanic wheels) for band saw blades

cbn wheels for bandsaw sharpening_副本.jpg

Size:

Outer diameter Inner hole diameter
inch mm inch mm
5 127 1/ 2 12.7
6 150 25/32 20
8 203 1, 1 1/4 25.4, 32

Special size can be produce according to the band saw profile.





B151 Electroplated CBN Grinding Diamond Wheel 203.2 22.23 32 WM1030 1B151 Electroplated CBN Grinding Diamond Wheel 203.2 22.23 32 WM1030 2

Tag:

cbn diamond grinding wheels

diamond and cbn grinding wheels

cubic boron nitride grinding wheels
