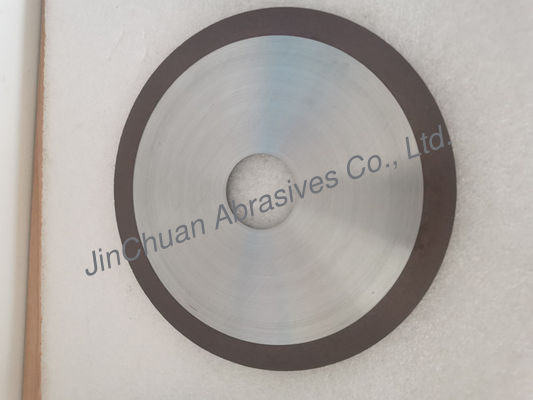

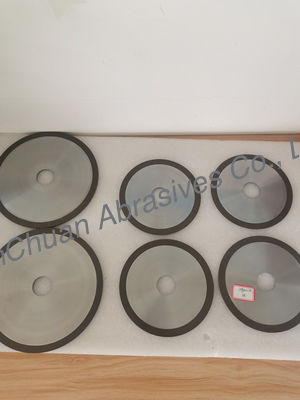

Resin Bond Diamond CBN Cutting Wheel For Carbide Tungsten Magnetic Glass Quartz
Product Details
| Resin Cbn Wheel Size: | 150*1.5*32*10 Mm | Grinding Wheel Shape: | Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc |
|---|---|---|---|
| Abrasive: | Diamond/CBN | Bonding Agent: | Metal,Resin,Ceramic,Resin Or Ceramic,A |
| Grit Size: | Any Mesh You Need | Bond: | Resin/metal |
| Packing: | Box And Cartons, With Plastic Bags | Usage: | Grinding,sharpening,high Speed Steel Slotting,fluting,grooving |
| Highlight |
Resin Bond CBN Cutting Wheel,CBN Cutting Wheel For Carbide,1A1 Diamond CBN Cutting Wheel |
||
Product Description
Resin Bond Diamond CBN Cutting Wheel For Carbide Tungsten Magnetic Glass Quartz Grinding Wheel
Main information Of resin metal bond diamond cutting wheel CBN grinding Wheels
Diamond and CBN cutting wheels are mainly used for cutting quartz, glass, LED, cemented carbide, composite materials, ceramics, high-speed steel, alloy steel and other materials. There are two kinds of resin and metal bond.
| Name: | Resin Bond Diamond CBN Cutting Wheel For Carbide Tungsten Magnetic Glass Quartz Grinding Wheel |
| Application | cutting quartz, glass, LED, cemented carbide, composite materials, ceramics, high-speed steel, alloy steel and other materials. |
| Characteristics of diamond cutting wheels: suitable for processing non-metallic materials and non-ferrous metal materials; | |
| CBN cutting wheel features: Suitable for cutting of ferrous metal materials, alloy materials and composite materials; | |
| Resin bond characteristics: sharp cutting, high efficiency | |
| The characteristics of metal bond cutting wheels: high strength, good rigidity and long service life. | |
Main Features
1. Good self-sharpen and perfect cutting surface quality
2. Narrow cutting kerfs for Cost saving
3. Sharp-edged high efficiency
4. Good rigidity high strength and long life span
5. Thickness is 0.2 ~ 3.0mm
6. Diameter range is 50~400mm
FAQ:
1. Do you supply technical supports?
Yes, we supply the following technical supports for our customers:
1) Free design for your products
2) Free drawing can be supplied for the designation
3) Recommend wheel bonding, grit size and concentrations for your apllication
2. How do you ship your products?
Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.
NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
