B213 Grit Cbn Diamond Grinding Wheels Diamond Grinding Disc 20mm Thickness

B213 Grit Cbn Diamond Grinding Wheels Diamond Grinding Disc 20mm Thickness

  • Highlight

    cbn diamond grinding wheels

    ,

    diamond and cbn grinding wheels

  • Grit
    B213
  • Carten Colour
    Purple
  • Colour
    Black
  • Material
    CBN
  • Size
    90mm
  • Inner Hole
    20mm
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    212353
  • Minimum Order Quantity
    5
  • Price
    Negotiable
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    1000/month

B213 Grit Cbn Diamond Grinding Wheels Diamond Grinding Disc 20mm Thickness

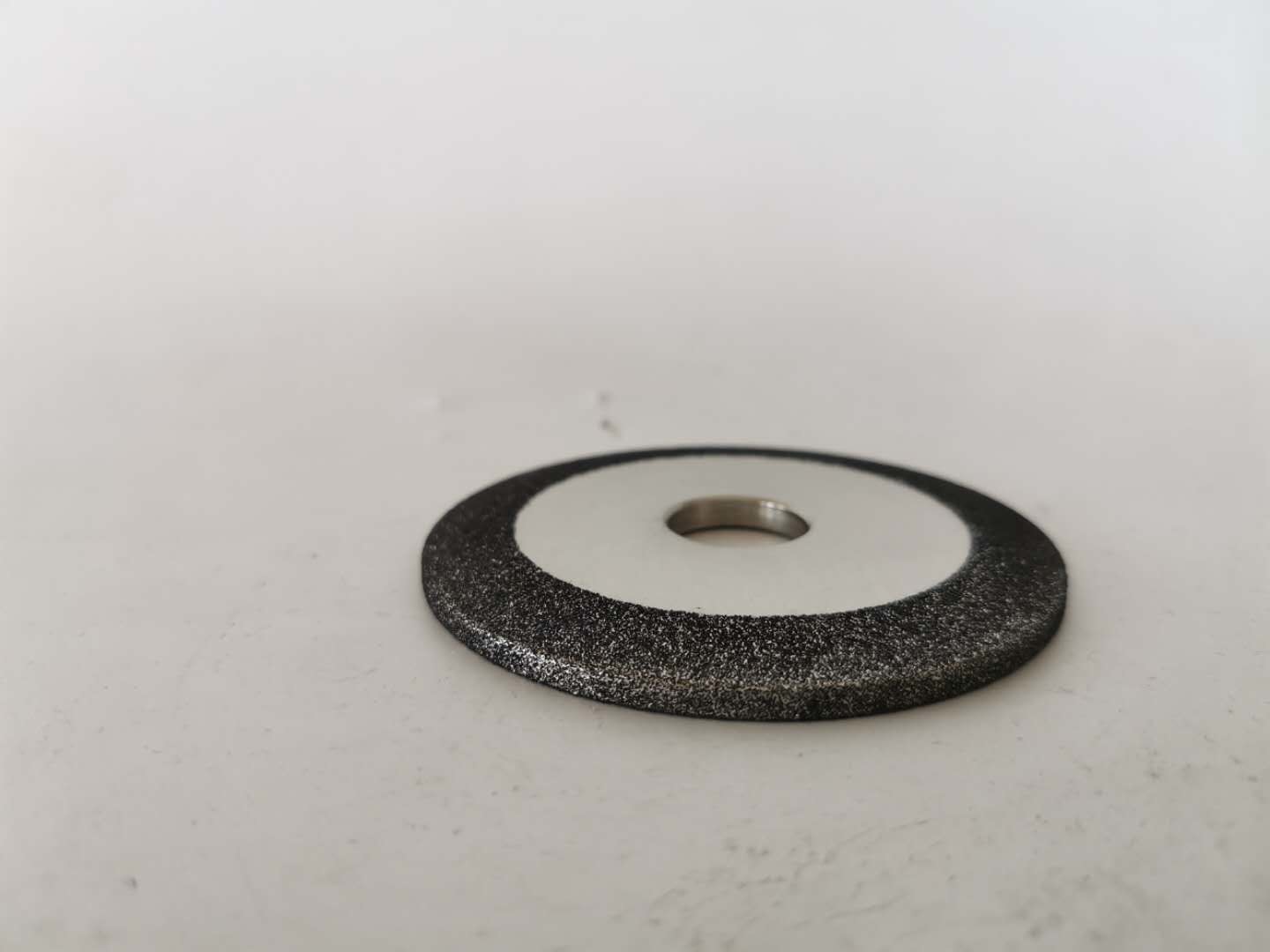

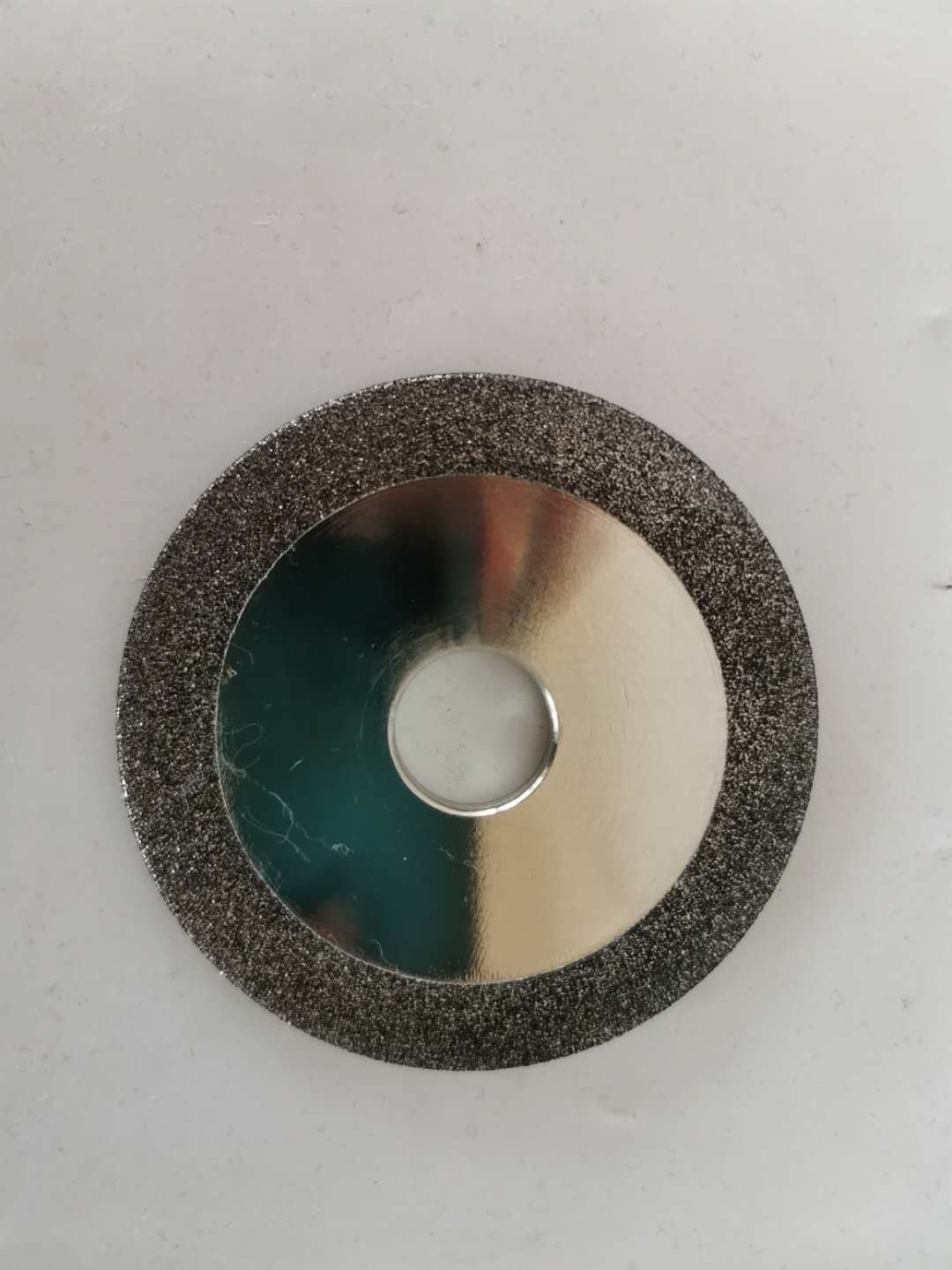

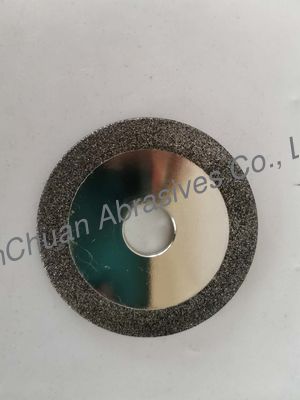

1Y1-Ø90-T6-H20H7 electroplated CBN grinding wheel B213-2, V=80°/ W2°/ R=1,0, L=4, double layer, galvanic bonding



CBN Sharpening Wheels



CBN SHARPENING WHEELS



Description



CBN or Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years. They are designed for sharpening wood band saw only and should not be used for other applications. if u are in need of woodmizer 7/39.5, we can send to u immediately now.



Specification



Size Inside Diameter Thickness Inner Hole Grit Size
3.5inch 90mm 20mm 20mm

B213





Advantage



We can make thousands of wheels one month, Angle 7/39.5,we have in stock every day, so we can send to u at once now.



Benefit



1) These wheels are designed for wood band saw sharpeneing grinding machine .

2) perfect for sharpening wood band saw .

3) provides a superior edge compared to the traditional SIC or AL2O3 grinding wheels .

4) These wheels have been make balanced in our factory .

5) During the working experiences, our CBN grinding wheels does not require "truing" .
