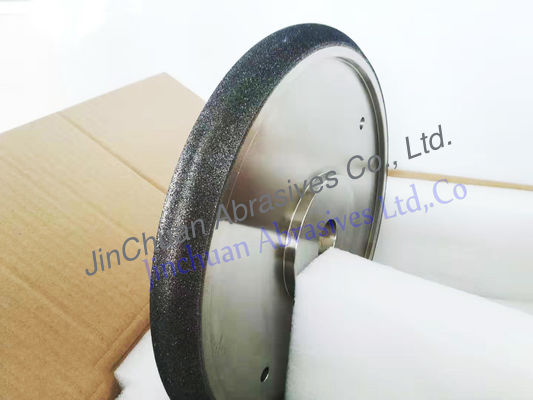

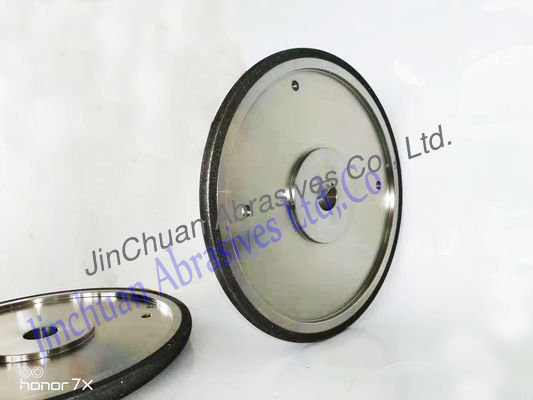

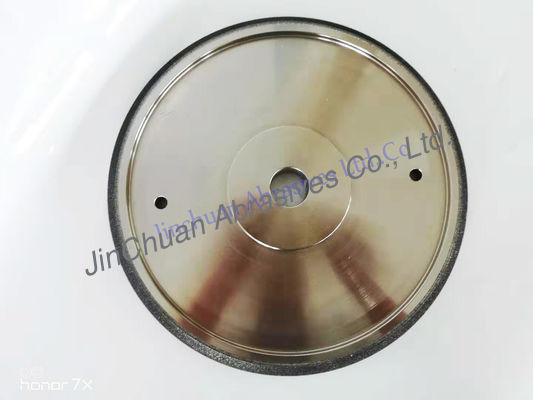

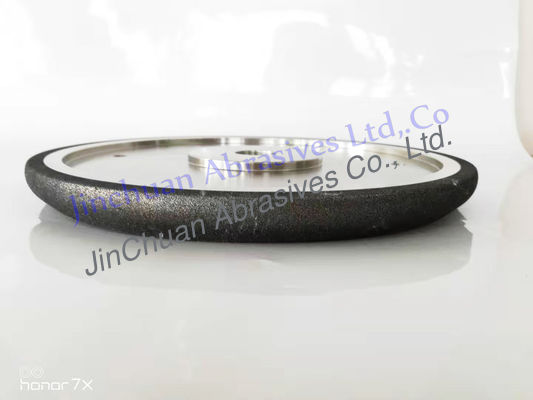

Customized 12 Inch Electroplated CBN Diamond Wheel With Two Locating Hole For Band Saw Sharpening
Product Details
| Material: | CBN | Size: | 12 Inch |
|---|---|---|---|
| Diameter: | 305mm | Inner Hole: | 12.7mm |
| Grit: | B151 | Type: | Sharpening Machine |
| Highlight |
cbn diamond grinding wheels,diamond and cbn grinding wheels |
||
Product Description
Super efficient customized 12 inch Electroplated CBN grinding wheel
| Inch | 12" |
| Diameter | 305 |
| Abrasive | CBN |
| Bond | electroplated |
| Girt | B151 |
| Hole | 12.7mm |
| Thickness | 22.23 |
| package | Purple Carton Box |
| Used | bandsaw sharpening |
| Leadtime | 15workdays |
| Delivery | By express |
High quality super hard abrasive material, good grinding strength, can be used for high precision workpiece grinding, with high speed grinding, low manufacturing cost, environmental protection and other characteristics, with the continuous improvement of grinding technology and grinding cost control requirements, grinding wheels with electroplating adhesive coating are increasingly used in high-yielding grinding operations.The application prospect of electroplating super hard abrasive is more and more extensive.
We can provide customized services and provide methods that are difficult to process in other ways.Can be used for special complex profile, ultra-thin, especially small and other shape grinding, strict requirements for geometric shape and size, professional technical team can provide you with quality and effective solutions.
This grinding wheel is designed for large tooth grinding machine. especially for band saw sharpening ,The tooth shape is designed according to the sawtooth Angle, the matrix shape and positioning hole are designed according to the requirements of the machine, so as to achieve the stable super efficient grinding performance and shorten the working time.Mainly used in large sawmills, and grinding teeth demand large factories, to provide a short time for its efficient grinding artifact!
Feature
1. Long service life and stable performance
2. Good sharpening effect and high efficiency
3. Our factory price is more competitive
4. Produce various specifications according your needs
5. According to customer's any packing/and print your alogo
6. Deliver on time
7. Accept small orders
8. Shiped by express,such as DHL/Fedex/TNT
We can provide:
| Diameter | Woodmizer (hook angle/ relief angle) | Tooth Space |
| 5"/6"/8" | 10/30 | 1/2" |
| 7/8" | ||
| 3/4" | ||
| 1-1/8" | ||
| 1" | ||
| 13/29 | 7/8" | |
| 1-1/8" | ||
| 12/28 | 5/8" | |
| 4/32 | 7/8" | |
| 7/34 | 7/8" | |
| 1-1/8" | ||
| 7/39.5( T7) | 7/8" | |
| 1-1/4" | ||
| 9/29 | 7/8" |
* 10/30 Common universal wheel profile
* 9/29 CBN sharpening wheel for the band saw that is suitable for winter cutting, or cut hardwood
* 13/29 CBN sharpening wheel for the band saw that is suitable for softwood cutting
* 4/32 CBN sharpening wheel for the band saw that is suitable for very frozen and hard wood cutting
* 7/34 CBN sharpening wheel for the band saw that is suitable for hardwood
we can provide customized service, can produce wheels according your need, looking forward to your inquiry!
any need pls contact us freely!
