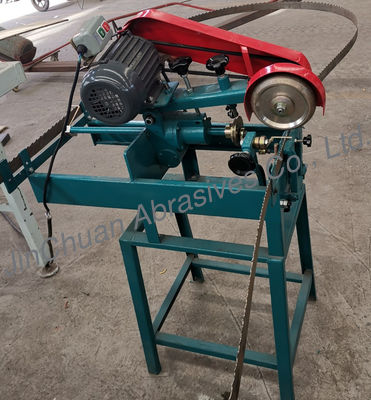

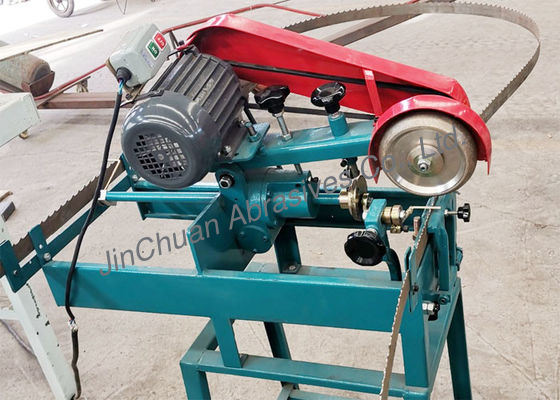

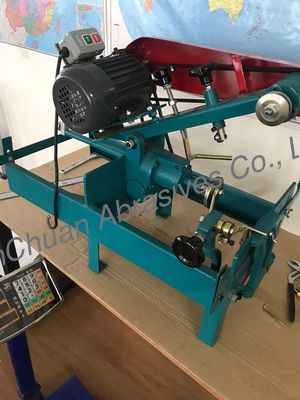

Band Saw Blades Sharpener for Woodworking
Technical parameter
| Specification’s Items | MR111 |
| Saw blade(Max) | 20-50mm |
| Total motor power | 0.31kw |
| Total weight(standard model) | 80 KG |
| Grinding wheels | CBN 5" 12.7*22.23mm |
| Voltage | 380V |
Used :
Mainly used for grinding band saw blade, make the machine work more smoothly, help you save cost, increase profit

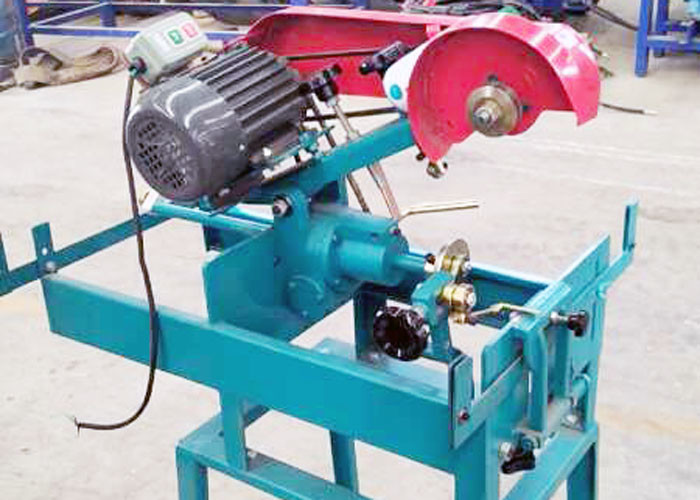

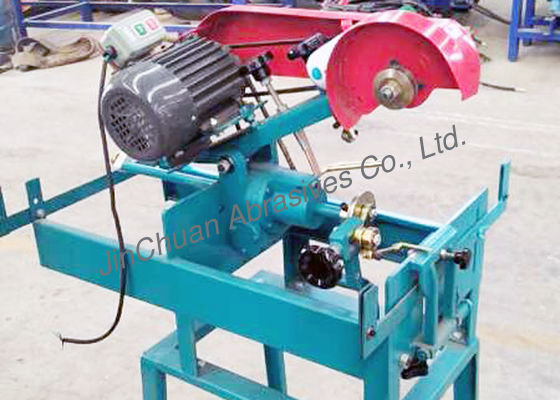

Main structure and use of the machine

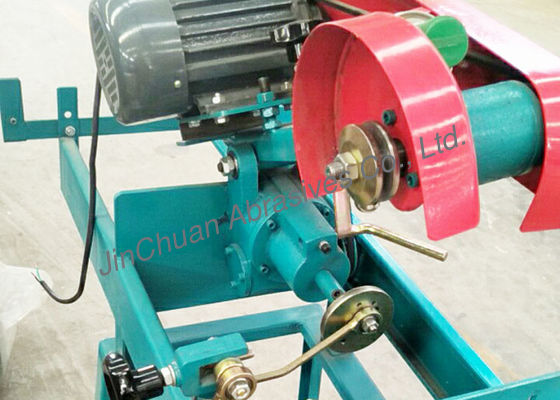

1, grinding head: composed of improved grinding wheel, is the main component of grinding teeth.
2, saw blade putter: divided into two parts, is the main part of pushing the blade forward.
3, saw blade bracket: there are front and rear points, can support the saw blade, stable.
4, pitch adjustment screw: is the auxiliary adjustment part of the pitch.
5, pitch trimming handle: is the auxiliary adjustment part of the pitch.
6, idle stop handle: can support the rocker arm, so that the grinding head does not grind, has an auxiliary effect.
7, grinding the main adjustment handle: located on the main beam arm, there is a rolling bearing, is the grinding depth, the main part is the adjustment of the angle of the grinding head.
8. Grinding auxiliary handle: It is an auxiliary part for grinding depth adjustment.
9, the main beam arm: is the main skeleton connecting the body and the grinding head, it has a motor seat, a grinding adjustment handle and other components.
10. Tweezers: It has the function of clamping the saw blade so that the saw blade does not swing during the grinding process.
11, saw blade lifting adjustment handle: is the main part of the blade lift adjustment
