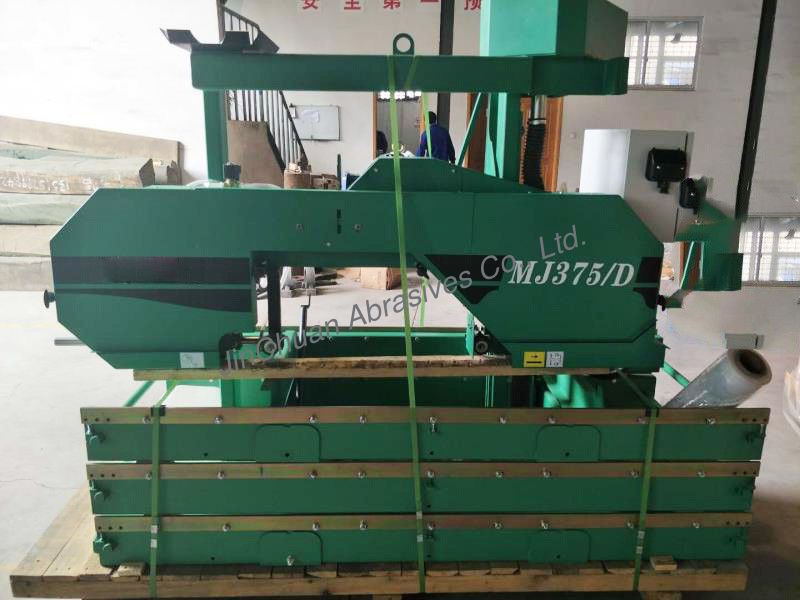

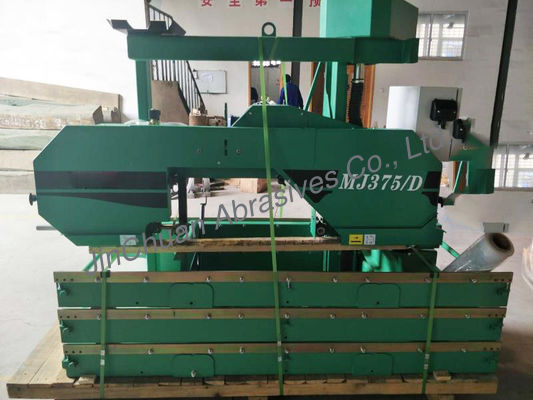

MF375/D Electric Type Automatic Horizontal Band Sawmill For Wood Cutting High Working Efficiency Fast Delivery
Product Details
| Style: | Horizontal | Use: | Woodworking |
|---|---|---|---|
| Total Weight: | 800kg | Track Length: | 6000mm |
| Maximum Cutting Length: | 5200mm | Total Output Power: | 10.1kw |
| Highlight |
cbn diamond grinding wheels,diamond and cbn grinding wheels |
||
Product Description
MF375/D Electric Type Automatic Horizontal Band Saw Machine/Sawmil For Wood Cutting
Technical Parameter
| Product Model | Electric-62 |
| Maximum Wood Diameter | 620mm |
| Saw Wheel Diameter | 473mm |
| Maximum Cutting Height | 620mm |
| Maximum Cutting Width | 620mm |
| Blade Speed: Standard For Common Wood | 780r/min |
| Maximum Cutting Length | 5200mm |
| Total Outout Power of Motor | 10.1kw |
| Main Cutting Motor Power | 9kw(380V,50Hz,3phase) |
| Lifting Motor Power | 0.55kw |
| Forward and Reverse Motor Power | 0.55kw |
| Cutting Forward Speed | 0-15m/min |
| Cutting Reverse Speed | 17m/min |
| Blade Dimensions | 4005*34*1.05mm |
| Track Length | 6000mm |
| Overall Dimensions | 7200*2000*2000mm |
| Packing Size | 2200*950*2100mm |
| Total Weight(Standard) | 8000kg |
JC375 / D horizontal band sawing machine has installed the operation is simple, energy saving, accurate, high security, high production efficiency, etc, is very welcome by customers in Africa and South America, the machine is driven by motor engines are widely used in the primeval forest region of wood processing enterprises, nearly 20 countries export, received in Africa, South America and eastern Europe and other countries of the customer the consistent high praise.
Advantages
1. the clamping device adopts a manual screw clamp for pneumatic automatic clamping, which solves the defect of manual clamping wire loosening, and maintains a large plate during the last cutting, which improves the reliability and safety of the fixture for wood processing The clamping process can be completed in one time.
2. has a frame adjustment device, which is convenient for adjusting the frame rails, flexible disassembly and installation, greatly reducing the user's requirements for ground upgrade, not only improving production efficiency, but also optimizing. Product structure, making user operation more convenient and practical, achieving a win-win goal
Performance and Features
1. The machine has the characteristics of fast cutting speed, fast cutting speed and good finished product quality. The product greatly reduces the loss of sawdust.
2. Simple installation, convenient operation, labor saving and high productivity.
3. Simple, safe and environmentally friendly;
4. Wood thickness is automatically controlled with high precision.
5. High cutting efficiency and smoothness; high flatness of cutting board;
6, the thickness of processed wood can be adjusted according to your needs
7. No need for professional saws, ordinary workers can also skillfully operate this machine.
