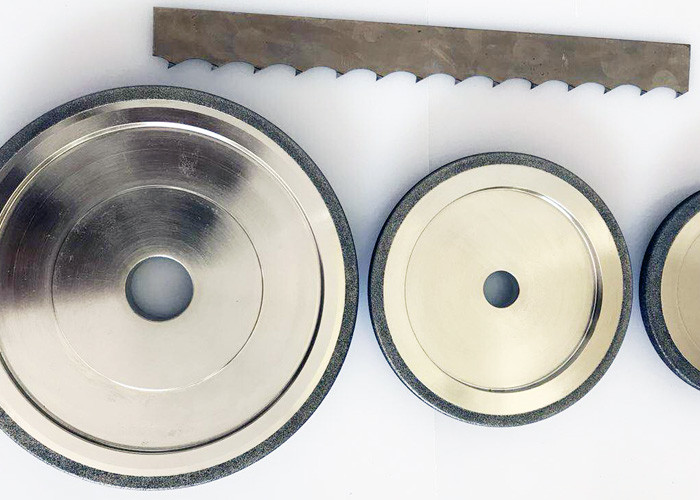

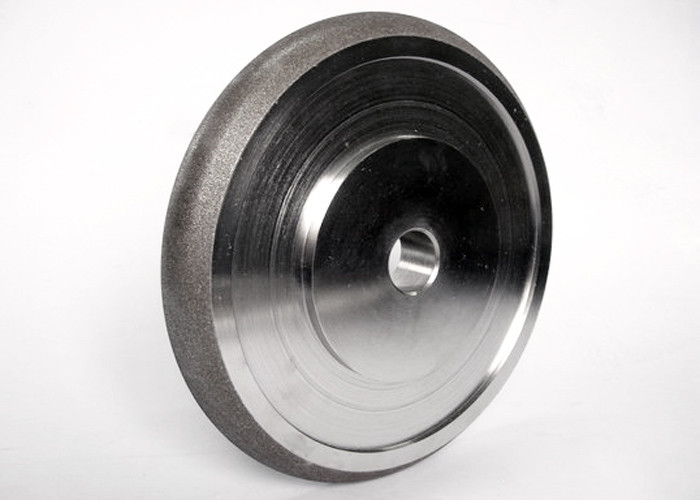

Eight Inches CBN Diamond Wheel Cubic Boron Nitride Sharpening Wood Band Saw

Eight Inches CBN Diamond Wheel Cubic Boron Nitride Sharpening Wood Band Saw

  • Highlight

    cubic boron nitride grinding wheels

    ,

    cbn diamond grinding wheels

  • Carten Colour
    Purple
  • Colour
    Blue
  • Size
    8 Inches
  • Material
    Cubic Boron Nitride
  • Inner Hole
    32mm
  • Grit
    B151
  • Place of Origin
    CHINA
  • Brand Name
    JC
  • Certification
    ISO9001:2015&ISOCE16949
  • Model Number
    WOOD MIZER 8" 10/30
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Purple color box
  • Delivery Time
    AT the moment
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 pcs per month

Eight Inches CBN Diamond Wheel Cubic Boron Nitride Sharpening Wood Band Saw

Cbn Sharpening Wheels Used For Wood Mizer 10/30 Size



Description

Inch 8“
Diameter 203mm
Abrasive CBN
Bond electroplated
Girt B151
Hole 12.7mm
Thickness 22.23
package neutral package
Used bandsaw sharpening
Leadtime 15workdays
Delivery By express





CBN or Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years. They are designed for sharpening wood band saw only and should not be used for other applications. if u are in need of woodmizer 10/30, we can send to u immediately now.



Advantage

1. High grinding or cutting speed, procise dimensions, made to customer order or special requirements

2. All type we can make against drawings, samples and new designations on client requirements.

3. . The use of CBN grinding wheels makes rough grinding possible as well as precise finish grinding.
4. The high grade grinding tool products such as ultra hard material and CBN depth Chinese and foreign customer recommendation and faith.

5. Short delivery time , the normal size 9/29 and 10/30 we have in stock  so we can send to u immediately.



Benefit

These wheels are designed for wood band saw sharpeneing grinding machine

perfect for sharpening wood band saw

These wheels have been make balanced in our factory



Used

CBN grinding wheel  used for sharpening BI metal working band saw blade and carbon steel blade ,we also can provide u qualityband saw blade in fellow profile :

Bi Metal working band saw blade Carbon steel blade
Width(mm) Thickness(mm) Width(mm) Thickness(mm)
34 0.9 27 0.9
41 1.07 34 0.9
54 1.17 34 1.07

Eight Inches CBN Diamond Wheel Cubic Boron Nitride Sharpening Wood Band Saw 0Eight Inches CBN Diamond Wheel Cubic Boron Nitride Sharpening Wood Band Saw 1

*Brand is lenox



Our CBN grinding wheel also can use in other suitable brand , such as Woodmizer, Simonds , kakansson, RO-Ma,Armoth, Horns, Fenes,Krupp, Lynx,Aligator,Morse, etc.



For Woodmizer,we can provide WM 10/30,WM 7/34, 7/39.5, 13/29, 4/32, 12/28, 9/29

10/30 Common universal wheel profile
9/29 CBN sharpening wheel for the band saw that is suitable for winter cutting, or cut hardwood
13/29 CBN sharpening wheel for the band saw that is suitable for softwood cutting
4/32 CBN sharpening wheel for the band saw that is suitable for very frozen and hard wood cutting
7/34 CBN sharpening wheel for the band saw that is suitable for hardwood



We specialize in the production of high quality profile grinding wheel, diamond and CBN wheels for the wood processing industry, metal processing industry for the woodworking industry, resin bonded diamond and CBN wheels are the best choice for applications including sharpening knives and production grinding we provide standard specifications and custom wheels.
