| Place of Origin: | Henan , China |
| Brand Name: | JC |
| Certification: | ISO |
| Model Number: | Customized |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One in paperbox |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, L/C, D/A, Western Union |
| Supply Ability: | 10000/month |
| Wheel Abrasives: | Cubic Boron Nitride | Bonding Agent: | Metal,Resin,Ceramic,Resin Or Ceramic,A |
|---|---|---|---|
| Bond: | Electroplated Bonded | Packing: | Box And Cartons |
| Usage: | Grinding | Benefit: | It Can Also Reduce Transportation Costs |
| Sample: | Availalble | Cbn Color: | Black Brown |
| Basebody: | Steel | Hole Diameter: | 12.7mm |
| Diameter: | 127mm | ||
| Highlight: | 5 inch Woodmizer bandsaw grinding wheel,WM7/34 bandsaw sharpening wheel,electroplated CBN grinding wheel |
||
Product description
CBN (Cubic Boron Nitride) Band Saw Grinding Wheel is a high performance abrasive tool used for sharpening band saws such as metal cutting band saws, woodworking band saws, etc.Cubic boron nitride (CBN) is a synthetic superhard material with performance between diamond and common abrasives such as corundum and silicon carbide. It performs particularly well in high temperature and iron family material processing.

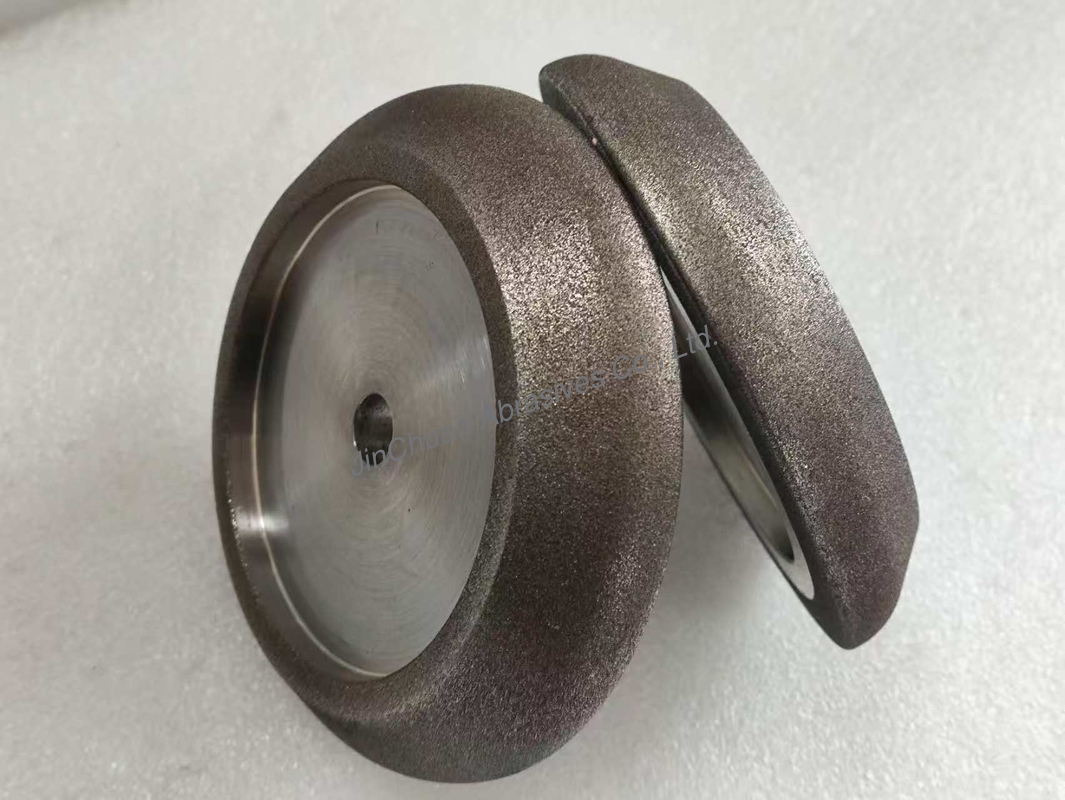

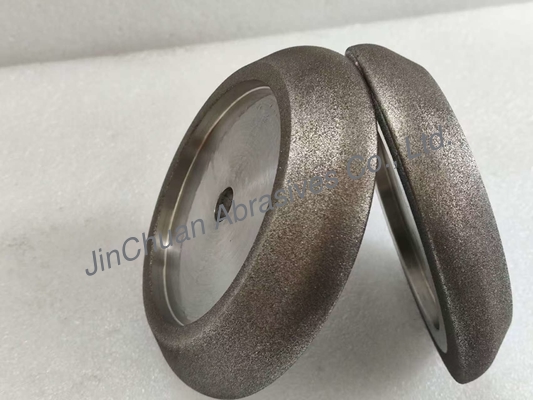

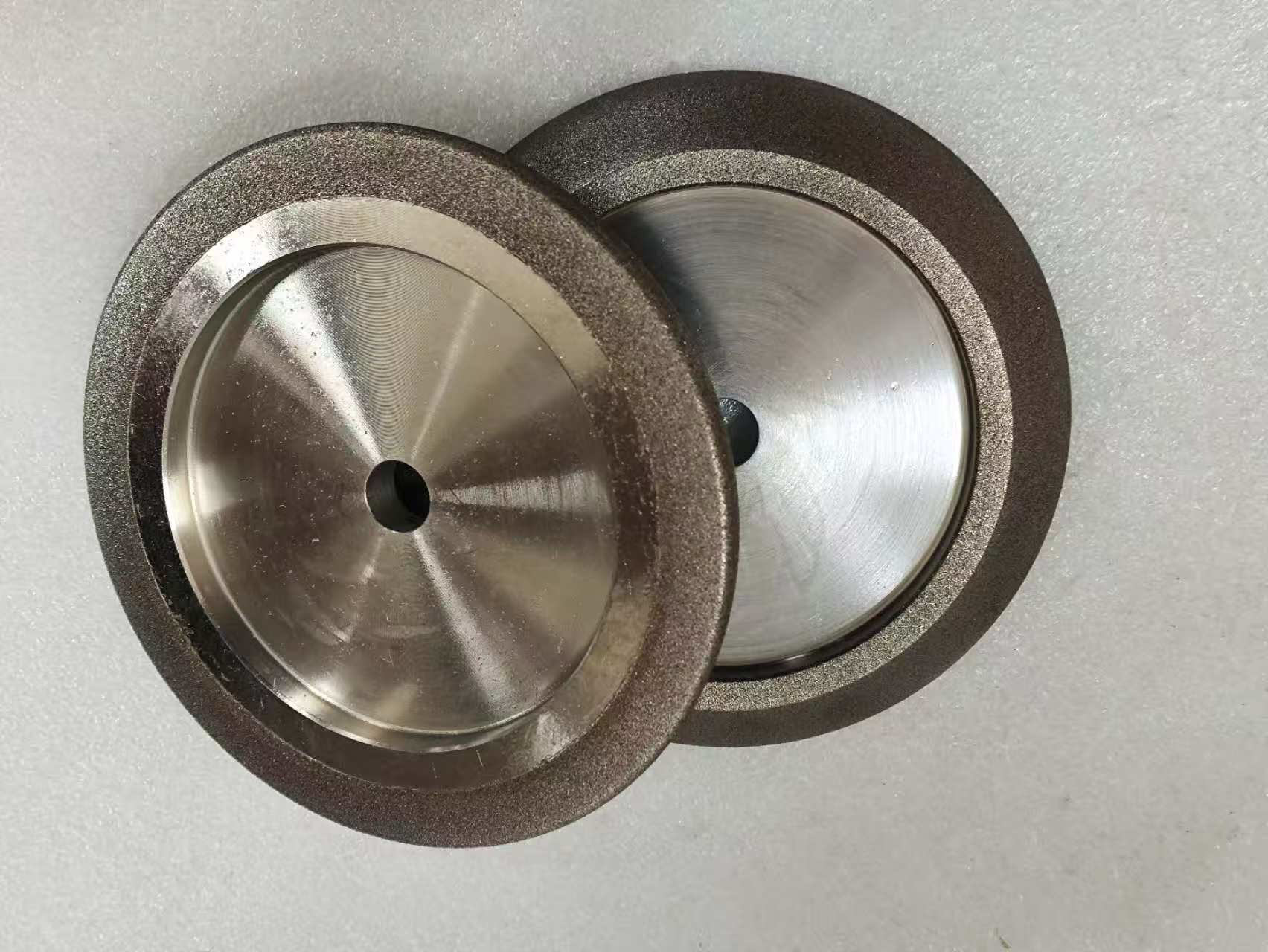

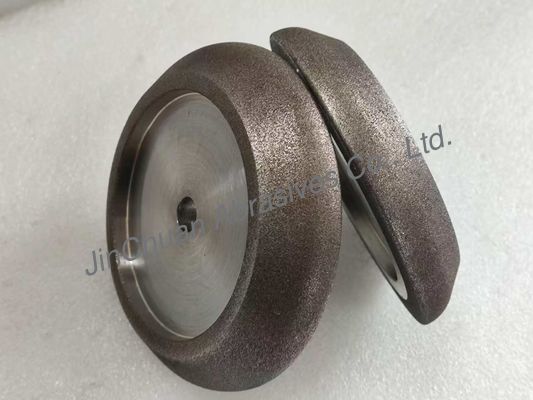

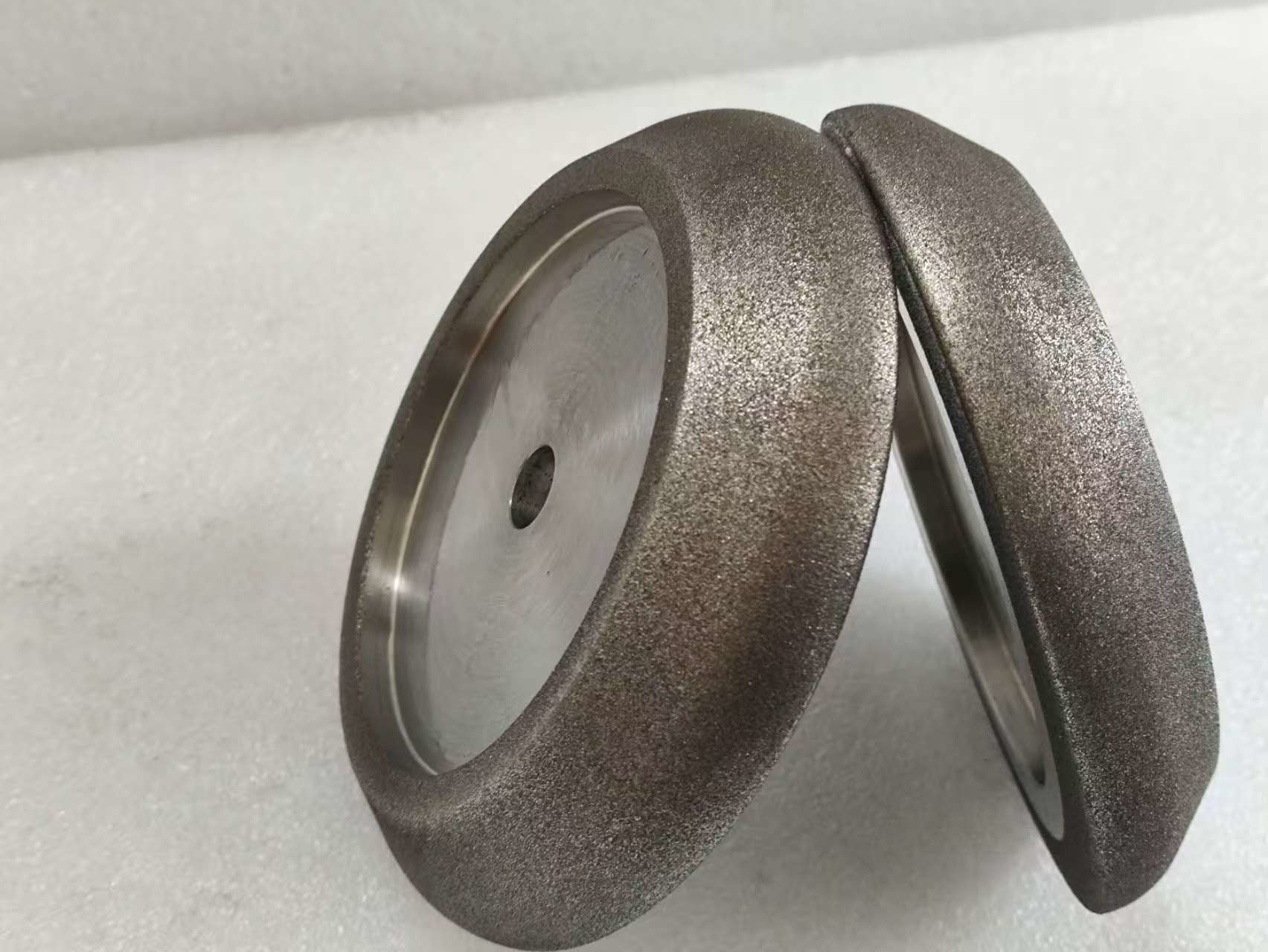

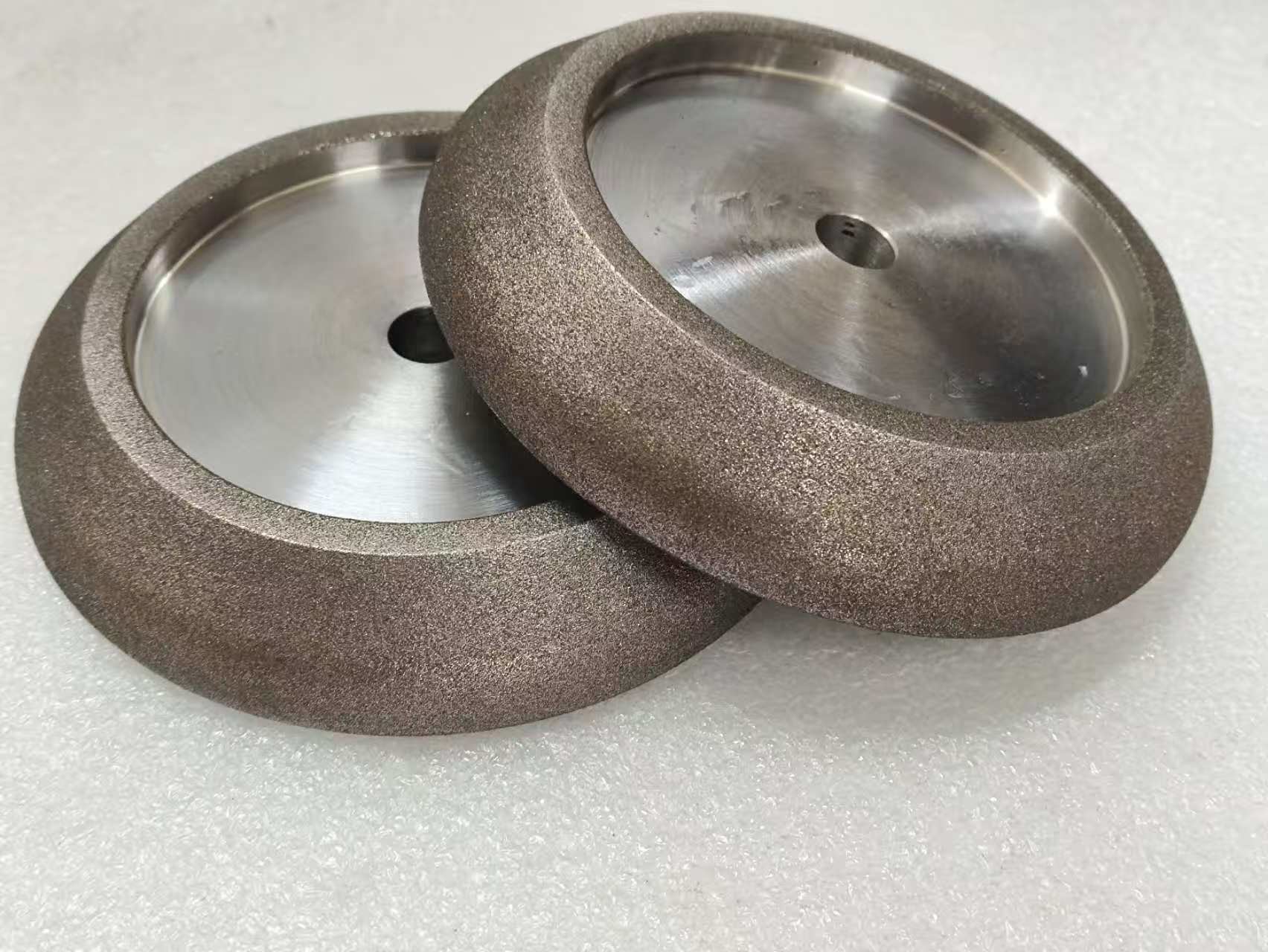

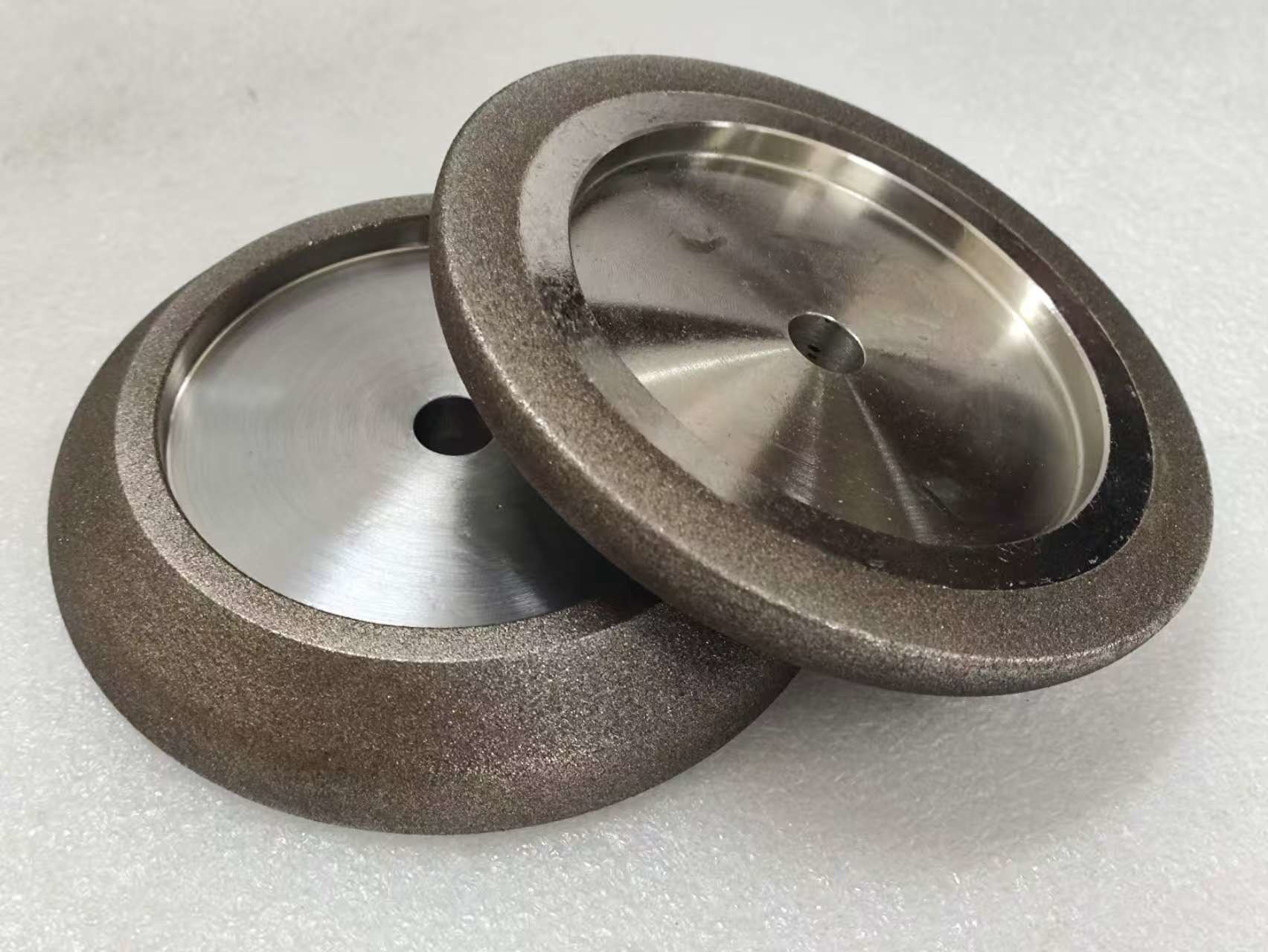

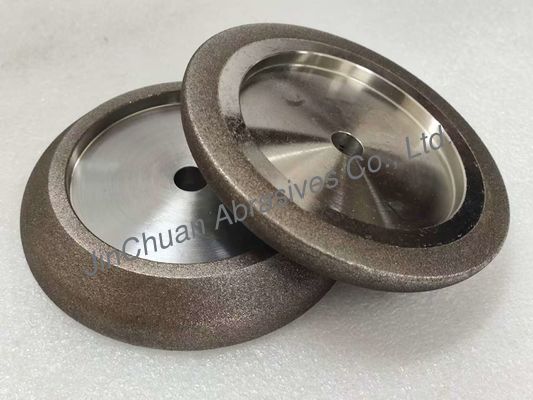

| Name | 5 inch bandsaw sharpening grinding wheel |
| outer diameter | 127mm |
| tooth spacing | 22.23mm |
| bore diameter | 12.27mm |
| turbo | 7/34 |
| grit size | B151 |
| suitable for |
woodmizer band saw bade |
Mostly used CBN wheel ar for band saws of following producers:
WM profiles, Mi.l, Simonds, Dakin-Flathers Ripper37, Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others
If your bandsaw is not these brands, contact us , we can custom wheel for you.
Product advantages
1,Excellent high temperature performance
2,Strong antioxidant capacity
3,Sharp, Fast grinding
4,Long life, Much longer life than traditional abrasive wheels
5,No dust coming out when sharpening and grinding
Packing and shipping
We will use carton packing, if you need carton or other packing, we can also support your request.We support express delivery, air transportation and sea transportation.The express delivery includes DHL, FedEx, TNT, UPS, EMS, etc. Usually, we will arrange the delivery within 7 working days after confirming the contract.
Company introduction
Zhengzhou Jinchuan abrasive abrasive co., LTD. Is committed to providing the most advanced diamond and cubic boron nitride products.We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you.
