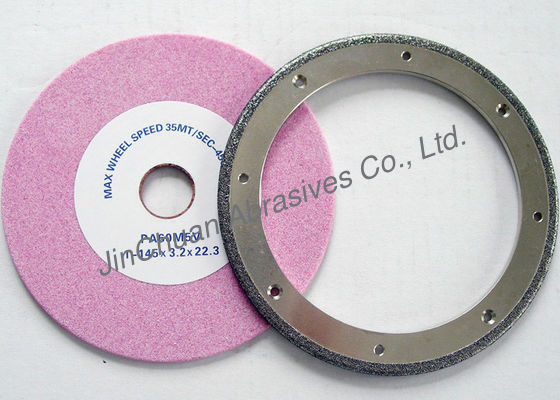

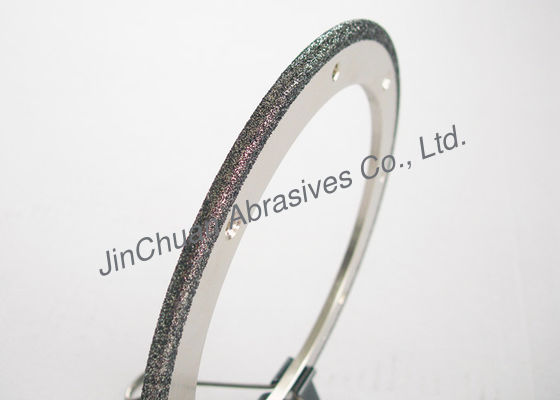

Electroplated CBN grinding wheel used for wood piston Ring
Description
CBN or Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years. They are designed for sharpening wood band saw only and should not be used for other applications. if u are in need of woodmizer 10/30, we can send to u immediately now.
Specification
| OD | ID | W | T | R | Mesh Size |
| 157 | 115 | 6 | 5 | 2.5 | B301 |
| 157 | 115 | 6 | 5 | 2.5 | B251 |
| 151.5 | 115 | 6 | 5.5 | 2.75 | B301 |
| 151.5 | 115 | 6 | 5.5 | 2.75 | B251 |
| 150.8 | 115 | 6 | 5 | 2.5 | B301 |
| 150.8 | 115 | 6 | 5 | 2.5 | B251 |
| 150 | 115 | 6 | 4 | 2 | B301 |
| 150 | 115 | 6 | 4 | 2 | B251 |
| 149 | 115 | 6 | 3 | 1.5 | B301 |
| 149 | 115 | 6 | 3 | 1.5 | B251 |
| 148 | 115 | 6 | 3 | 1.5 | B301 |
| 148 | 115 | 6 | 3 | 1.5 | B251 |
Advantage
We can make thousands of wheels one month, so if u place 1,000 pcs wheels order to us, we can finish the production and send to u immediately.
Benefit
These wheels are designed for cutting off piston rings.
They are very sharp and working life very longer.
provides a superior edge compared to the traditional SIC or AL2O3 grinding wheels
These wheels have been make balanced in our factory, which can keep the precious tolerance.
During the working experiences, our CBN grinding wheels does not require "truing"
Our products are sold all over the world, you can rest assured.
