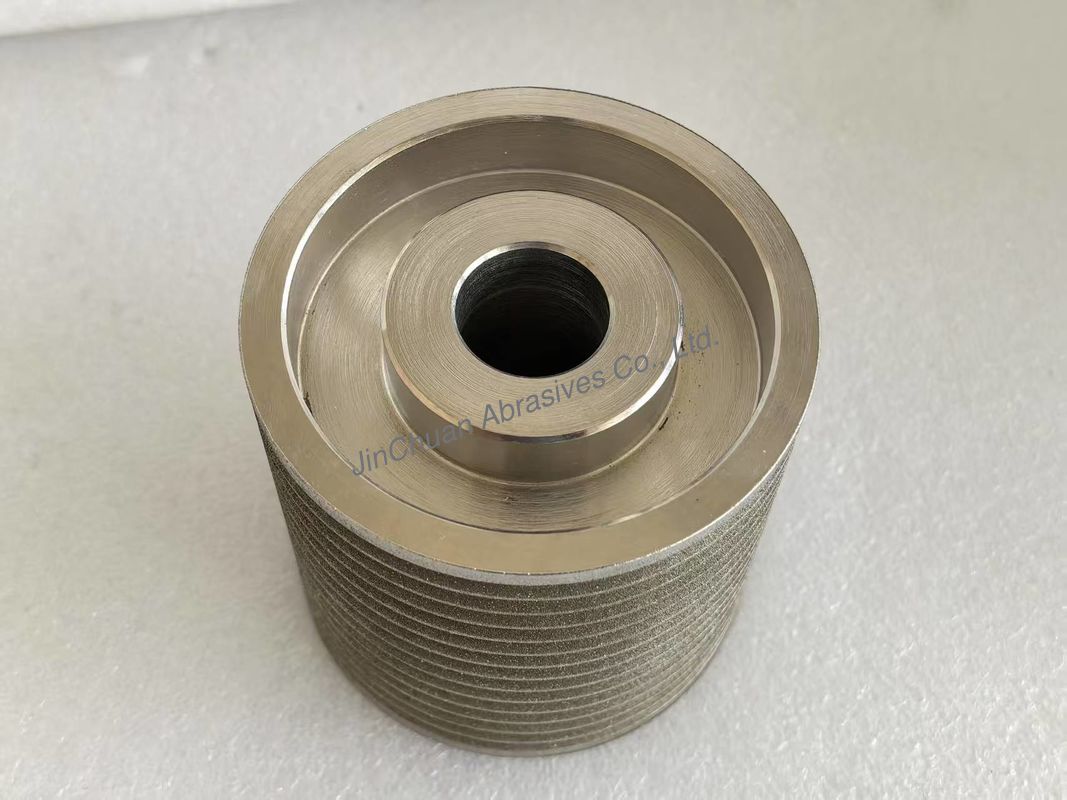

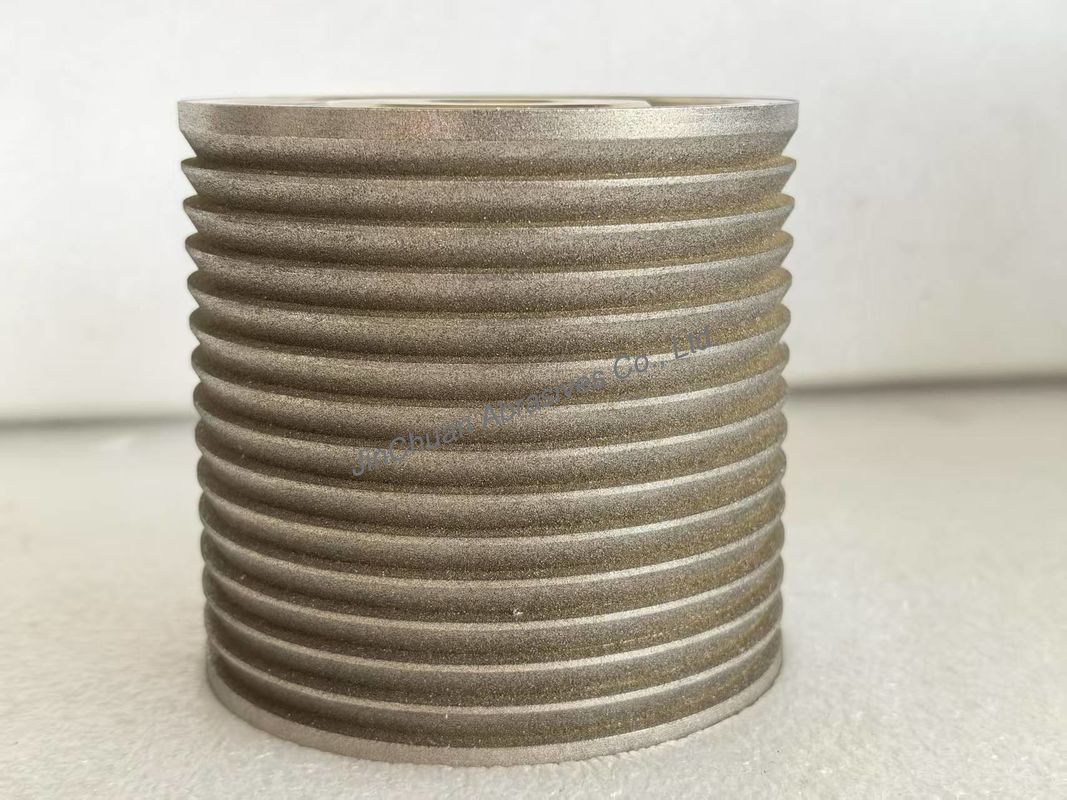

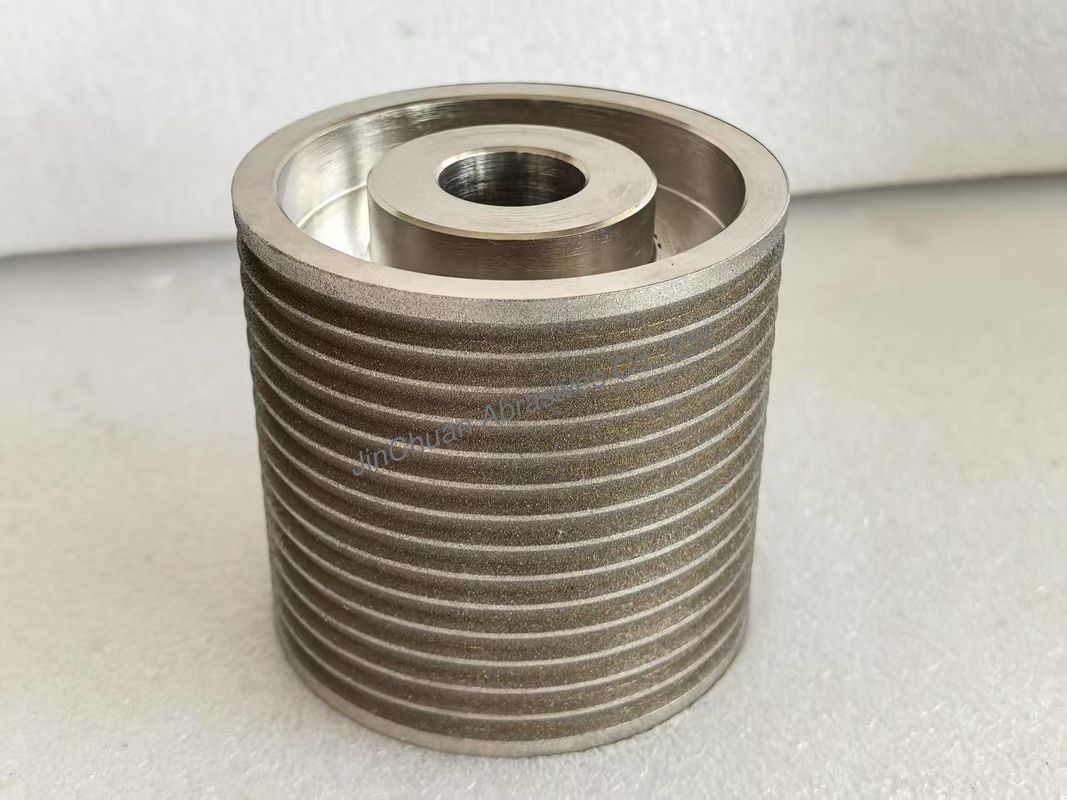

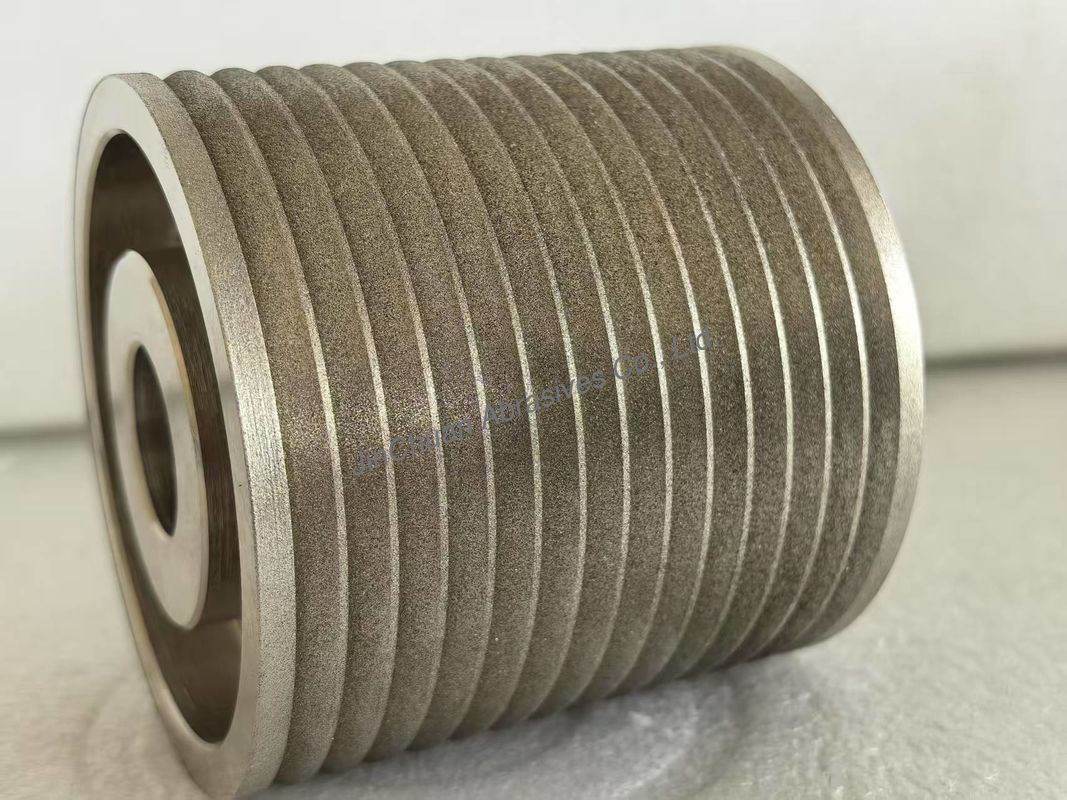

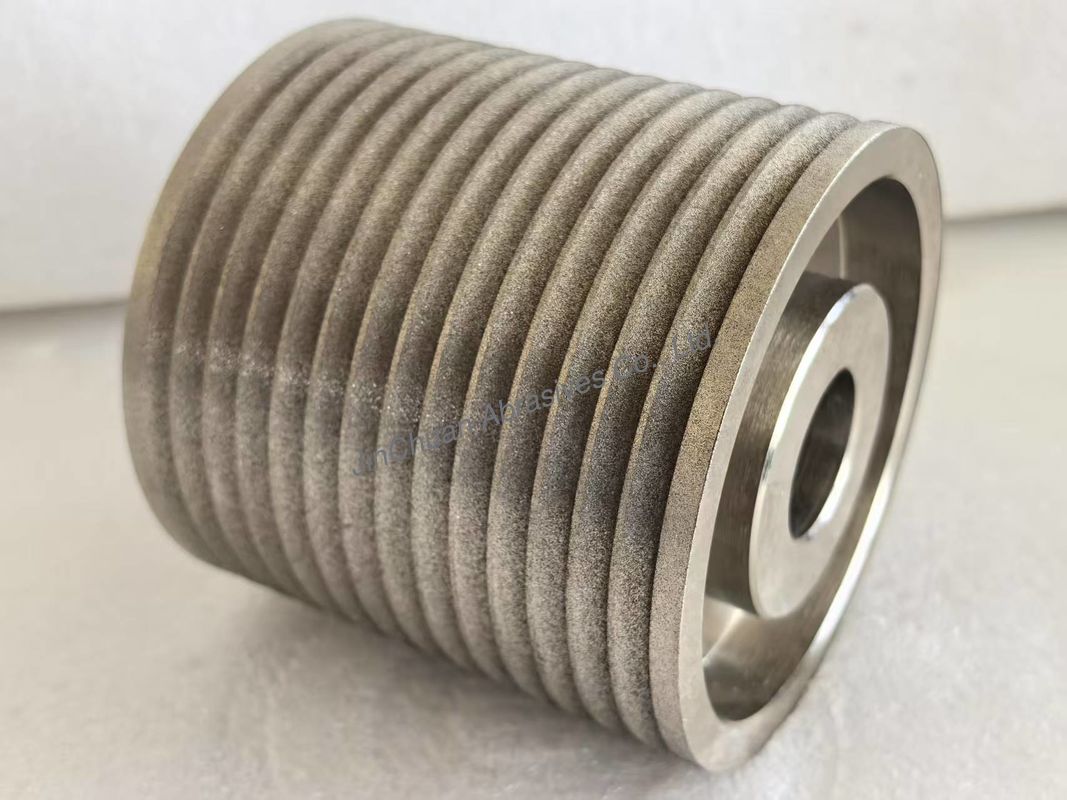

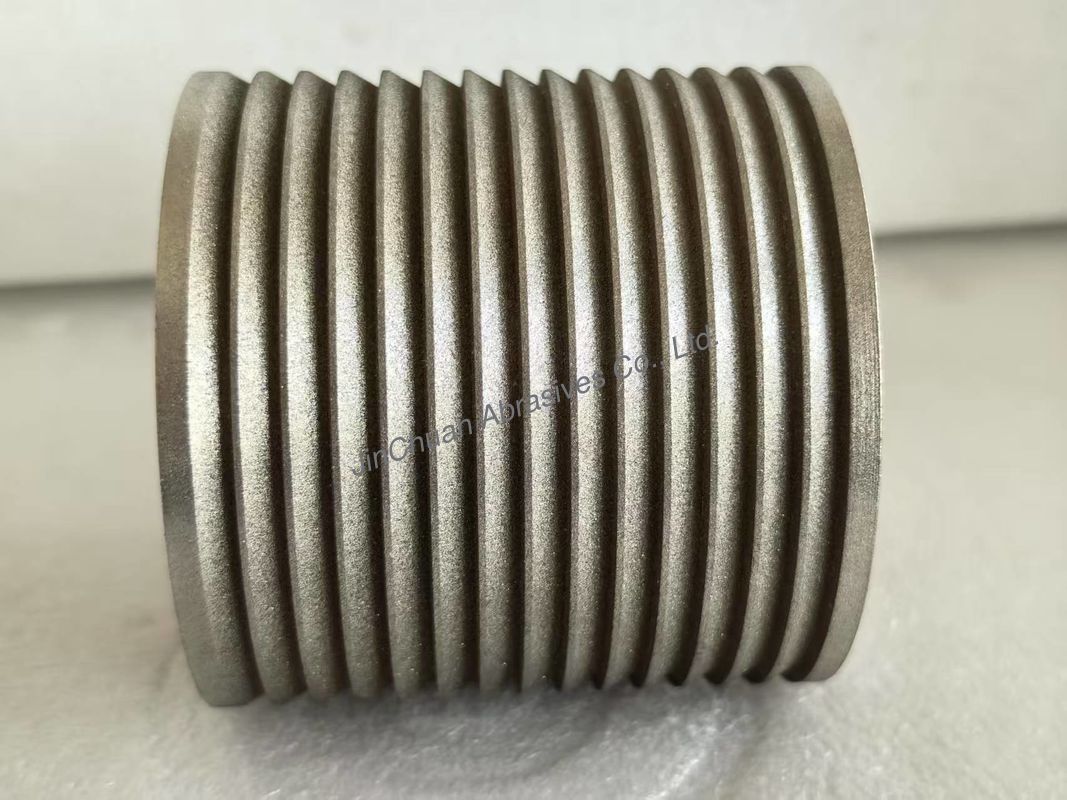

Special Size And Shape Amber Color Electroplated Bonded Cbn Wheels For Grinding And Sharpening

Special Size And Shape Amber Color Electroplated Bonded Cbn Wheels For Grinding And Sharpening

  • Highlight

    Shape Electroplated Bonded Cbn Wheels

    ,

    Grinding And Sharpening Electroplated CBN Wheel

  • CBN Wheel Size
    95*90*25.4mm
  • Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Abrasive
    Cbn
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grit Size
    B170/200
  • Bond
    Electroplated Bonded
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,polishing Etc
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    B170/200
  • Minimum Order Quantity
    5
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    100/month

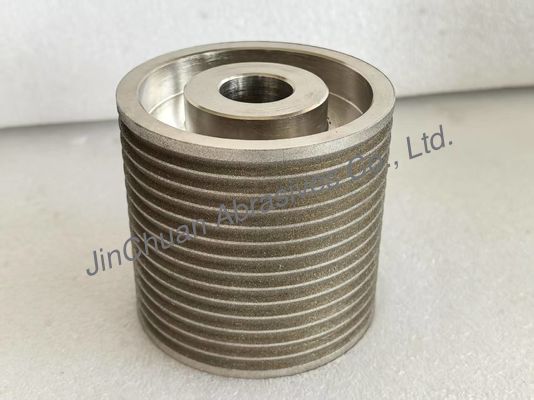

Special Size And Shape Amber Color Electroplated Bonded Cbn Wheels For Grinding And Sharpening

Special Size And Shape amber color Electroplated Bonded Cbn Wheels For Grinding And Sharpening



Product Information Of CBN wheel for grinding and sharpening



An electroplated CBN (Cubic Boron Nitride) grinding wheel is a precision abrasive tool where CBN grains are bonded to a steel or alloy core using an electroplating process. A thin layer of nickel or nickel-cobalt alloy is deposited via electrolysis to secure the CBN grits, creating a single-layer abrasive surface. This design maximizes grit exposure for aggressive cutting while maintaining minimal bond interference.



Electroplated CBN grinding wheels excel in high-precision, low-to-medium volume applications where speed, finish quality, and minimal setup are priorities. Their single-layer design simplifies operation but requires careful monitoring of wear. Ideal for industries like aerospace, automotive, and toolmaking, they strike a balance between performance and affordability for specific use cases. For high-volume or heavy grinding, consider vitrified or sintered CBN wheels for greater durability. Always match grit size, coolant, and RPM to your material and grinding goals.







Main Data Of Electroplated CBN grinding wheel and sharpening disc
Technical Parameter Details
Size 95*90*25.4mm
Hs Code 6804211000
Base Body Steel
Radius R6.35
Material Cubic Boron Nitride, Steel Basebody
Packing Standard Exported Carton Packing
Package Color Box
Country Of Origin China
Shape Cylindrical
Application Grinding and Sharpening

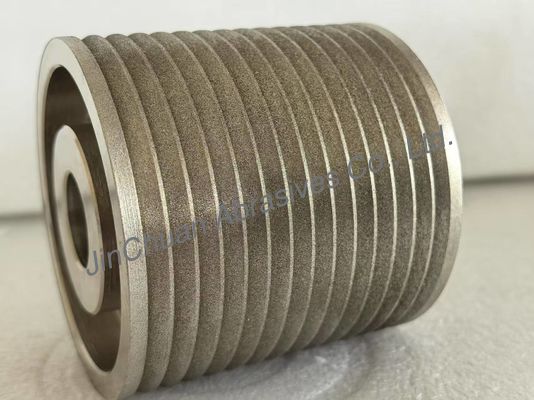

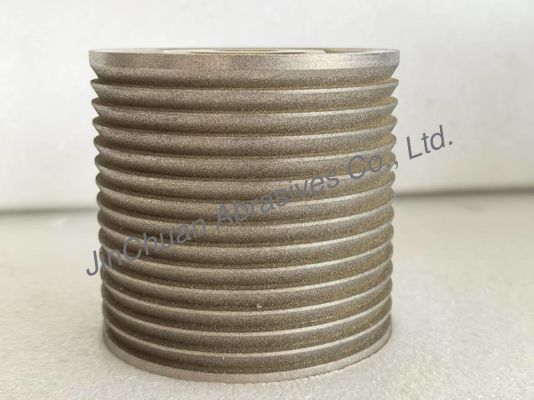

Special Size And Shape Amber Color Electroplated Bonded Cbn Wheels For Grinding And Sharpening 0



If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you





 FAQ:

1.What material does your product use ?

Our product abrasives are diamond or CBN , which are electroplated,  resin, vitrified, or metal bonded.

2.Do you offer samples ?

Yes, In order to start the new and happy cooperation , we can provide our customers sample for testing at the first order , we believe that you will be satisified with our product quality.

3. Can we go to visit your factory ?

Of course yes , welcome to visit our factory , you can see our production capacity and technoly. Remeber to contact our sales first before your visit.

4.How can you guarantee the quality ?

We examine the quality 3 times before strat the delivery , first : pre-production , second : post-production , third : before delivery . So do not worry about this.



NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheels as customer's requirement.
