1EE1 125*7*31.75*7mm  D91   Resin Bond Diamond Grinding Wheel

1EE1 125*7*31.75*7mm D91 Resin Bond Diamond Grinding Wheel

  • Highlight

    1EE1 Diamond Grinding Wheel

    ,

    D91 Diamond Grinding Wheel

    ,

    Resin Bond Diamond Grinding Wheel

  • Shape
    Circular
  • Usage
    Grinding
  • Bond Agent
    Resin
  • Delivery
    By Express
  • Package
    Carton Box
  • HS Code
    6804211000
  • Abrasives
    Diamond
  • Application
    Ceramics
  • Diameter
    125mm
  • Thickness
    7mm
  • Inner Hole
    31.75mm
  • Abrasive Width
    7mm
  • Granularity
    D91
  • Place of Origin
    Henan, China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    1EE1
  • Minimum Order Quantity
    5 pieces
  • Price
    Negotiable
  • Packaging Details
    1 pcs in one Paper Box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T, D/A, D/P, Western Union,Paypal
  • Supply Ability
    10,000 /month

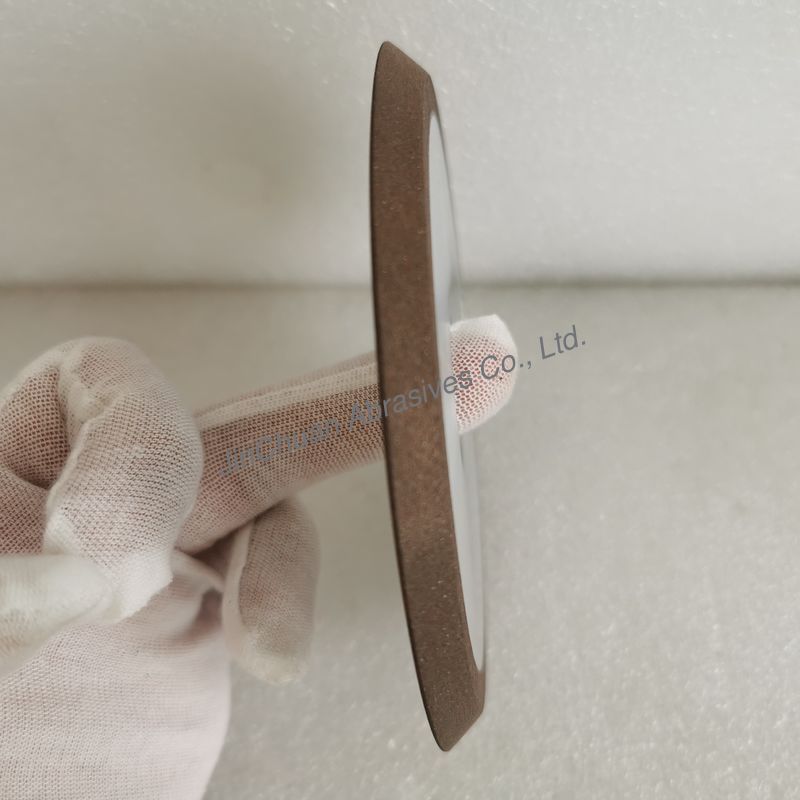

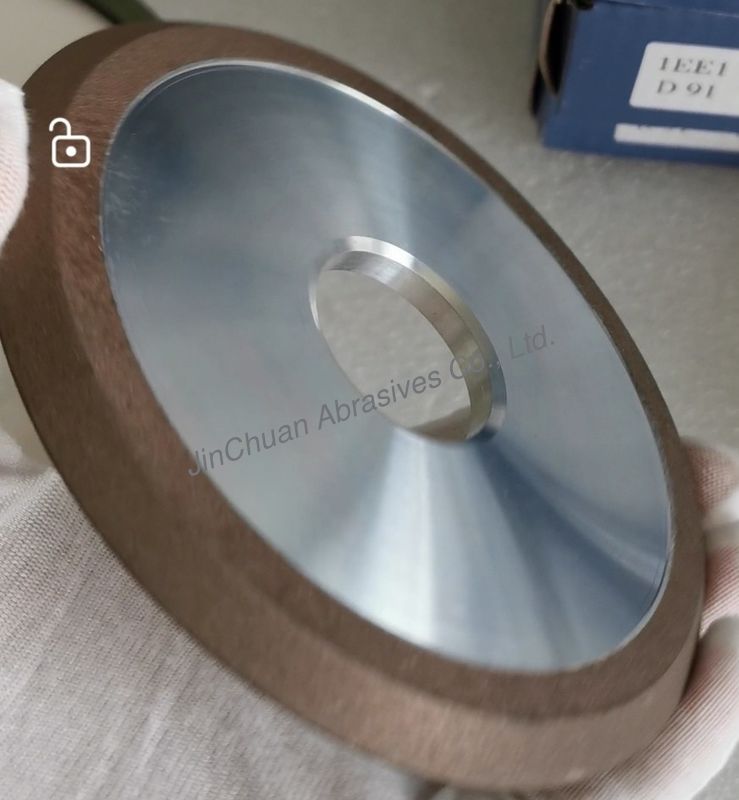

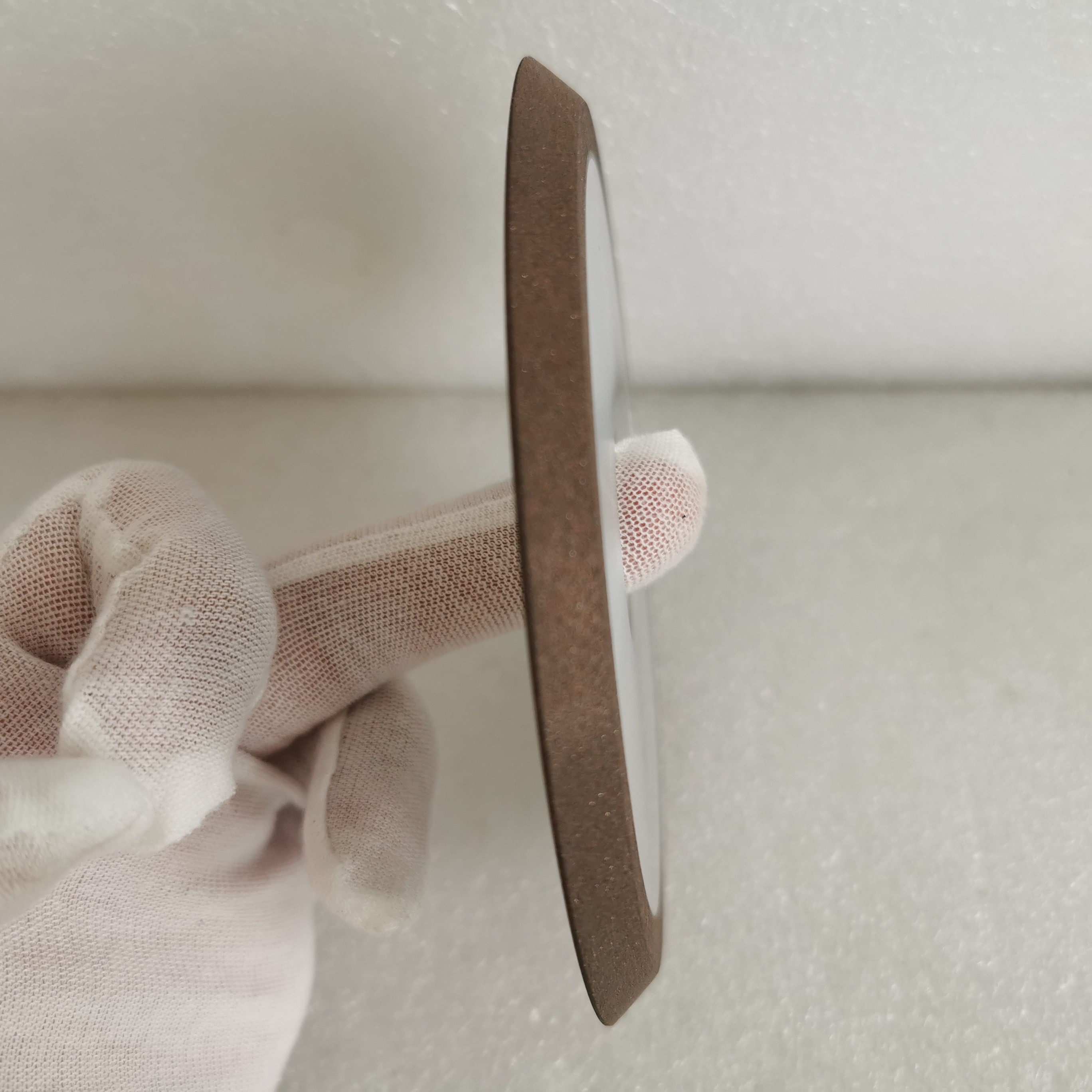

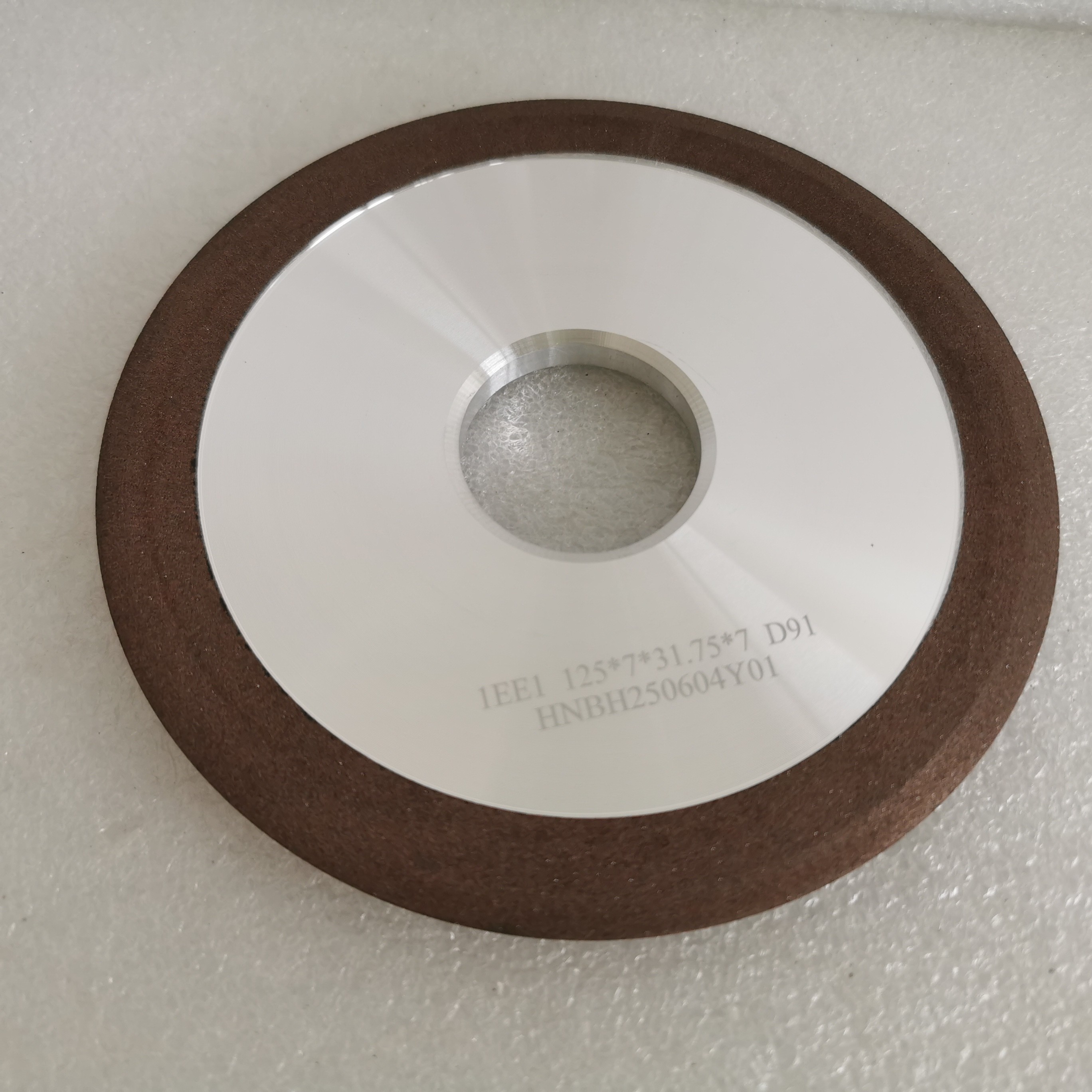

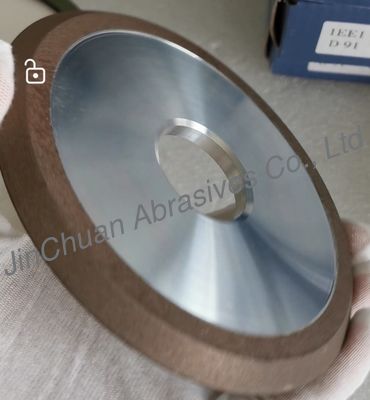

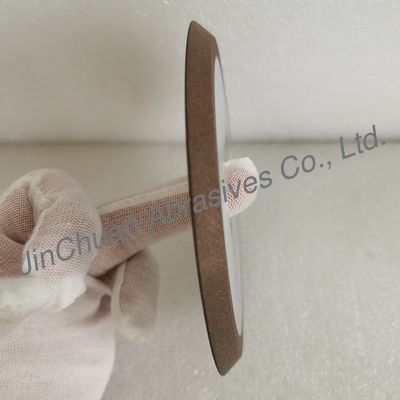

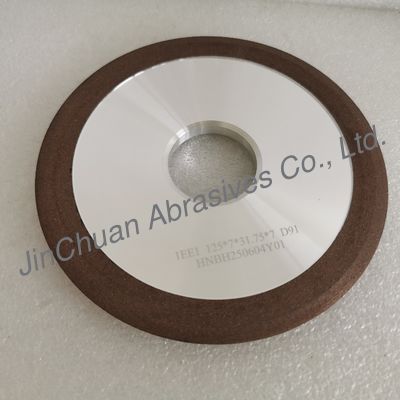

1EE1 125*7*31.75*7mm D91 Resin Bond Diamond Grinding Wheel

1EE1 Resin Bond Doamond Grinding Wheel Product Description


Product Name: Resin Bond Diamond Grinding Wheel


Product Overview:



Resin diamond grinding wheel is a high-performance grinding tool with resin as the binder and diamond abrasive as the cutting body. It combines the ultra-high hardness of diamond and the flexibility of resin binder, and is suitable for high-precision and high-efficiency processing of hard and brittle materials such as ceramics, glass, semiconductors, and cemented carbide.



Product Features:



High grinding efficiency: Diamond has an extremely high hardness (Mohs hardness 10), which can quickly remove hard and brittle materials.

Good self-sharpening: Resin binders wear moderately, which can continuously expose new abrasive grains and maintain sharpness.

Low grinding temperature: Resin has poor thermal conductivity, but thermal damage can be reduced through pores or coolant.

High surface quality: Suitable for precision machining, reducing chipping or cracks on the workpiece.

Lightweight design: Resin has low density and is suitable for high-speed grinding.



Product size(mm):



Diameter(D) Thickness(T) Inner hole(H) Abrasive width(W) Granularity
125 7 31.75 7 D91



Of course if you need other sizes , we can  customize for you.



Application:



Grinding of cemented carbide tools and molds
Precision grinding of ceramic materials
Lapping and polishing of optical glass
Cutting and grinding of semiconductor materials



Packaging and Shipping:



Each CBN grinding wheel is carefully packed in a sealed bag and wrapped with bubble film to prevent scratches or damage during transportation. After packaging, it is placed in a carton and sealed securely with tape. All orders are shipped via reliable couriers. After the order is shipped, we will provide customers with tracking information and estimated delivery time.



Competitive Advantages



1.We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India,
Indonesia, Vietnam, Malaysia and many other countries.



If you need to customize, please provide the following information:



1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Wheel application;

4. Pictures and drawings of wheels;

We can then design and quote for you
