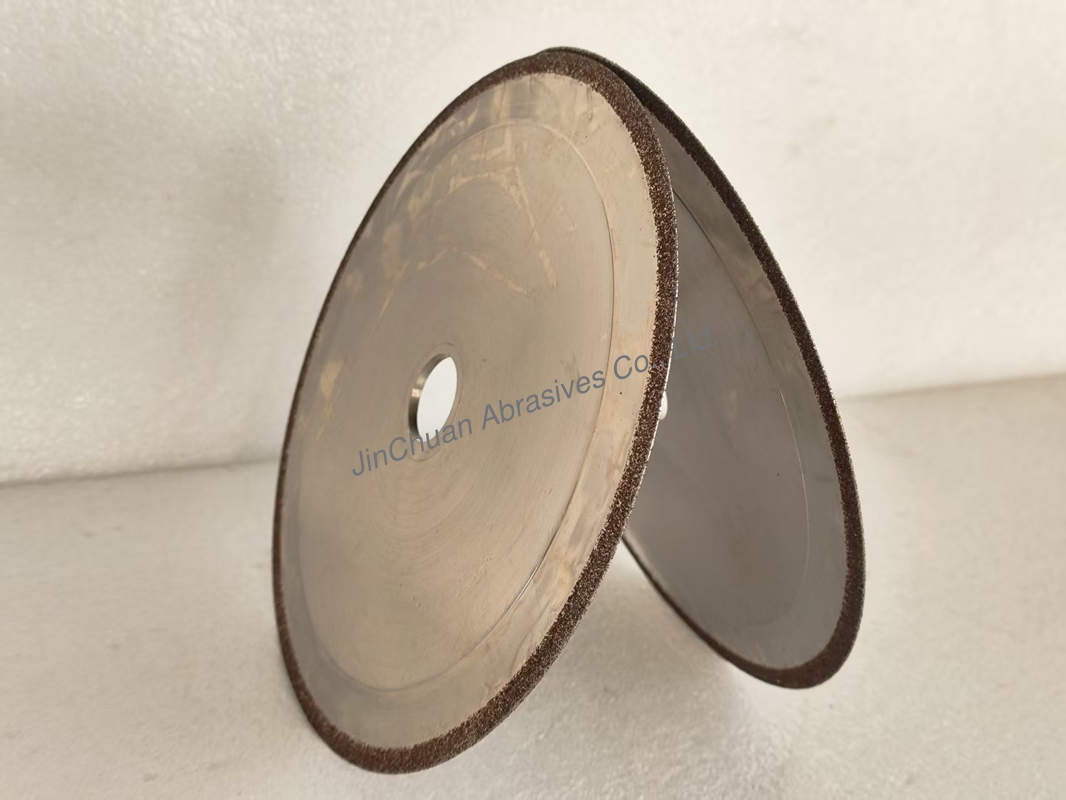

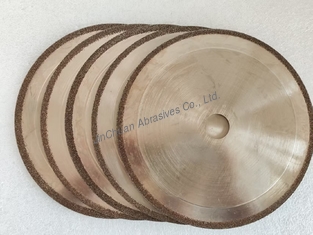

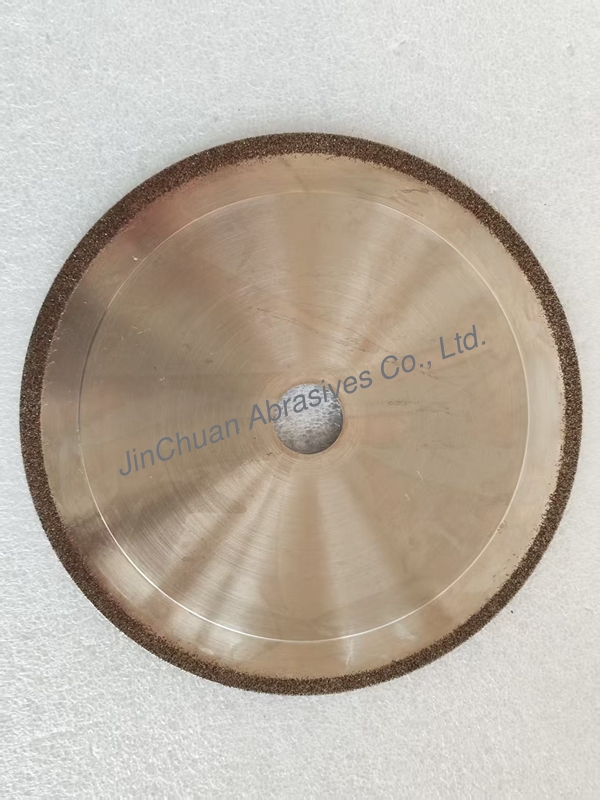

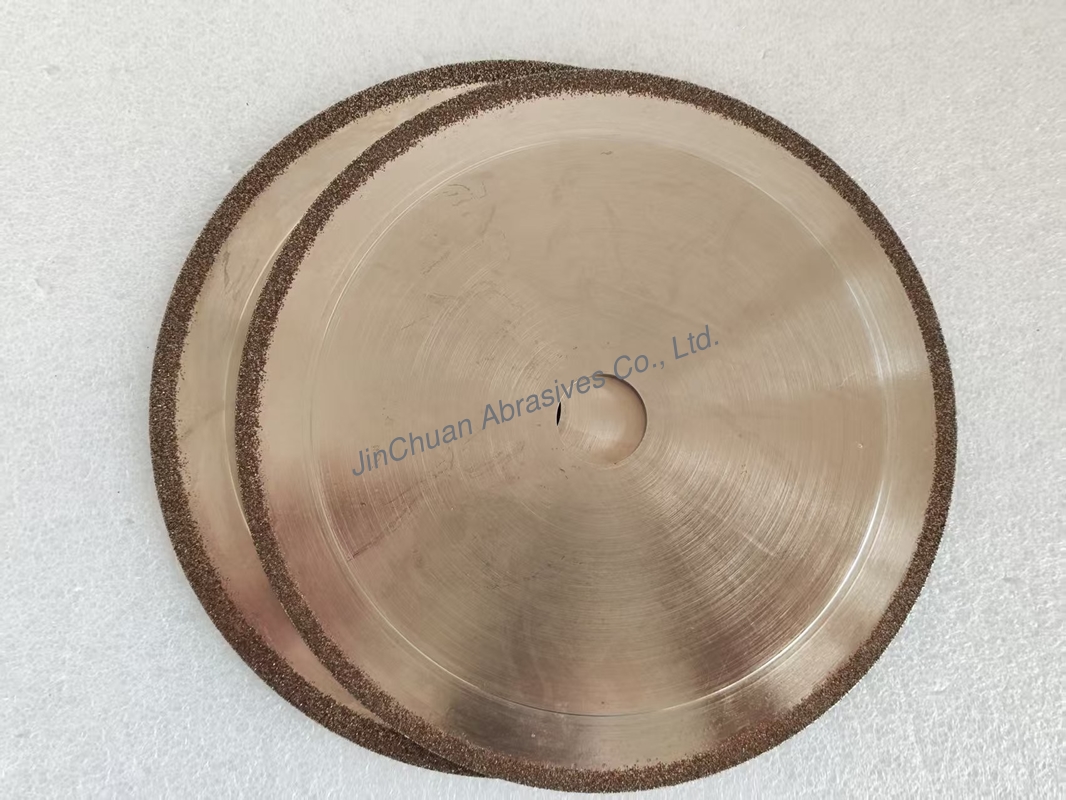

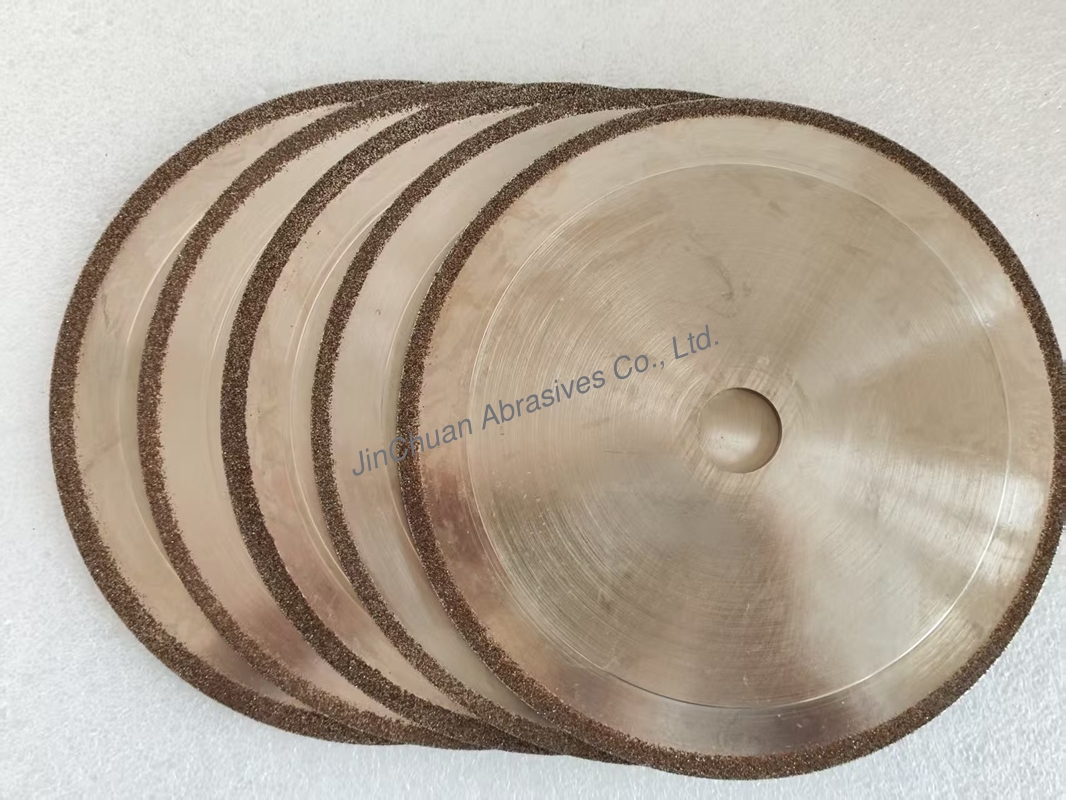

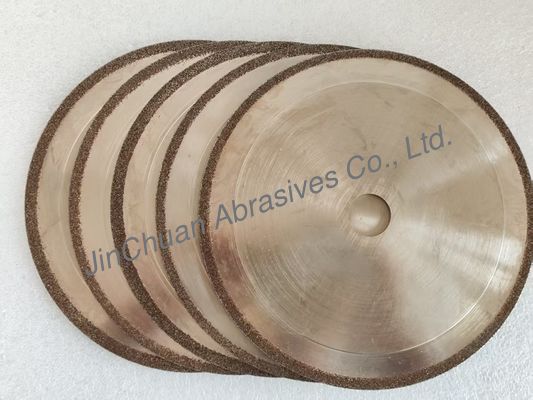

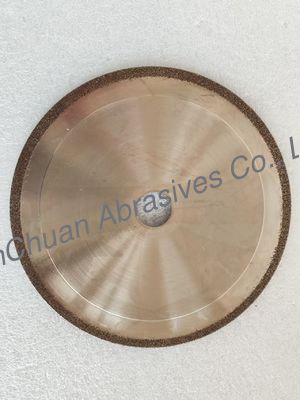

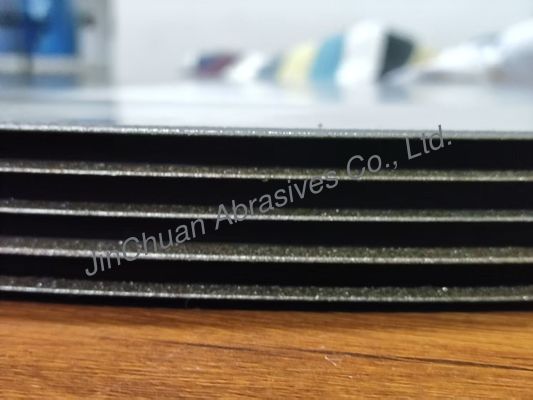

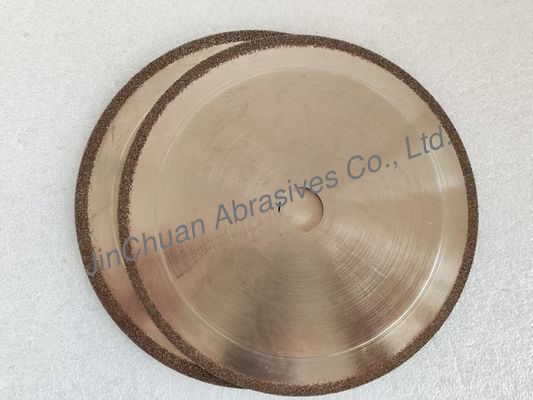

1A1 600*2.5*20*5mm B100/120 Edge Design R0.5 Fillet + 7° Chamfer Electroplated CBN Cutting Disc
Product Details
| Colour: | Black,Silver | Diameter: | 160mm, 600mm |
|---|---|---|---|
| Thickness: | 2.5mm | Inner Hole: | 20mm |
| Bond Type: | Electroplated | Abrasive Material: | Cubic Boron Nitride (CBN) |
| Abrasive Width: | 5mm | Drawing: | As U Reqirement |
| Base Material: | Stell | Shape: | Round |
| Edge: | R0.5/ 7° | HS Code: | 6804211000 |
| Precision: | High | Grit: | B100/120 |
| Packing: | 1pcs/paper Box | ||
| Highlight |
160mm CBN Cutting Disc,Electroplated CBN Cutting Disc,1A1 CBN Cutting Disc |
||
Product Description
1A1 600*2.5*20*5mm Edge design R0.5*7° B100/120 Electroplated CBN cutting disc
Specifications:
Model: 1A1 (flat cutting disc, without center groove)
Outer diameter (D): 600 mm
Total thickness (T): 2.5 mm
Inner hole (H): 20 mm
Abrasive layer width: 5 mm
Edge treatment: edge rounding R0.5 with 7° chamfer (for easy cutting)
Abrasive type: CBN (cubic boron nitride)
Grit size: B100/120 (mixed grit size, taking into account cutting efficiency and surface quality)
Bonding method: electroplating (high bonding strength, suitable for high-speed cutting)
| Size | Diameter | Thickness | Inner hole | Abrasive width | Grit | Edge design |
| mm |
600 160 |
2.5 |
20 |
5 |
B100/120 |
R0.5 fillet + 7° chamfer |
Of course, We can customize the size according to your requirements
D: Diameter, T: Thickness, H: Inner hole, X: Abrasive width
Product features:
1,Suitable for high hardness alloys such as high speed steel, tool steel, hardened steel and heat resistant alloys such as nickel-based alloys and cobalt-based alloys.
2,Electroplated CBN cutting wheels have good wear resistance and long service life and are suitable for dry cutting or minimal lubrication cutting.
3,Edge design:
R0.5 fillet + 7° chamfer: reduce cutting resistance and prevent workpiece edge breakage.
Packing and Shipping
Electroplated CBN grinding disc are carefully packaged for shipment. Each wheel is placed in a plastic bag and wrapped in bubble wrap to prevent it from being scratched or damaged during transit. The package is then placed in a cardboard box and taped securely.
All orders are shipped via a reliable courier service. The tracking information and estimated delivery time are provided to customers once the order is shipped.
Why choose electroplated CBN cutting wheel?
Ultra-thin design, almost zero material loss
Ready to use, suitable for automated production lines
Free cutting parameter optimization service
Company introduction
Zhengzhou Jinchuan Abrasive Abrasive Co., LTD. focuses on the research and development of electroplated superhard tools. It has a fully automatic electroplating production line and precision testing equipment. Its products have passed ISO 9001 and RoHS certification. We provide standardized and customized electroplated CBN cutting wheels, serving customers in the global electronics, tool, and aerospace industries, and are committed to providing customers with cost-effective precision cutting solutions.
