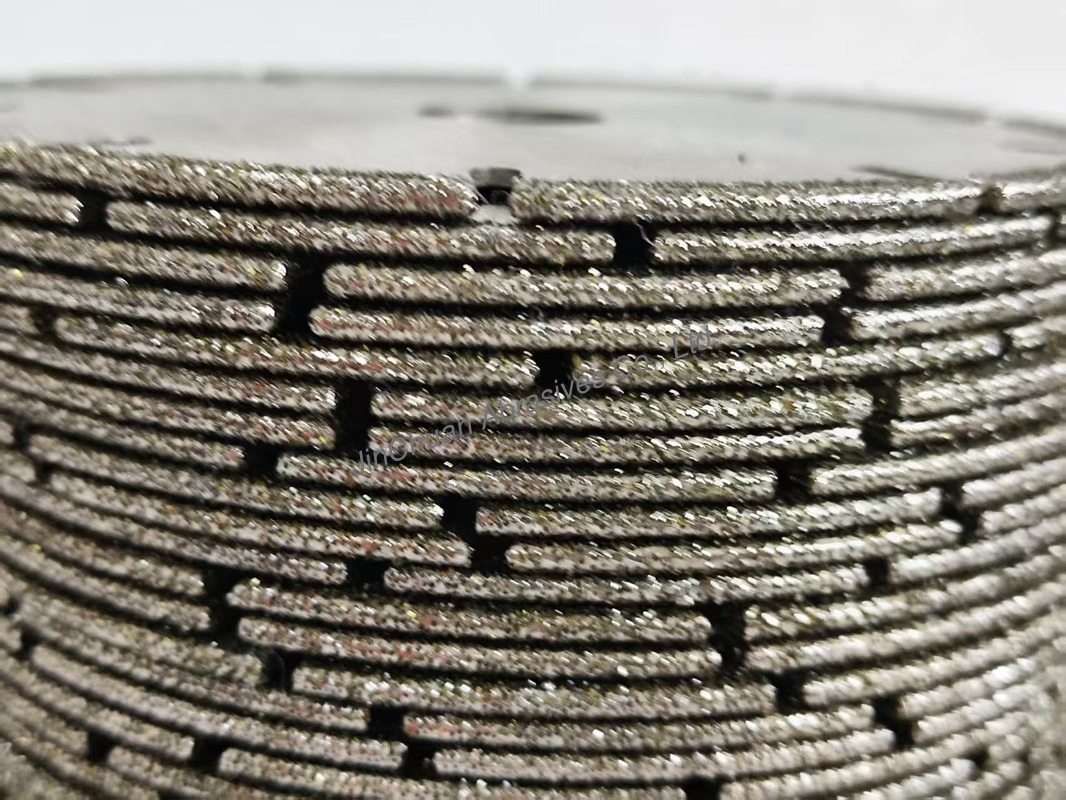

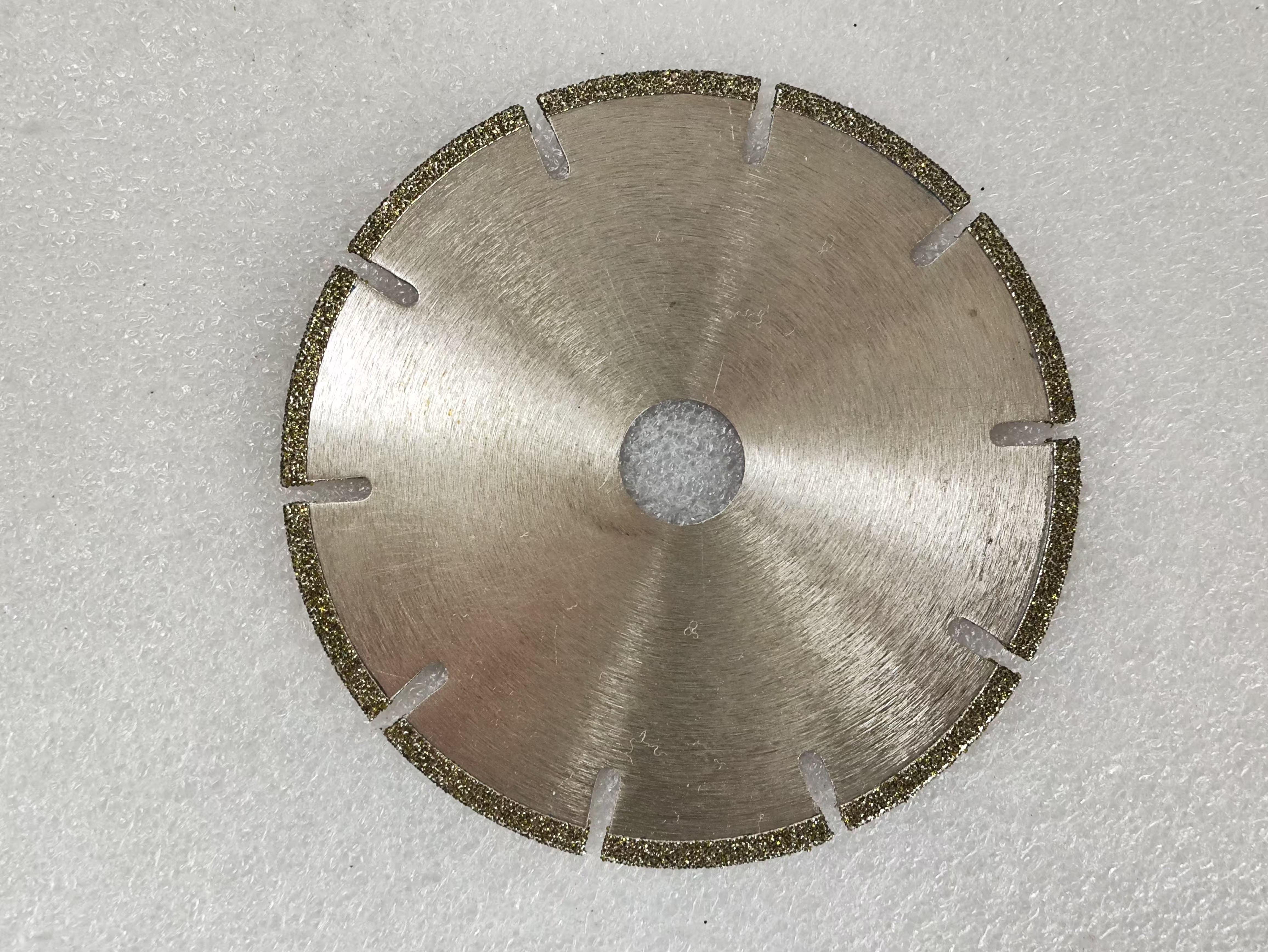

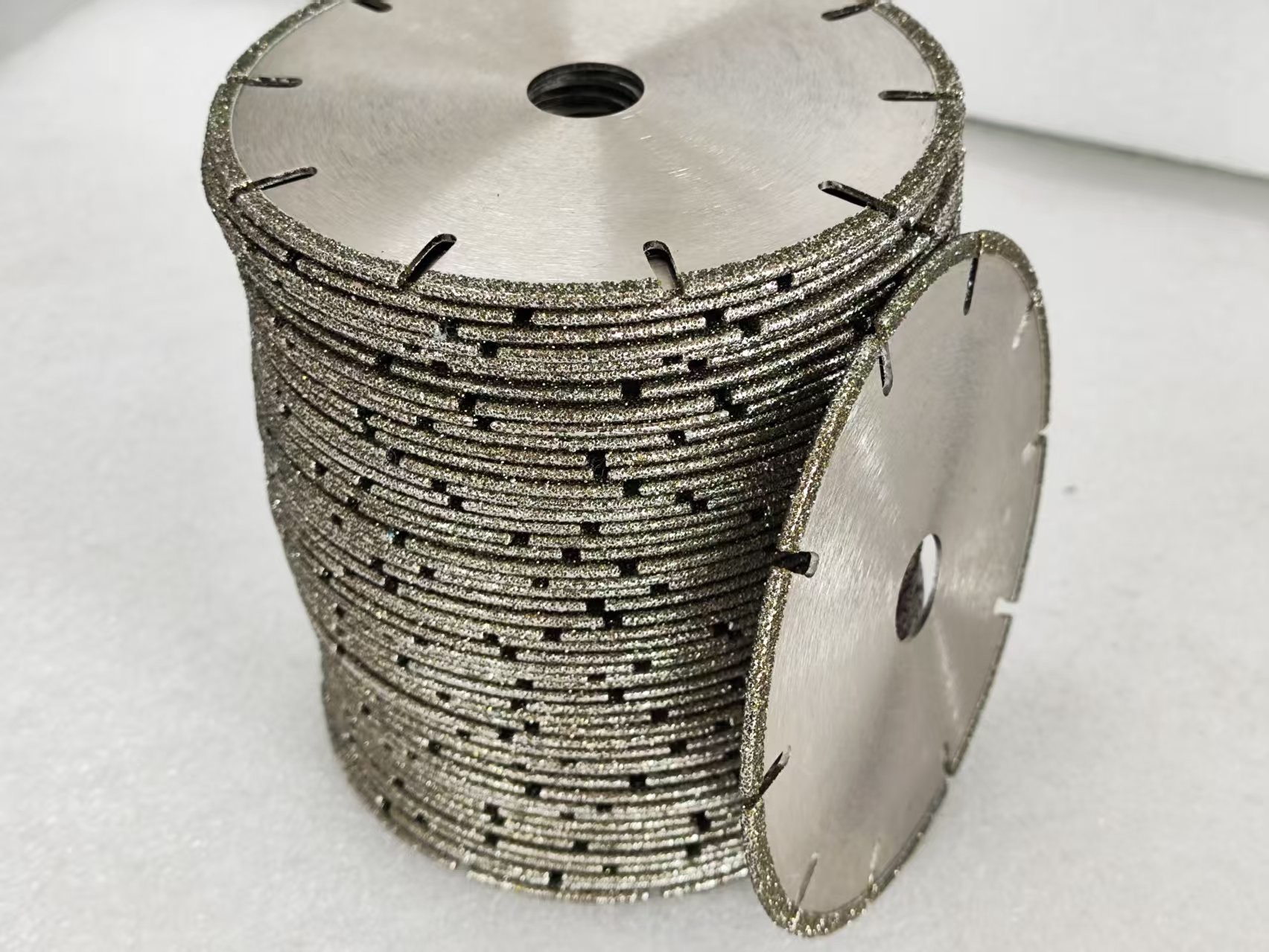

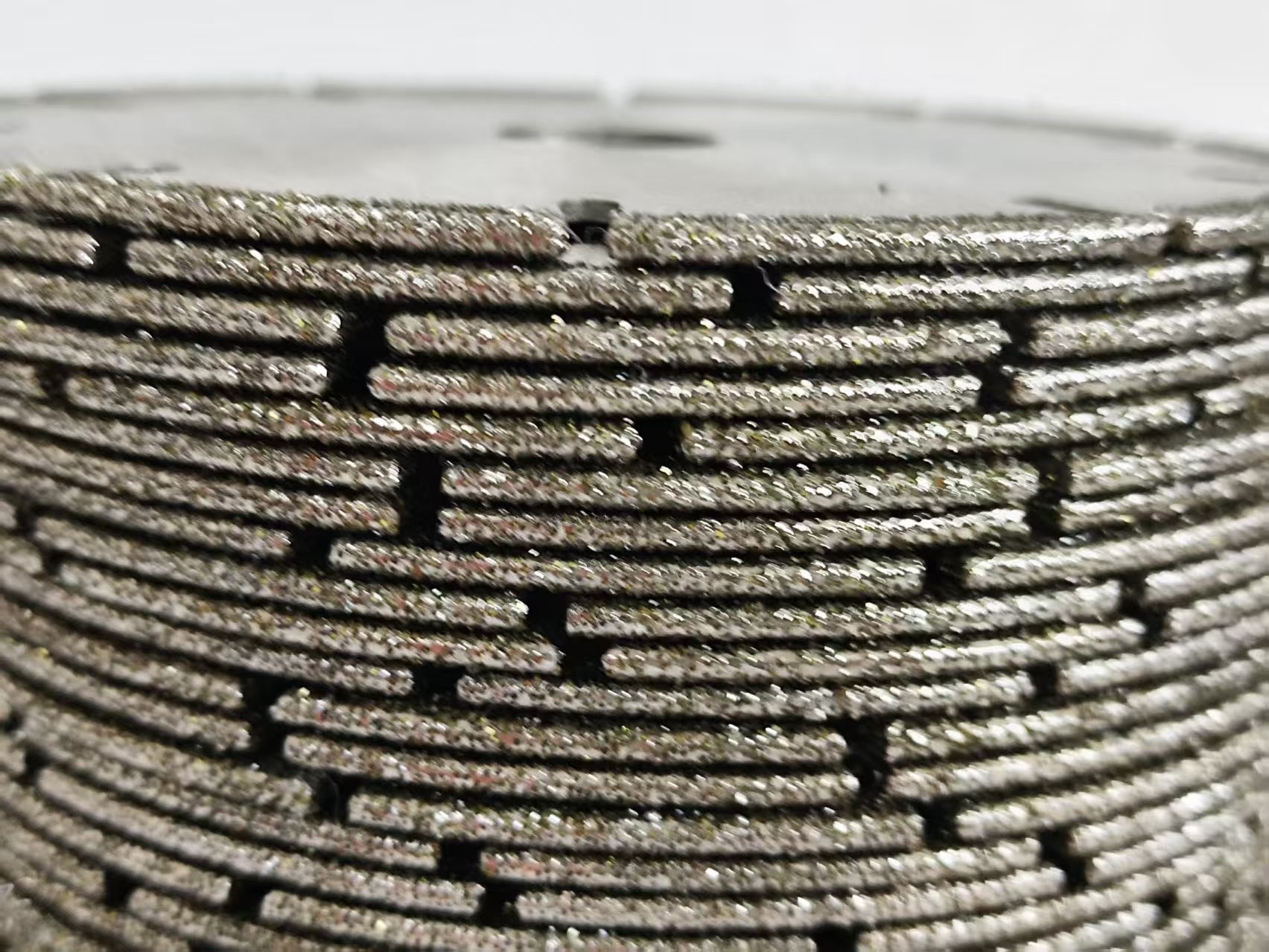

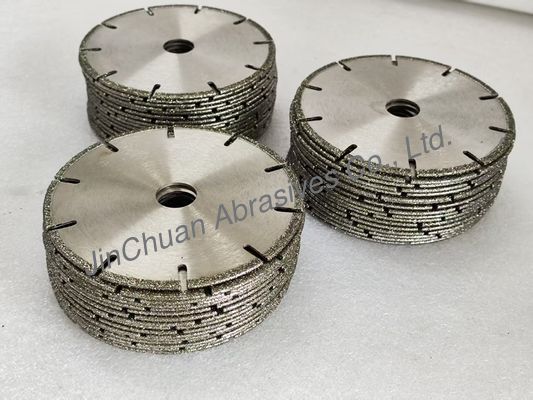

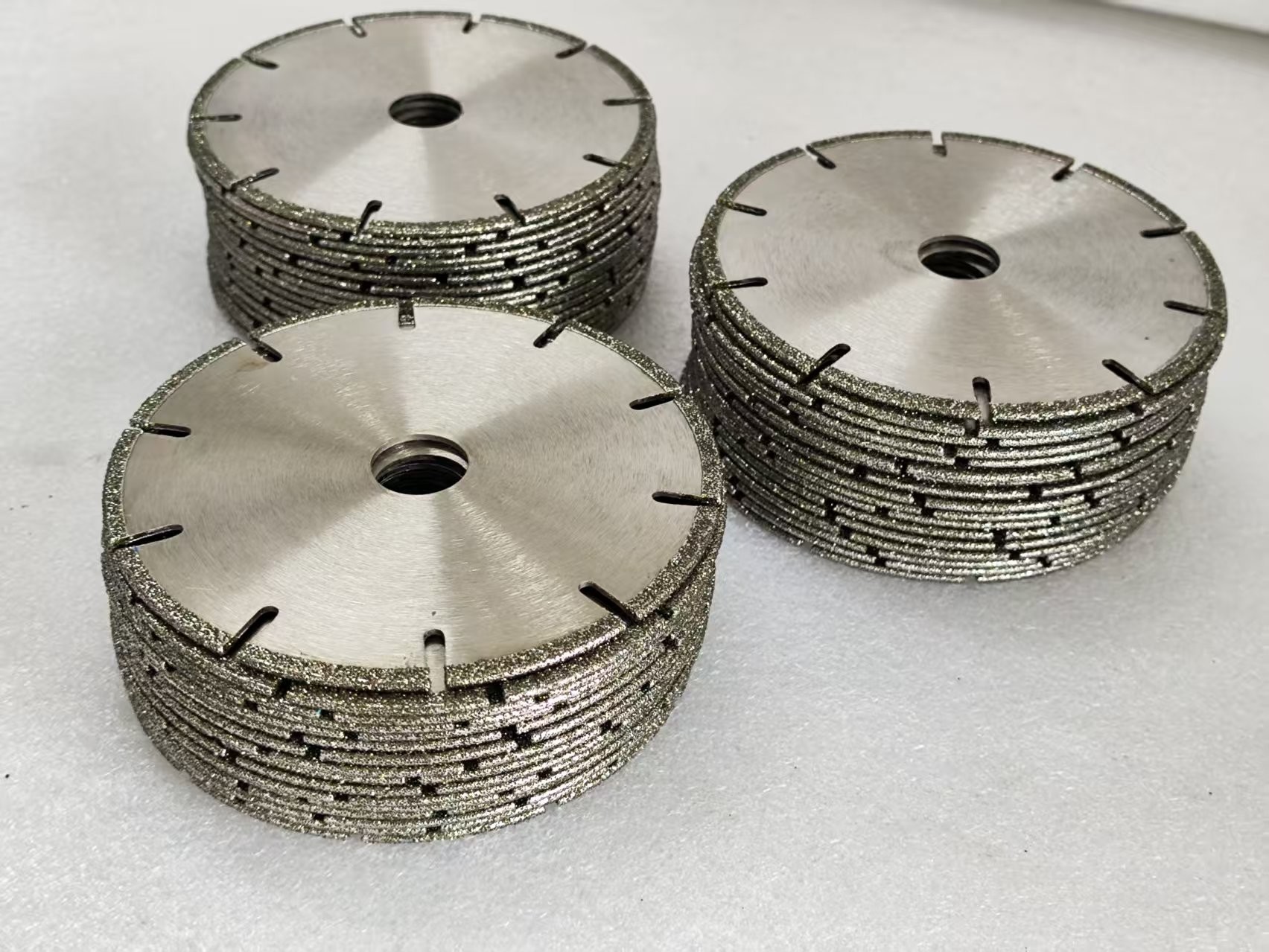

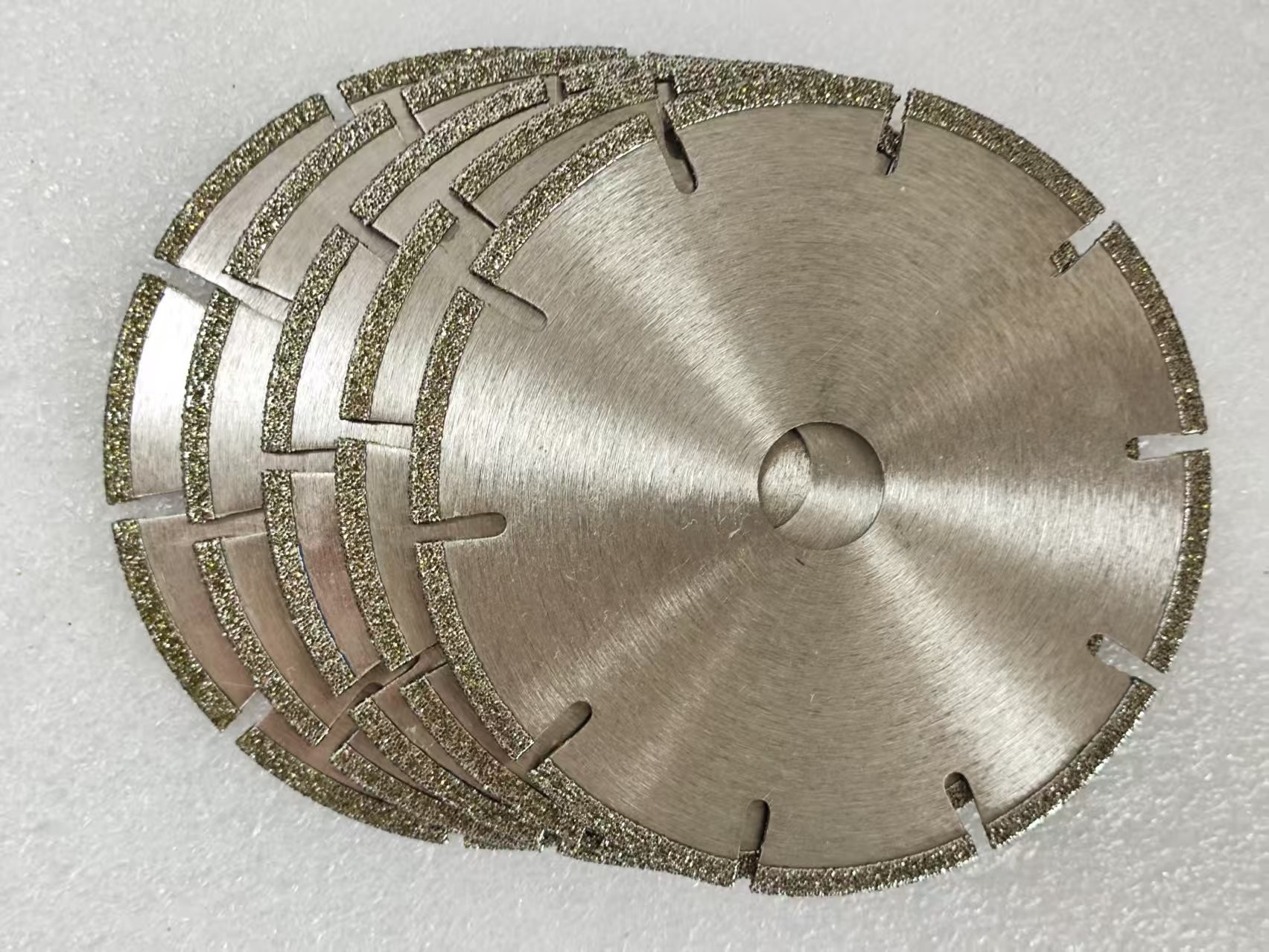

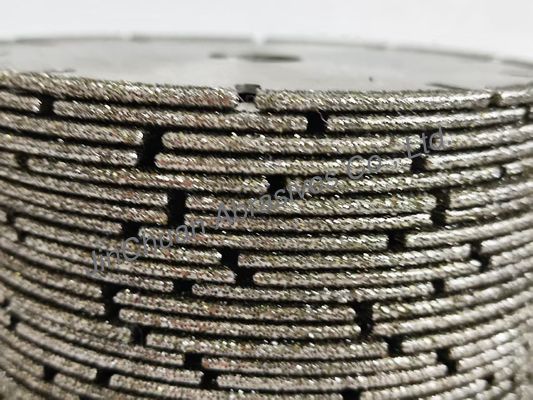

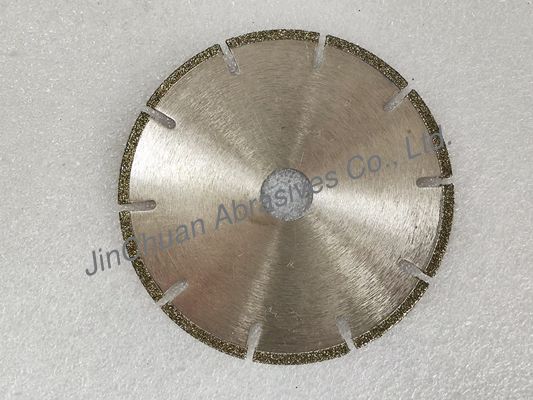

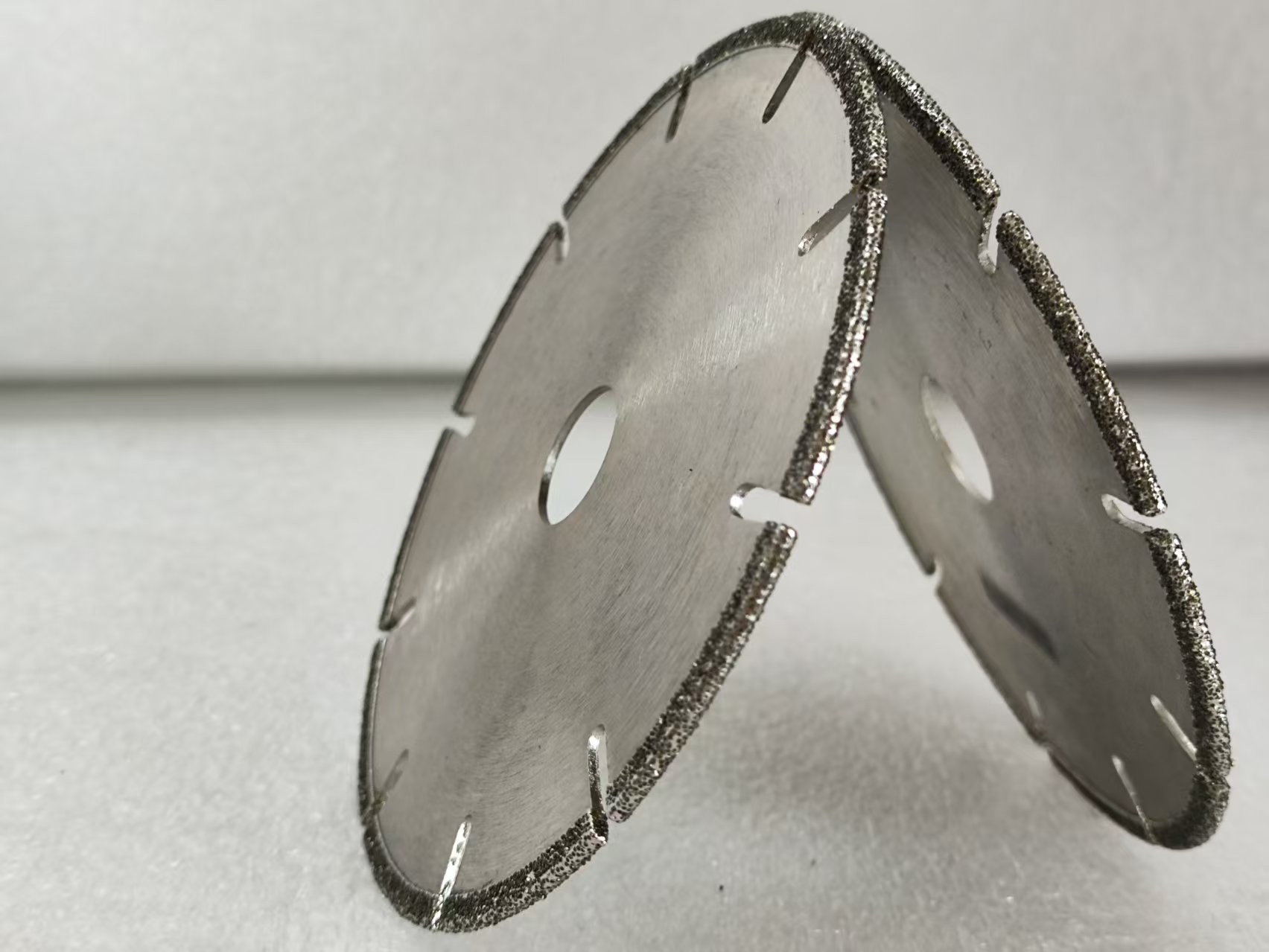

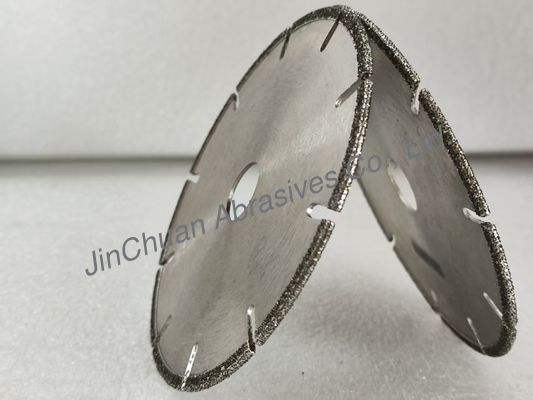

Long Life Span Electroplated Bonded Diamond Cutting Blade
Product Details
| Material: | Diamond | Radius: | R1.1 |
|---|---|---|---|
| Size: | 100*2.2*15.88*3mm | Blade Thickness: | 2.2mm |
| Blade Diameter: | 76mm | Life Span: | Long |
| Application: | Cutting | Product Name: | Electroplated Diamond Cutting Blade |
| Highlight |
Electroplated Bonded Diamond Cutting Blade,Bonded Diamond Cutting Blade |
||
Product Description
Product Description:
An electroplated diamond cutting wheel is an abrasive tool where synthetic diamond particles are bonded to a steel or alloy core using an electroplating process. A thin layer of nickel (or nickel-cobalt alloy) is deposited via electrolysis to secure the diamond grits, forming a single-layer cutting edge. This design maximizes grit exposure for efficient material removal, making it ideal for precision cutting of ultra-hard, non-ferrous materials.
Features:
High Cutting Speed: Exposed diamond grit (60–70% exposure) enables aggressive material removal with minimal heat buildup.No Dressing Required**: Single-layer design eliminates the need for truing or dressing, reducing downtime.
Precision Cutting**: Maintains sharp, consistent edges for clean cuts in brittle or hard materials.
Versatility**: Suitable for wet or dry cutting, depending on the application.
Cost-Effective for Small Batches**: Lower initial cost compared to multi-layer bonded wheels (e.g., sintered or vacuum brazed).
Technical Parameters:
| Material | Diamond |
| Blade Diameter | 76mm |
| Blade Thickness | 2.2mm |
| Product Name | Electroplated Diamond Cutting Blade |
| Life Span | Long |
| Application | Cutting |
| Radius | R1.1 |
| Size | 100*2.2*15.88*3mm |
Applications:
Carbide Tools**: Cutting tungsten carbide inserts, rods, and tool blanks.
- **Ceramics/Glass**: Slicing silicon wafers, optical glass, and advanced ceramics.
- **Stone/Composite Materials**: Cutting granite, quartz, carbon fiber, and fiberglass.
- **Electronics**: Precision dicing of semiconductor materials (e.g., silicon, gallium nitride).
- **Dental/Medical**: Trilling or sectioning zirconia crowns, bone, or bioceramics.
Support and Services:
Our Product Technical Support team for the Electroplated Diamond Blade is dedicated to providing assistance with any technical inquiries, troubleshooting, and product usage guidance. Our experts are available to help you optimize the performance of your blade and ensure its proper application for your specific needs.
In addition, we offer a range of services related to the Electroplated Diamond Blade, including maintenance tips, blade sharpening services, and customized solutions to meet your cutting requirements. Our team is committed to delivering high-quality support and services to help you achieve the best results with our product.
