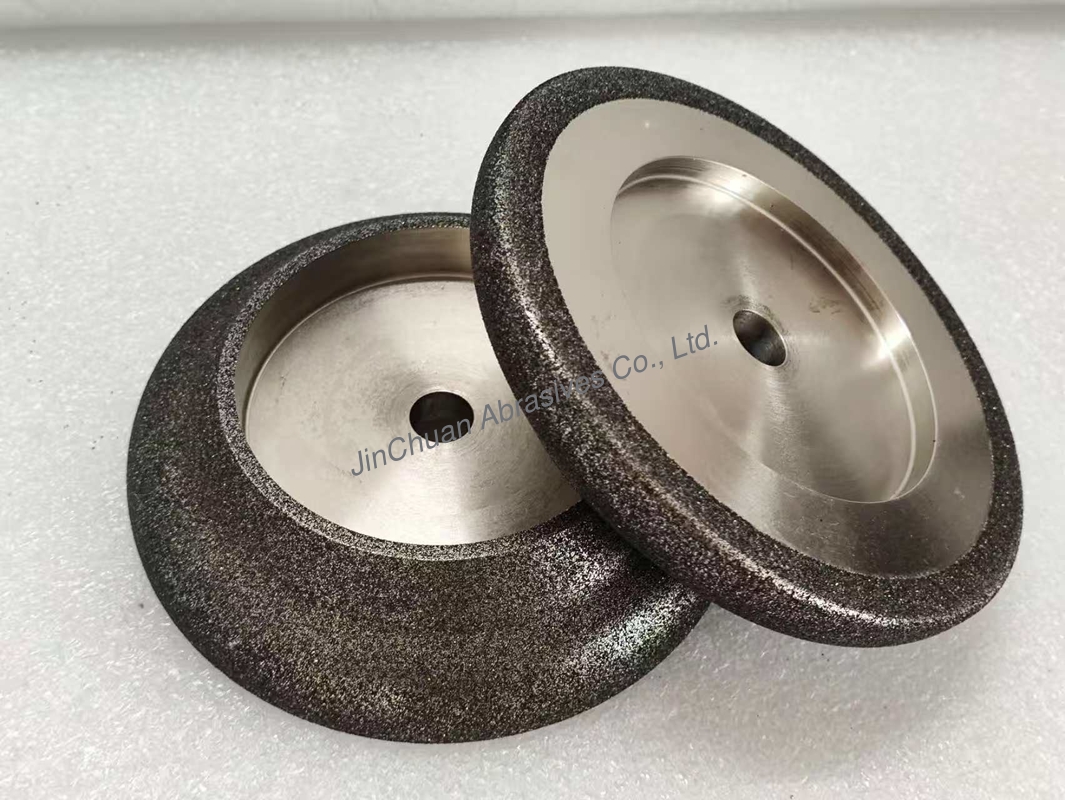

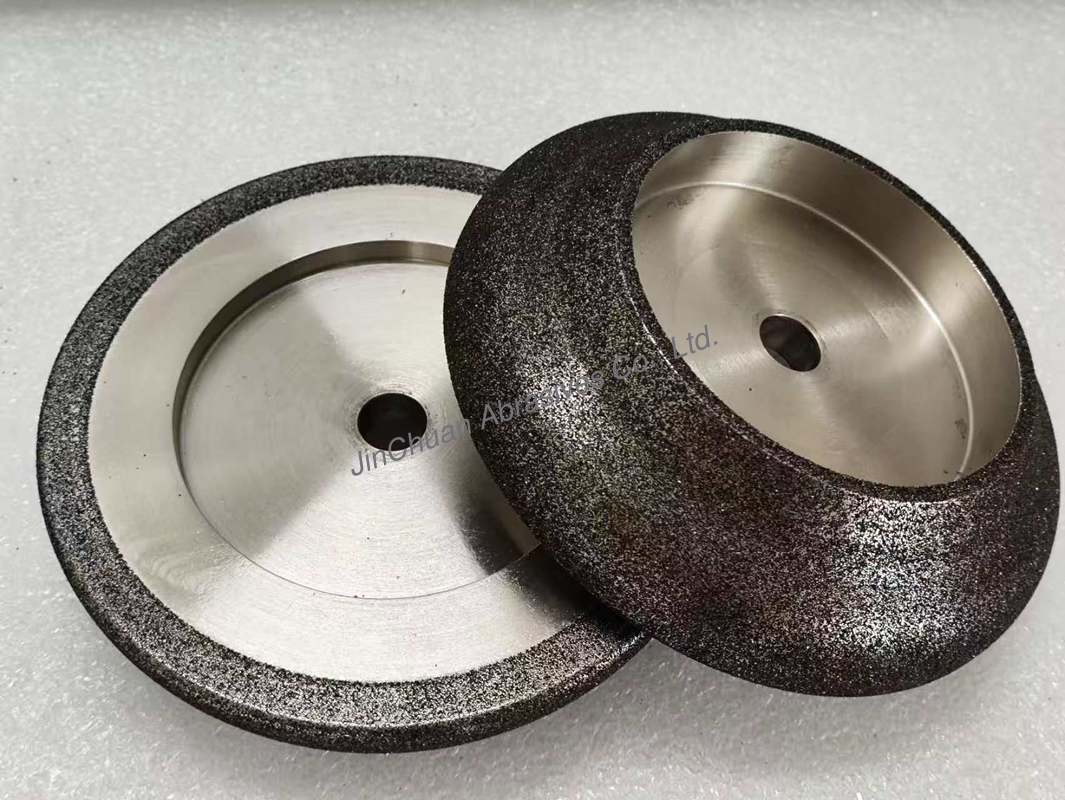

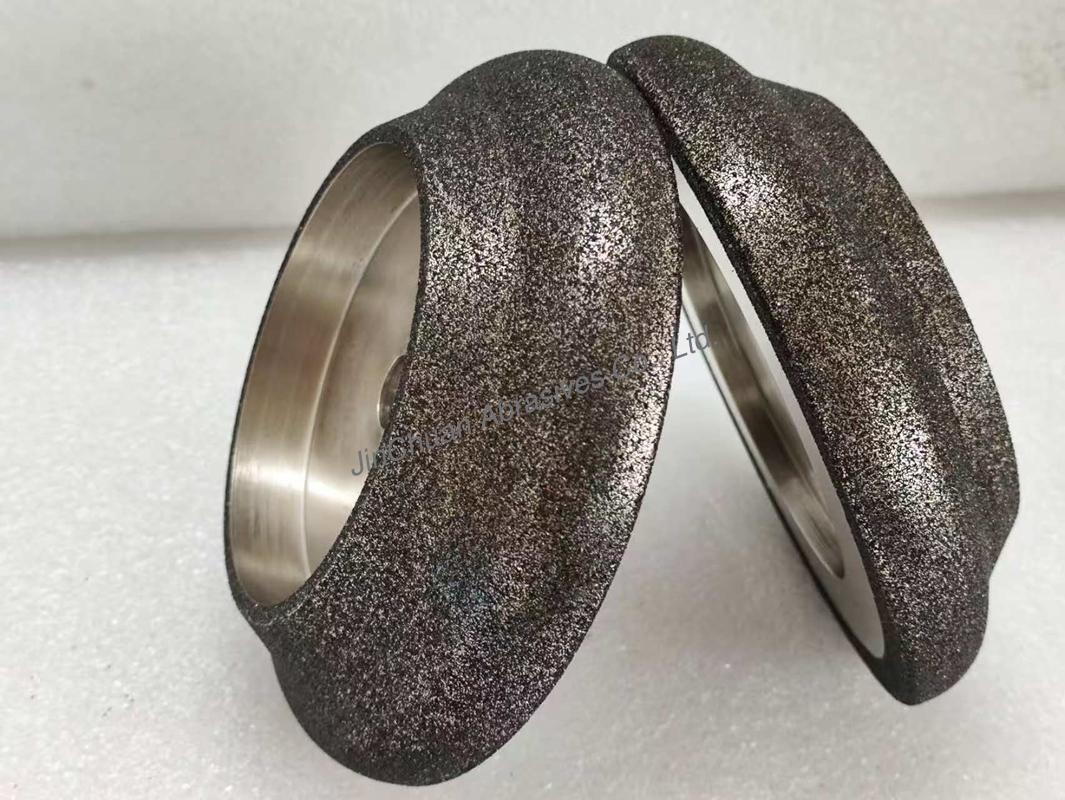

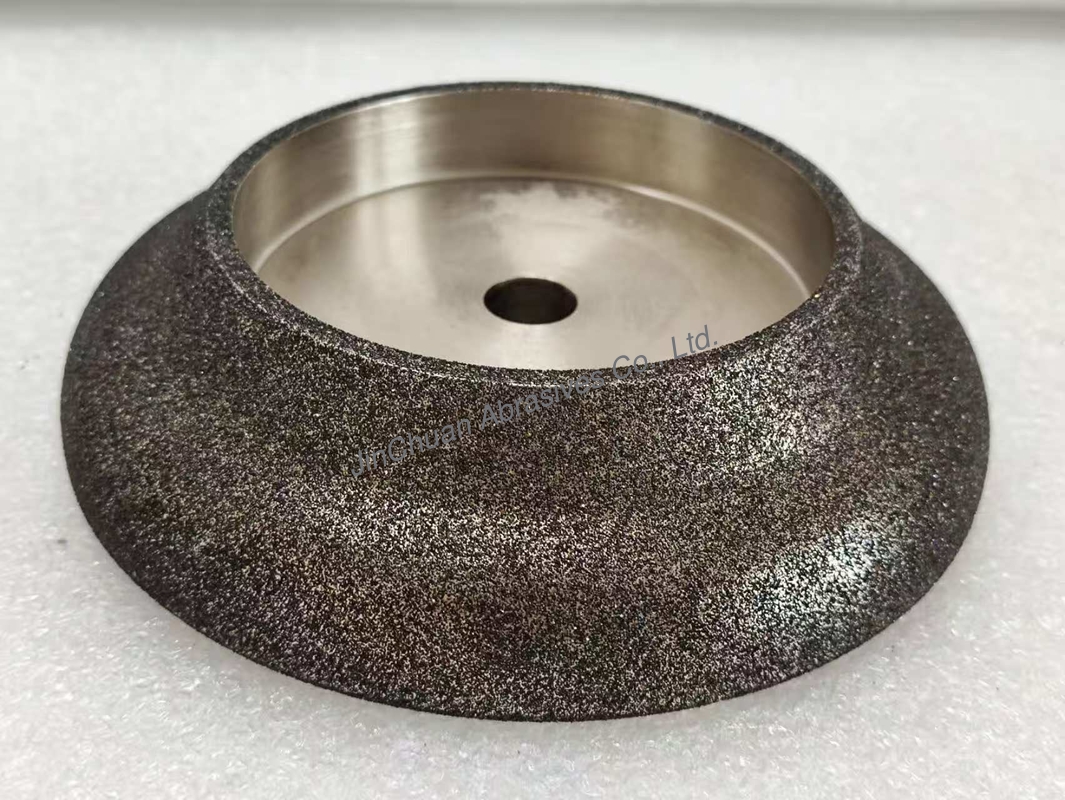

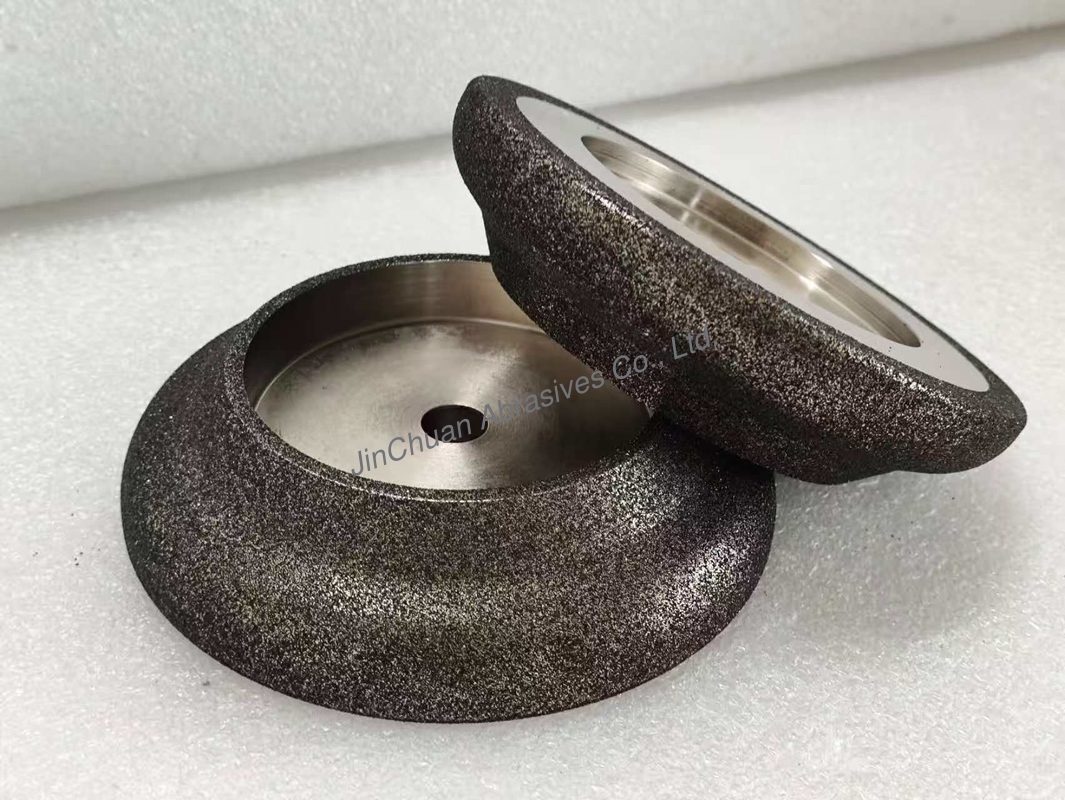

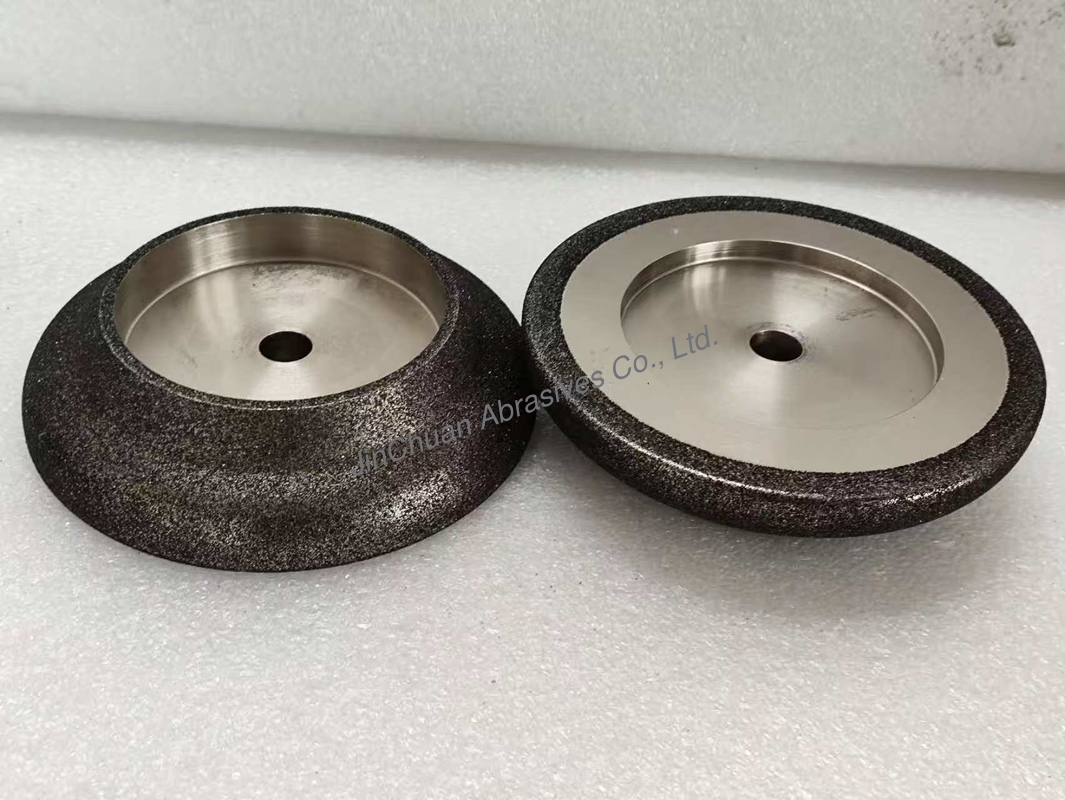

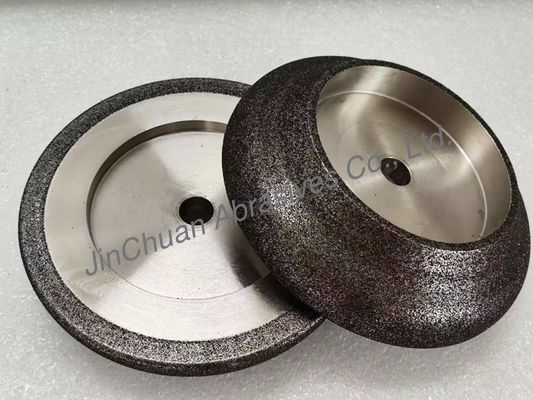

B60/70 127*30.5*12.74 10/30 Turtle Back Tooth CBN Grinding Wheel For Stellite Band Saw Blade Grinding
Product Details
| Colour: | Black, Amber | Specification: | 1FF1 |
|---|---|---|---|
| Durability: | Long-lasting | Basebody: | Steel |
| Feature: | Electroplated Cbn Products | Wheel Shape: | Cylindrical |
| Inner Hole: | 12.74mm | Precision: | High Precision |
| HS Code: | 6804211000 | Diameter: | 127mm |
| Thickness: | 30.5mm | ||
| Highlight |
10/30 CBN Grinding Wheel,Turtle Back Tooth CBN Grinding Wheel |
||
Product Description
Descriptrion
CBN : Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years.
Application
Our tortoise-tooth CBN grinding wheels are specially used for grinding Stellite alloy band saw blades. They are divided into coarse grinding and fine grinding. The grit size of B45/50 is suitable for coarse grinding, and the grit size of B60/70 is suitable for fine grinding.
Advantages
1. Super high wear resistance, super toughness
2. No loss of profile during grinding, no dressing required
3. The bandsaw itself is sharper after grinding and can be run at higher
production speeds
4. No abrasive dust generated that can damage machine components
5. Eliminates the possibility of wheel breakage
CBN grinding wheel for band saw specification
Diameter (D):127mm(5 inches)/ 150mm(6 inches)/ 203mm(8 inches)
Thickness (T): 30.5 mm
Hole (H): 12.7 mm / 20 mm / 25.4 mm / 32 mm
Please contact us for other sizes, we can customize according to your requirements.
