5inch Woodmizer Bandsaw Sharpening Grinding Wheel 127mm WM4/32

5inch Woodmizer Bandsaw Sharpening Grinding Wheel 127mm WM4/32

  • Highlight

    Bandsaw Sharpening Grinding Wheel

    ,

    5inch Sharpening Grinding Wheel

    ,

    127mm Sharpening Wheel

  • Band Saw Sharpening CBN Grinding WheelSize
    Woodmizer 127*19.05*12.7mm
  • CBN Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Wheel Abrasives
    Cubic Boron Nitride
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grit Mesh
    B151
  • Bond
    Electroplated Bonded
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,sharpening,high Speed Steel Slotting,fluting,grooving
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    B151
  • Minimum Order Quantity
    5
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    100/month

5inch Woodmizer Bandsaw Sharpening Grinding Wheel 127mm WM4/32

5inch Woodmizer Bandsaw Sharpening Grinding Wheel 127mm WM4/32



Main Introduction Of Electroplated CBN grinding Wheels for band saw blades



CBN borazon band saw grinding sharpening wheels have very long working life. Wheel is profiled to match band saw teeth,.Used correctly lasts very long and gives superior finish.

Now we are constantly produce CBN wheels with diameters 5inch(125mm),6inch(150mm),8inch(203mm)

You can choose inner holes:12.7mm,20mm,25.4mm or 31.75mm



Different Wheel Profiles for all kind of wood and seasons are available

10/30--mostly used universal grinding wheel profile

9*29---perfectly prepares band saws for winter time cutting, or cutting hard wood

13/29---wheel profile which prepares band saws for soft wood cutting

4/32---wheel profile which cana prepare band saws for very frozen and very hard wood cutting

7/34--the cbn wheels profile is recommended for hardwood





Key Specifications Of CBN Wheel



Name 5 inch bandsaw sharpening grinding wheels
outer diameter 127mm
tooth spacing 3/4 7/8 1 inch TS all available
bore diameter 12.27mm
turbo 10/30
grit size  B151
suitable for

woodmizer band saw bade

minimum order quantity 1~10/10~50/>50pcs





Mostly used CBN wheel ar for band saws of following producers:

WM profiles, Mi.l, Simonds, Dakin-Flathers Ripper37, Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others

If your bandsaw is not these brands, contact us , we can OEM the wheel for you too.

Any profile,step,size, grain--its production and large stocks allow us to quickly complete any order

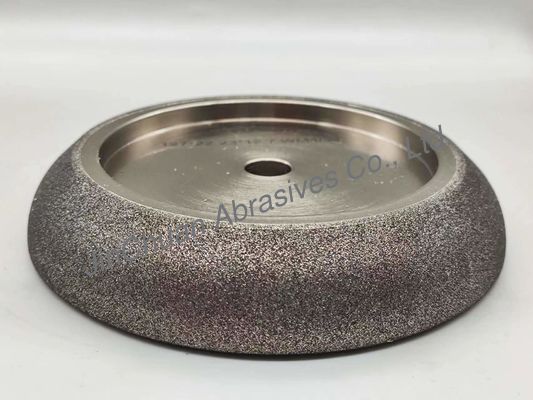

5inch Woodmizer Bandsaw Sharpening Grinding Wheel 127mm WM4/32 0



Competitive Advantages of the bandsaw sharpening grinding wheel



Electroplated(galvanic) CBN profile grinding wheels are specially used for bandsaw sharpening, CBN be plated on the surface of steel substrate by electroplating process to obtain accuracy profile, it ensure the high quality teeth shape.



1)Sharp. Fast grinding and fast sharpneing your tools

2) Long life. Much longer life than traditional abrasive wheels

3) Well balanced each wheels.

4) Outter diameter is no change from start to end

5) No dust coming out when sharpening and grinding



Tips:

We are the factory supplier with over 10 years experience

The quality checked by time

Any profile, step, size, grain---the common used kind always have in stock, its production and large stocks allow us to quickly complete any order!









NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
