6inch 150mm CBN Grinding Wheels For Band Saw Sharpening Woodmizer

6inch 150mm CBN Grinding Wheels For Band Saw Sharpening Woodmizer

  • High Light

    150mm CBN Grinding Wheels

    ,

    6inch CBN Grinding Wheels

    ,

    Band Saw Sharpening CBN Grinding Wheels

  • Band Saw Sharpening CBN Grinding WheelSize
    WM7/39.5 150*22.23*20mm
  • CBN Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Wheel Abrasives
    Cubic Boron Nitride
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grits
    B151
  • Bond
    Electroplated Bonded
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,sharpening,high Speed Steel Slotting,fluting,grooving
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    B151
  • Minimum Order Quantity
    5
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    100/month

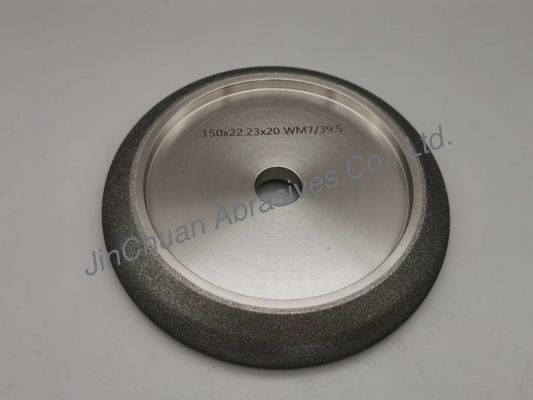

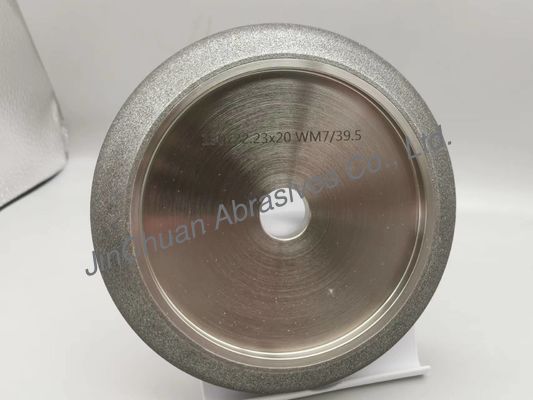

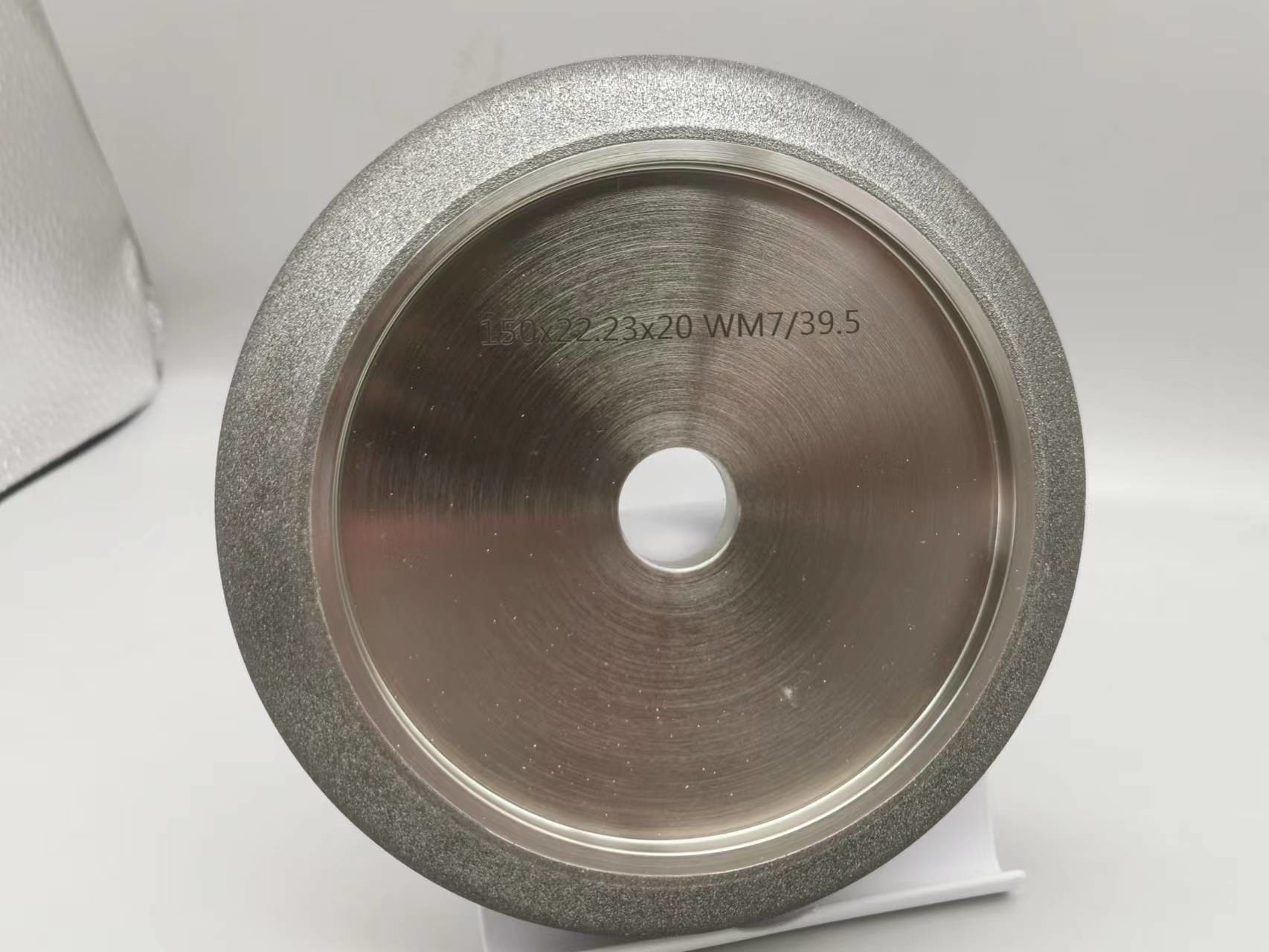

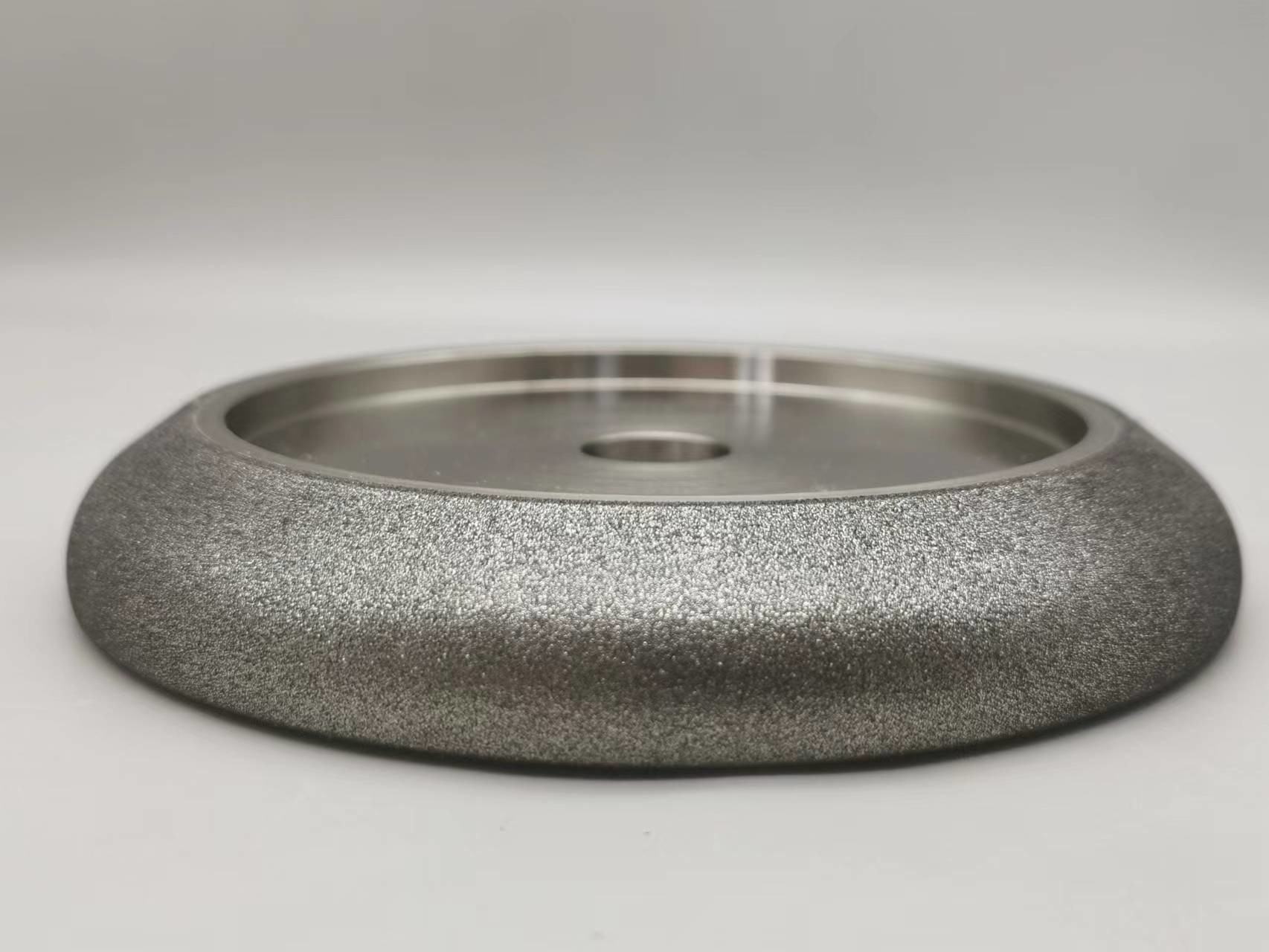

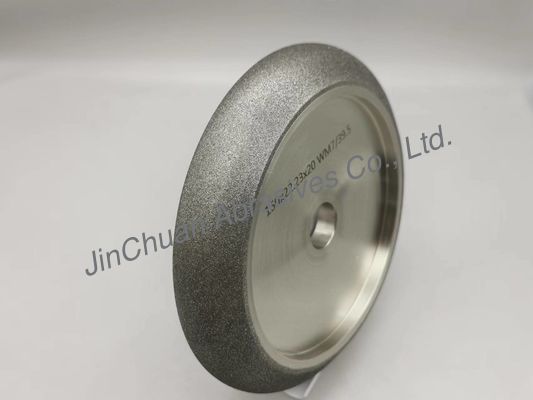

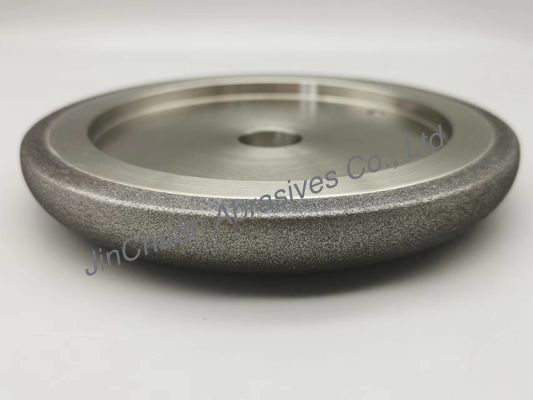

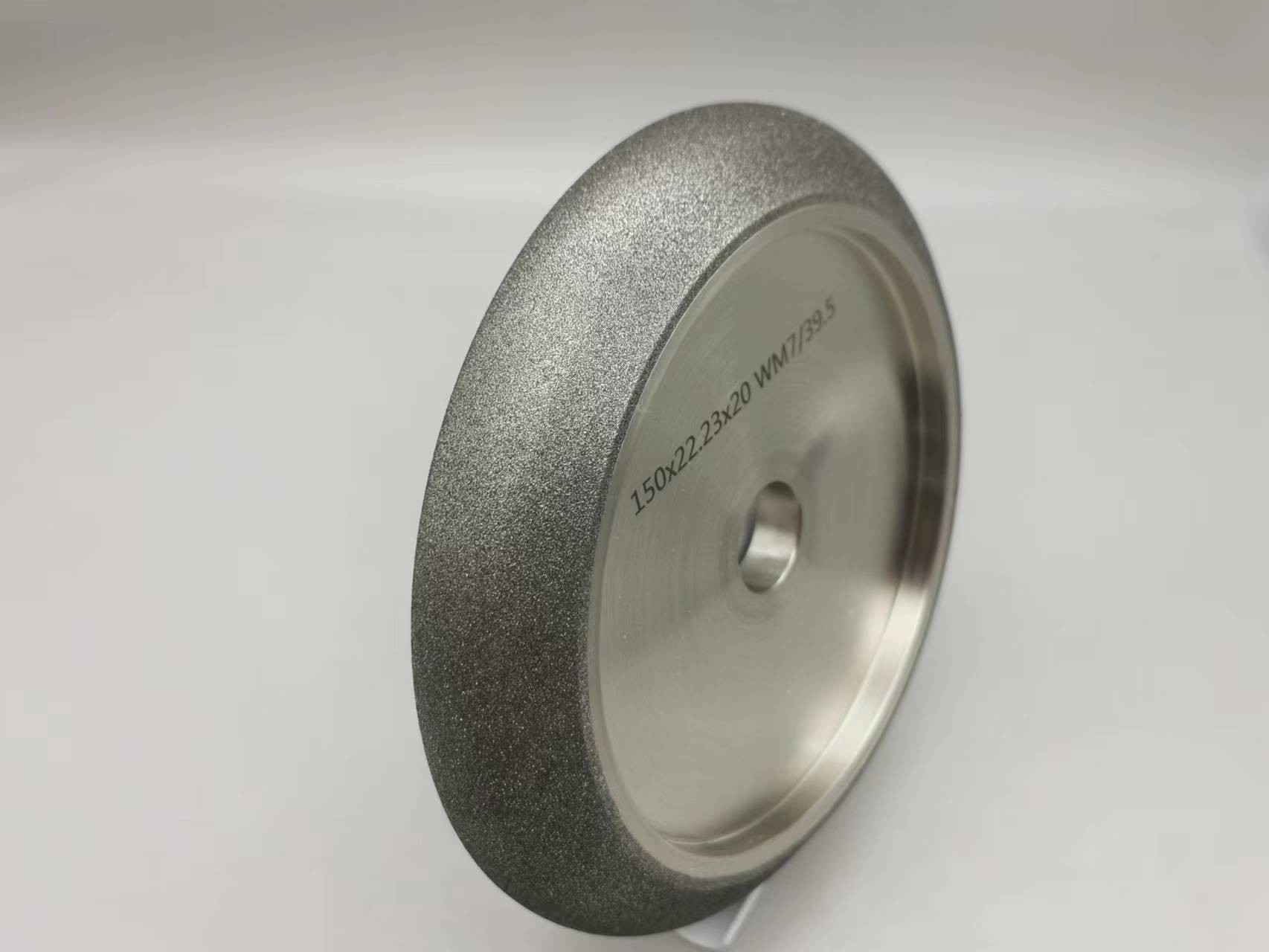

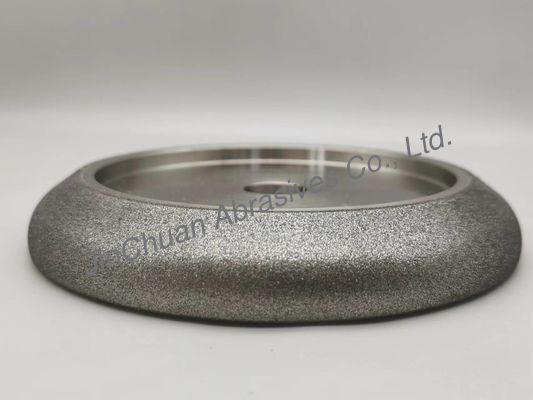

6inch 150mm CBN Grinding Wheels For Band Saw Sharpening Woodmizer

6inch 150mm Cbn Wheels For Band Saw Sharpening Woodmizer WM7/39.5



Main Information Of CBN grinding Wheels for band saw blades



CBN borazon band saw grinding sharpening wheels have very long working life. Wheel is profiled to match band saw teeth,.Used correctly lasts very long and gives superior finish.

Now we are constantly produce CBN wheels with diameters 5inch(125mm),6inch(150mm),8inch(203mm)

You can choose inner holes:12.7mm,20mm,25.4mm or 31.75mm



Different Wheel Profiles for all kind of wood and seasons are available

10/30--mostly used universal grinding wheel profile

9*29---perfectly prepares band saws for winter time cutting, or cutting hard wood

13/29---wheel profile which prepares band saws for soft wood cutting

4/32---wheel profile which cana prepare band saws for very frozen and very hard wood cutting

7/34--the cbn wheels profile is recommended for hardwood





Key Specifications Of CBN Wheel



Name 5 inch bandsaw sharpening grinding wheels
outer diameter 150mm
tooth spacing 22.23mm
bore diameter 20mm
turbo 10/30
grit size  B151
suitable for

woodmizer band saw bade

minimum order quantity 1~10/10~50/>50pcs





Mostly used CBN wheel ar for band saws of following producers:

WM profiles, Mi.l, Simonds, Dakin-Flathers Ripper37, Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others

If your bandsaw is not these brands, contact us , we can OEM the wheel for you too.

Any profile,step,size, grain--its production and large stocks allow us to quickly complete any order



6inch 150mm CBN Grinding Wheels For Band Saw Sharpening Woodmizer 0



Competitive Advantages



Electroplated(galvanic) CBN profile grinding wheels are specially used for bandsaw sharpening, CBN be plated on the surface of steel substrate by electroplating process to obtain accuracy profile, it ensure the high quality teeth shape.



1)Sharp. Fast grinding and fast sharpneing your tools

2) Long life. Much longer life than traditional abrasive wheels

3) Well balanced each wheels.

4) Outter diameter is no change from start to end

5) No dust coming out when sharpening and grinding





FAQ:



1.    Do you supply technical supports?

Yes, we supply the following technical supports for our customers:

1)    Free design for your products

2)    Free drawing can be supplied for the designation

3)    Recommend wheel bonding, grit size and concentrations for your apllication

2.    How do you ship your products?

Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.







NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
