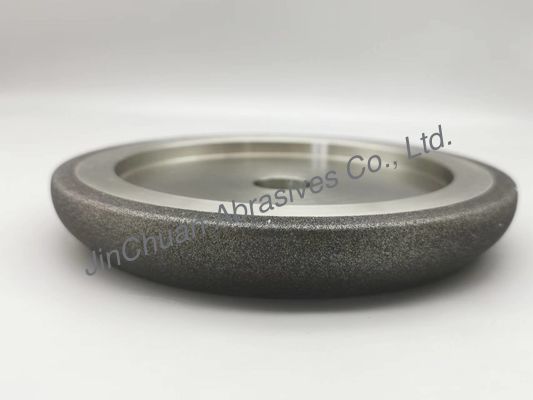

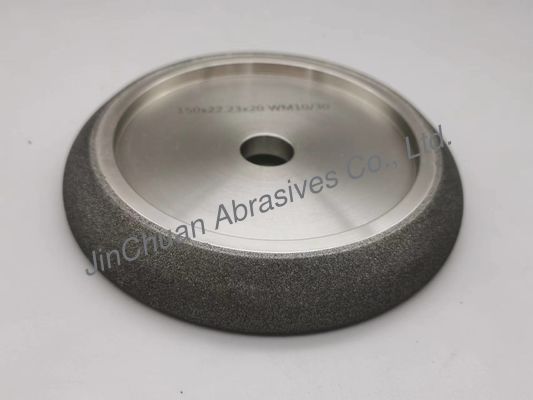

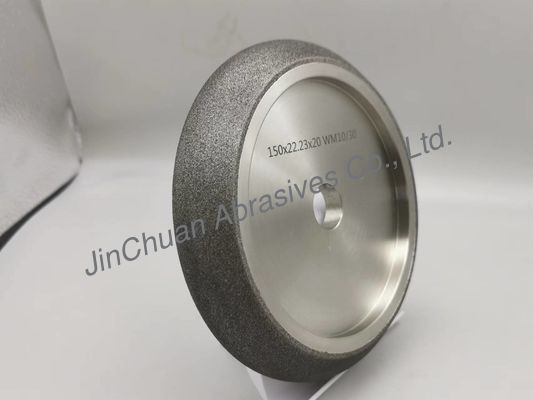

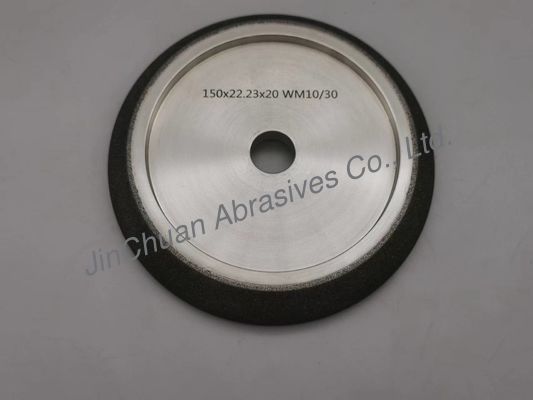

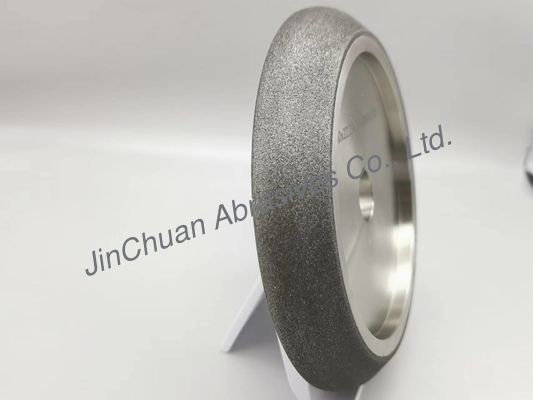

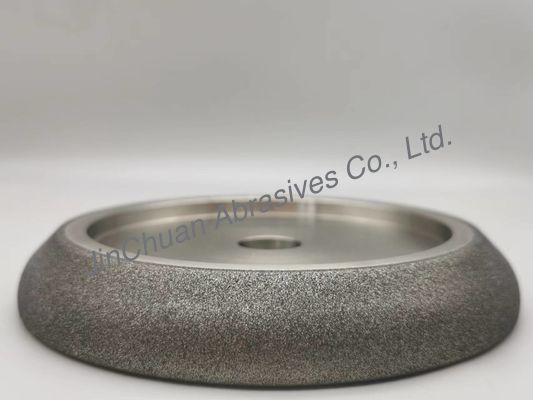

Woodmizer Electroplated CBN Grinding Wheels For Band Saw WM10 / 30 150*22.23*20mm

Woodmizer Electroplated CBN Grinding Wheels For Band Saw WM10 / 30 150*22.23*20mm

  • High Light

    Woodmizer Electroplated CBN Grinding Wheels


    150*22.23*20mm CBN Grinding Wheels


    WM10/30 CBN Grinding Wheels

  • Band Saw Sharpening CBN Grinding WheelSize
    WM10/30 150*22.23*20mm
  • CBN Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Abrasive
    Cubic Boron Nitride
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grit Mesh
  • Bond
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,sharpening,high Speed Steel Slotting,fluting,grooving
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
  • Supply Ability

Woodmizer Electroplated CBN Grinding Wheels For Band Saw WM10 / 30 150*22.23*20mm

Cbn Wheels For Band Saw Sharpening Woodmizer WM10/30 150*22.23*20mm


Main Information Of CBN grinding Wheels for band saw blades


CBN borazon band saw grinding sharpening wheels have very long working life. Wheel is profiled to match band saw teeth,.Used correctly lasts very long and gives superior finish.

Now we are constantly produce CBN wheels with diameters 5inch(125mm),6inch(150mm),8inch(203mm)

You can choose inner holes:12.7mm,20mm,25.4mm or 31.75mm


Different Wheel Profiles for all kind of wood and seasons are available

10/30--mostly used universal grinding wheel profile

9*29---perfectly prepares band saws for winter time cutting, or cutting hard wood

13/29---wheel profile which prepares band saws for soft wood cutting

4/32---wheel profile which cana prepare band saws for very frozen and very hard wood cutting

7/34--the cbn wheels profile is recommended for hardwood



Key Specifications Of CBN Wheel


Name 5 inch bandsaw sharpening grinding wheels
outer diameter 150mm
tooth spacing 22.23mm
bore diameter 20mm
turbo 10/30
grit size  B151
suitable for

woodmizer band saw bade

minimum order quantity 1~10/10~50/>50pcs



Mostly used CBN wheel ar for band saws of following producers:

WM profiles, Mi.l, Simonds, Dakin-Flathers Ripper37, Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others

If your bandsaw is not these brands, contact us , we can OEM the wheel for you too.

Any electroplated CBN sharpening wheel for band saw grinding can be produced according to Your requirements.

Woodmizer Electroplated CBN Grinding Wheels For Band Saw WM10 / 30 150*22.23*20mm 0


Competitive Advantages


Electroplated(galvanic) CBN profile grinding wheels are specially used for bandsaw sharpening, CBN be plated on the surface of steel substrate by electroplating process to obtain accuracy profile, it ensure the high quality teeth shape.





1.    Do you supply technical supports?

Yes, we supply the following technical supports for our customers:

1)    Free design for your products

2)    Free drawing can be supplied for the designation

3)    Recommend wheel bonding, grit size and concentrations for your apllication

2.    How do you ship your products?

Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.




NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
