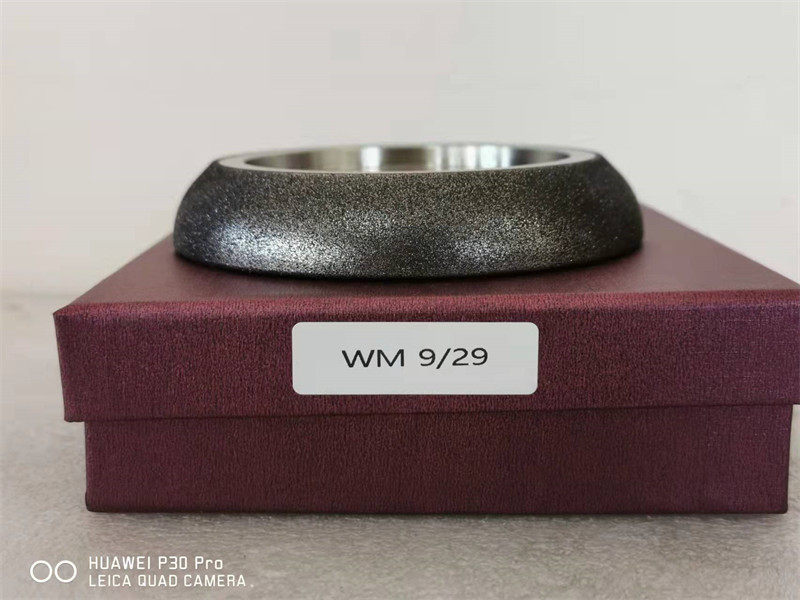

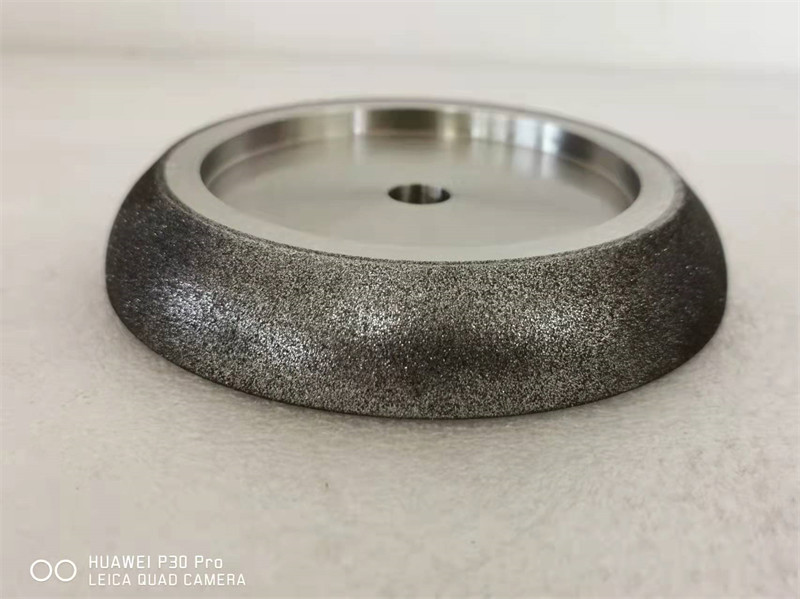

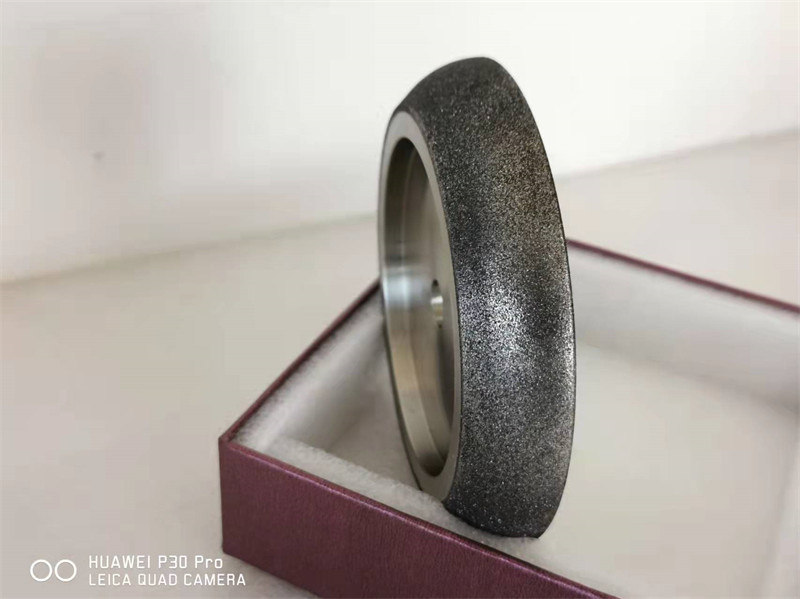

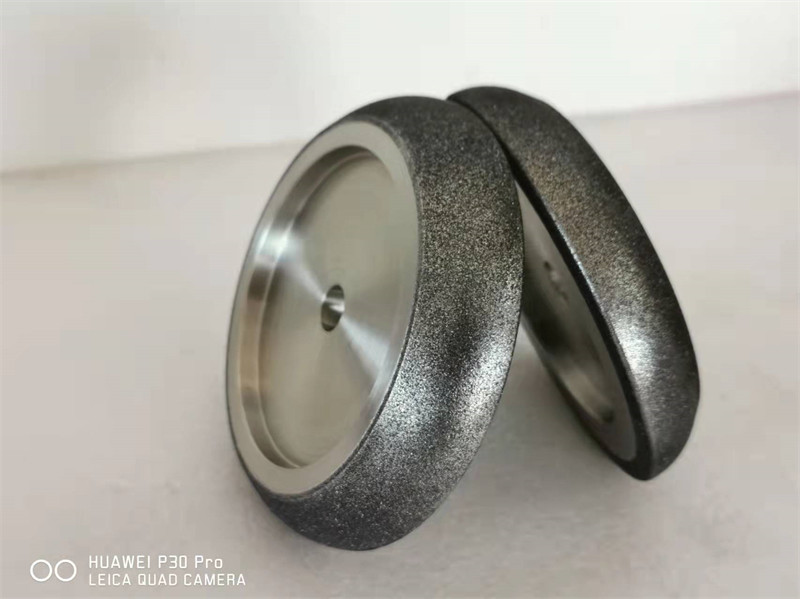

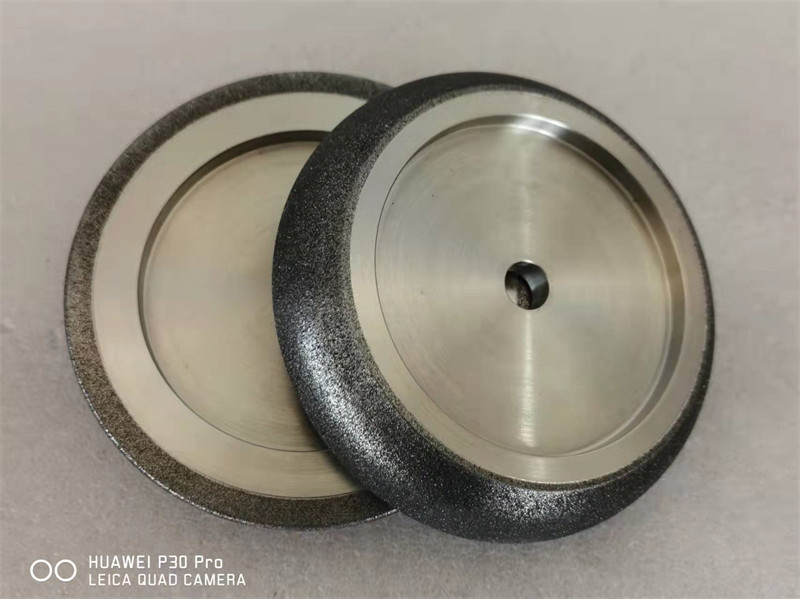

WM9/29 5 Inch Grinding Disc For Woodmizer Band Saw Sharpening

WM9/29 5 Inch Grinding Disc For Woodmizer Band Saw Sharpening

  • High Light

    WM9/29 5 Inch Grinding Disc


    5 Inch Grinding Disc For Woodmizer


    WM9/29 5 inch grinding wheel

  • Band Saw Sharpening CBN Grinding WheelSize
    127*22.23*12.7 WM9/29
  • CBN Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Abrasive
    Cubic Boron Nitride
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grit Mesh
  • Bond
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,sharpening,high Speed Steel Slotting,fluting,grooving
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
  • Supply Ability

WM9/29 5 Inch Grinding Disc For Woodmizer Band Saw Sharpening

5 inch grinding disc for Woodmizer Band saw Sharpening WM9/29 Grinding Wheel


Main Information Of CBN grinding Wheels


CBN or Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years. They are designed for sharpening wood band saw only and should not be used for other applications



Standard wheels parameters are:

Outside diameter Bore diameter

127 mm/ 5 inch 12, 7 mm/ 1/2 inch

150 mm/ 6 inch 20 mm/ 25/32 inch

203 mm/ 8 inch 32 mm/ 1 1/ 4 inch or 25, 4 mm/ 1 inch

Other outside or bore diameters are available upon request.


Key Specifications Of CBN Wheel


Name 5 inch bandsaw sharpening grinding wheels
outer diameter 127mm
tooth spacing 22.23mm
bore diameter 12.7mm
turbo 9/29
grit size  B151
suitable for

woodmizer band saw bade

minimum order quantity 1~10/10~50/>50pcs

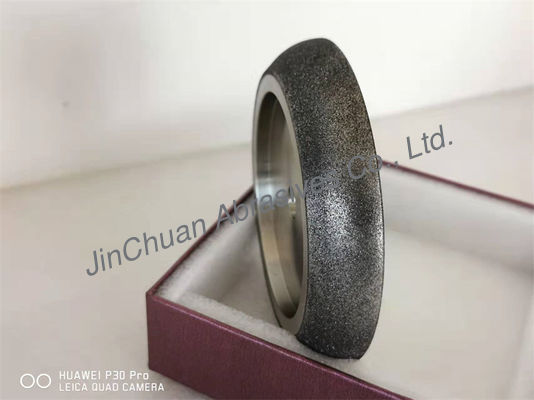

WM9/29 5 Inch Grinding Disc For Woodmizer Band Saw Sharpening 0


Any electroplated CBN sharpening wheel for band saw grinding can be produced according to Your requirements.

Different wheel profiles for all kind of wood and seasons are available:

Few mostly used tooth angles, other angles are available as well.

10/30-universal grinding wheel profile, which is used mostly.

9/29- for winter time cutting suitable profile. Sometimes used to cut harder wood as well.

13/29- for soft wood cutting

4/32- for cutting very hard wood or deeply frozen wood.

7 degree profiles- special angles for cutting hickory, white oak, ash, hard maple and other wood.


Competitive Advantages


1)Sharp. Fast grinding and fast sharpneing your tools

2) Long life. Much longer life than traditional abrasive wheels

3) Well balanced each wheels.

4) Outter diameter is no change from start to end

5) No dust coming out when sharpening and grinding





1.    Do you supply technical supports?

Yes, we supply the following technical supports for our customers:

1)    Free design for your products

2)    Free drawing can be supplied for the designation

3)    Recommend wheel bonding, grit size and concentrations for your apllication

2.    How do you ship your products?

Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.




NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
