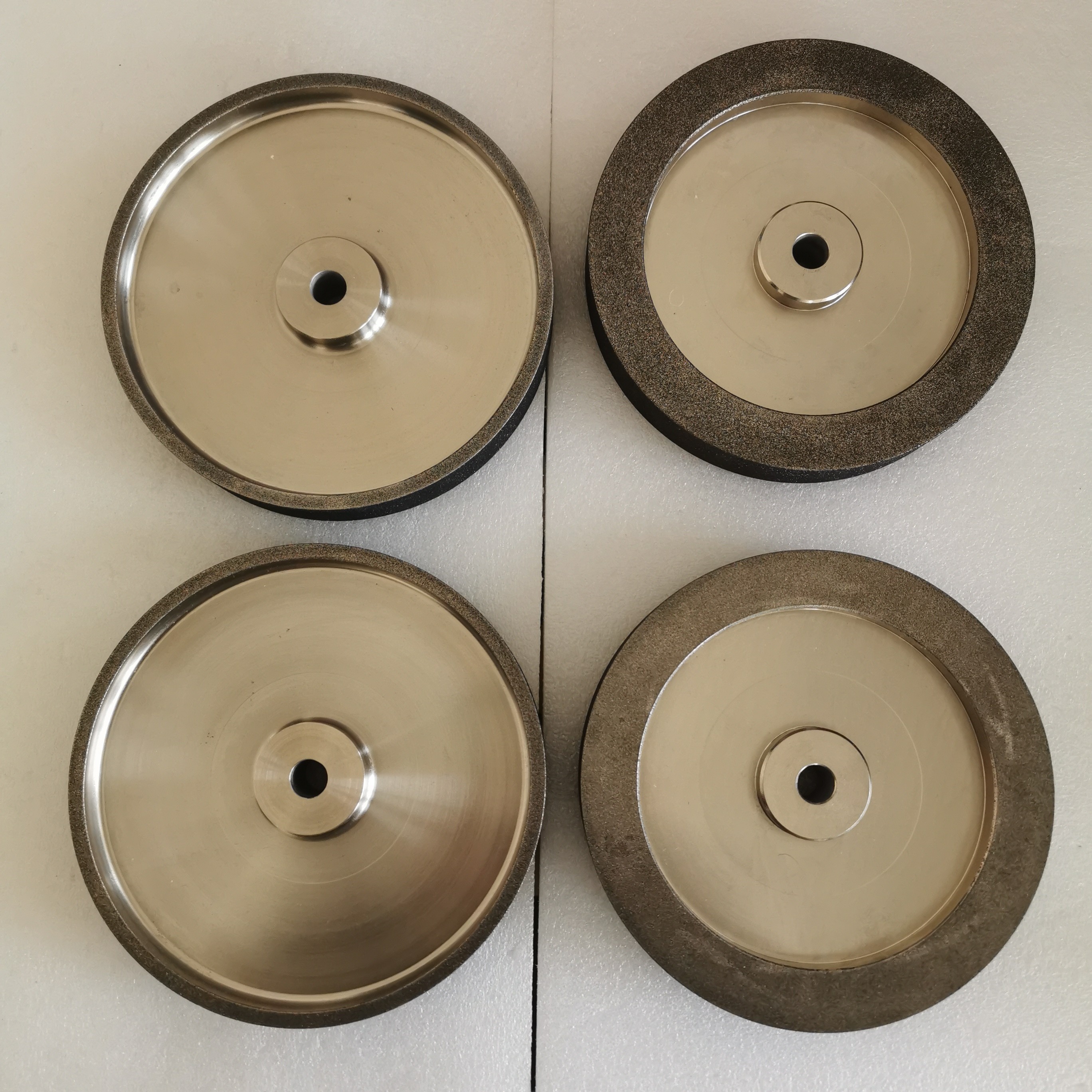

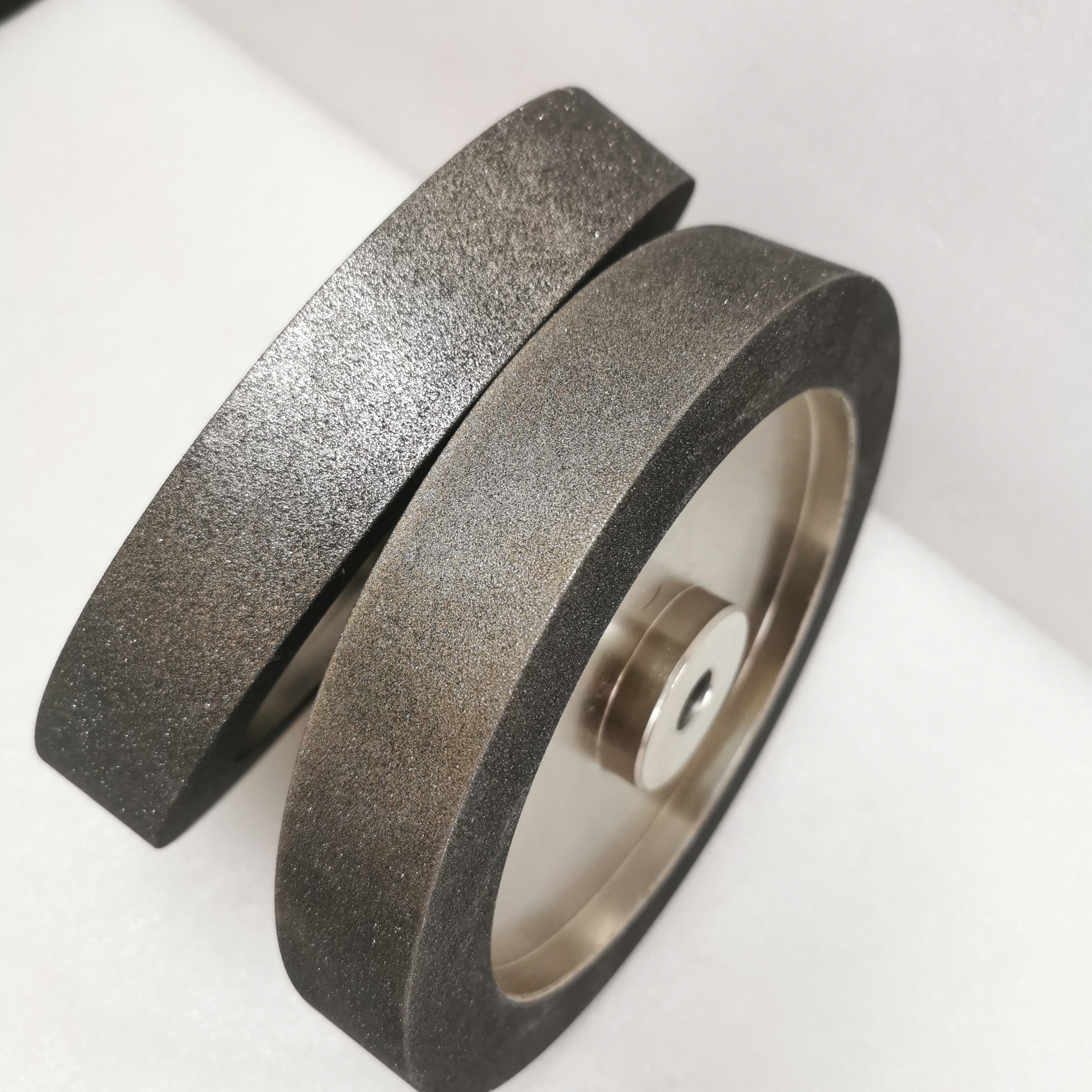

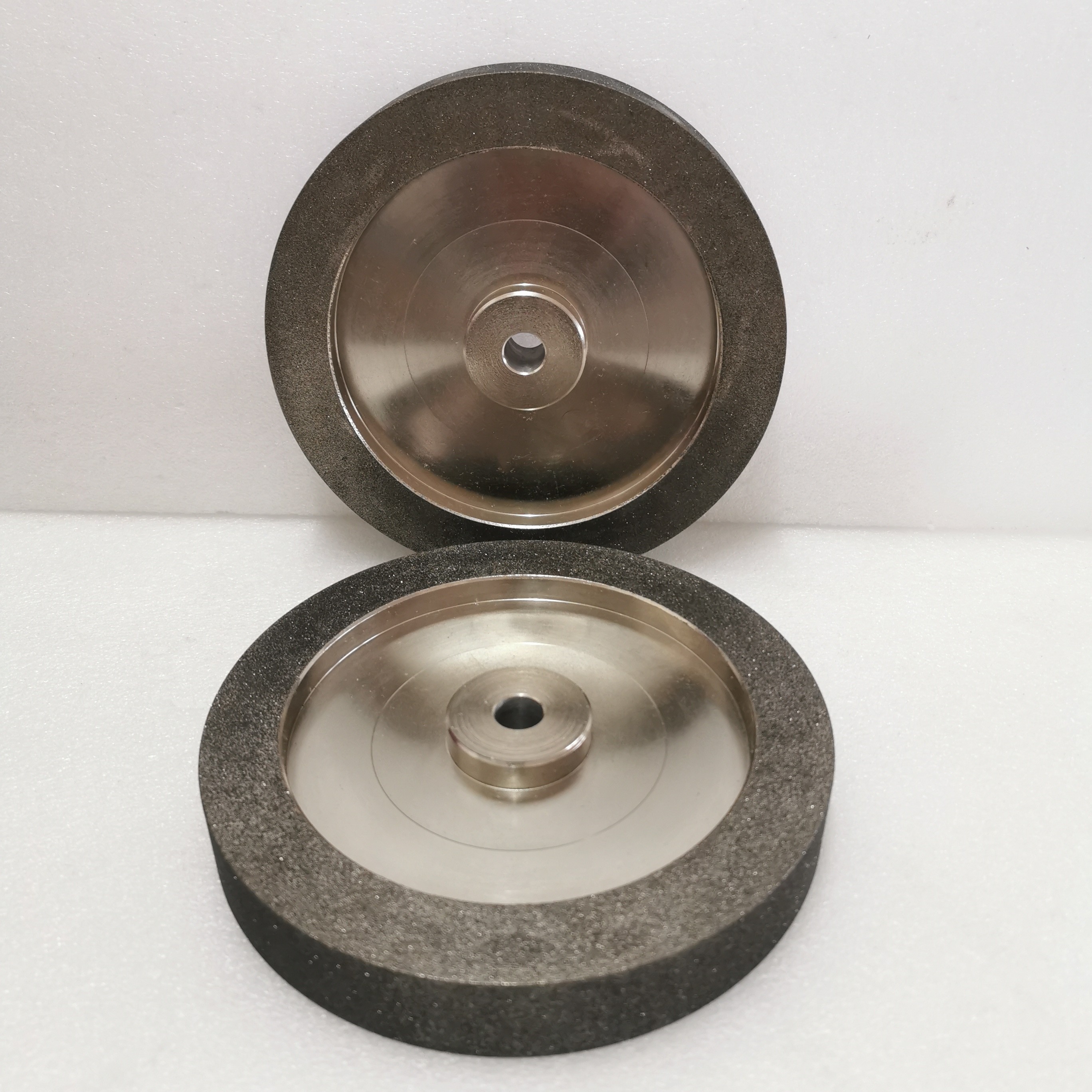

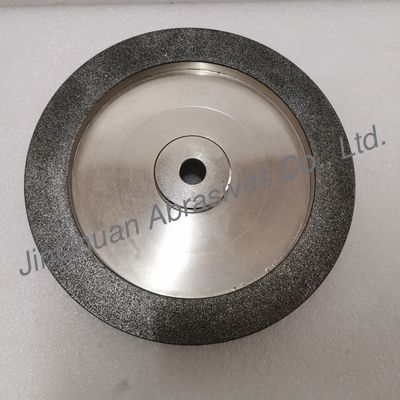

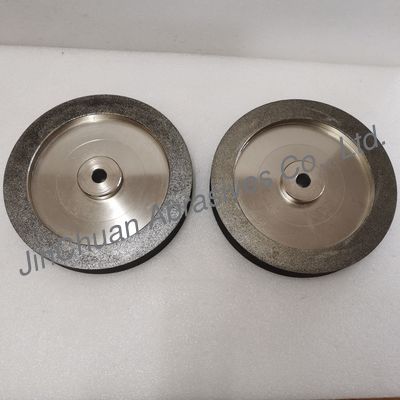

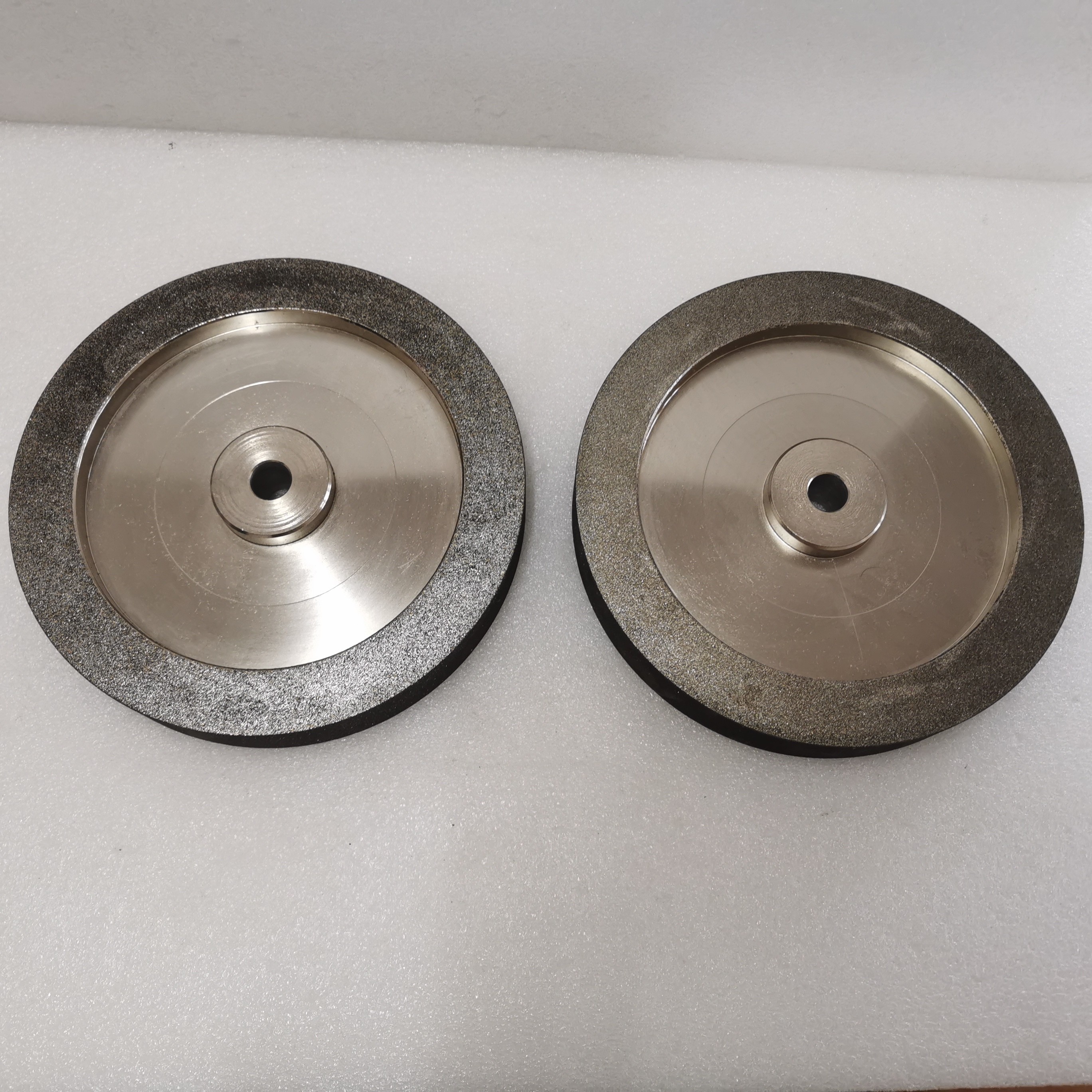

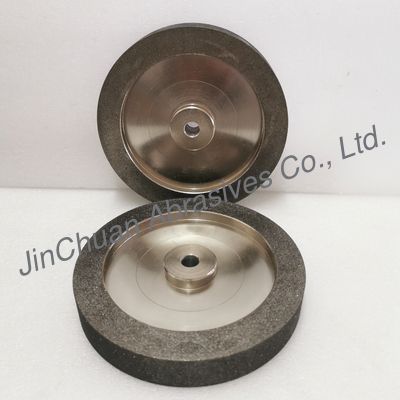

8 Inch Electroplated CBN Grinding Wheels For Woodturners
Product Details
| Colour: | Black, Amber | Specification: | Make According To U Drawing Size |
|---|---|---|---|
| Durability: | Long-lasting | Basebody: | Aluminum |
| Feature: | Electroplated Cbn Products | Wheel Shape: | Cylindrical |
| Precision: | High Precision | HS Code: | 6804211000 |
| Inner Hole: | 17.5mm | ||
| Highlight |
Electroplated CBN Grinding Wheels,8 Inch CBN Grinding Wheels,Woodturners CBN Grinding Wheels |
||
Product Description
Electroplated CBN grinding wheel for wood turning tools
Descriptrion
CBN (Cubic boron nitride ) grinding wehels are state-of-the-Art for grinding high speed steel tools
These wheels are degisnged for use with bench type grinders. 1800 rpm or 3600 rpm.
Specification
Diameter=8inches
Inner hole=5/8"
Width of abrasive =1"
Thickness of wheel = 1.26''
| Specification | Diameter | Inner hole | Thickness | Width of abrasive layer |
| Inch | 8 | 5/8 | 1.26 | 1 |
| mm | 203 | 16 | 35 | 25 |
Of course, if you need other sizes, as well as the granularity and concentration of the grinding material, we can also customize sizes for you.
Application picture for reference
We have different wheel profiles for all kind of wood and seasons are available
* 10/30 - mostly used universal grinding wheel profile
* 9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood
* 4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting
* 7/34 the CBN wheels profile is recommended for hardwood
* 13/29 - wheel profile which prepares band saws for soft wood cutting
Looking forward to your reply.
