1A1R Electroplated CBN Grinding Wheels B80/100

1A1R Electroplated CBN Grinding Wheels B80/100

  • High Light

    1A1R Electroplated CBN Grinding Wheels

    ,

    B80 Electroplated CBN Grinding Wheels

    ,

    Electroplated CBN Grinding Wheels B100

  • Shape
    1A1R
  • Size
    Requiered
  • Abrasive
    CBN
  • Bonding Agent
    Electroplated
  • Application
    Cutting Carbide Glass Ceramic Quartz
  • Grit
    D80/100
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO9001:2015,ISOCE16949
  • Model Number
    1A1R

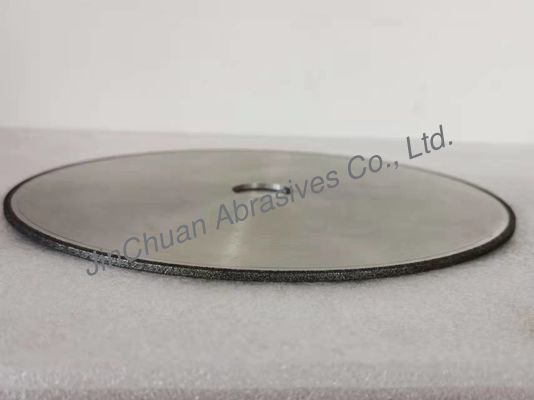

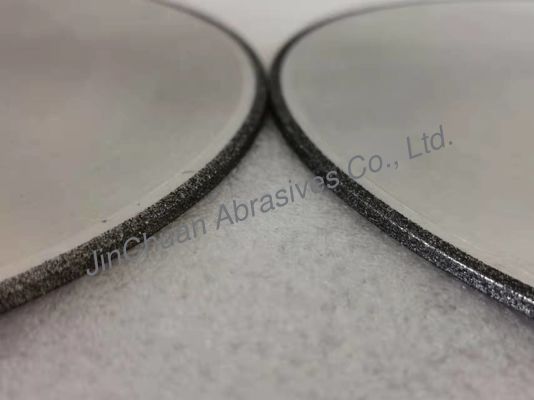

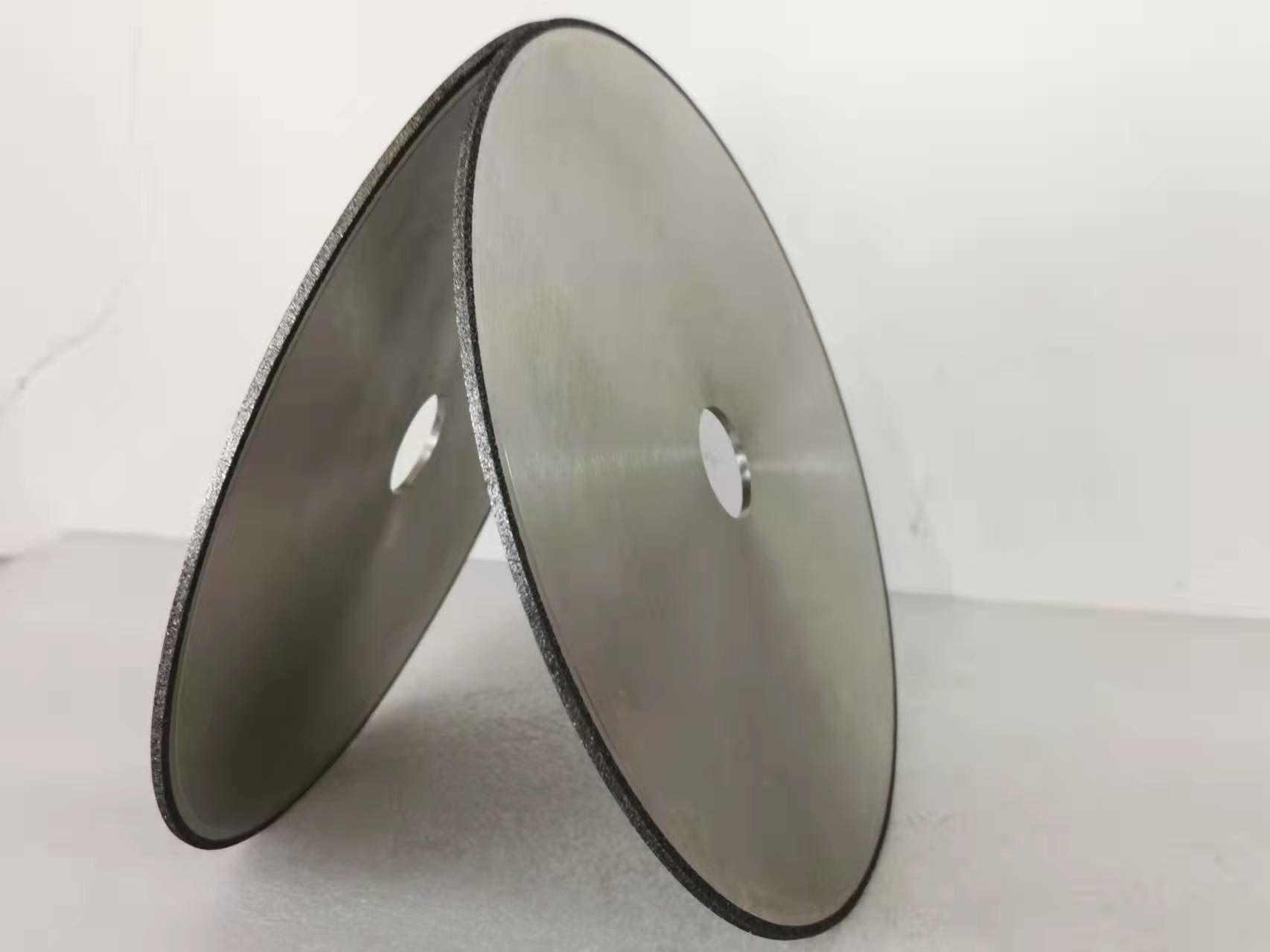

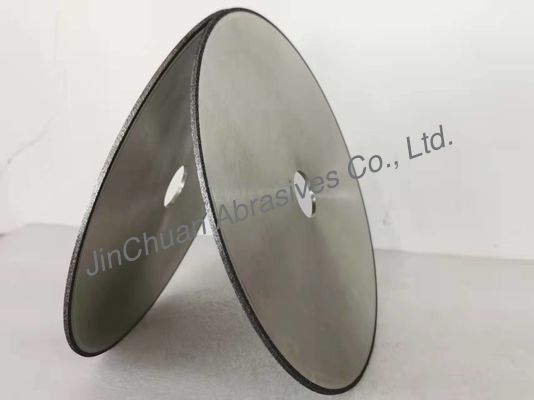

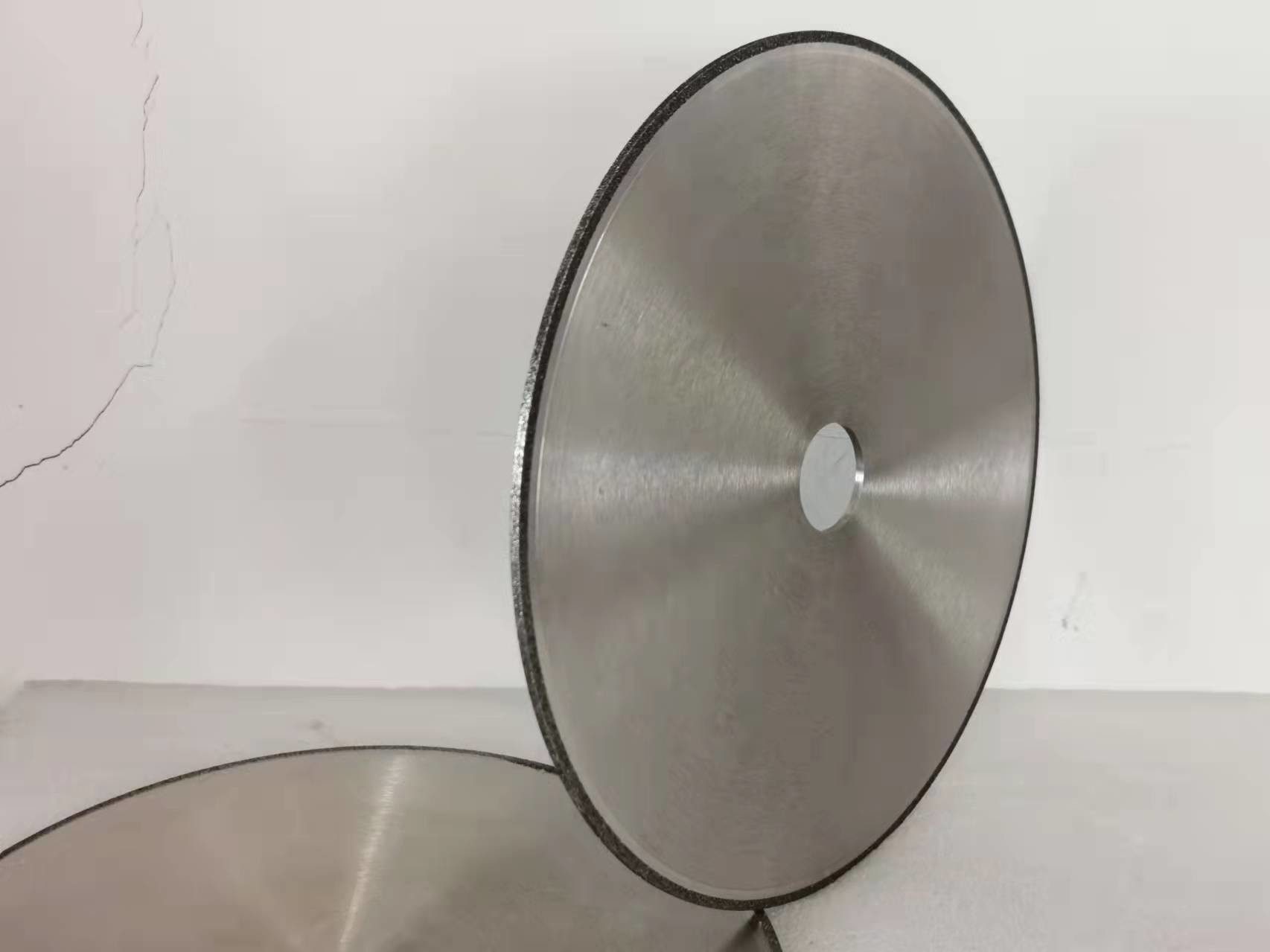

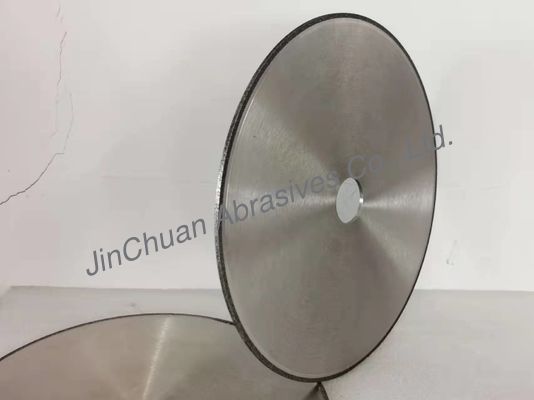

1A1R Electroplated CBN Grinding Wheels B80/100

Products name:1A1R CBN Cutting Wheel



Application: CBN has excellent effect on steel products whose hardness are higher than 45HRC



Diameter:5''(125mm),6''(150mm),7''(180mm),8''(200mm),10''(250mm),12''(300mm),14''(350mm),16''(400mm)



D(mm) T(mm) U(mm) H(mm) X(mm)
4” /100 1 0.8 31.75 10
5”/ 125 1 0.8 31.75 10
6”/ 150 0.8 / 1 0.6 / 0.8 31.75 10
8”/ 200 1 0.8 31.75 10
12”/ 300 1 / 1.5 1.3 31.75 10
16”/ 400 2 1.8 31.75 10
