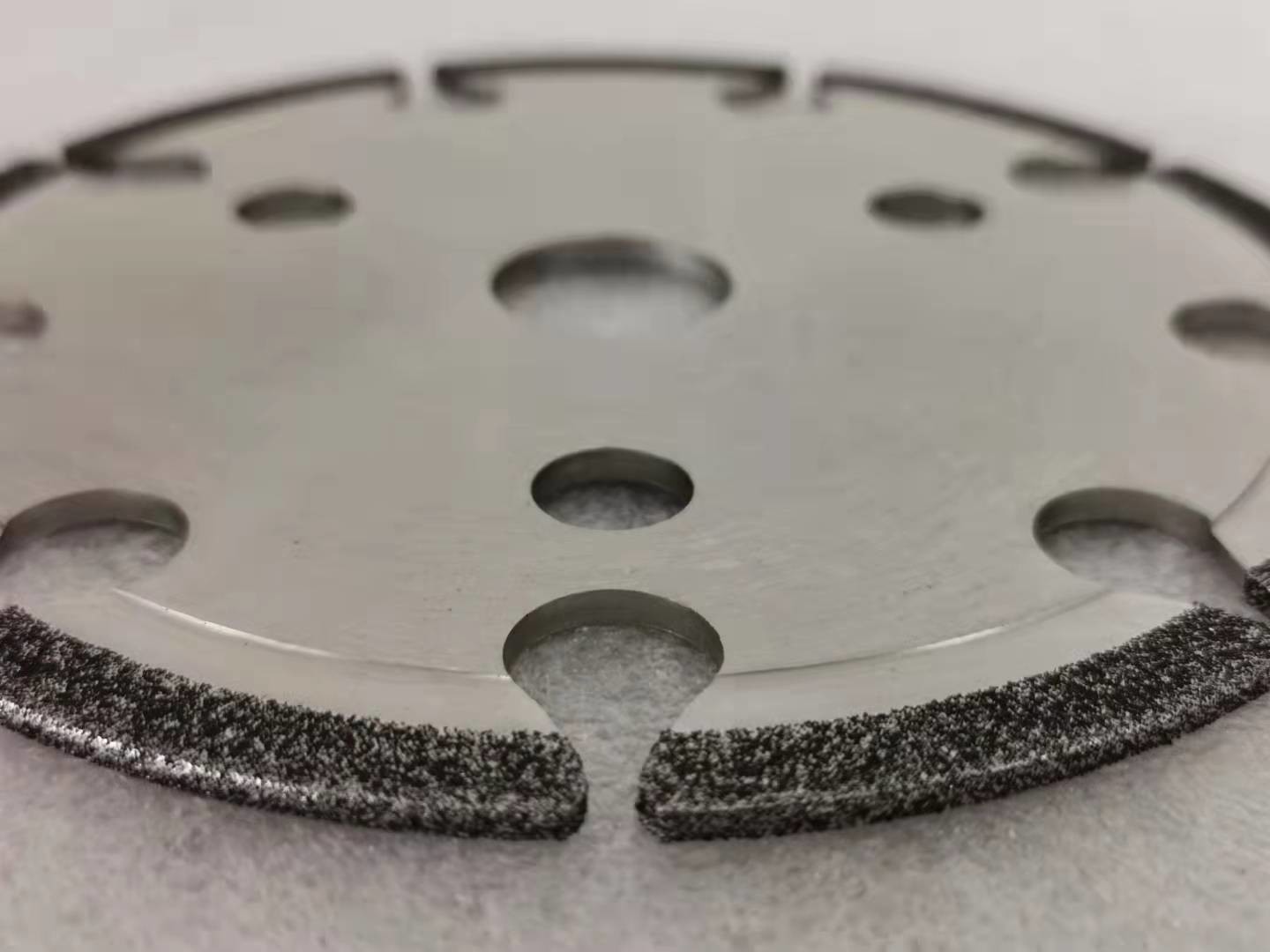

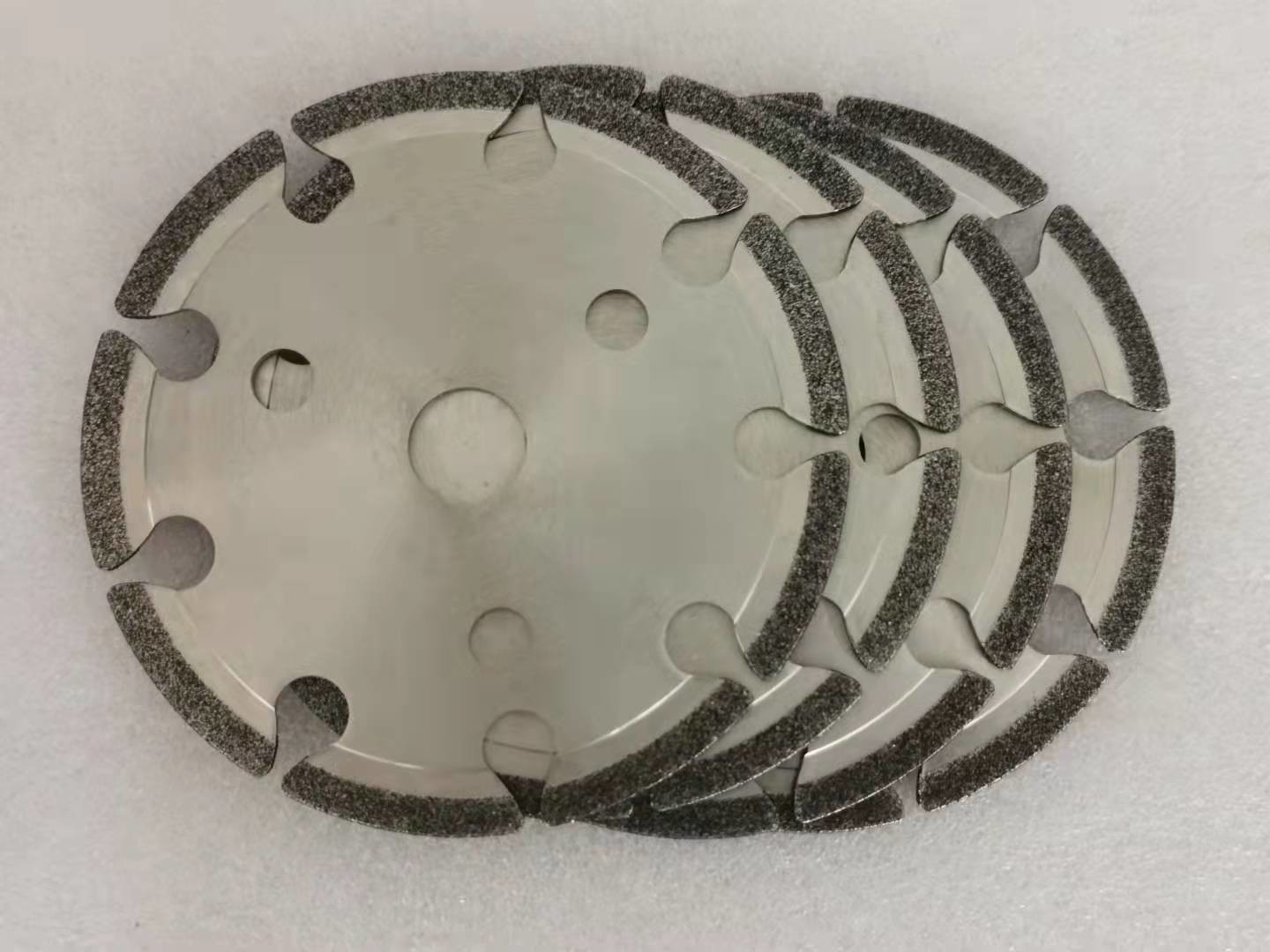

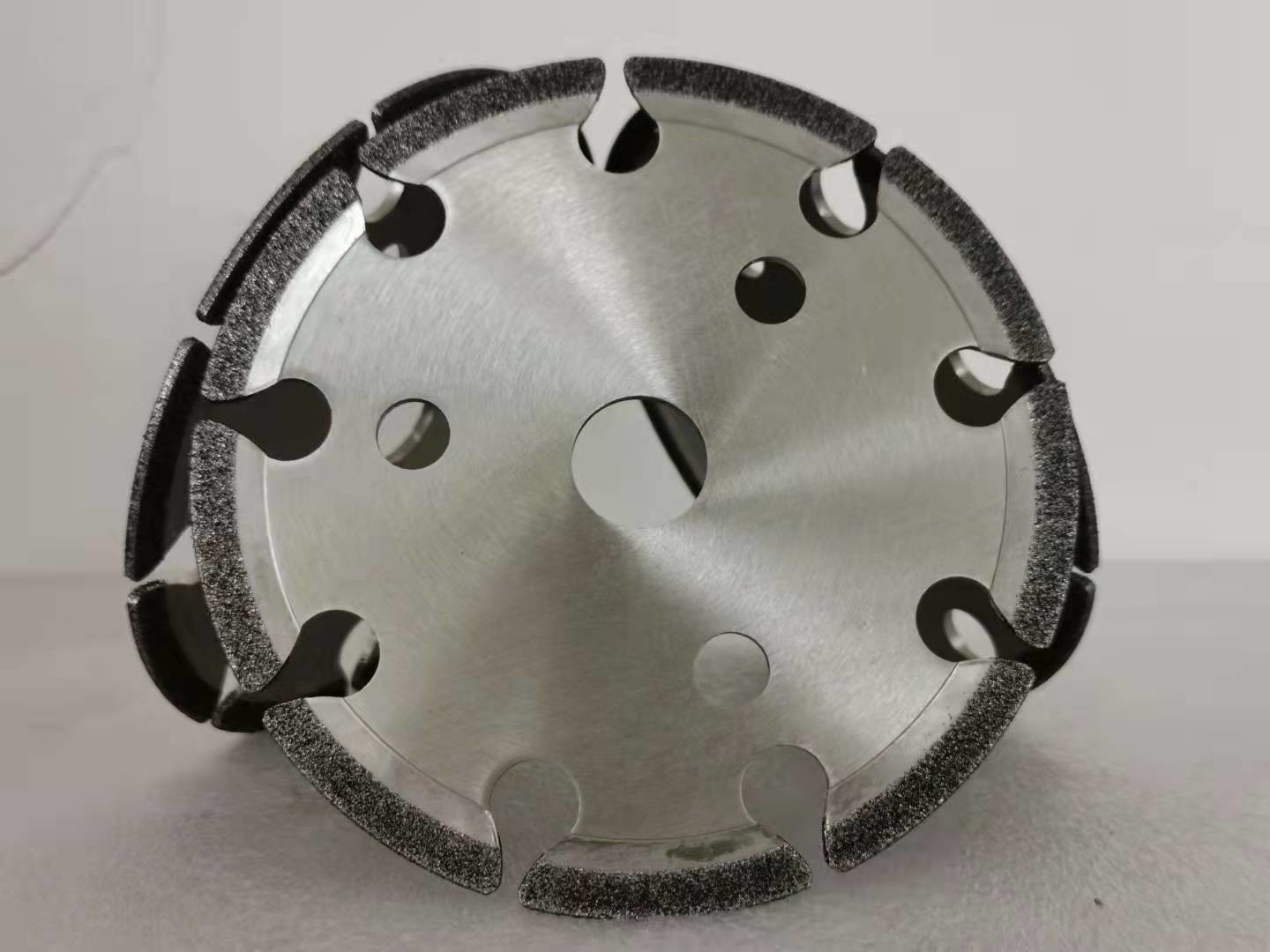

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel

  • High Light

    5" Electroplated CBN Grinding Wheels

    ,

    Electroplated CBN Grinding Wheels With Slots

    ,

    CBN Cyclone Grinding Wheel

  • Electroplated Cbn Wheel Size
    125*3.2*11.1*3*7.5mm
  • Grinding Wheel Shape
    Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc
  • Abrasive
    Cubic Boron Nitride
  • Bonding Agent
    Metal,Resin,Ceramic,Resin Or Ceramic,A
  • Grit Size
    B251
  • Bond
    Electroplated Bond
  • Packing
    Box And Cartons, With Plastic Bags
  • Usage
    Grinding,sharpening,high Speed Steel Slotting,fluting,grooving
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    B251
  • Minimum Order Quantity
    5
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    100/month

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel



Main Applications Of Cutting wheel

Most Italian and Chinese chain grinders can use this wheel. These professional wheels are made from CNC machined steel and have unique ""cyclone"" cooling slots to keep from overheating chain cutters. The wheel contains a mixture of ABN (Amber Boron Nitride) and CBN (Cubic Boron Nitride) abrasive grit fused on the radius. ABN and CBN have different fracturing properties which ensures it stays sharp as it wears. Both materials are much harder than the chrome and steel in saw chain, so it will last through 100's of sharpenings. These wheels excel because they grind cooler, don't load or clog in the presence of oil, maintain their shape and they will not break like a standard wheel. ABN wheels are perfect for production shops. Not to be used with carbide chain. Wheels are approximately 5-3/4"" in diameter with 7/8"" arbor. ABN/CBN is between 60 and 70 (0.25mm) grit.



Key information Of CBN Wheel
Name cyclone grinding wheel
Size 125*3.2*11.1*3*7.5mm
bond electroplated
grit B251
OEM available

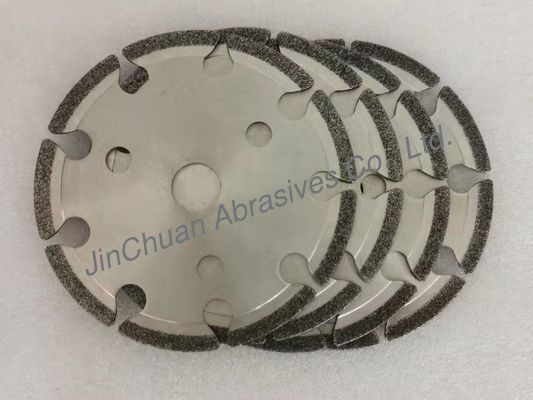

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel 0

Grinding Wheel Recommendations

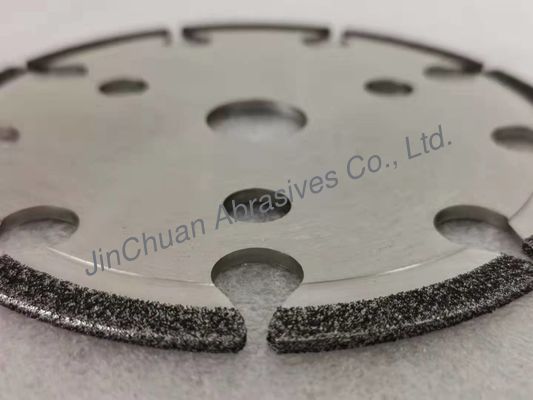

5" Electroplated CBN Grinding Wheels With Slots Dinasaw ABN/CBN Cyclone Grinding Wheel 1







Main Advantages:

  • Amber Boron Nitride Coating
  • Unique design keeps grinding surface cool reducing tooth burning
  • Only metal particles are ejected during grinding keeping machines cleaner, reducing wear and reducing respiratory problems
  • Safe steel blank will not break
  • Never needs to be reshaped
  • Durable nickel coating
  • Doesn’t glaze like standard wheels
  • Outlasts standard wheels many times over
  • Reduces labour costs. No maintenance required
  • CNC machined for absolute accuracy



FAQ:



1.    Do you supply technical supports?

Yes, we supply the following technical supports for our customers:

1)    Free design for your products

2)    Free drawing can be supplied for the designation

3)    Recommend wheel bonding, grit size and concentrations for your apllication

2.    How do you ship your products?

Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.







NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
