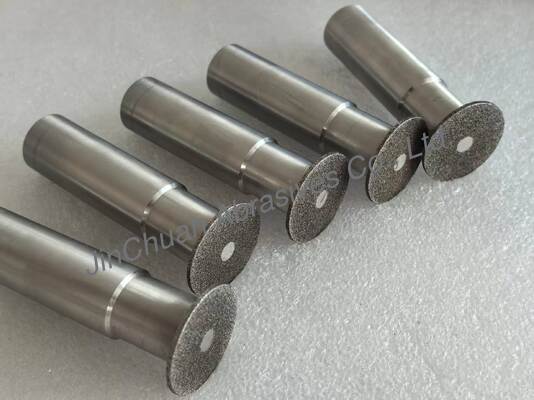

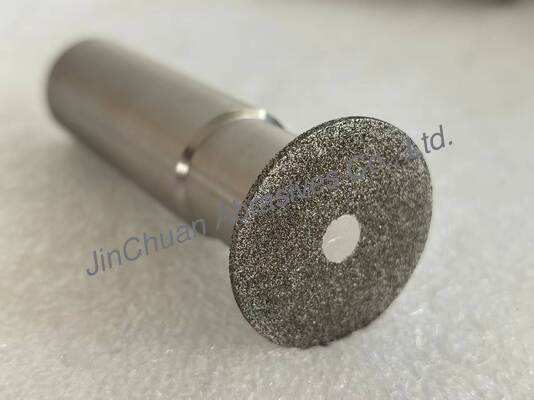

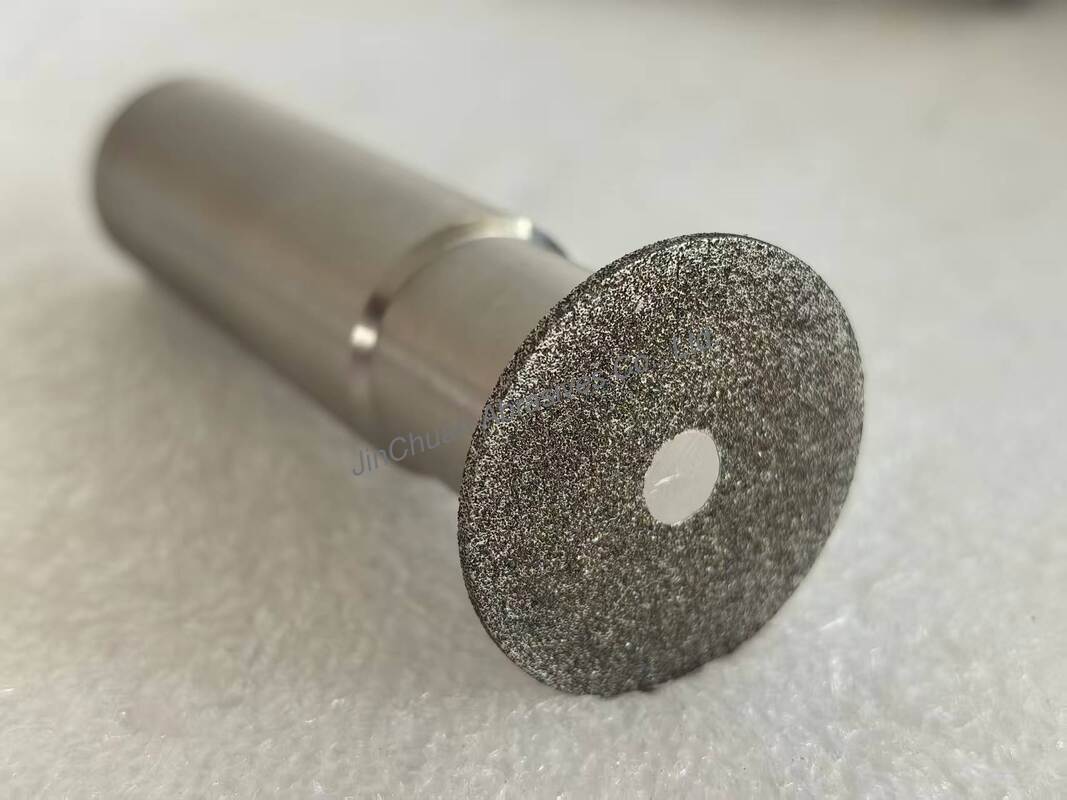

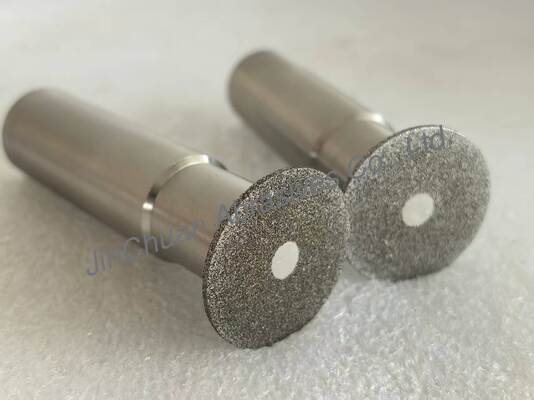

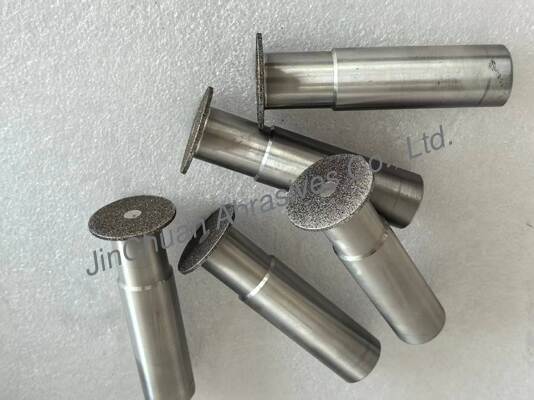

Electroplated CBN Grinding Head 30mm B126 Grit Steel Body for Inner Hole Grinding

Electroplated CBN Grinding Head 30mm B126 Steel Body

This electroplated CBN grinding head is a mounted point built on a hardened steel wheel body with a single layer of cubic boron nitride abrasive bonded by nickel electroplating. With a 30mm head diameter and B126 grit, it reaches into bores, slots and internal contours where a full size wheel cannot go, cutting hardened steel and HSS with a sharp, cool action and no need for dressing.

Key Selling Points

• Electroplated CBN grinding head: CBN abrasive fixed in a rigid nickel layer gives a hard, wear resistant cutting surface that is ready to use straight from the box.
• Steel wheel body: the steel shank and body keep the head rigid at high spindle speed, reducing vibration and holding dimensional accuracy on deep internal grinding.
• B126 grit, high sharp efficiency: the medium coarse B126 CBN crystals cut fast with low heat input, so cycle times drop while surface quality stays consistent.
• Long lifespan: the electroplated bond holds each grit firmly, giving a working life far beyond coated abrasive points and cutting head replacement costs on production lines.
• Used for grinding: inner hole grinding, bore finishing, slot and radius work, deburring and edge preparation on hardened steel, HSS, stainless steel and carbide.
• Customized: head diameter, shank size, head shape (cylindrical, ball, taper, inverted cone) and grit size can all be produced to your drawing or sample.

Specifications

Why Choose This Grinding Head

Internal grinding punishes any tool that loses its shape. A resin bonded point wears quickly, an aluminium oxide head glazes on hard steel, and both cost time in dressing and changing. The electroplated CBN head keeps a sharp, constant profile through long runs, cuts cooler because CBN conducts heat away from the work, and holds bore tolerance without operator adjustment. For 30mm bores and internal features on hardened parts, it is the practical, repeatable choice.

Applications

• Inner hole and bore grinding of hardened steel and HSS parts
• Tool and die cavity finishing, radius and slot work
• Deburring and edge preparation after machining
• Stainless steel and carbide component grinding

Production and Quality Control

Produced in our own plant with more than 18 years of electroplated diamond and CBN tool experience. Each head is checked for head diameter and shank tolerance, grit distribution, bond adhesion and concentricity before packing, then shipped in individual foam protection for safe export transport.

Customized Service

Tell us the bore size, material hardness, spindle speed and finish requirement, and we will recommend the head diameter, shape and grit that fits your process. Trial samples can be produced before volume orders.

Contact Us

Send your drawing or sample specification and we will reply with price, lead time and packing details for your electroplated CBN grinding head.
