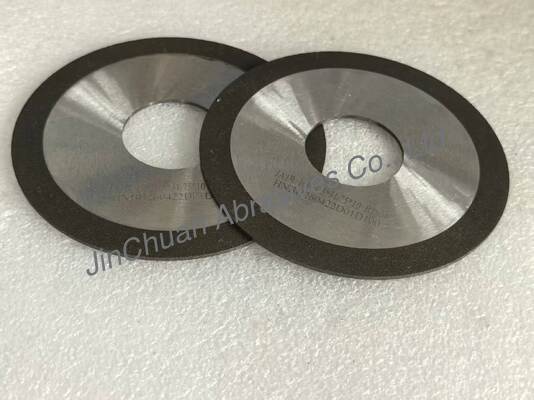

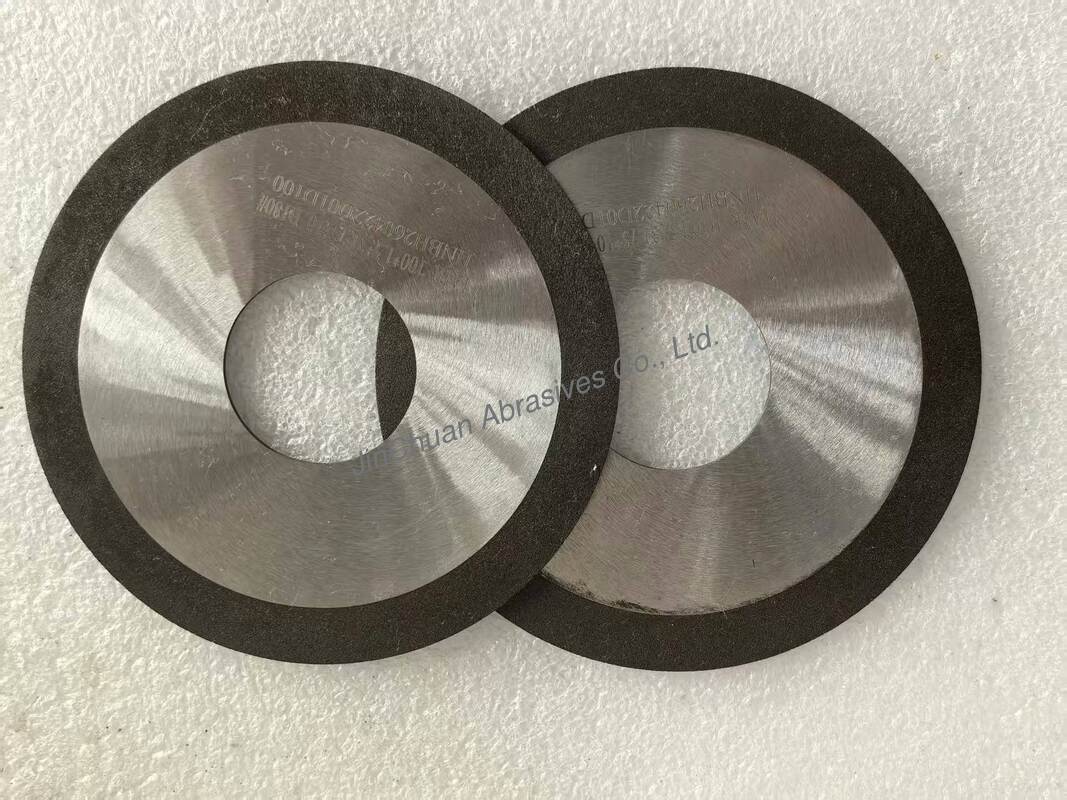

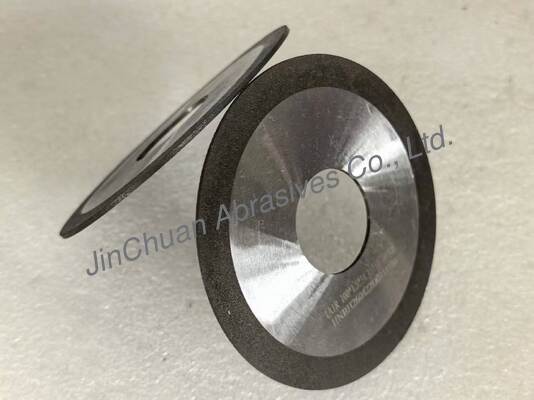

1A1R Resin CBN Cutting Discs, Diameter 100, Thickness 1.5,

1A1High precision diamond CBN cutting wheel

1A1 High precision diamond CBN cutting wheel (also called Ultra thin diamond CBN cutting wheel) used widely in precision cutting ,ceramic cutting blade,hard alloy cutting blade, glass cutting blade, semi-conductor, quartz, ceramics, tungsten carbide tools etc.
The 1A1R High precision diamond and CBN cutting wheels take use of synthetic diamond and CBN superabrasives and high grade metal material, top quality resin bond and metal bond to make wheel high cutting efficiency ,much more long life .

[precision cutting blade,ceramic tile cutting blade]
+click to see large picture of the blade

Mainly cutting material of high precision diamond cutting wheels:
Ceramic tile: AL2O3,Zr2O,Si3O4,BaTiO3 ,CaTiO3 Etc .
Semi Conductors:silicon,Ge,GaP,GaAs,GaAsP etc.
Metal materials:High speed steel,Tool steel,mould steel,bearing steel non-ferrous metal etc.
Other materials:Tungsten carbide tool, glass, quartz, printing PCB etc.
We supply high precision diamond and CBN cutting wheels diameter of: 5 inch (125mm),6 inch (150mm),7inch (180mm),8 inch (200mm) ,10 inch (250mm),12inch (300mm),14inch (350mm),16inch (400mm), the wheel thickness available from 0.3mm to 2.0mm,tolerance +-0.005mm
As for the types of high precision diamond CBN cutting wheel we produce, we can supply the following types: 1A1 1L1 14A1 1FF1 1F1 1EE1V 1V9 1a6Q 1A1R 1E6Q 14E6Q 14EE1 14E1 1DD1 4B1 1A8 etc ..
We also can manufacture the high precision cutting wheel thickness reach 20 dmm according to customers’ request.
