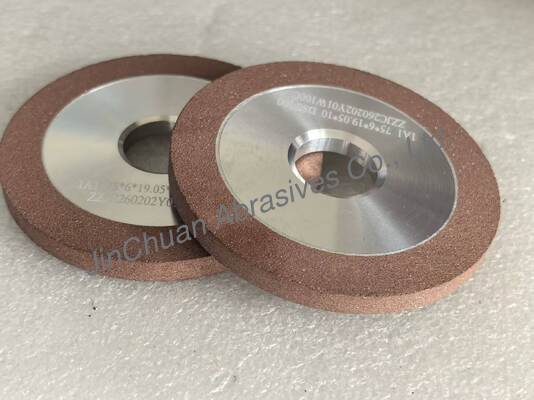

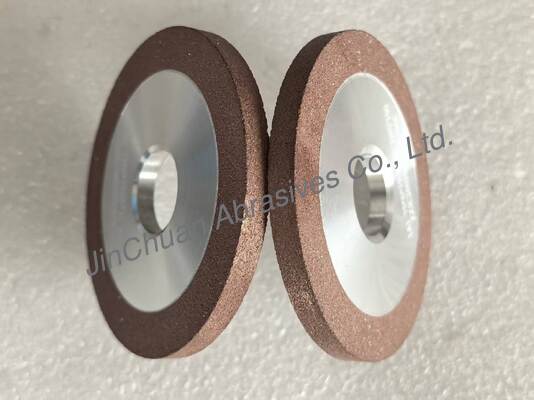

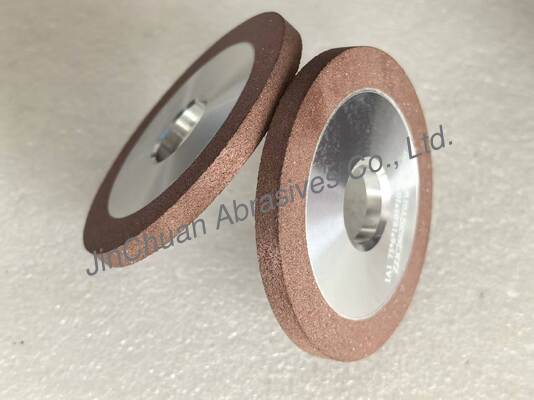

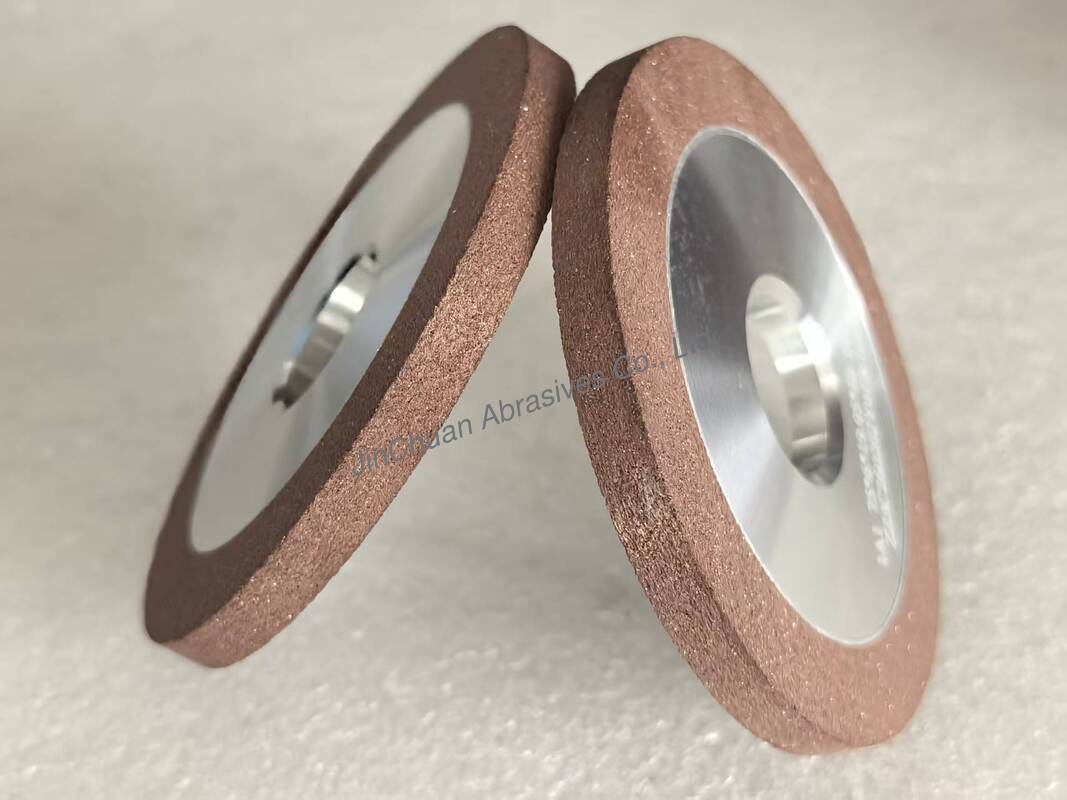

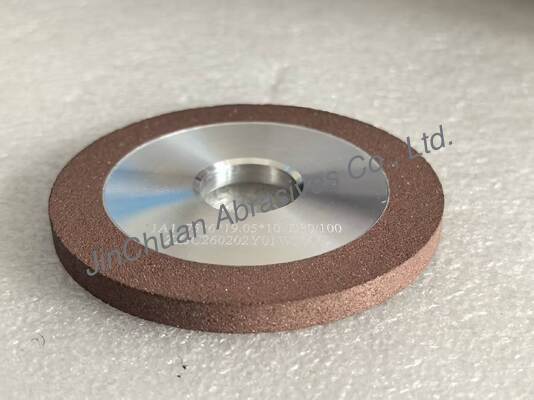

Resin Bonded 1A1 Diamond Grinding Wheel

1A1 Resin Bond Diamond Grinding Wheel: The Ultimate Solution for High-Precision Machining


Introducing our premium 1A1 Resin Bond Diamond Grinding Wheel—engineered to deliver exceptional precision, superior surface finishes, and unmatched efficiency. Designed with a straight flat profile (1A1), this wheel is the industry standard for cylindrical, surface, and tool grinding of hard and brittle materials.

By combining top-grade synthetic diamond grit with an advanced resin matrix, our 1A1 wheels offer the perfect balance of sharp cutting action and extended wheel life.

Key Features & Benefits

1.Exceptional Self-Sharpening Ability: The advanced resin bond continuously exposes fresh, sharp diamond particles during operation, ensuring consistent cutting efficiency and preventing workpiece burning.

2.Superior Surface Finish: Delivers ultra-smooth, scratch-free surface quality, drastically reducing the need for secondary polishing stages.

3.Low Grinding Heat: The elasticity of the resin bond minimizes thermal buildup, protecting heat-sensitive materials from micro-cracks and thermal damage.

4.High Material Removal Rate (MRR): Optimizes cycle times with aggressive yet controlled material removal, boosting your workshop's productivity.

5.High Geometric Precision: Maintains its sharp edge and flat profile over long production runs, ensuring tight tolerances.

Technical Specifications

Parameter Available Range / Options
Shape Profile 1A1 (Straight Plain Wheel)
Abrasive Material High-Quality Synthetic Diamond
Bond Type Phenolic / Polyimide Resin Bond
Core Material Aluminum, Steel, or Bakelite
Grit Size Range Mesh 60/80 (Coarse) to Micron 0-0.5 (Ultra-Fine)
Concentration 75%, 100%, 125% (Customizable)
Coolant Condition Suitable for both Wet (Recommended) and Dry grinding

Primary Applications

Our 1A1 Resin Bond Diamond Wheels excel in grinding and machining the following materials:

Tungsten Carbide: Indexable inserts, end mills, reamers, and wear parts.

Advanced Ceramics: Silicon nitride, zirconia, and alumina components.

Cermets & Magnetic Materials: High-precision electronic and motor components.

Glass & Quartz: Optical components and semiconductor substrates.

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you
