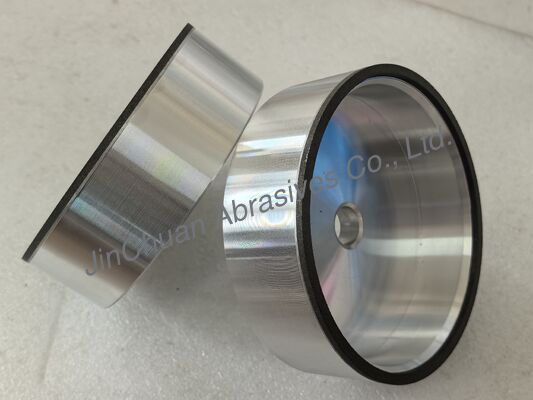

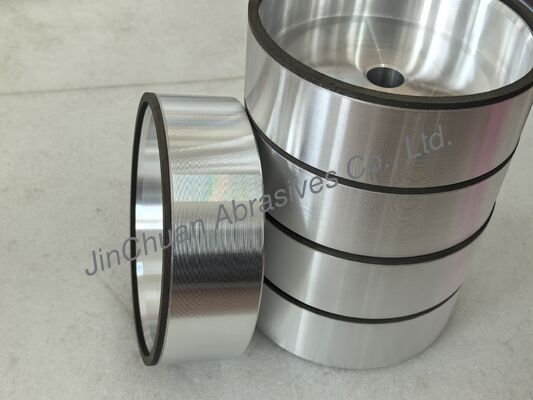

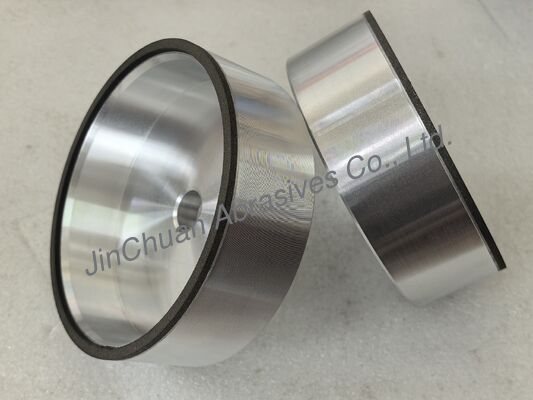

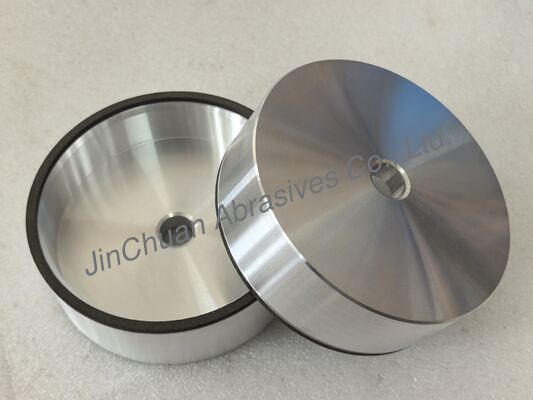

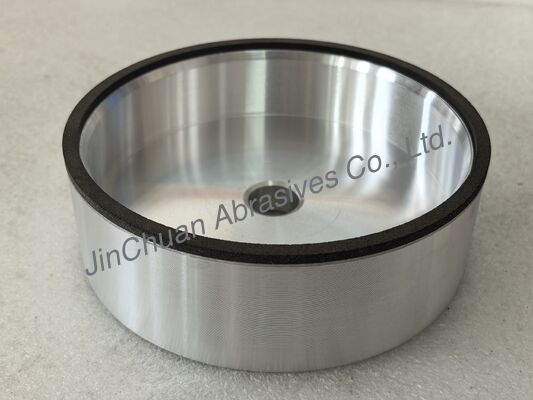

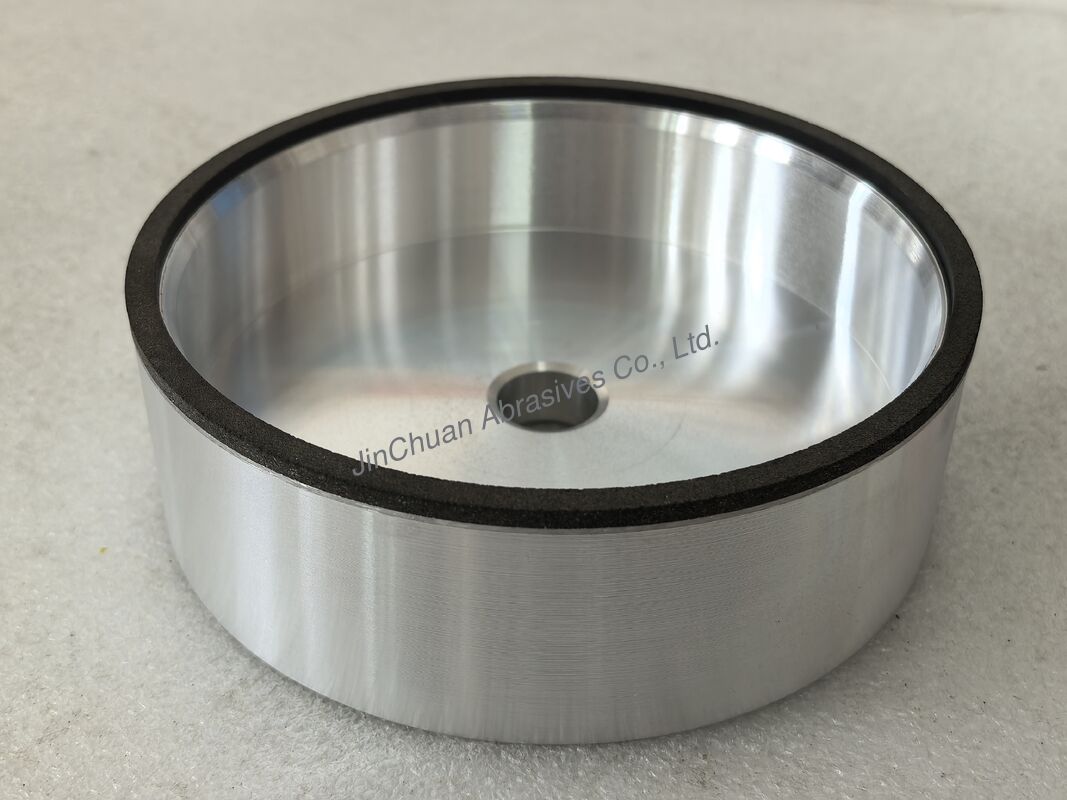

D150mm Resin-Bond CBN Wheel For Finishing Requirements For Small Workpieces
Product Details
| Diameter: | 250,150mm | Thickness: | 33mm,48mm |
|---|---|---|---|
| Inner Hole: | 127mm,20mm | Material: | Aluminum |
| Abrisives: | CBN | Country Of Origin: | Zhengzhou, Henan |
| Grit: | B126,B151,B46 | ||
| Highlight |
150mm resin bond CBN wheel,small workpiece finishing grinding wheel,resin bond CBN grinding wheel |
||
Product Description
Product Description:
Resin bond CBN grinding wheel is a high-efficiency precision grinding tool that combines the superhard properties of CBN and the elasticity of resin and is widely used in the field of high-precision machining. Generally consists of a matrix, a binder and an abrasive layer. The substrate is usually made of aluminum alloy or steel to ensure structural strength and facilitate installation; the binder is usually phenolic resin, epoxy resin or polyimide, which provides elasticity and has a low curing temperature to avoid thermal damage to the CBN. Typically used for grinding the end faces of various tools or metal parts.
Features:
- Long tool life, corrections need to be made less frequently.
- Low level of cutting edge chipping
- High material removal rate
- Excellent grit
- High surface finish quality
- Application: HSS
Technical Parameters:
| Abrasives | CBN |
| Grade | As Required |
| Diameter | 250mm,150mm |
| Base Body | Aluminum |
| Specification | 6A2 |
| Grit Size | B46,B151 |
| Country Of Origin | Zhengzhou,Henan |
| Packing | Standard Exported Carton Packing |
| Hs Code | 6804221000 |
| Application | HSS |
Applications:
1. Cutting Tool and Tool Grinding
Used for grooving, form relief grinding, peripheral grinding, face grinding, and clearance grinding of drills, milling cutters, reamers, and hobs made from materials such as High-Speed Steel (e.g., M2, M35) and alloy steels.
2. Processing of Glass and Hard, Brittle Non-Metallic Materials
Suitable for the precision grinding and polishing of high-hardness non-metallic materials, including glass, gemstones, and semiconductor wafers (for thinning applications).
3. Precision Face and Internal Grinding
Enables machining on CNC face grinders to achieve flatness and parallelism tolerances within the micron range; applicable to automotive components, compressor assemblies, gears, and similar parts.
4. Capable of processing high-viscosity or high-hardness materials, such as cast iron, stainless steel, plastics, and corundum.
