Resinoid League Grinding Wheel 11A2 Diamond Disc 125mm Wheel Dry Work
-
Highlight
Resinoid grinding wheel 125mm dry work
,Diamond disc grinding wheel resin bond
,11A2 grinding wheel for dry grinding
-
PackageCarton Box
-
Wheel Size125*31*20*8*4mm
-
ConcentrationC75
-
ColourGray
-
AbrasivesDiamond
-
DeliveryBy Express
-
GrainsD64
-
Place of OriginChina
-
Brand NameJC
-
CertificationISO
-
Model Number11A2
-
Minimum Order Quantity5
-
PriceNegotiable
-
Packaging DetailsWooden box
-
Delivery Time5-8 work days
-
Payment TermsT/T
-
Supply Ability1000/month

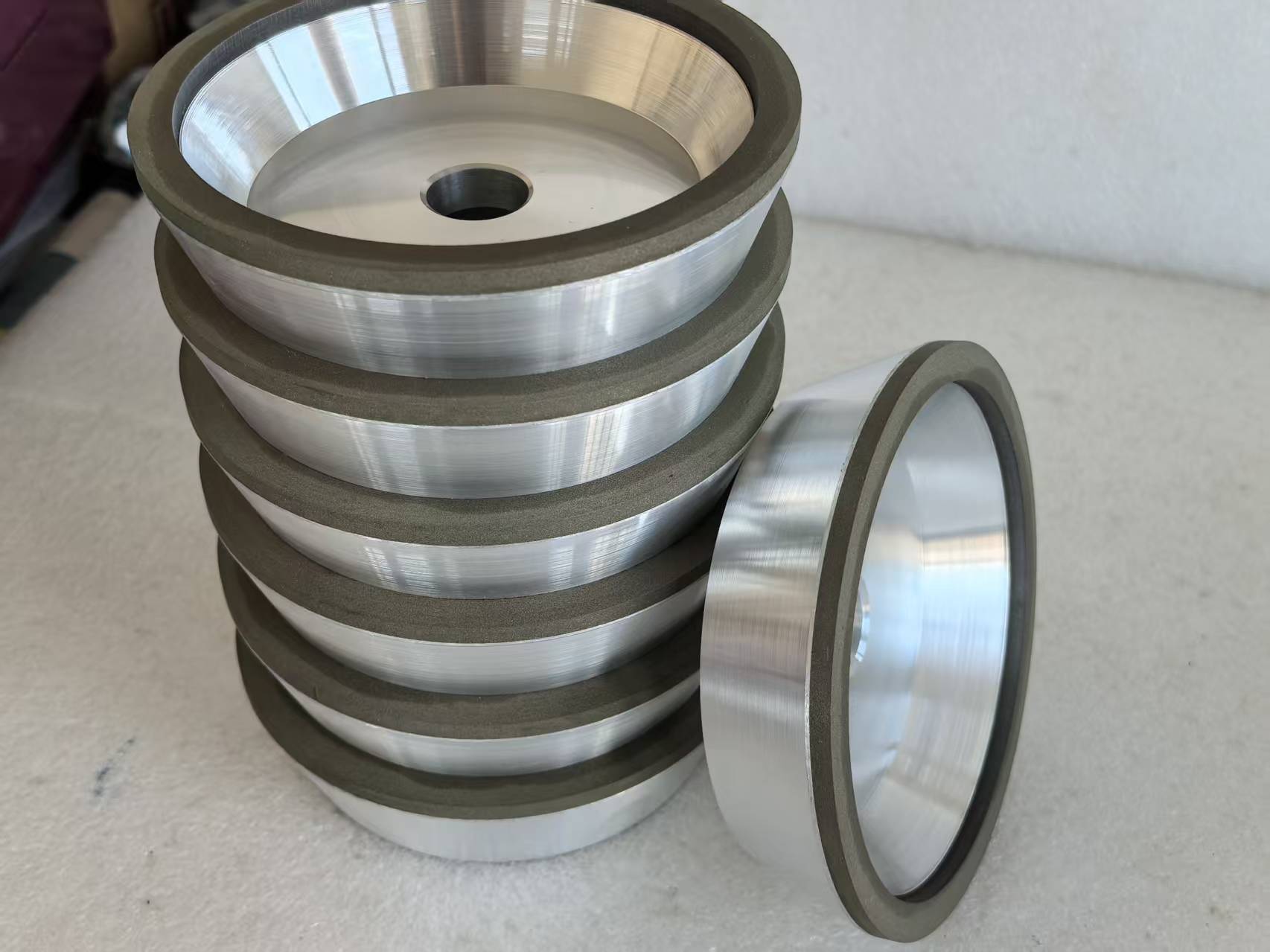

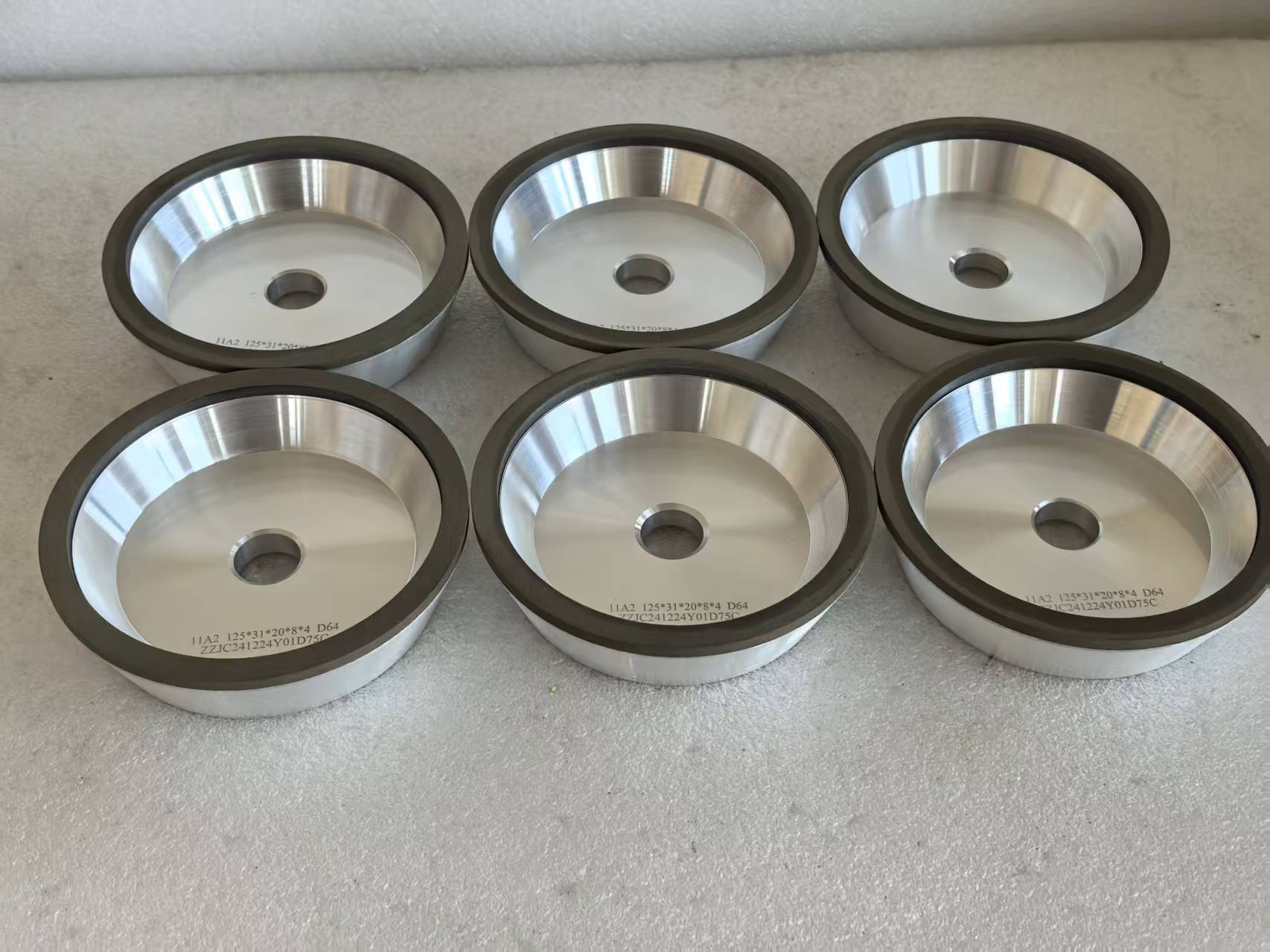

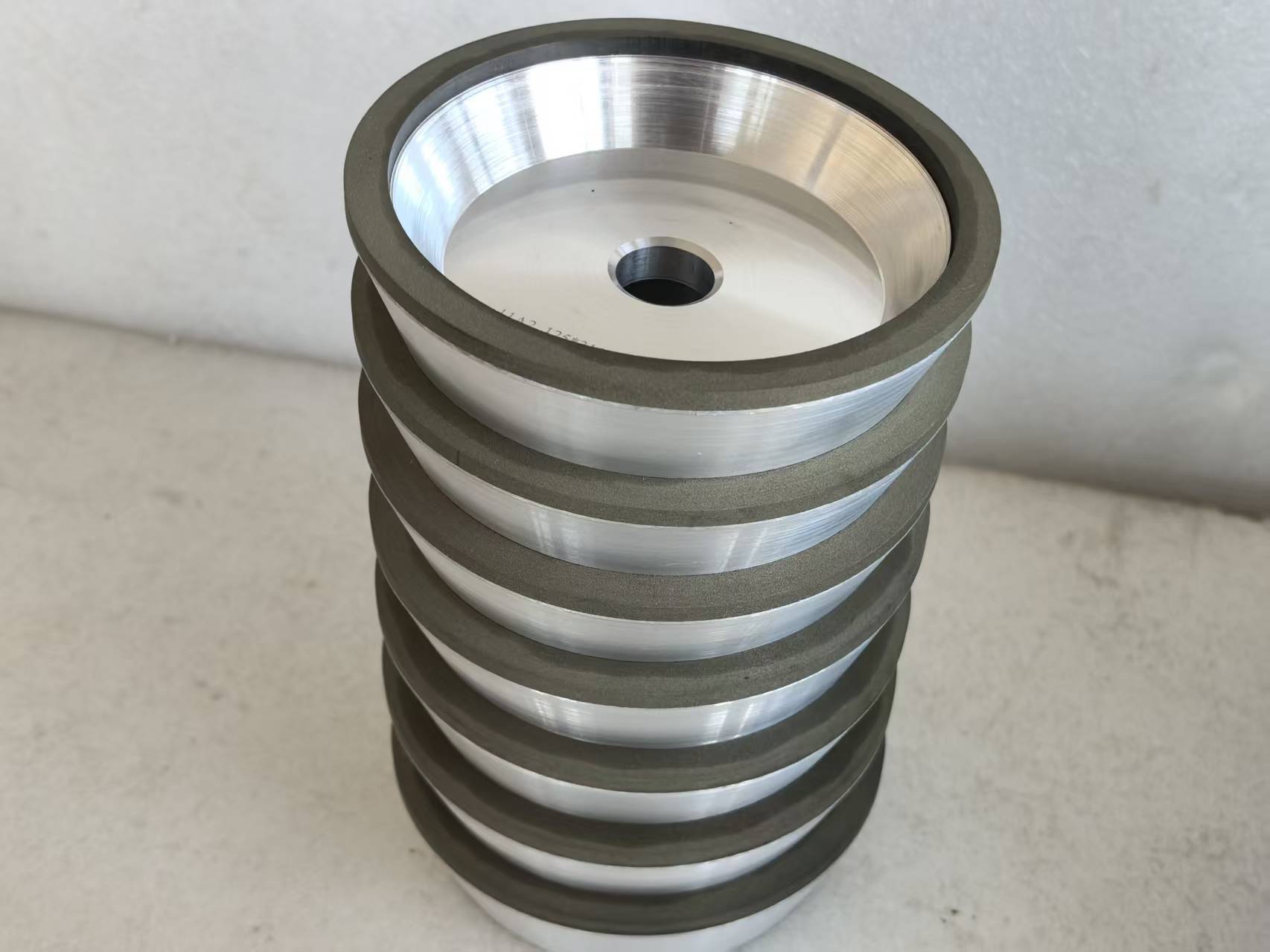

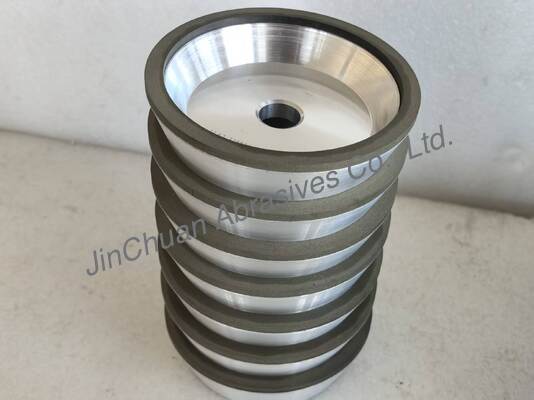

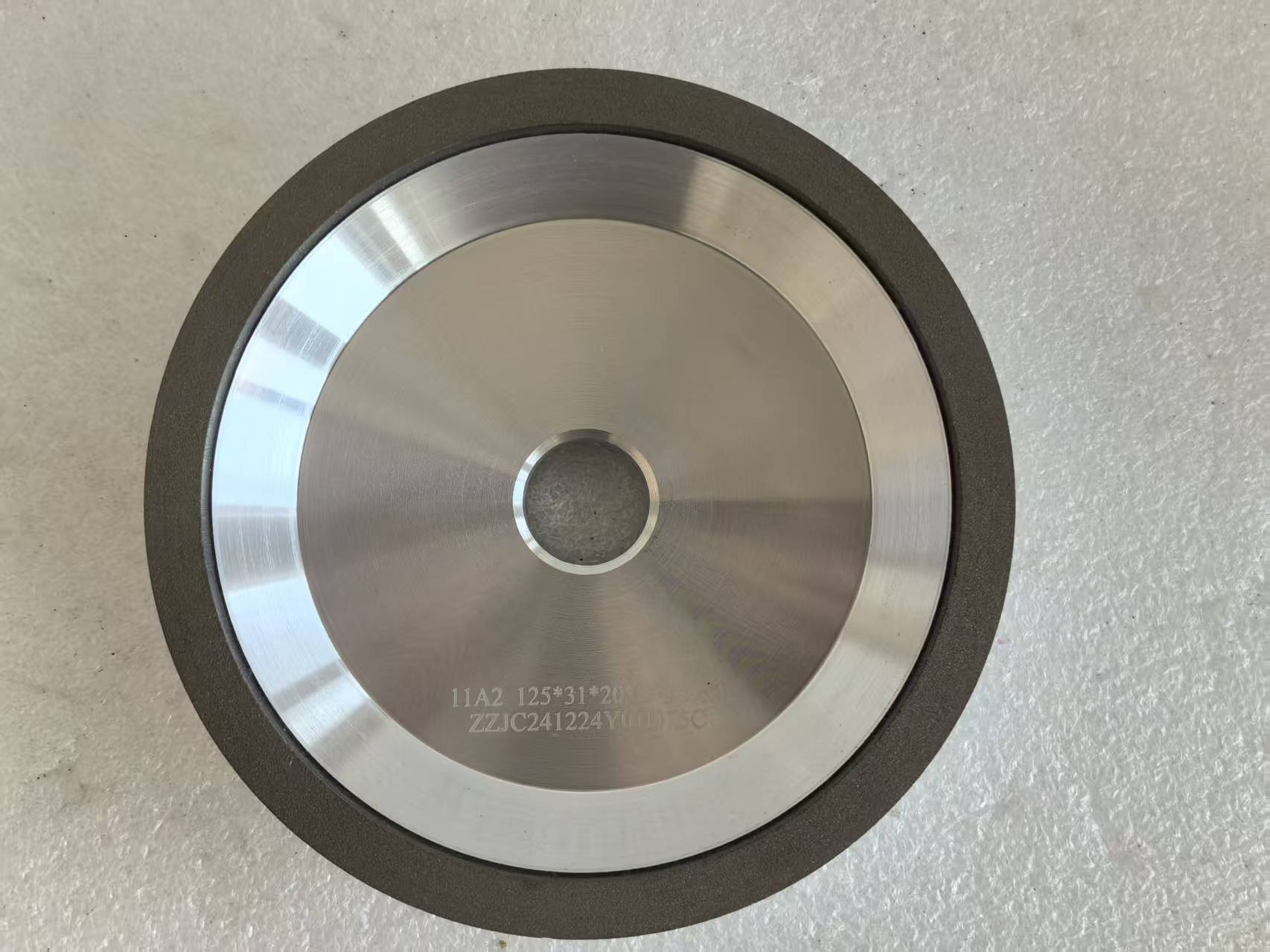

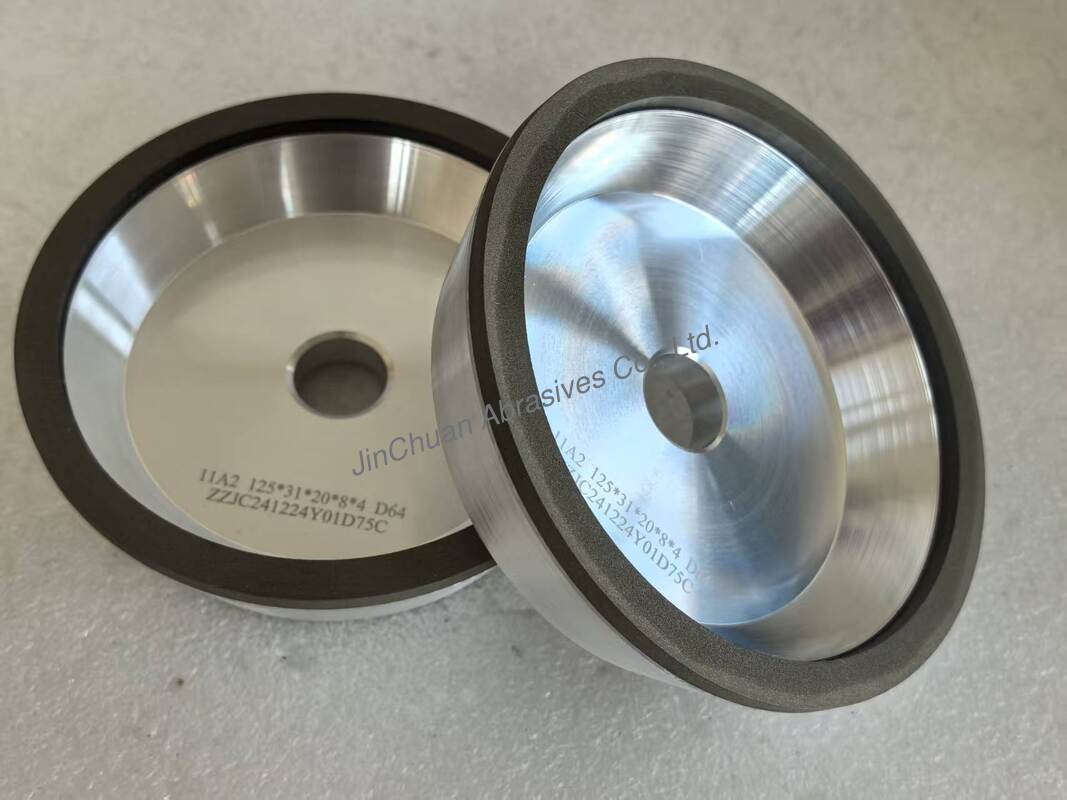

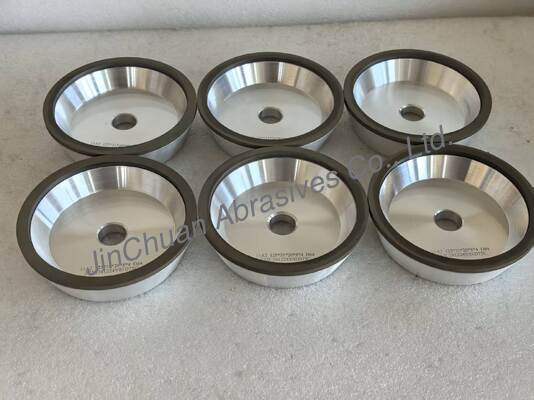

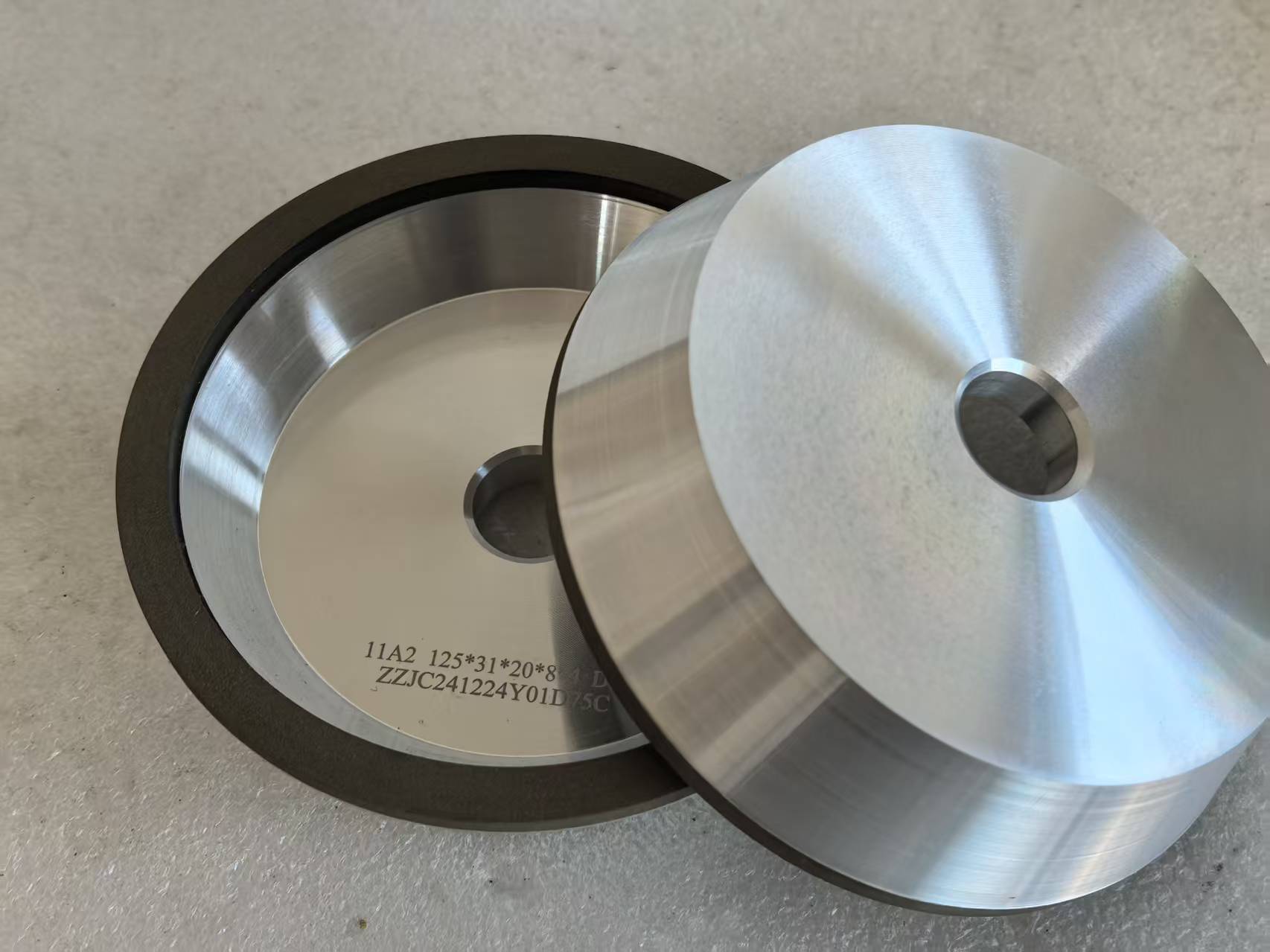

Resinoid League Grinding Wheel 11A2 Diamond Disc 125mm Wheel Dry Work
Resinoid League Grinding Wheel 11A2 Diamond Disc 125mm Wheel Dry Work
11A2 resin bond diamond grinding wheel is a specialized abrasive tool designed for precision grinding of hard, non-ferrous materials, ceramics, and composites.
Grit size incl. Mesh 80/100#(D181), 100/120#(D151), 120/140#(D126), 140/170#(D107), 170/200#(D91), 200/230#(D76), 230/270#(D64), 270/325#(D54), 325/400#(D46)
Diamond** is the hardest known abrasive, ideal for grinding:
- **Carbide tools** (tungsten carbide, PCD, PCBN inserts).
- **Ceramics** (alumina, zirconia, silicon carbide).
- **Glass, sapphire, and brittle composites**.
- *Not suitable for ferrous metals* (carbon reacts with diamond, causing excessive wear).
Resin bond (Bakelite/phenolic)** offers:
- **Smooth cutting action** with fine surface finishes.
- **Good shock absorption**, reducing chipping in brittle materials.
- **Lower heat generation** vs. metal/vitrified bonds.
- Typically used for **fine grits (100–2000#)** and precision grinding.
| Name | Diamond Grinding wheel | ||
| Bond | Resin bond , Vitrified bond , Metal bond &Electroplated | Material | Aluminium, Steel, etc |
| Abrasive | Diamond | Packing | purple box, 1pcs /box |
| Size | D:25mm-500mm T: 5mm-40mm H:10mm-127mm | OEM/ODM | Available |
| Type code | 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. | ||
| Usage | Mainly used for grinding , sharping and polishing . Widely used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc | ||
| Sample Cost | Depend on the size and quantity |
||
Our Advantages
Advantages Over Conventional Wheels
- Longer lifespan than aluminum oxide wheels.
- Better heat dissipation.
- Maintains profile accuracy for precision grinding.
Applications
11A2 diamond dish grinding wheel for cemented carbide sharpening with resin bond is very good choice for wide range of demanding applications.
Sharpening and finishing of cutting tools on the front surfaces.
Diamond-bearing layers are made of diamond grinding powders and micro-powders based on organic bonds.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
Our products are sold all over the world, you can rest assured.
