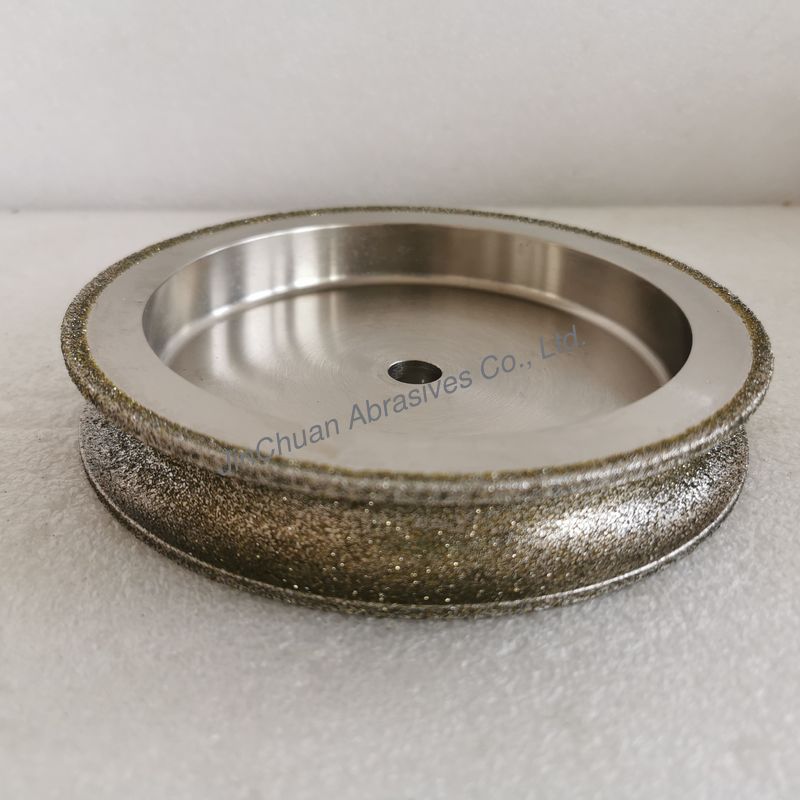

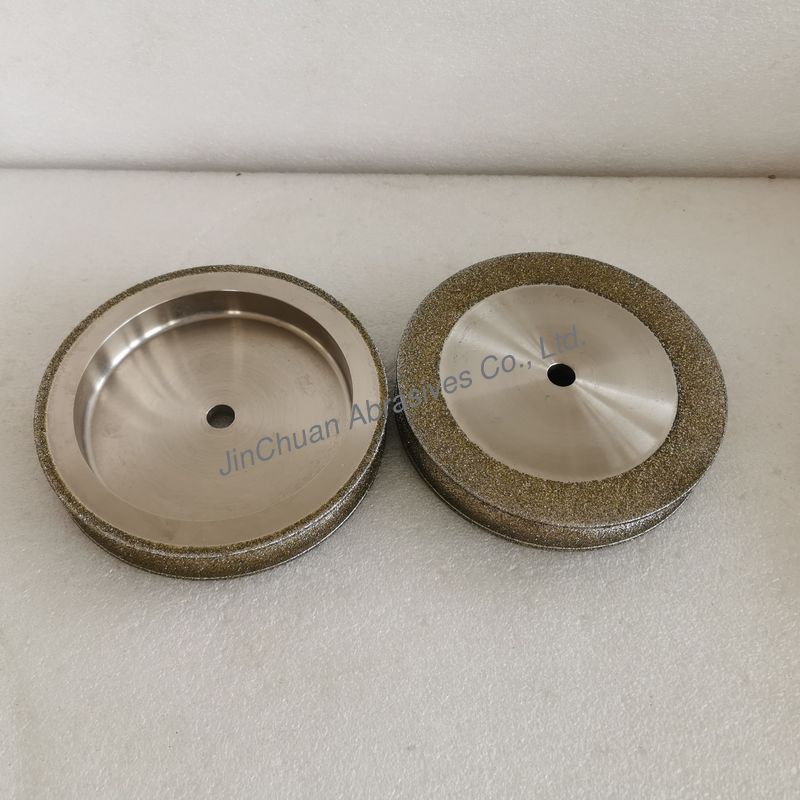

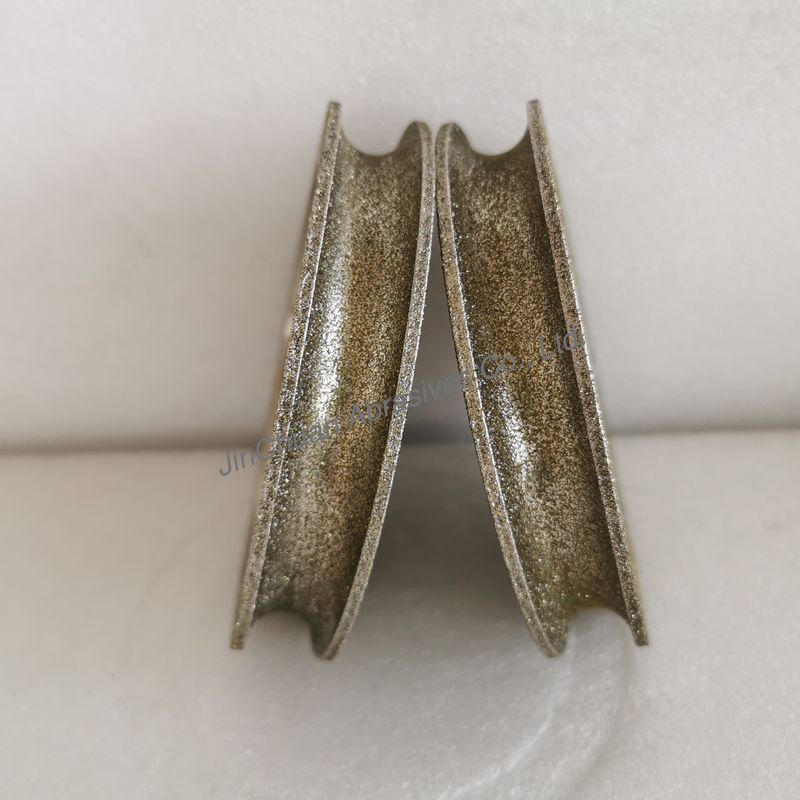

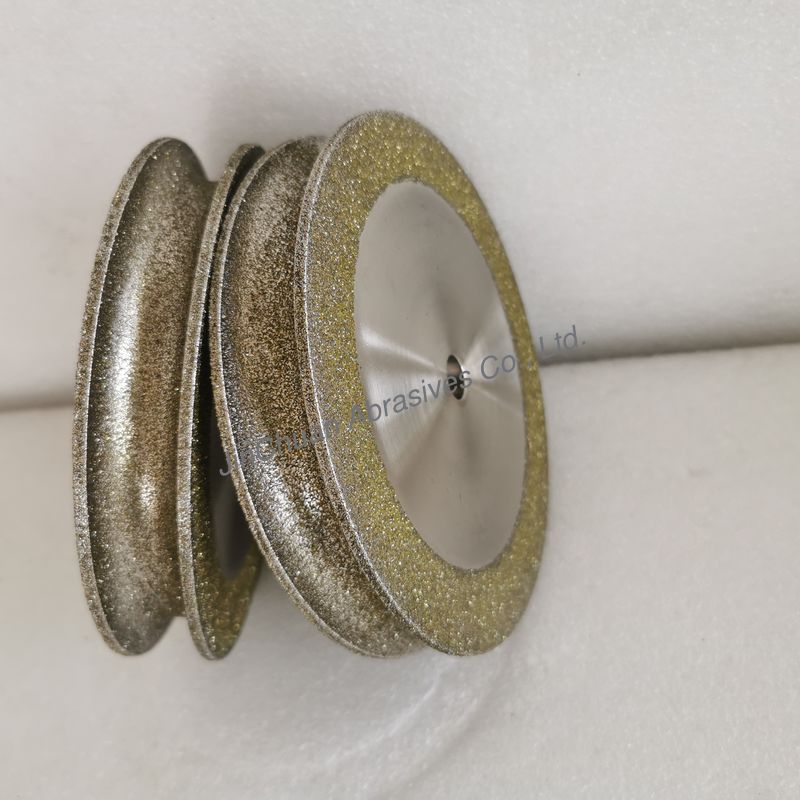

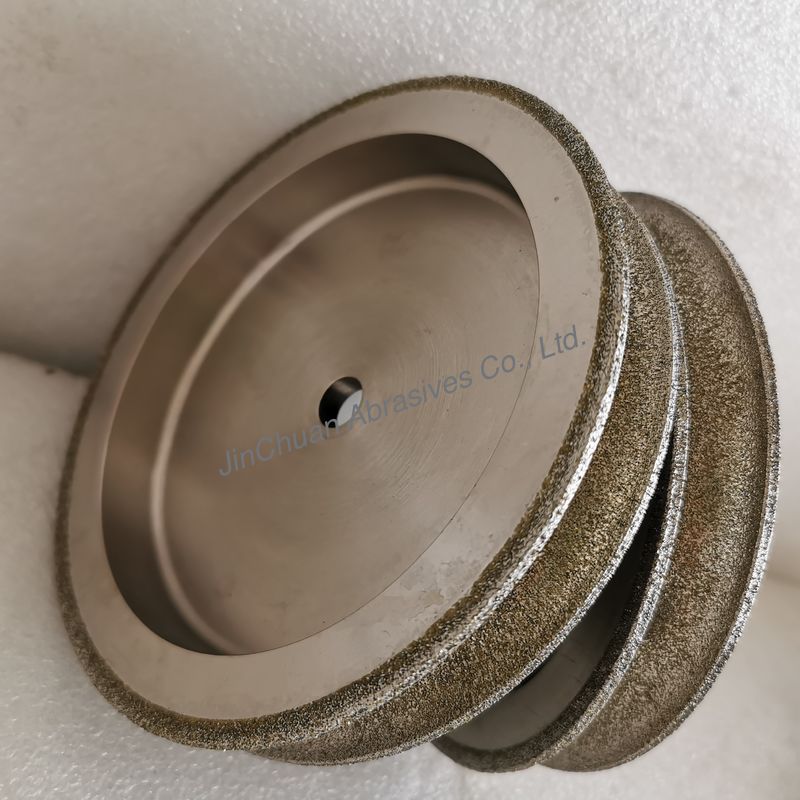

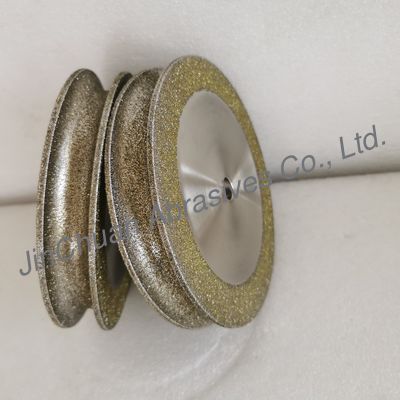

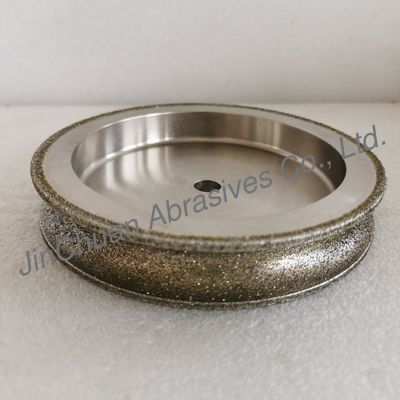

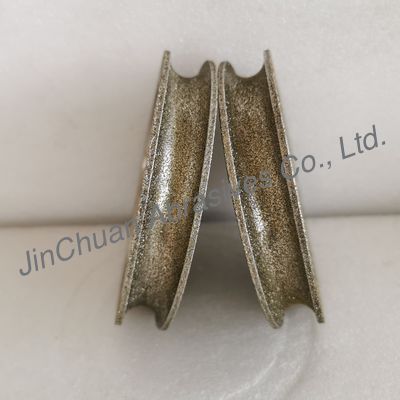

1F6Y 153.67*20.32*12.7mm D40/45 Electroplated Diamond Grinding Wheel For Woodworking Industry
Product Details
| Base Material: | Stell | Abrasive: | Diamond |
|---|---|---|---|
| Name: | Electroplated Diamond Grinding Wheel | Grit: | D40/45 |
| Shape: | Round With Groove | Diameter: | 153.67mm |
| Bond: | Electroplated | Application: | Medical Industry |
| Specification: | 1F6Y | Thickness: | 20.32mm |
| Inner Hole: | 12.7mm | ||
| Highlight |
1F6Y Electroplated Diamond Grinding Wheel,Woodworking Electroplated Diamond Grinding Wheel |
||
Product Description
Product Description:
Electroplated diamond grinding wheels are mainly used in the woodworking industry for precision machining of high-hardness wood materials or composite materials. They combine the super-hard properties of diamond and the flexibility of the electroplating process, and can meet the woodworking industry's needs for efficient, durable and fine machining.
Advantages:
Low temperature preparation: electroplating temperature <70℃, avoiding thermal damage to diamond (compared to brazing >900℃), suitable for high-grade diamond (such as SMD series).
High particle holding force: double fixation through micro-pit inlay + metal electroplating layer (nickel/nickel-cobalt alloy), abrasive particle shedding rate <3%.
Technical Parameters:
| Name | Value |
|---|---|
| Wheel body | Steel |
| Application | Grinding |
| Color | Silver,Golden |
| Grit | D40/45 |
| Abrasive | Diamond |
| Bond | Electroplated |
| Size | 153.67*20.32*12.7mm |
| Shape | Round |
| Name | Electroplated Diamond Grinding Wheel |
Applications:
1. Processing of hardwood and modified wood
Use: Forming, grooving and carving of high-grade hardwood such as mahogany, rosewood and ebony.
Advantages:
Diamond abrasive grains (usually 80/100) can efficiently cut high-density wood, avoiding the frequent wear of traditional tungsten carbide tools.
The electroplating layer (nickel-based) has strong bonding strength, which increases the life of the grinding wheel by 5-8 times and reduces the downtime of tool change.
2. Processing of man-made boards and composite materials
Use: Cutting and trimming of high-density fiberboard (HDF), plywood and wood-plastic composite materials (WPC).
Advantages:
The high wear resistance of diamond to resin/adhesive avoids the failure of ordinary grinding wheels due to resin clogging.
3. Finishing of woodworking tools
Use: Grinding carbide woodworking milling cutters and saw blades.
Advantages: The high shape retention of electroplated grinding wheels can accurately restore the geometric angle of the tool edge (error <0.01mm).
If you need to customize, please provide the following information
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
