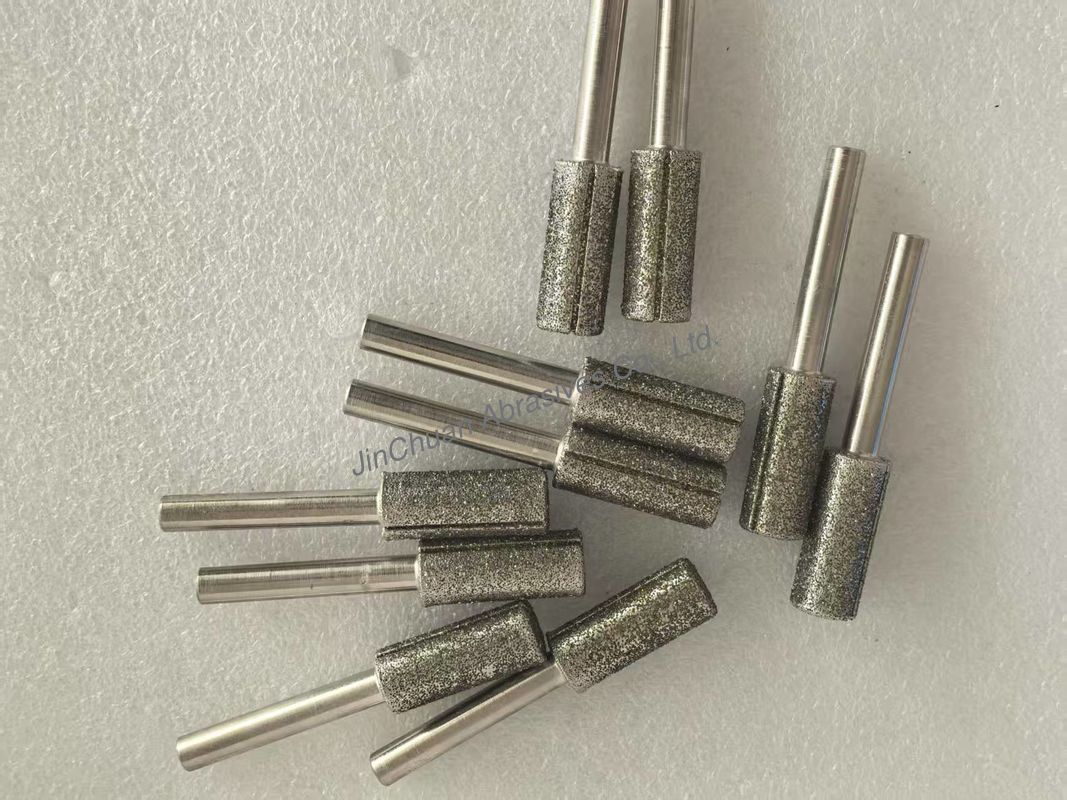

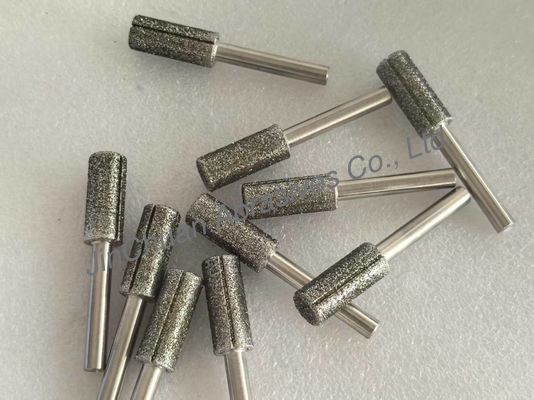

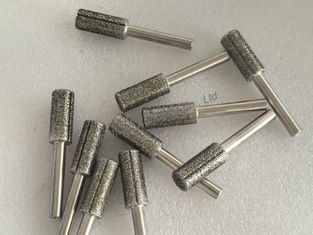

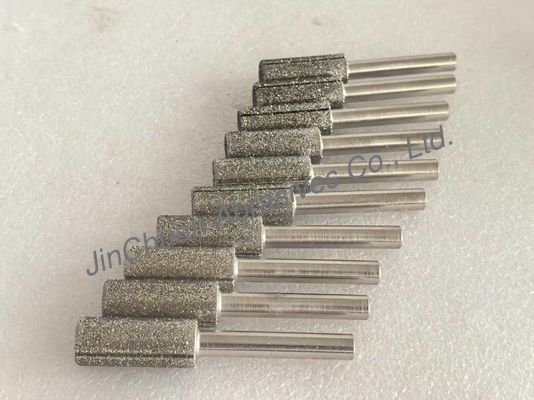

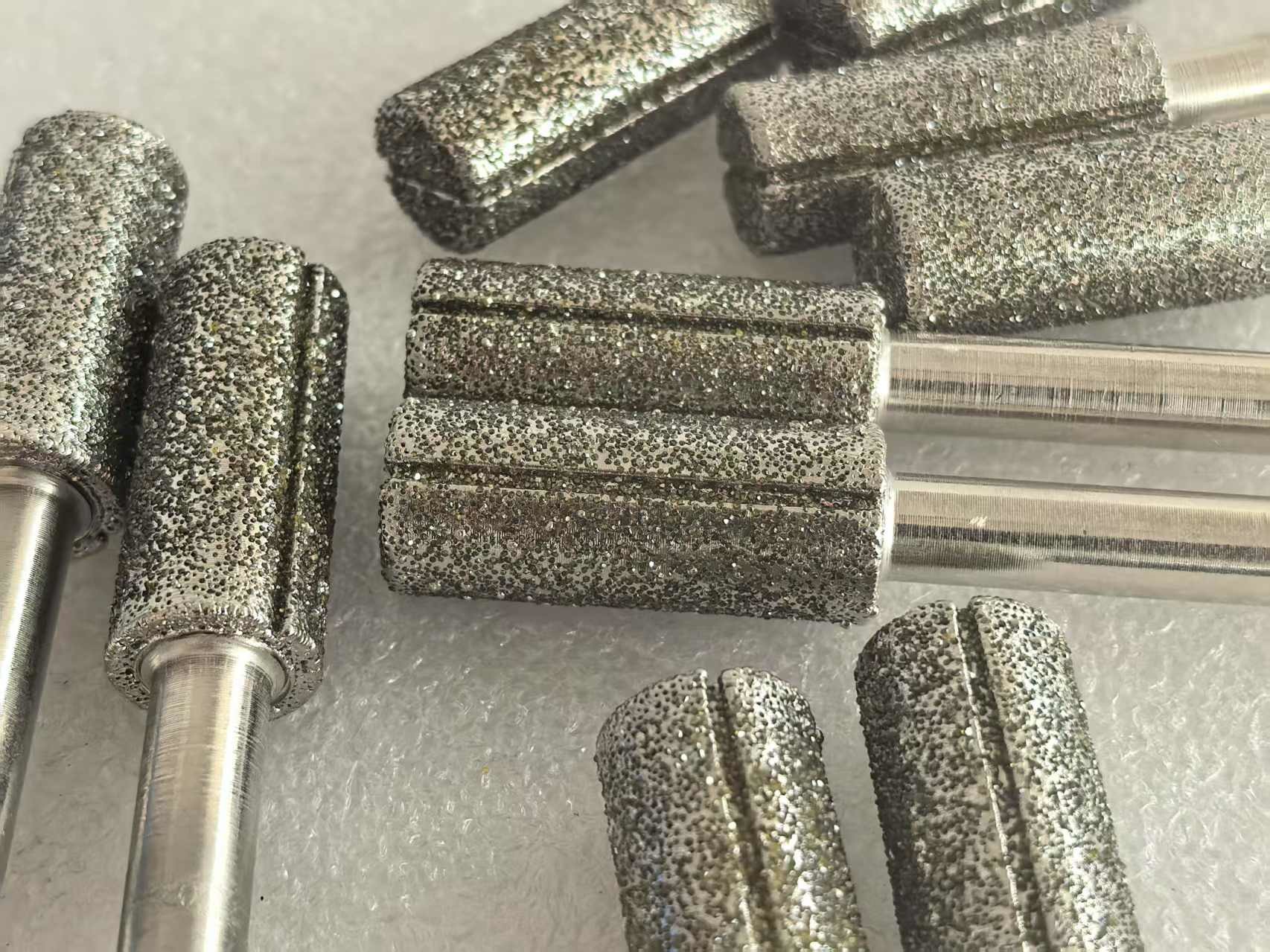

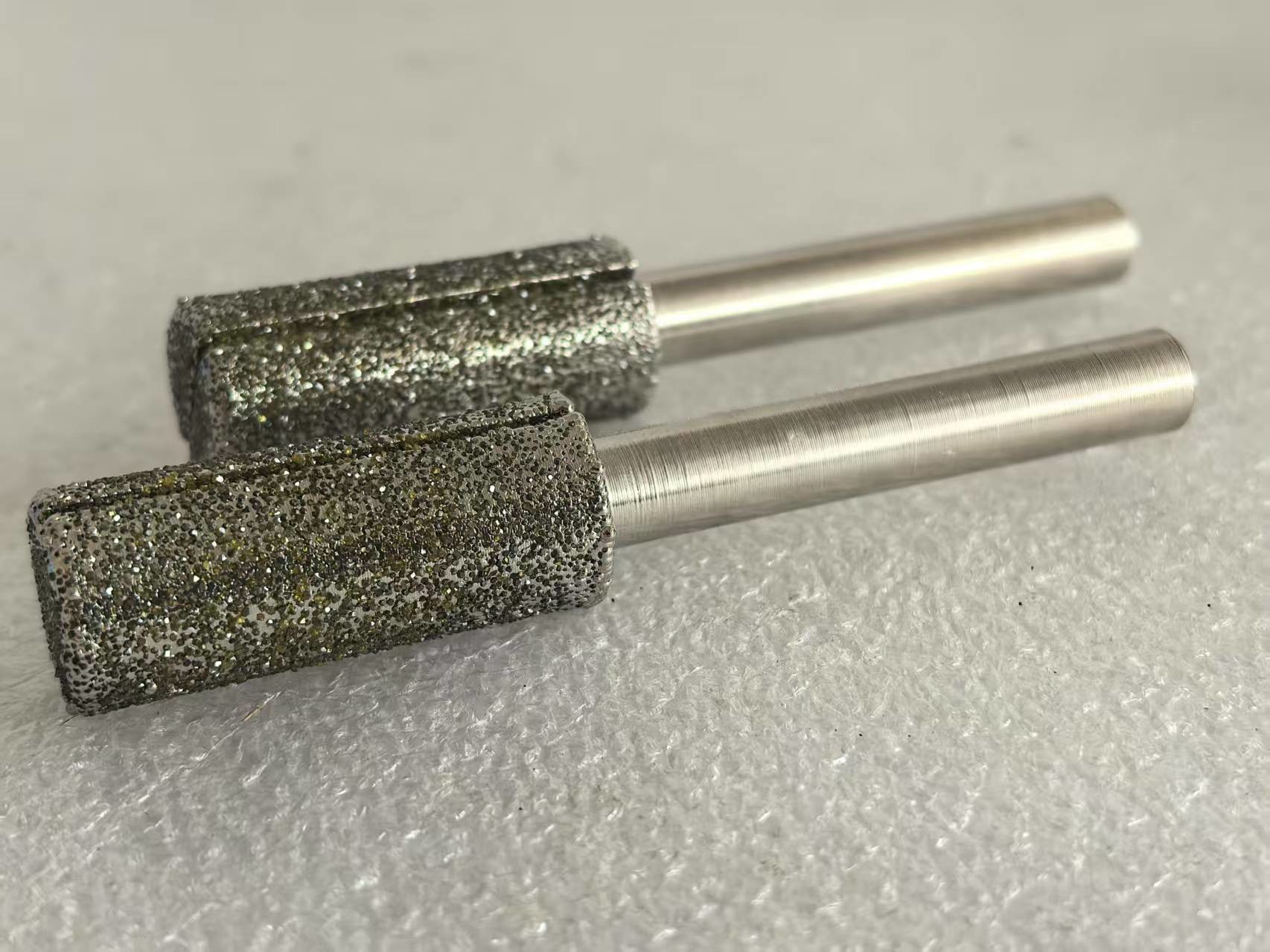

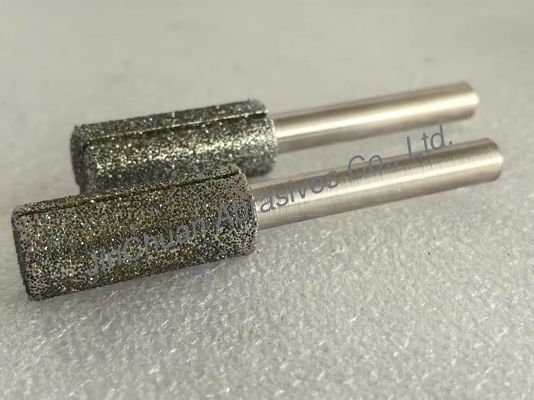

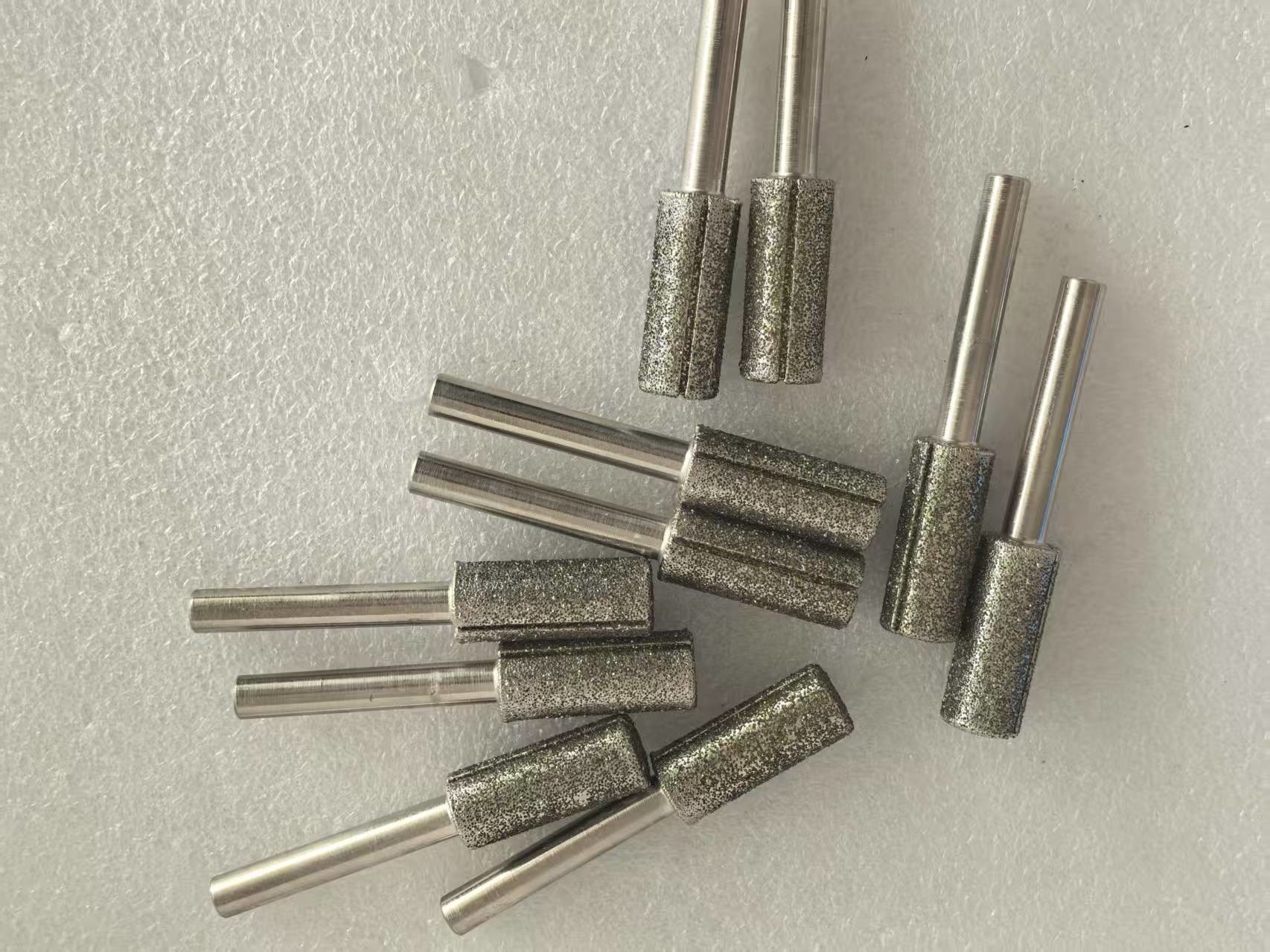

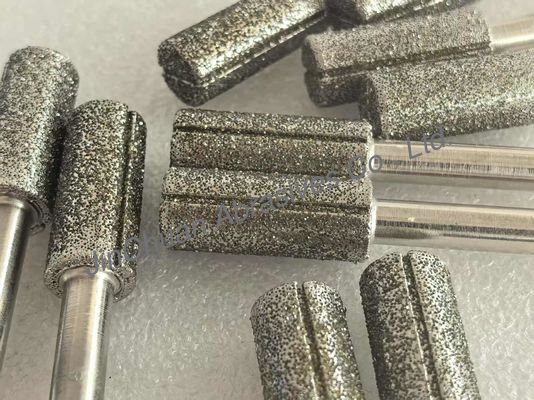

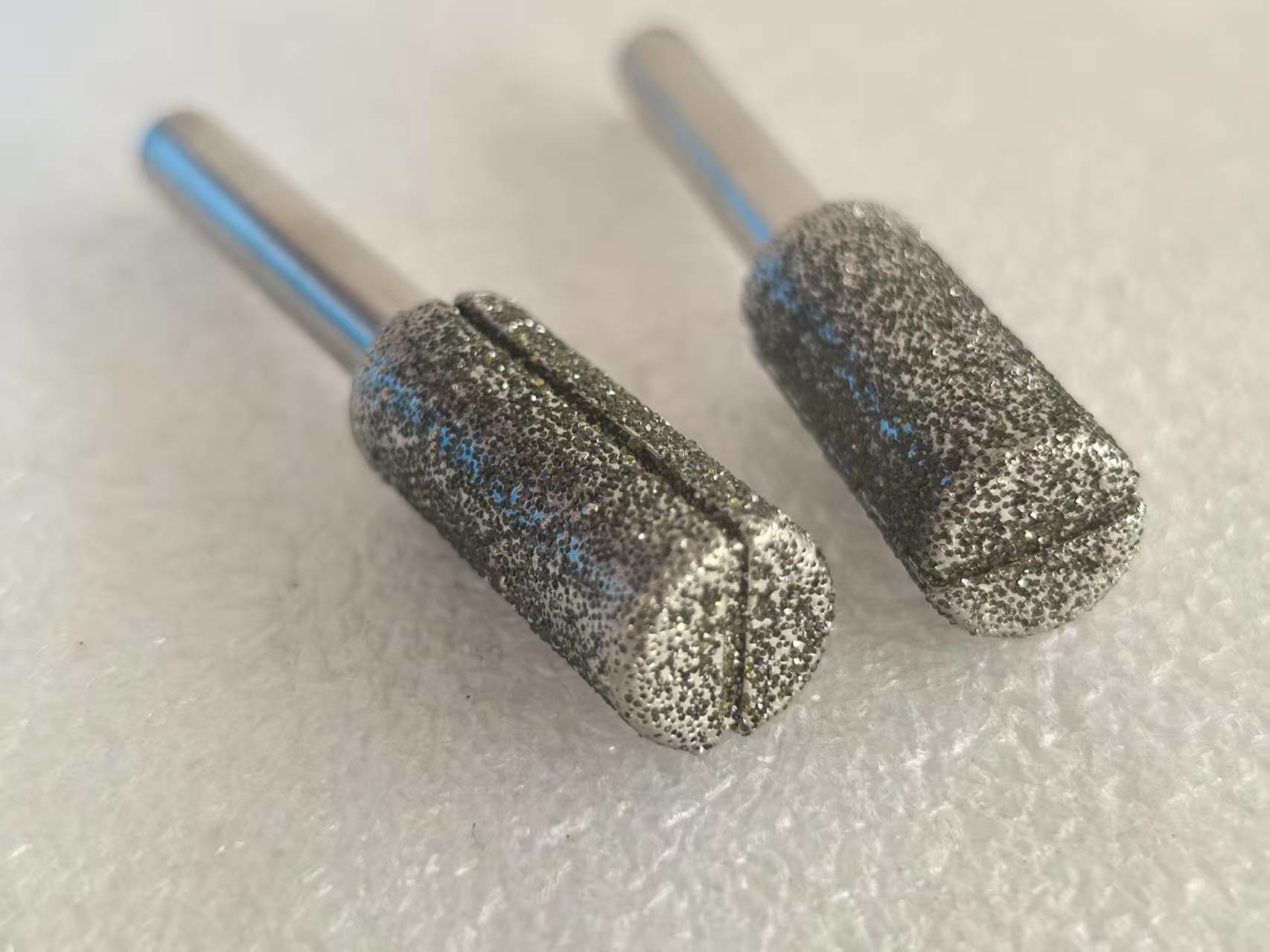

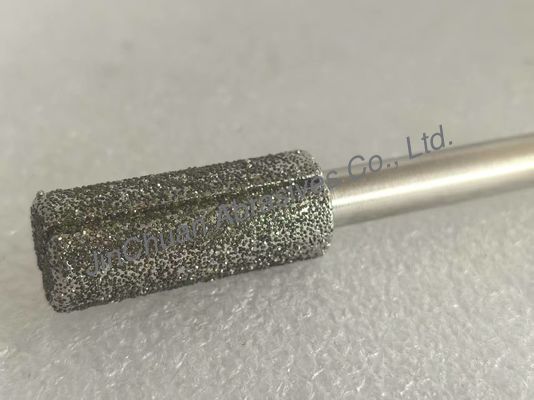

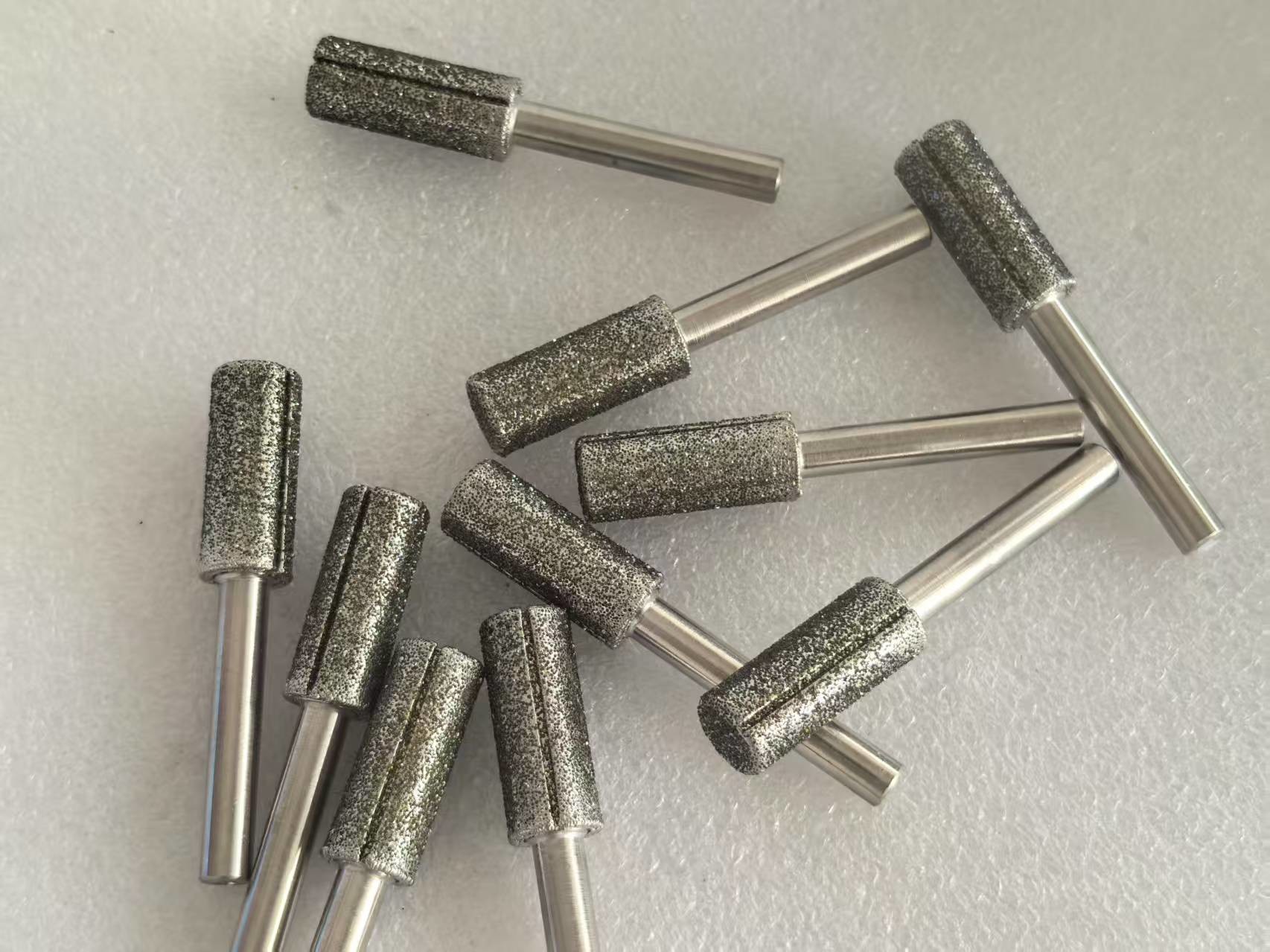

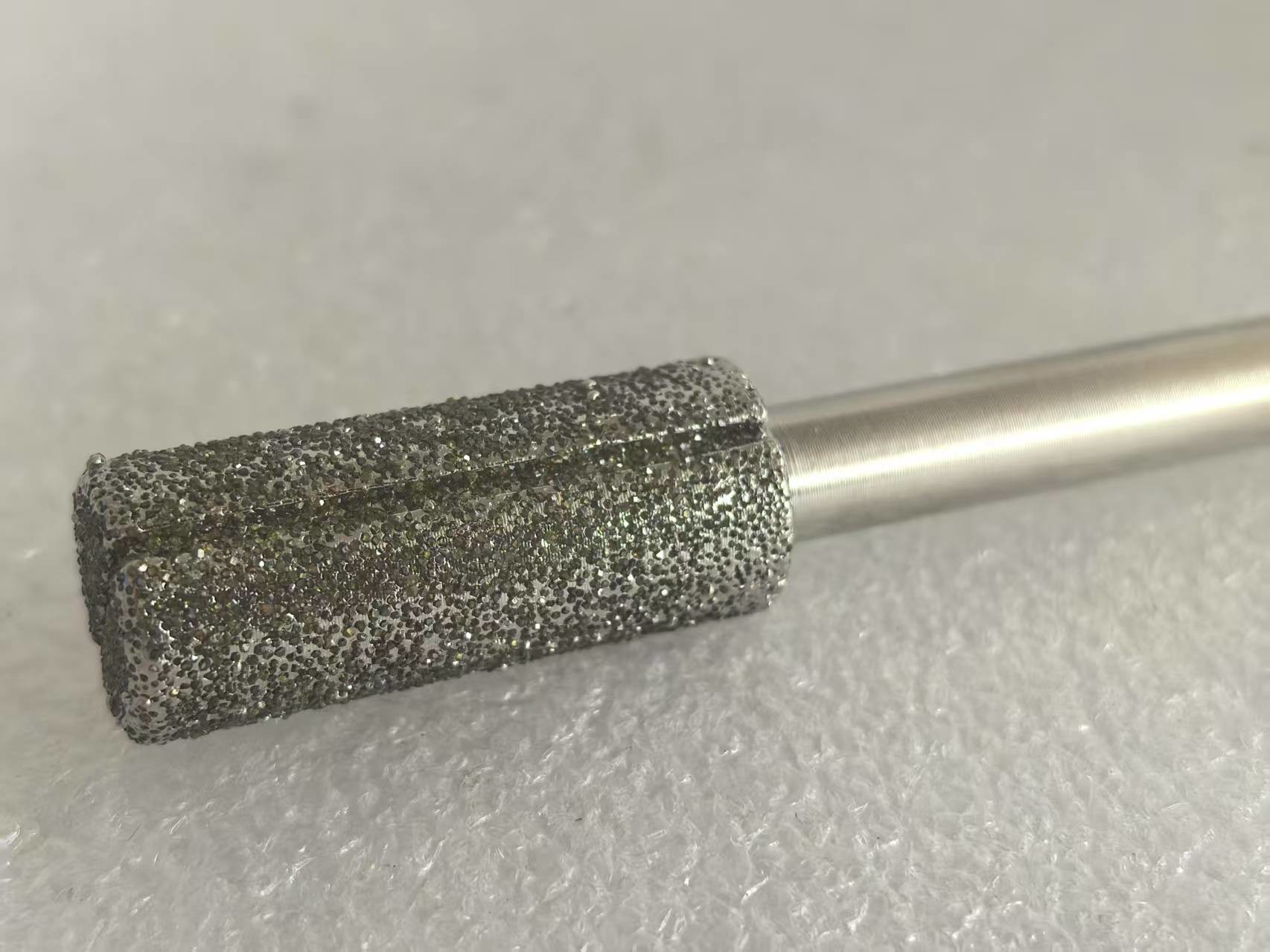

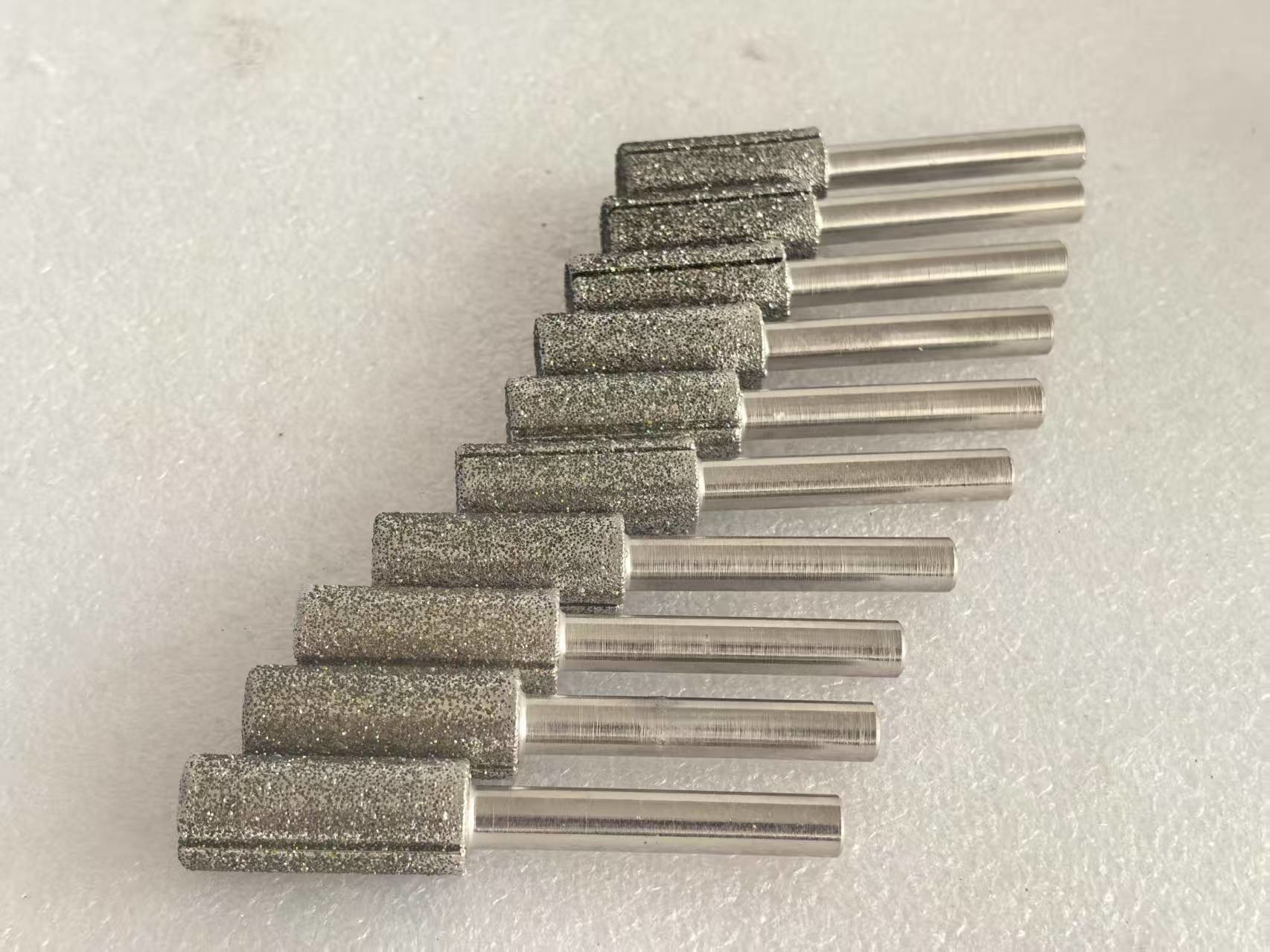

Diamond Mounted Points With Slots Kind Grinding Pins
Product Information Of Diamond Grinding Head
The dimond mounted points, can be used to polish as well as grind. It can polish any coarse surface quickly and precisely. Mainly used as grinding wheels for inner hole, internal grinding and polishing.
Typically Applications:
Grinding of Inner and outer faces of Ball & Roller Bearings;
Grinding of Bores of Inner Rings
Grinding of Hydraulic and Pneumatic Cylinders
Grinding of Con-rods ends in the Auto. Industry;
Grinding of Gun Barrels,
Grinding of Gears Bores, Collects;
Main Data Of Diamond Mounted Points
| Name |
Diamond Grinding Head |
|
| Bond |
Resin bond , Vitrified bond , Metal bond &Electroplated |
Material |
Aluminium, Steel, etc |
| Abrasive |
Diamond and CBN |
Packing |
purple box, 1pcs /box |
| Size |
D:25mm-500mm T: 5mm-40mm H:10mm-127mm |
OEM/ODM |
Available |
| Type code |
1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. |
| Usage |
Mainly used for grinding , sharping and polishing . Widely used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc |
| Sample Cost |
Depend on the size and quantity |
The grinding wheel head can be served to polish as well as grind. The mounted point can polish any coarse surface quickly and precisely.
Please tell us your work condition as well as the processing demand.
We will recommend you most suitable product.
NOTE: we can design and produce any specification of grinding wheel head as customer's requirement.
FAQ:
1.What material does your product use ?
Our product abrasives are diamond or CBN , which are electroplated, resin, vitrified, or metal bonded.
2.Do you offer samples ?
Yes, In order to start the new and happy cooperation , we can provide our customers sample for testing at the first order , we believe that you will be satisified with our product quality.
3. Can we go to visit your factory ?
Of course yes , welcome to visit our factory , you can see our production capacity and technoly. Remeber to contact our sales first before your visit.
4.How can you guarantee the quality ?
We examine the quality 3 times before strat the delivery , first : pre-production , second : post-production , third : before delivery . So do not worry about this.
NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
