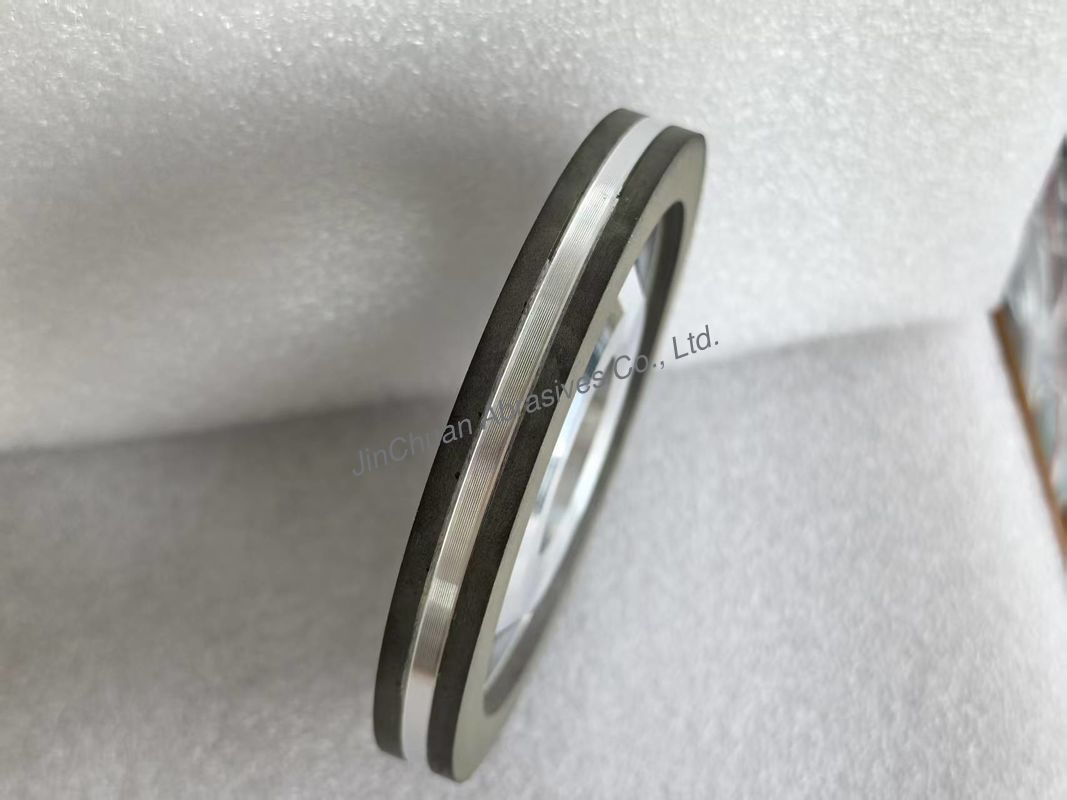

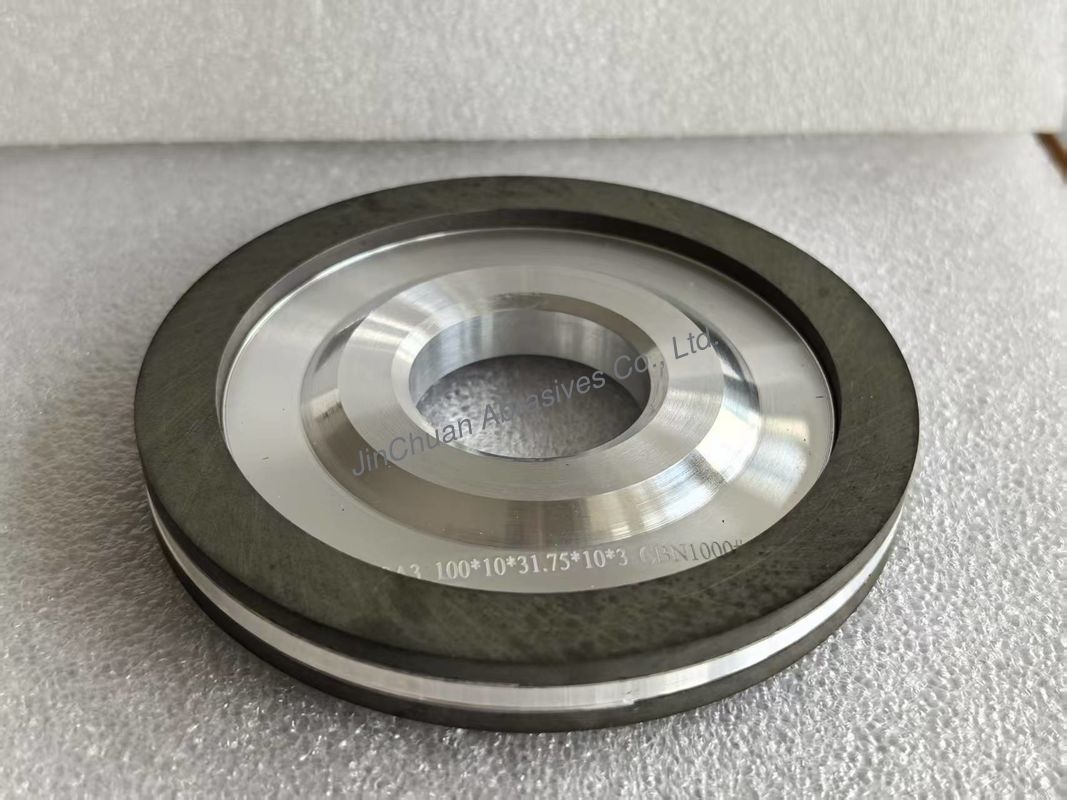

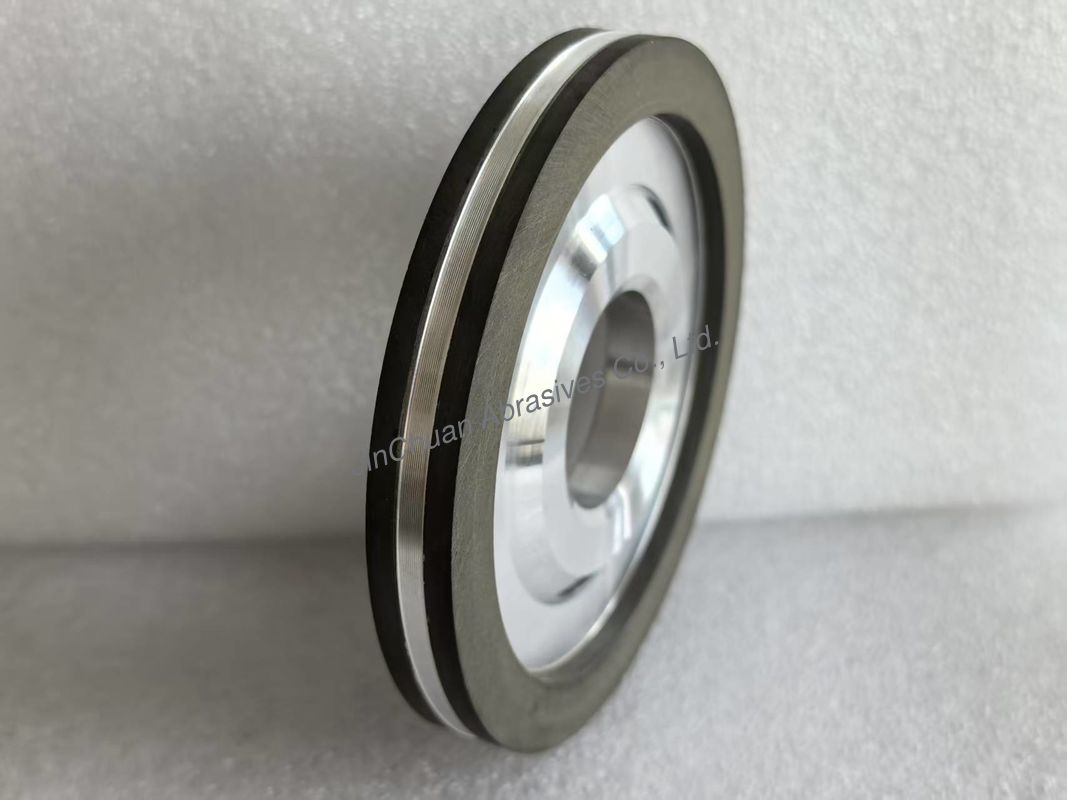

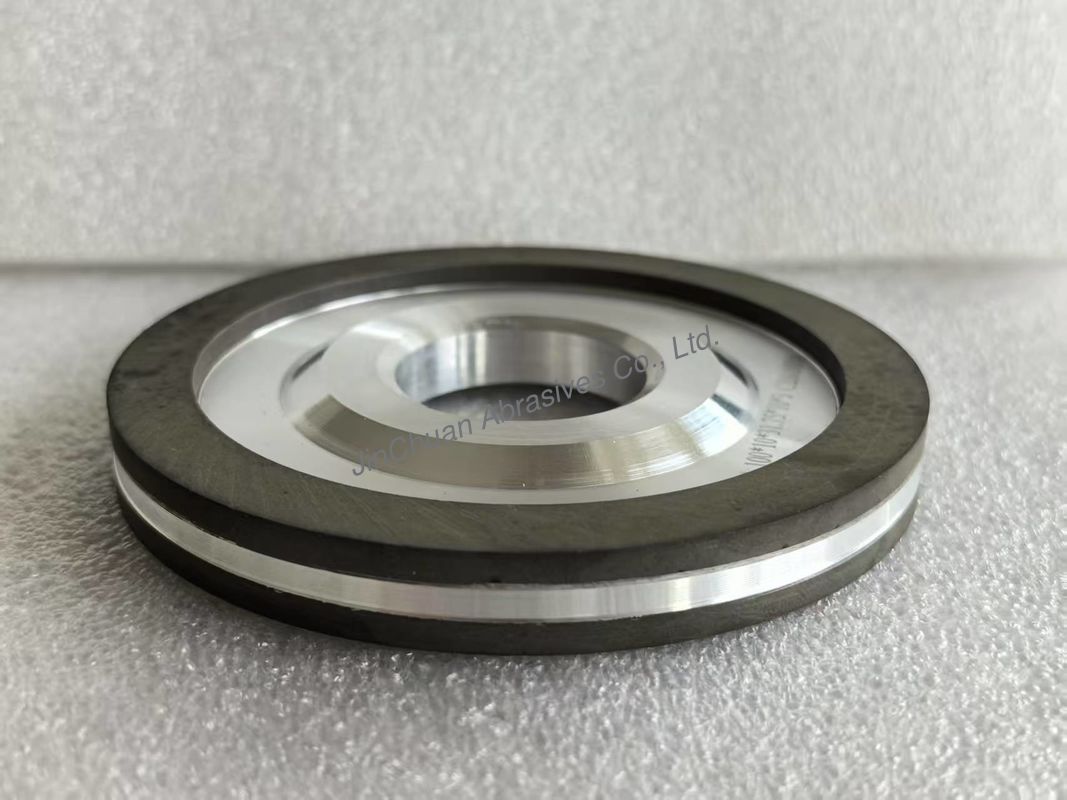

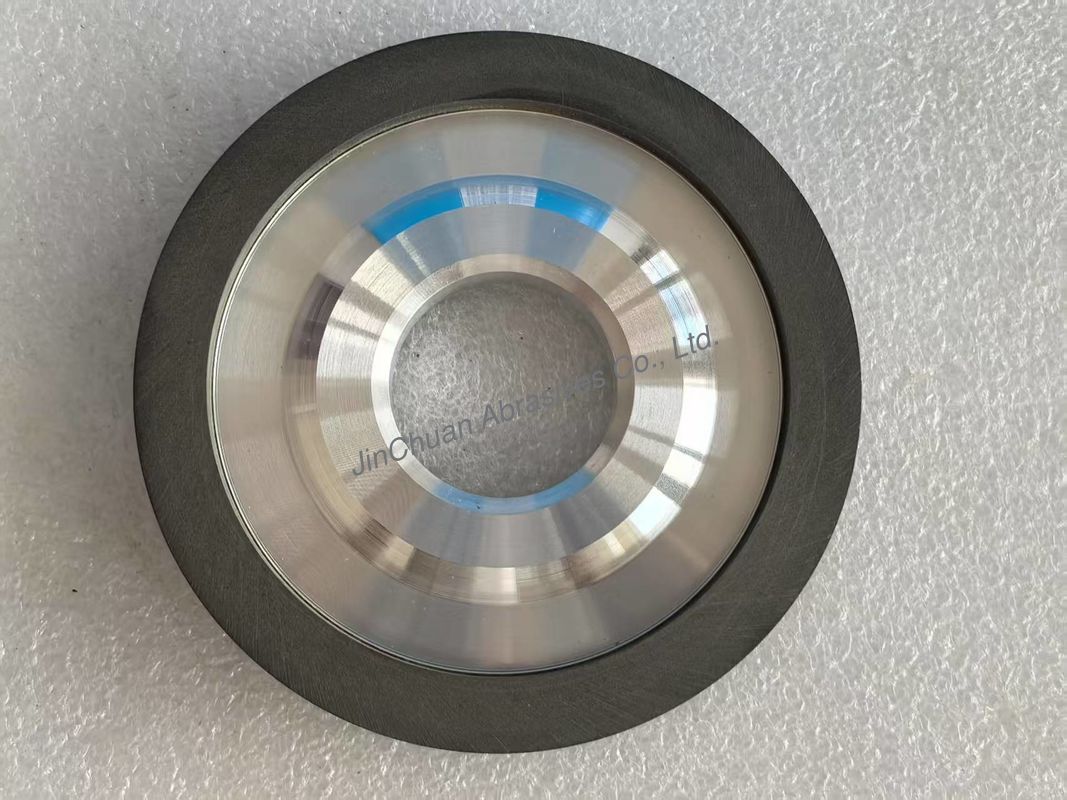

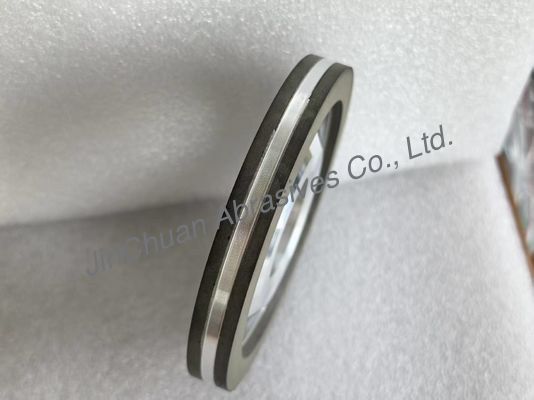

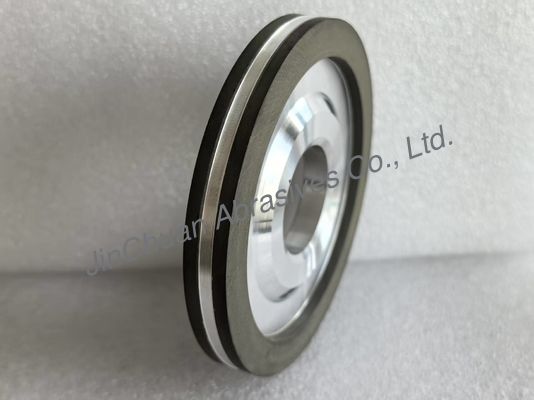

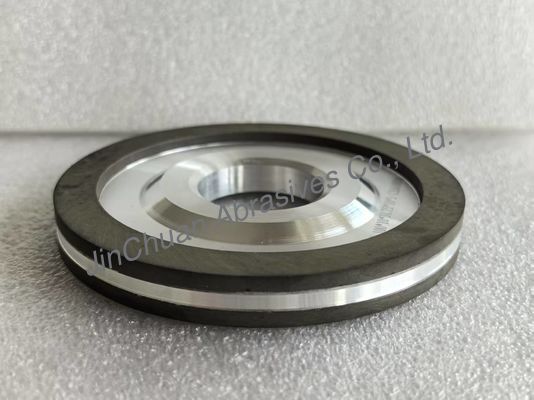

9A3 100*10*31.75*10*3mm B1000# Resin Bond CBN Grinding Wheel For Woodworking Blades
Product Details
| Shape: | Round | Usage: | Grinding |
|---|---|---|---|
| Bond Agent: | Resin | Delivery: | By Express |
| Package: | Carton Box | HS Code: | 6804221000 |
| Abrasives: | CBN | Application: | Woodworking Blades |
| Diameter: | 100mm | Thickness: | 10mm |
| Inner Hole: | 31.75mm | Abrasive Width: | 10mm |
| Abrasive Depth: | 3mm | Granularity: | B1000# |
| Highlight |
9A3 Resin Bond CBN Grinding Wheel,Resin Bond CBN Grinding Wheel |
||
Product Description
9A3 Resin Bond CBN Grinding Wheel Product Description
Product Name: Resin Bond CBN Grinding Wheel
Product Overview:
Resin bond CBN grinding wheels are super-hard abrasive tools made by hot pressing CBN as the abrasive and resin as the binder. CBN is the Super-hard abrasive, second only to diamond in hardness, suitable for processing high-hardness materials such as hardened steel, high-speed steel, cemented carbide, etc.
Product Features:
High wear resistance;
High temperature resistance;
High processing accuracy;
Suitable for high-speed grinding;
Product size(mm):
| Diameter | Thickness | Inner hole | Abrasive width | Abrasive depth | Granularity |
| 100 | 10 | 31.75 | 10 | 3 | B1000# |
Of course other sizes can be customized.
Application:
Used in woodworking industry, blade grinding.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you
