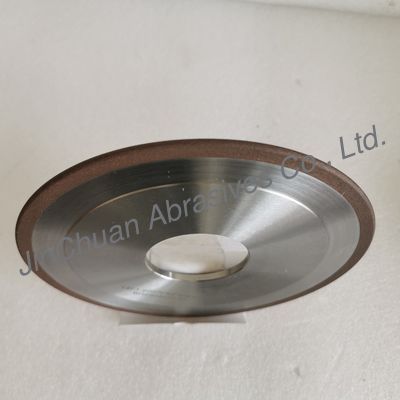

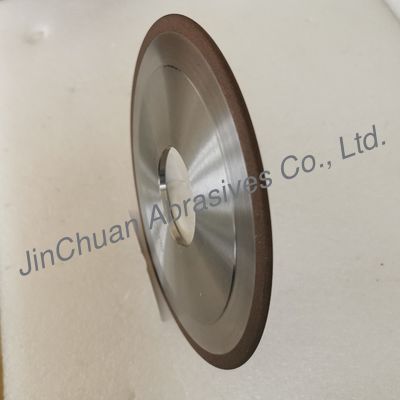

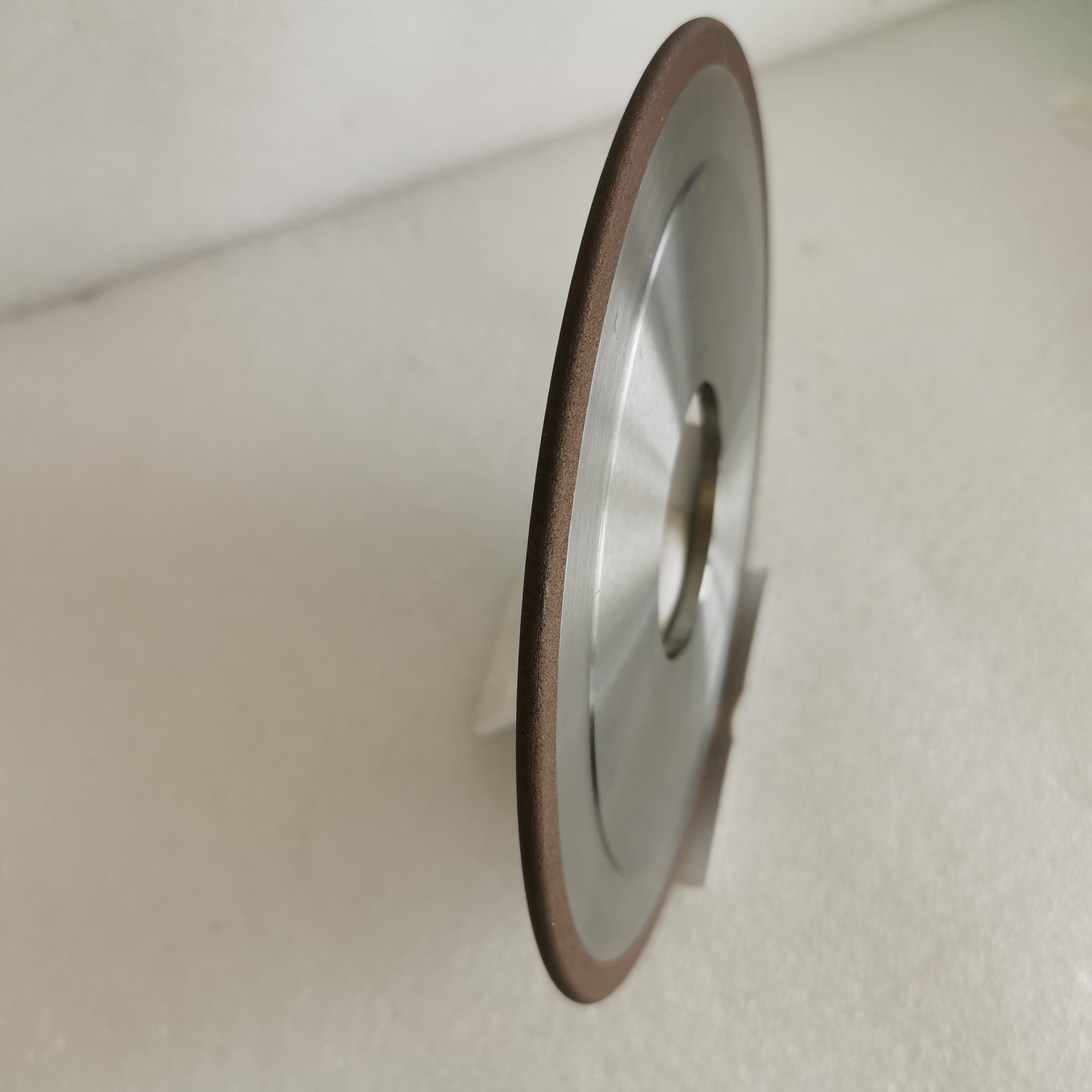

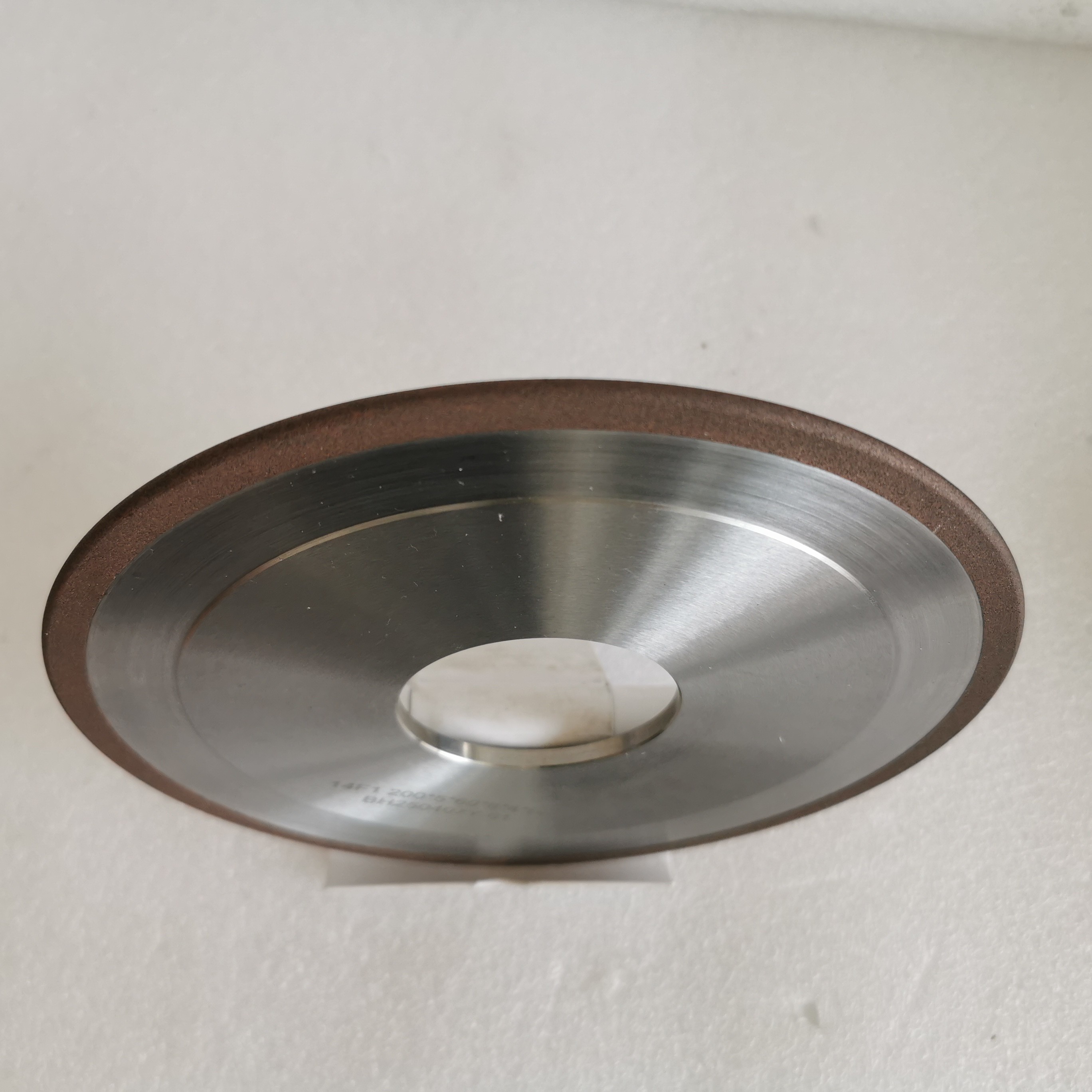

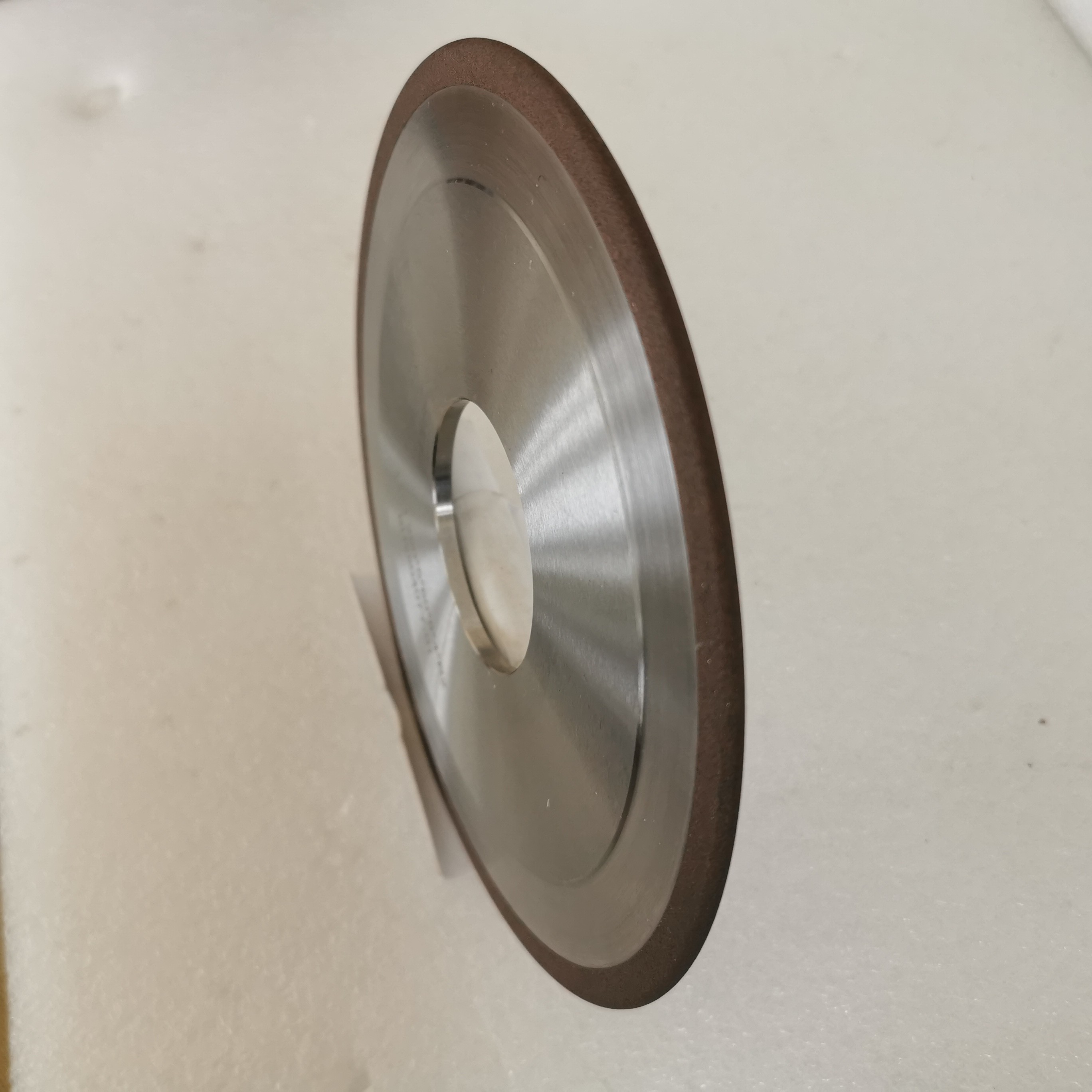

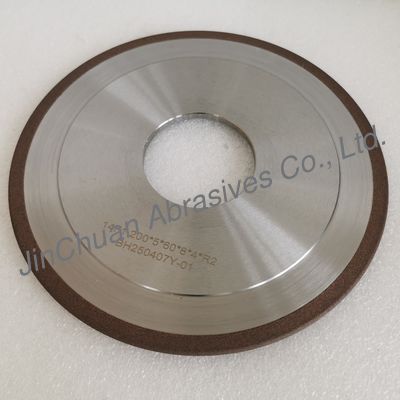

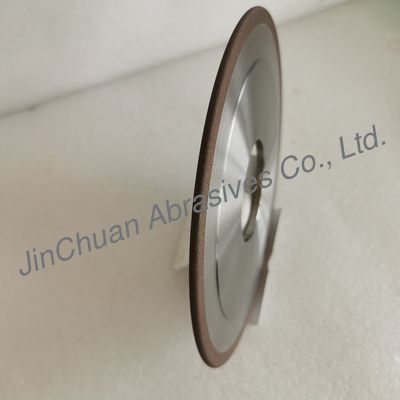

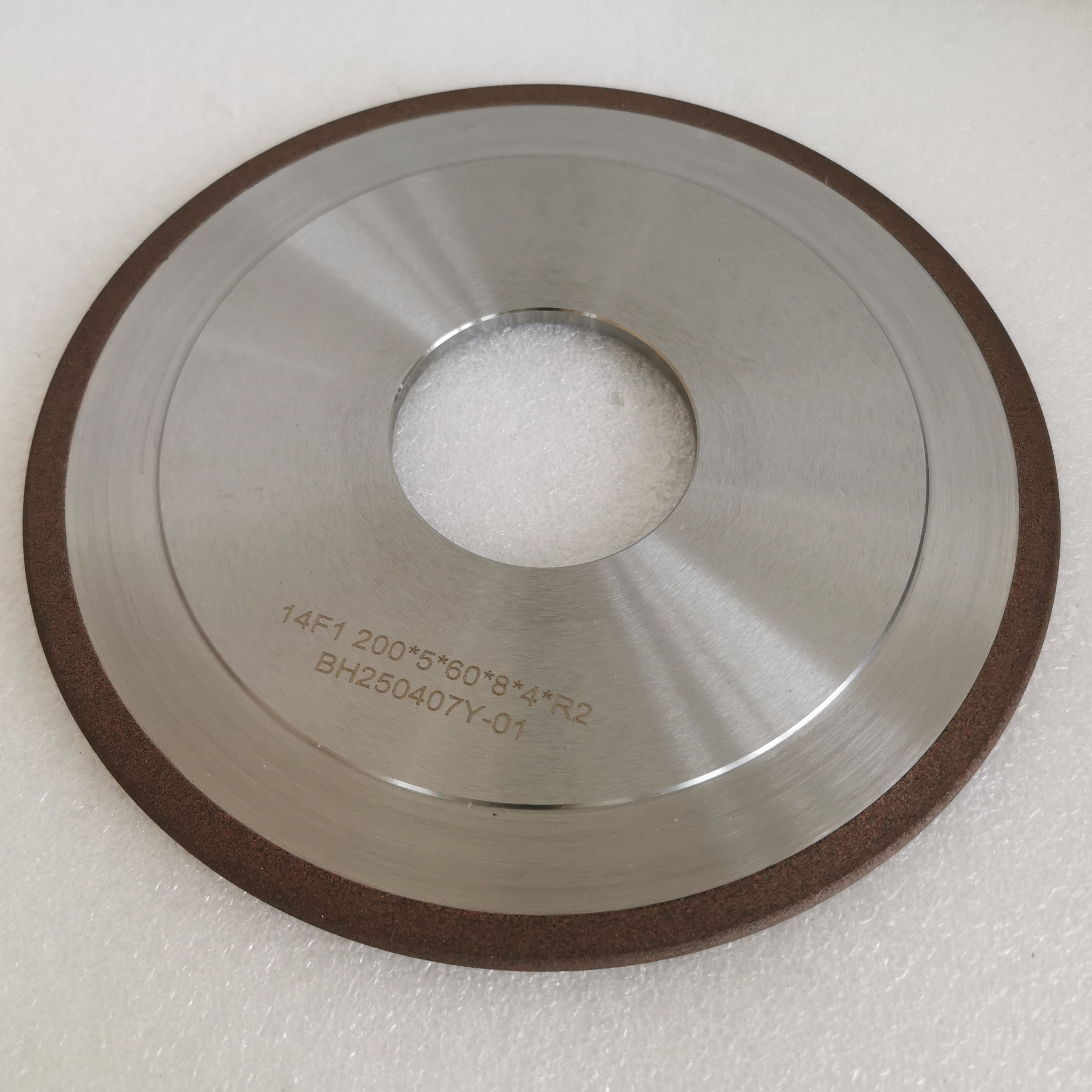

14F1 200*5*60*8*4mm Resin Bond Diamond Grinding Wheel
Product Details
| Colour: | Silver,Brown | Diameter: | 200mm |
|---|---|---|---|
| Thickness: | 5mm | Inner Hole: | 60mm |
| Abrasive: | Diamond | Packing: | Standard Exported Carton Packing |
| Drawing: | As U Reqirement | Bond: | Resin |
| Shape: | Round | Origin: | Henan, China |
| HS Code: | 6804211000 | Precision: | High |
| Diamond Class: | First Class | Application: | Metal, Stainless Steel, Aluminum, Stone |
| Abrasive Width: | 8mm | Abrasive Depth: | 4mm |
| Delivery: | By Express | ||
| Highlight |
4mm Resin Bond Diamond Grinding Wheel,14F1 Resin Bond Diamond Grinding Wheel |
||
Product Description
14F1 200*5*60*8*4mm Resin Bond Diamond Grinding Wheel Product Description
Product Name: Resin Bond Diamond Grinding Wheel
Product Overview:
Resin bond diamond grinding wheels are super-hard abrasive tools made by hot pressing diamond as the abrasive and resin as the binder. They are characterized by excellent heat-resistance , good grinding performance, elasticity,good finishing surface, good wear-resistance, not easy produce chips, high grinding efficiency, high machining accuracy, and long service life. These wheels are widely used for grinding and Sharpening Straight Knife Cutters For The Timber Machinery.
Product specification:
14F1: usually refers to a flat grinding wheel, concave on one side, used for external cylindrical or surface grinding.
200mm: grinding wheel outer diameter (D)
5mm: grinding wheel thickness (T)
60mm: inner hole diameter (H)
8mm: abrasive depth (X)
4mm: abrasive width (W)
| Specification | Diameter | Thickness | Inner hole | abrasive depth | abrasive width |
| 14F1 | 200mm | 5mm | 60mm | 8mm | 4mm |
Of course, we can also customize other sizes for you.
Payment and Shipping:
We accept various payment terms, including T/T, L/C, WesternUnion, and PayPal. Our standard packaging is carton, but we can also customize the packaging based on your requirements. The Resin Bond Grinding Wheel comes in a sturdy cardboard box with foam padding to ensure safe transport and storage. Delivery time may vary depending on the destination, but typically takes between 5-10 business days.
Company introduction:
We are the professional manufacturer of resin bond diamond grinding wheels, equipped with advanced production facilities and testing instruments. Our products are known for their stable and reliable quality, earning the trust of our customers. We are committed to providing high-quality products and services. Welcome to inquire and purchase.
Looking forward to your inquiry.
