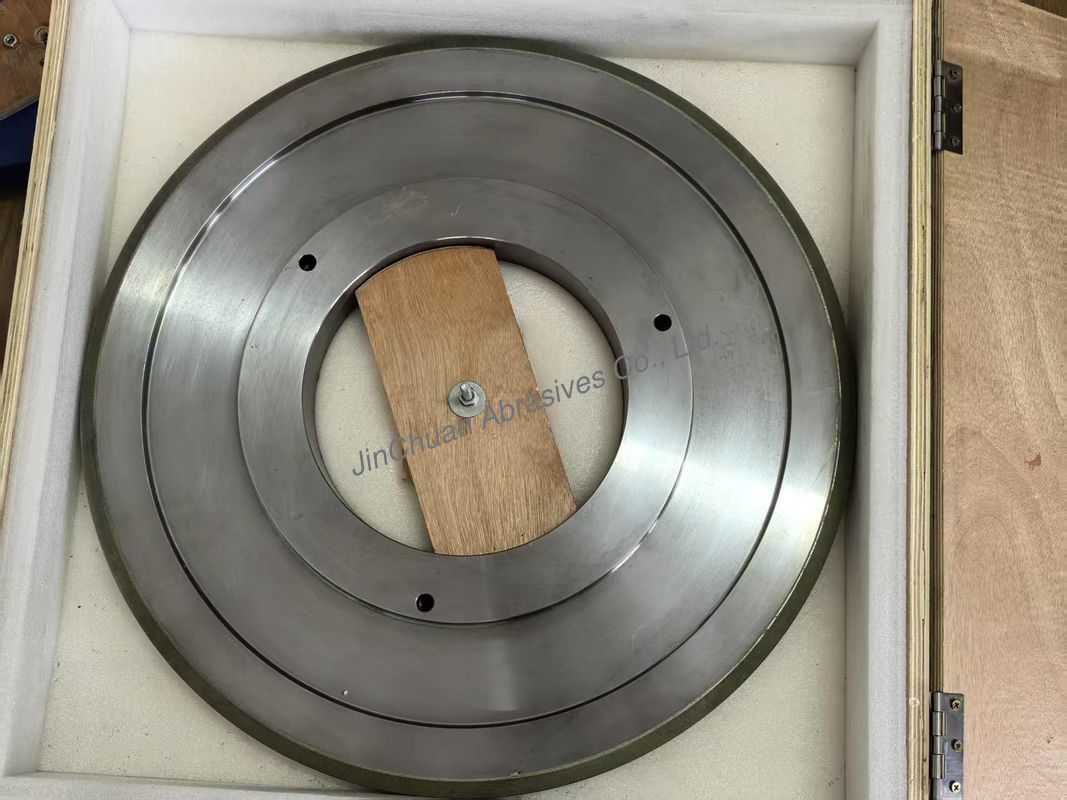

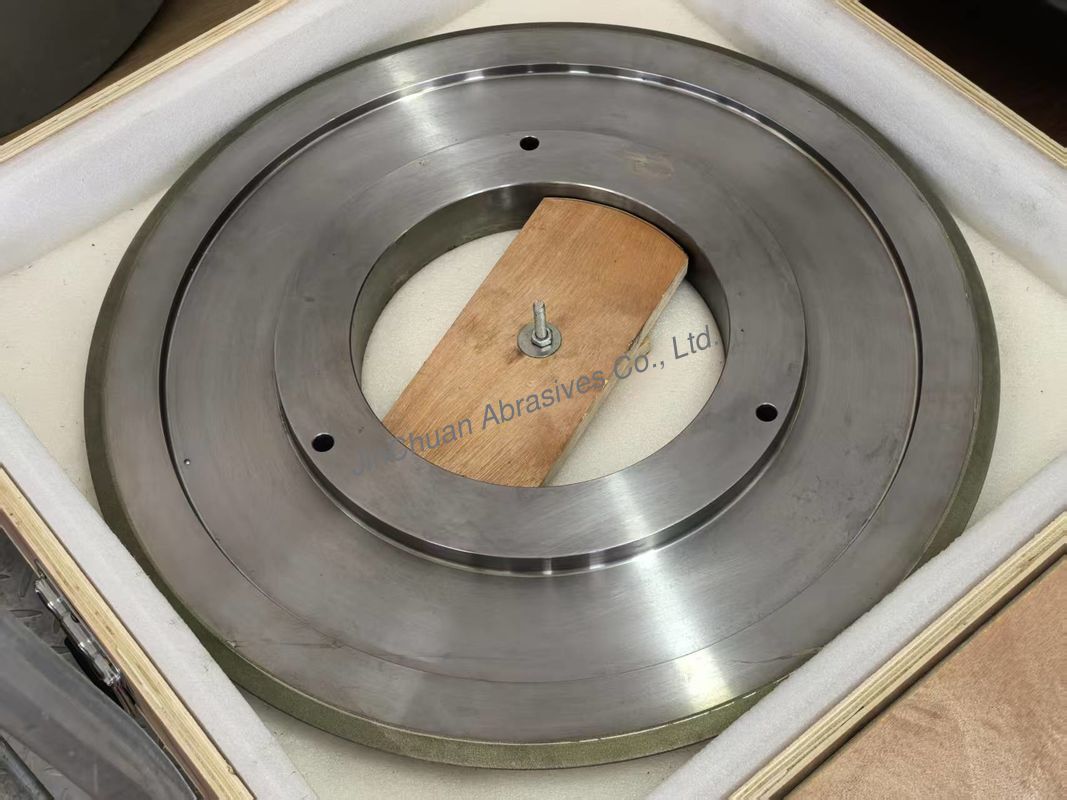

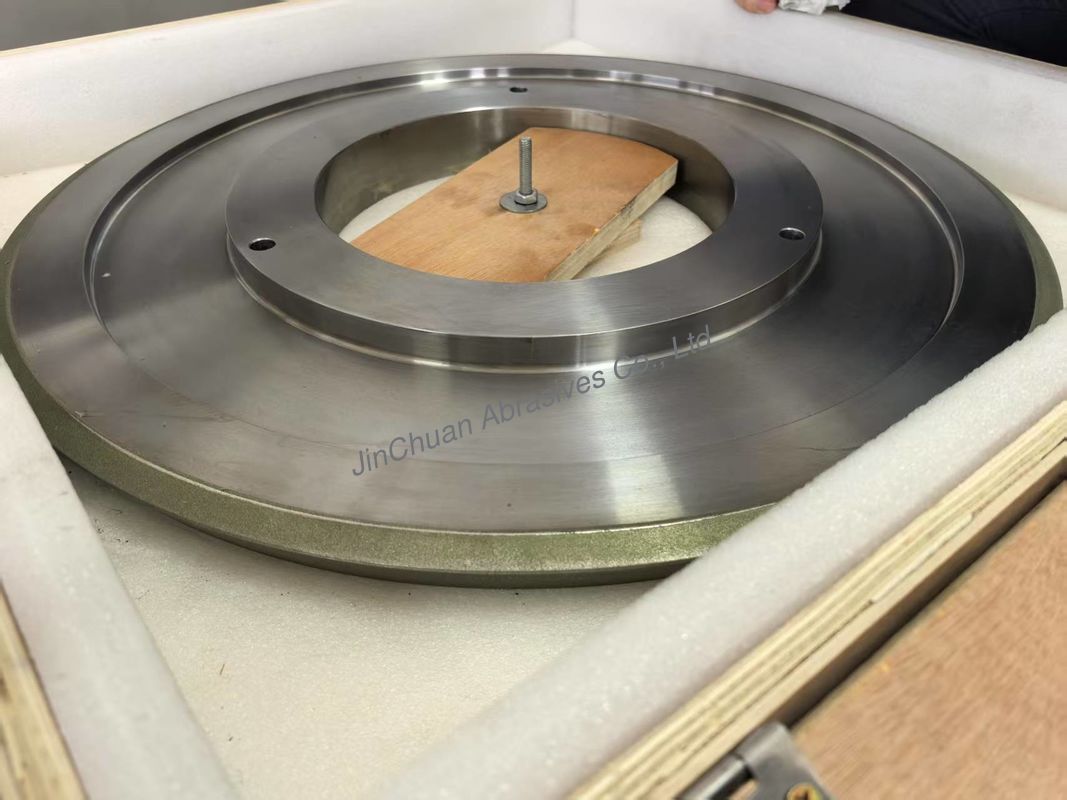

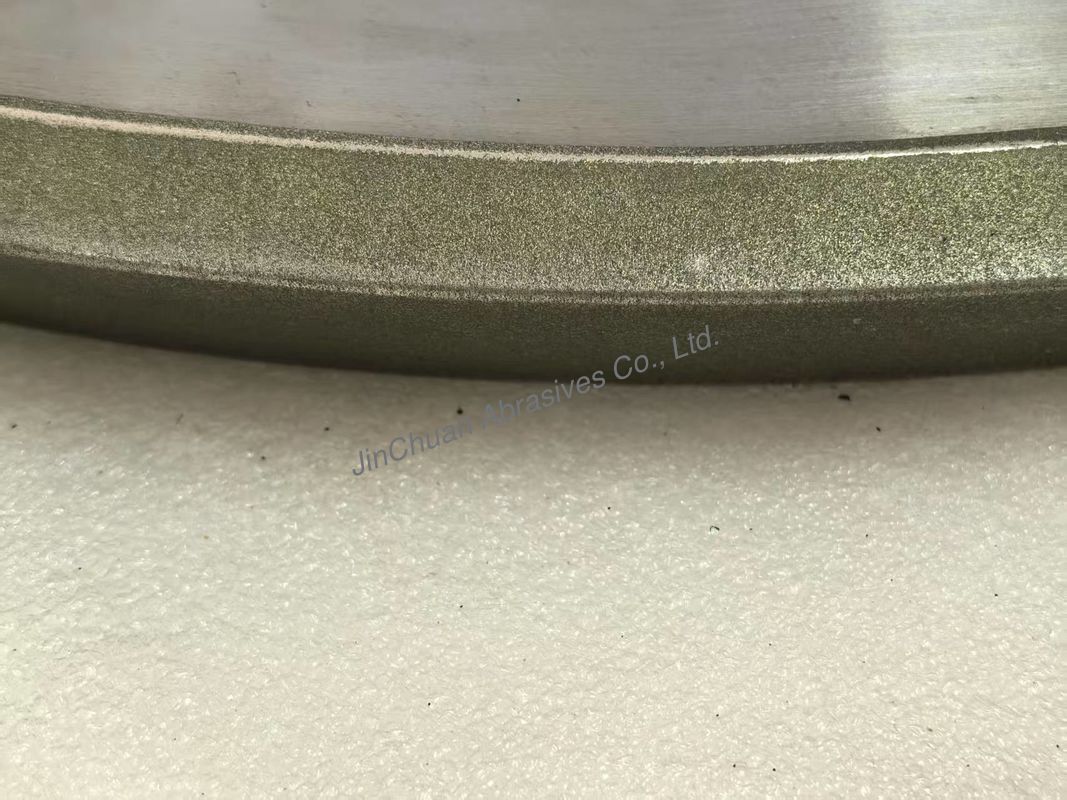

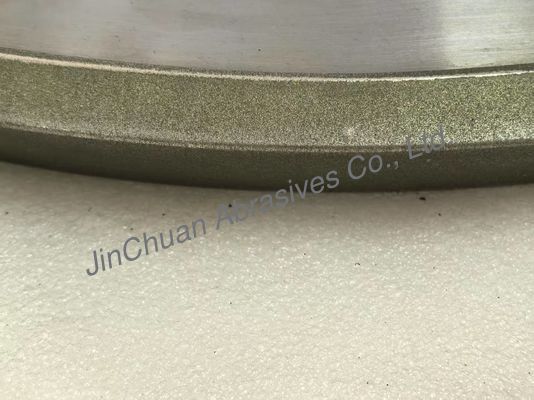

Diameter 609.6mm Grit D170/200 Electroplated Diamond Grinding Wheel For Grinding Carbon Fiber Tube
Product Details
| Name: | Diamond Wheel | Size: | 609.6mm |
|---|---|---|---|
| Abrasive: | Diamond | Thickness: | 50.8mm |
| Inner Hole: | 254mm | Grit Size: | D170/200 |
| Diamond Class: | First Class | Abrasive Depth: | 31.75mm |
| Shape: | Round | Color: | Golden |
| Application: | Carbide Tube | Technique: | Electroplating |
| Balance: | Dynamic Balance | Packing: | Wooden Box |
| Weight: | 67KG | HS Code: | 6804211000 |
| Highlight |
609.6mm Electroplated Diamond Grinding Wheel,D170/200 Electroplated Diamond Grinding Wheel |
||
Product Description
Introduction
14E1SP 609.6*50.8*254*2*31.75 D170/200 Electroplated diamond grinding wheel for grinding carbon fiber tube,Diamond grinding wheels have high grinding accuracy, long wear resistance, and do not require frequent dressing. Their accuracy can fully meet the requirements of precision machining.
Specification
| diameter | inner hore | thickness |
abrasive width |
granularity |
| 609.6mm | 254mm | 50.8mm | 31.75mm | D170/200 |
| 24" | 10" | 2" | 5/4" |
Of course, if you need other sizes, we can customize them according to your drawings.
Application
Mainly used for grinding the carbon fiber tube shown in the picture below.
Packing and Shipping
The standard export packaging is a wooden box, one box contains one grinding wheel, and the product is wrapped with foam to ensure that it will not be squeezed.
If you need to customize, please provide the following information
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
