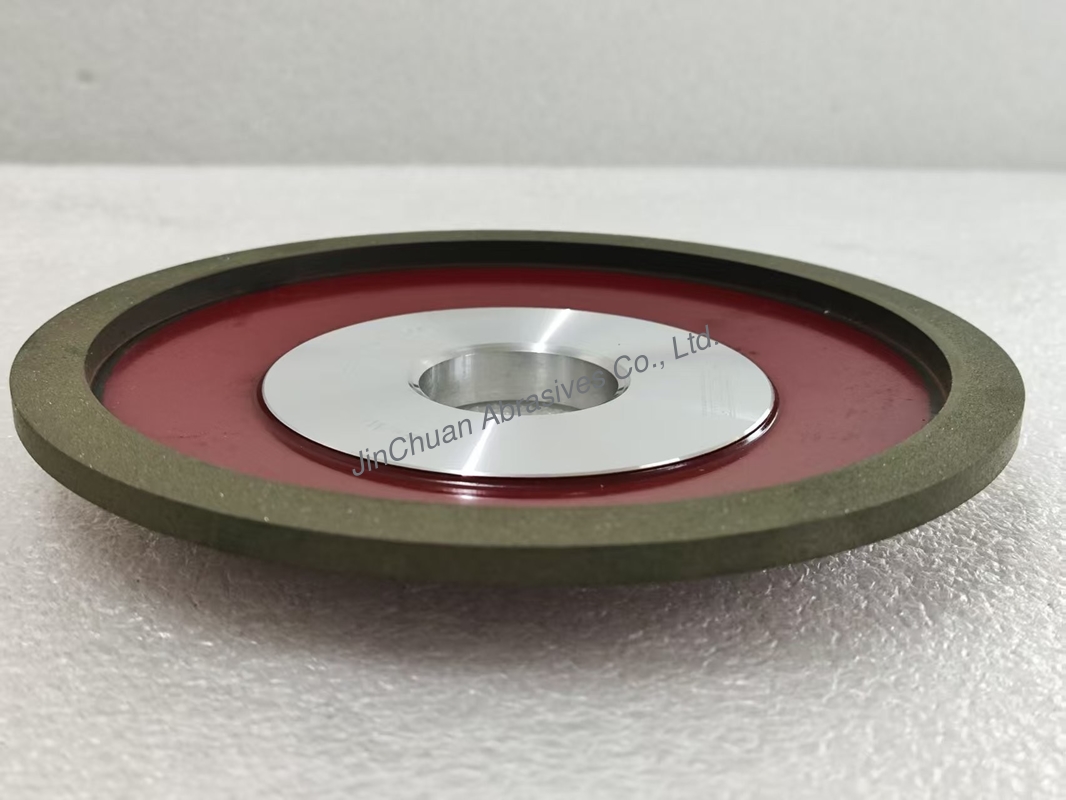

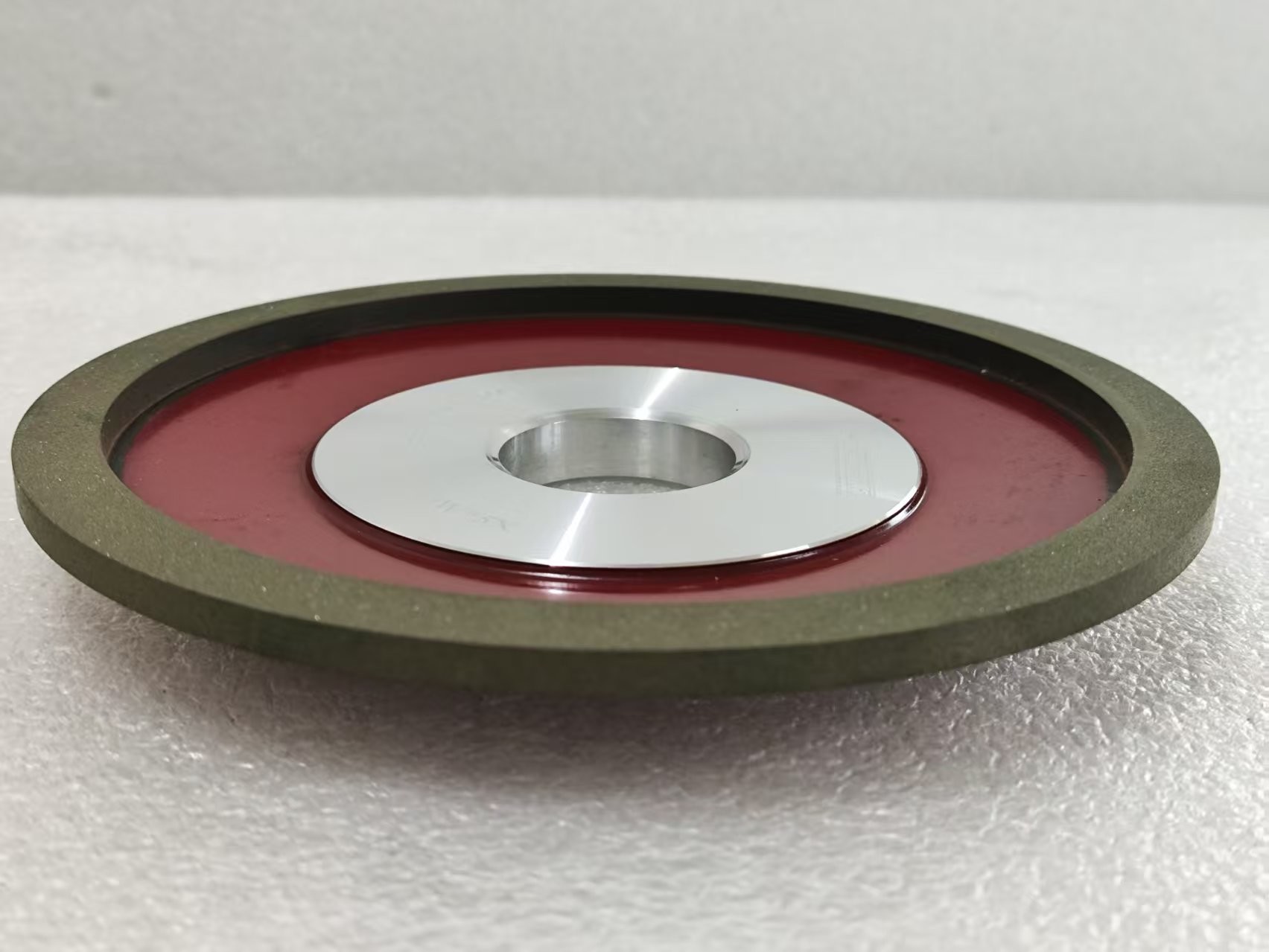

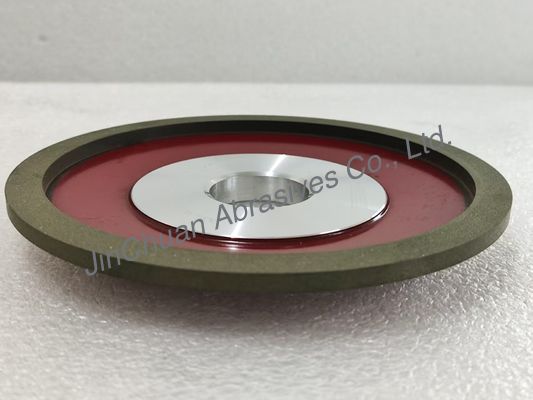

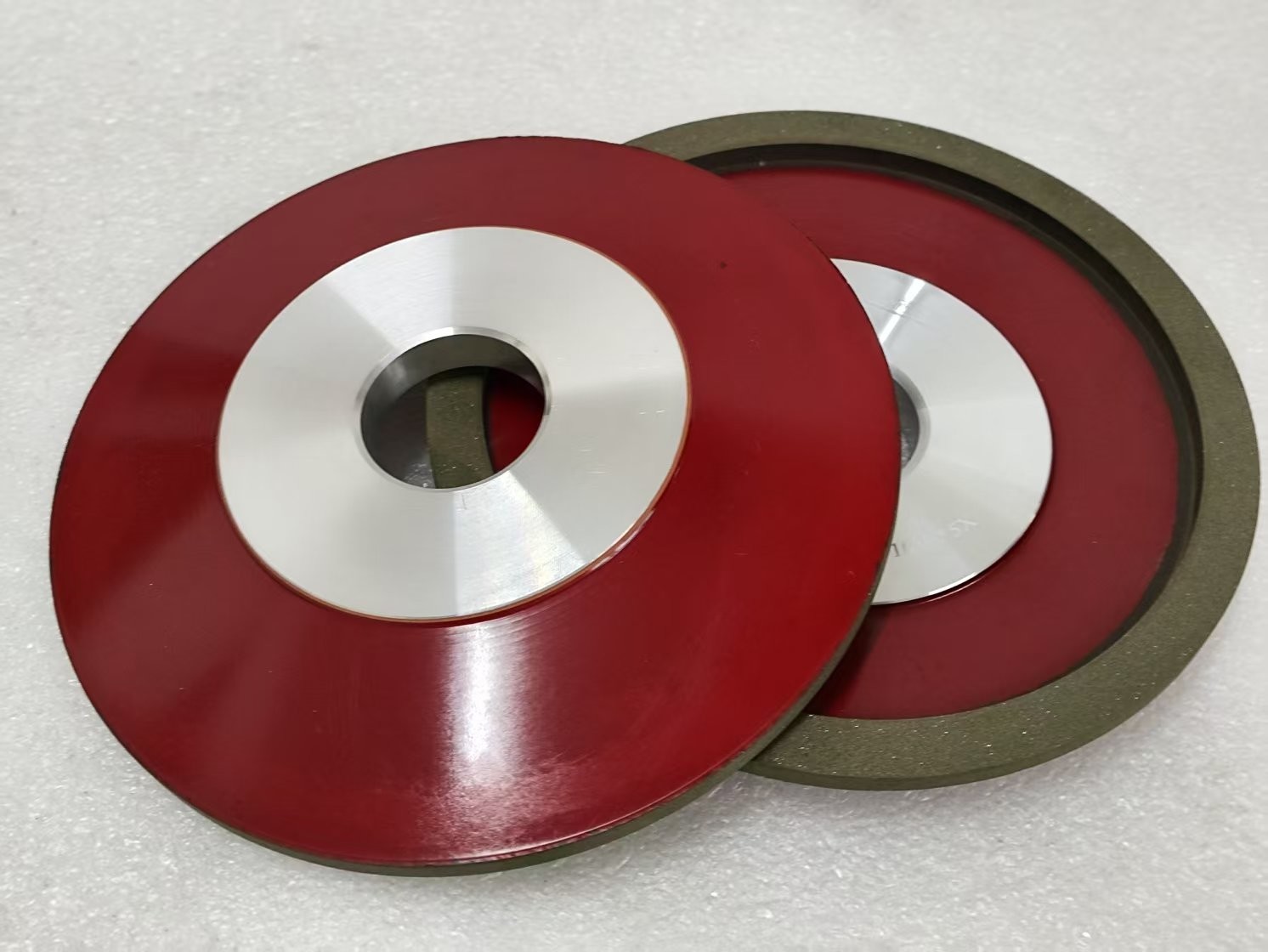

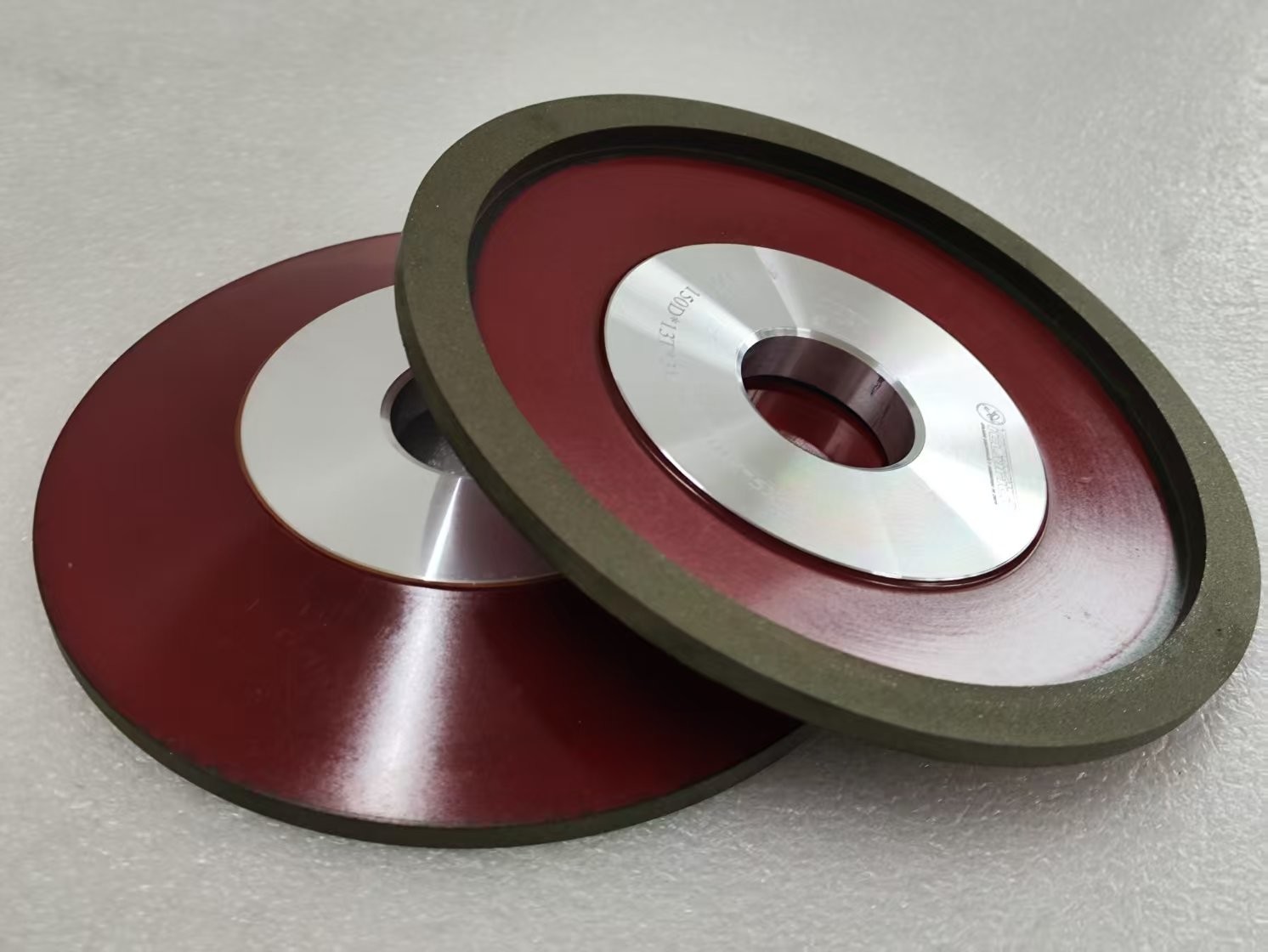

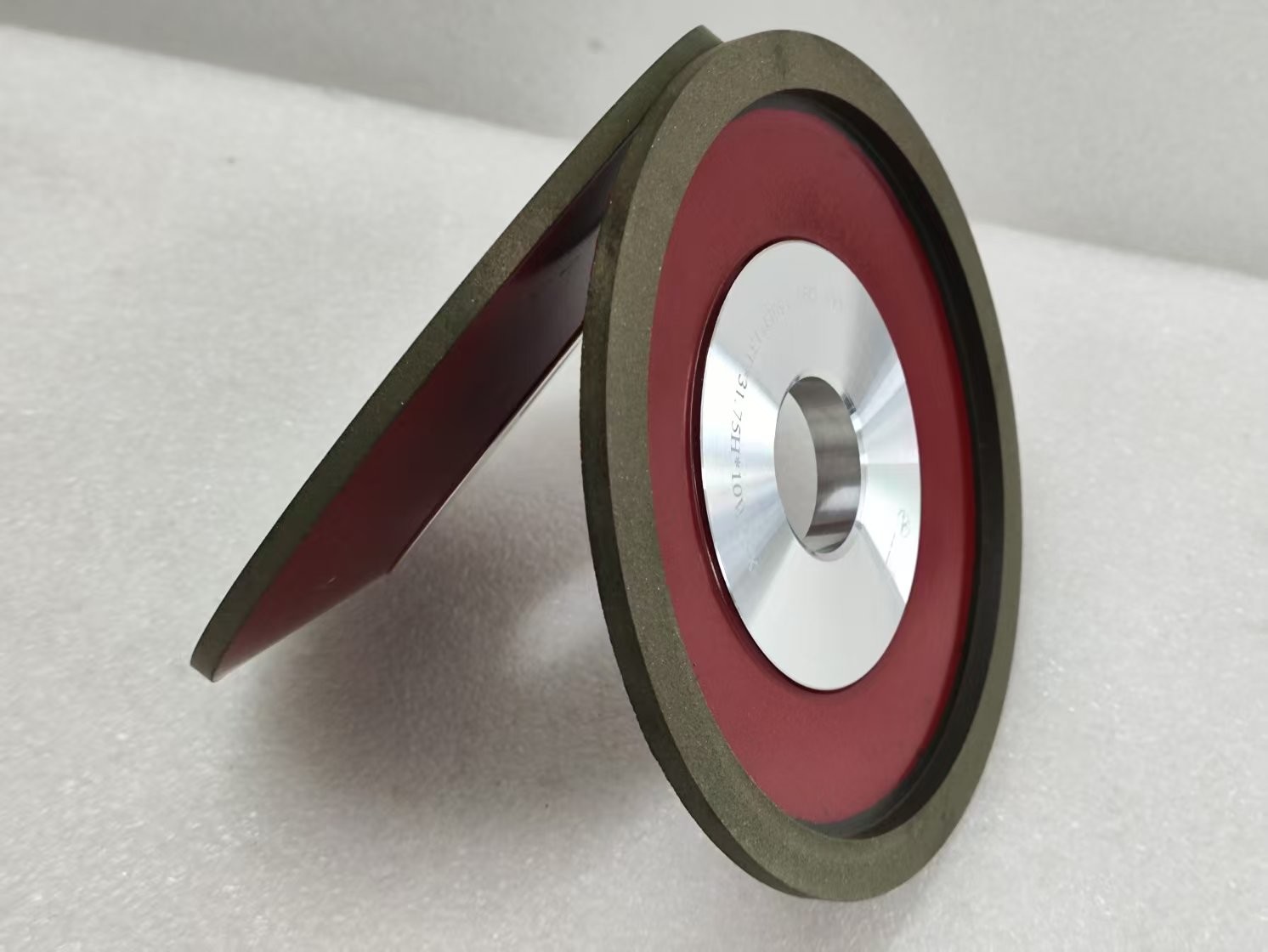

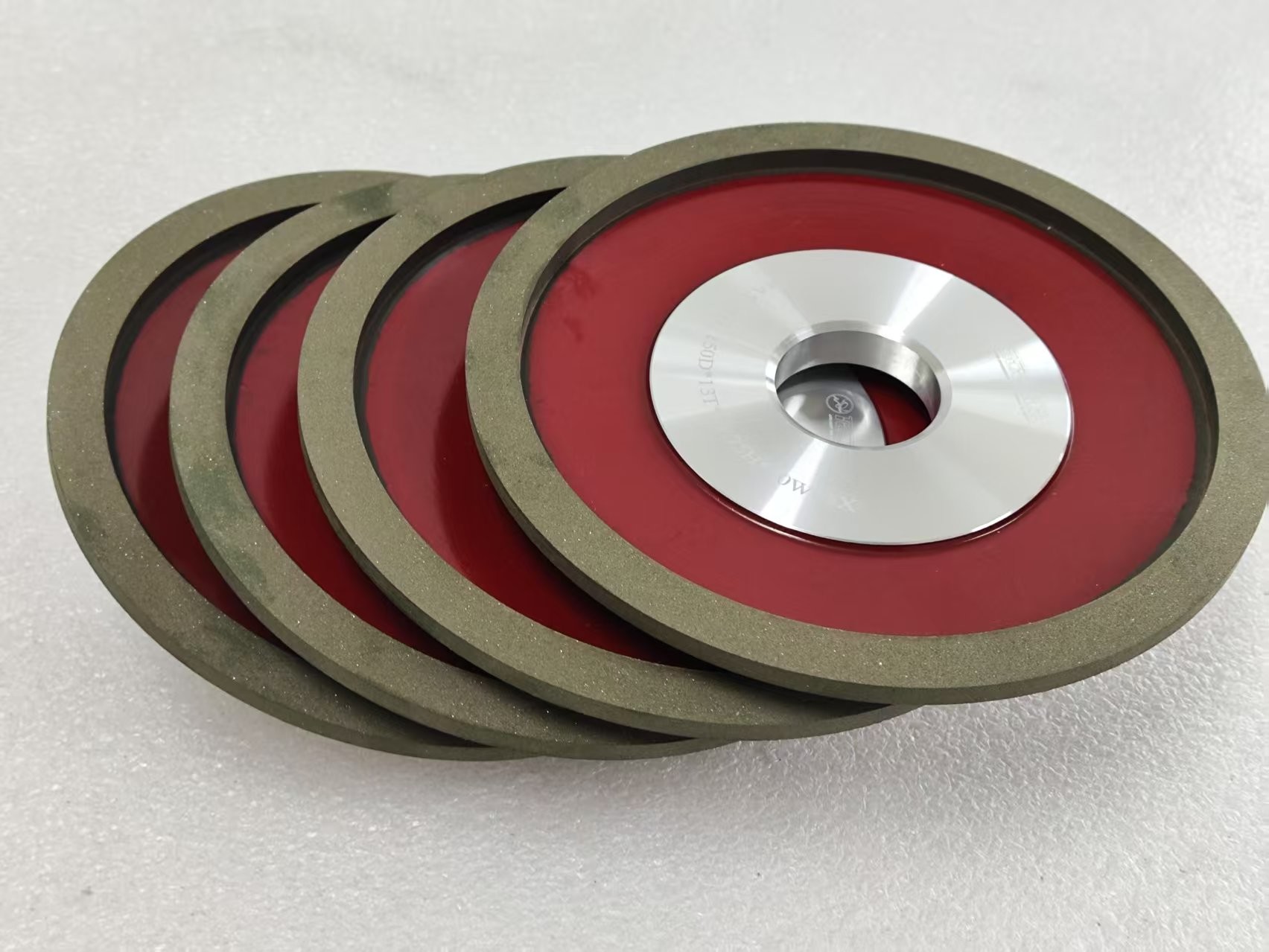

4B1 150*32*10*6 Mm D240 Bakelite Grinding Wheel High Precision
Product Details
| Colour: | Red | Diameter: | 150mm |
|---|---|---|---|
| Thickness: | 13mm | Inner Hole: | 32mm |
| Abrasive Width: | 10mm | Abrasive Depth: | 6mm |
| Abrasive Material: | Diamond | Bond: | Bakelite |
| Grit: | D240 | Shape: | Round |
| HS Code: | 6804211000 | Precision: | High |
| Diamond Class: | First Class | Application: | Carbide Grinding |
| Delivery: | By Express | Package: | One In Paperbox |
| Rmp: | 4500 | ||
| Highlight |
D240 Bakelite Grinding Wheel,4B1 Bakelite Grinding Wheel,High Precision Bakelite Grinding Wheel |
||
Product Description
4B1 150*32*10*6 Mm D240 Bakelite Diamond Grinding Wheel Product Description
Product Name: Bakelite Grinding Wheel
Product Overview:
Bakelite diamond grinding wheels are super-hard abrasive tools made by hot pressing diamond as the abrasive and bakelite as the binder. They are characterized by excellent heat-resistance , good grinding performance, elasticity,good finishing surface, good wear-resistance, not easy produce chips, high grinding efficiency, high machining accuracy, and long service life. Often used in precision grinding or to avoid workpiece burns.
Product specification:
4B1 is a variation of the flat grinding wheel, characterized by a single-sided concave tapered surface.
150mm: grinding wheel outer diameter (D)
13mm: grinding wheel thickness (T)
32mm: inner hole diameter (H)
6mm: abrasive depth (X)
10mm: groove width (W)
Of course, we can also customize other sizes for you.
Applications:
Processing materials: carbide tools, ceramic components, semiconductor materials, etc.
Applicable machine tools: tool grinders, cylindrical grinders, etc.
Payment and Shipping:
We accept various payment terms, including T/T, L/C, WesternUnion, and PayPal. Our standard packaging is carton, but we can also customize the packaging based on your requirements. The Resin Bond Grinding Wheel comes in a sturdy cardboard box with foam padding to ensure safe transport and storage. The product will be shipped via standard ground shipping and will be securely packaged to prevent any damage during transit. Delivery time may vary depending on the destination, but typically takes between 5-10 business days.
Tips for increasing the cutting length:
Select the right grinding wheel specifications (grit size, concentration, bond type).
Optimize grinding parameters (speed, feed, cutting depth).
Use efficient cooling and lubrication systems.
Dress the grinding wheel regularly to keep it sharp.
Company introduction:
We are the professional manufacturer of vitrified bond diamond grinding wheels, equipped with advanced production facilities and testing instruments. Our products are known for their stable and reliable quality, earning the trust of our customers. We are committed to providing high-quality products and services. Welcome to inquire and purchase.
Product Highlights
4B1 150*32*10*6 Mm D240 Bakelite Diamond Grinding Wheel Product Description Product Name: Bakelite Grinding Wheel Product Overview: Bakelite diamond grinding wheels are super-hard abrasive tools made by hot pressing diamond as the abrasive and bakelite as the binder. They are characterized by ...
