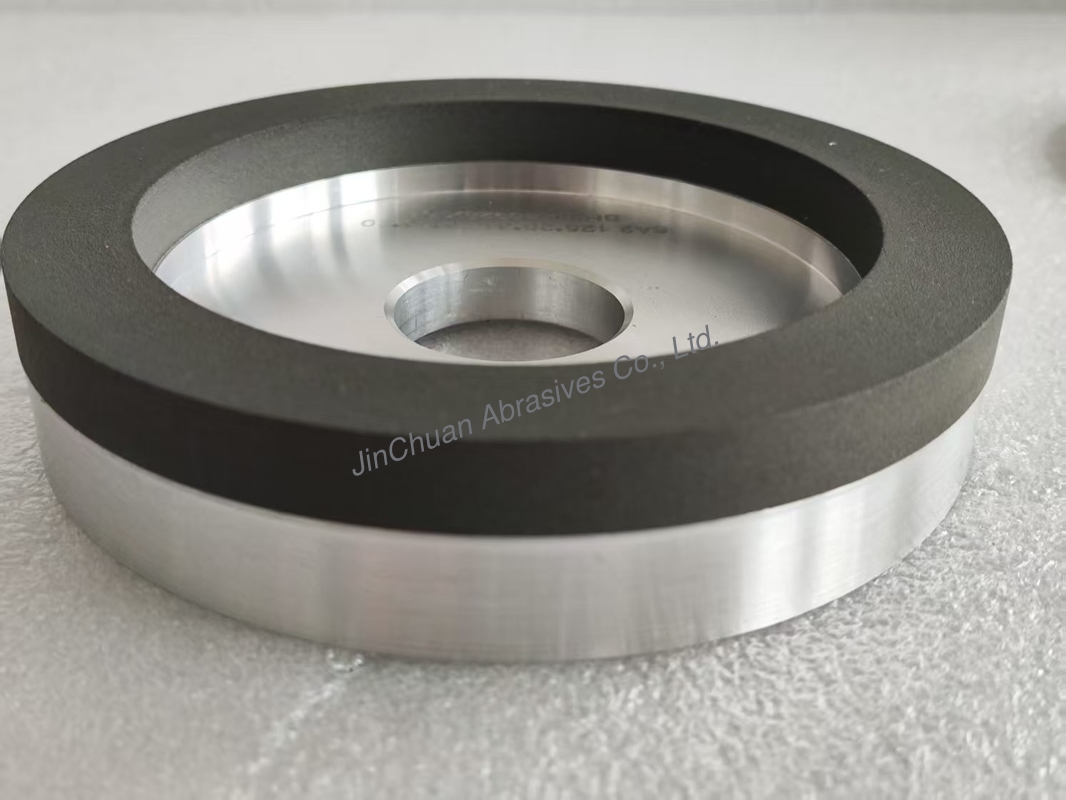

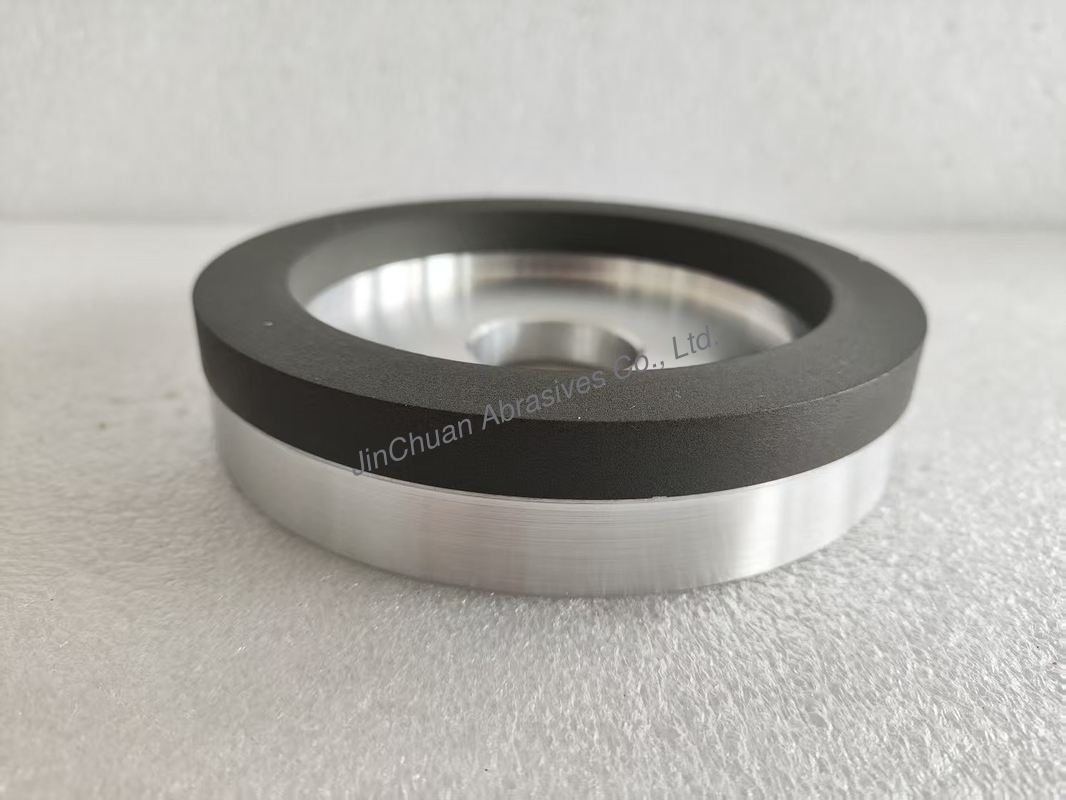

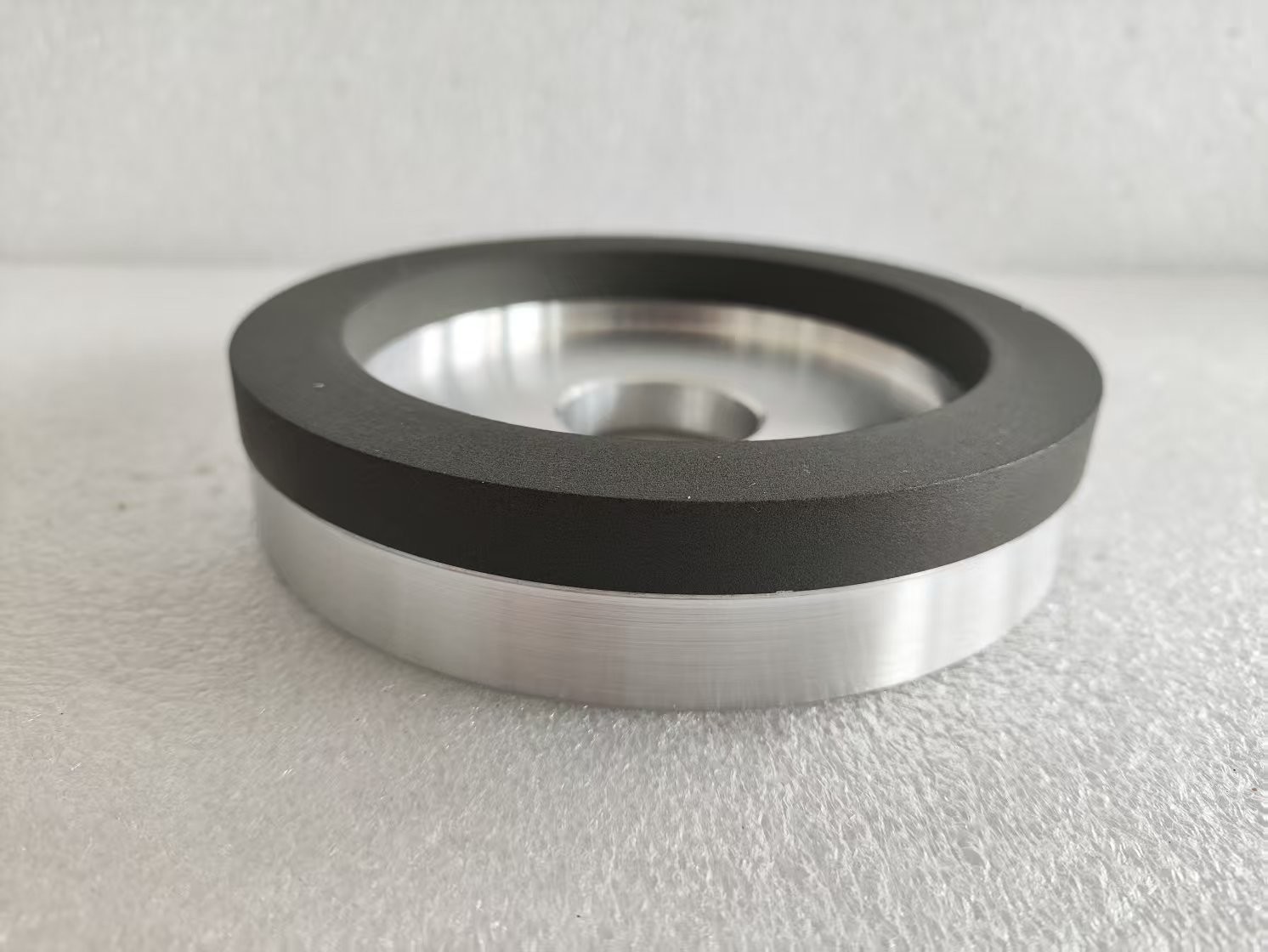

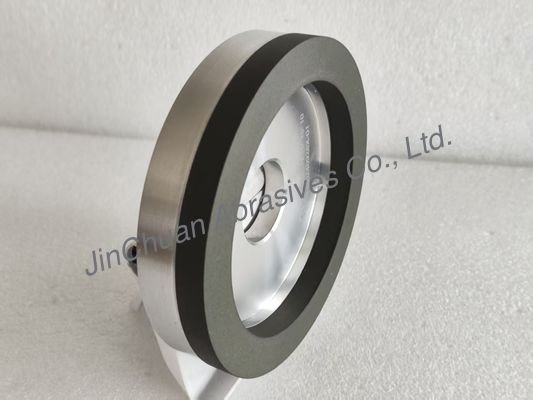

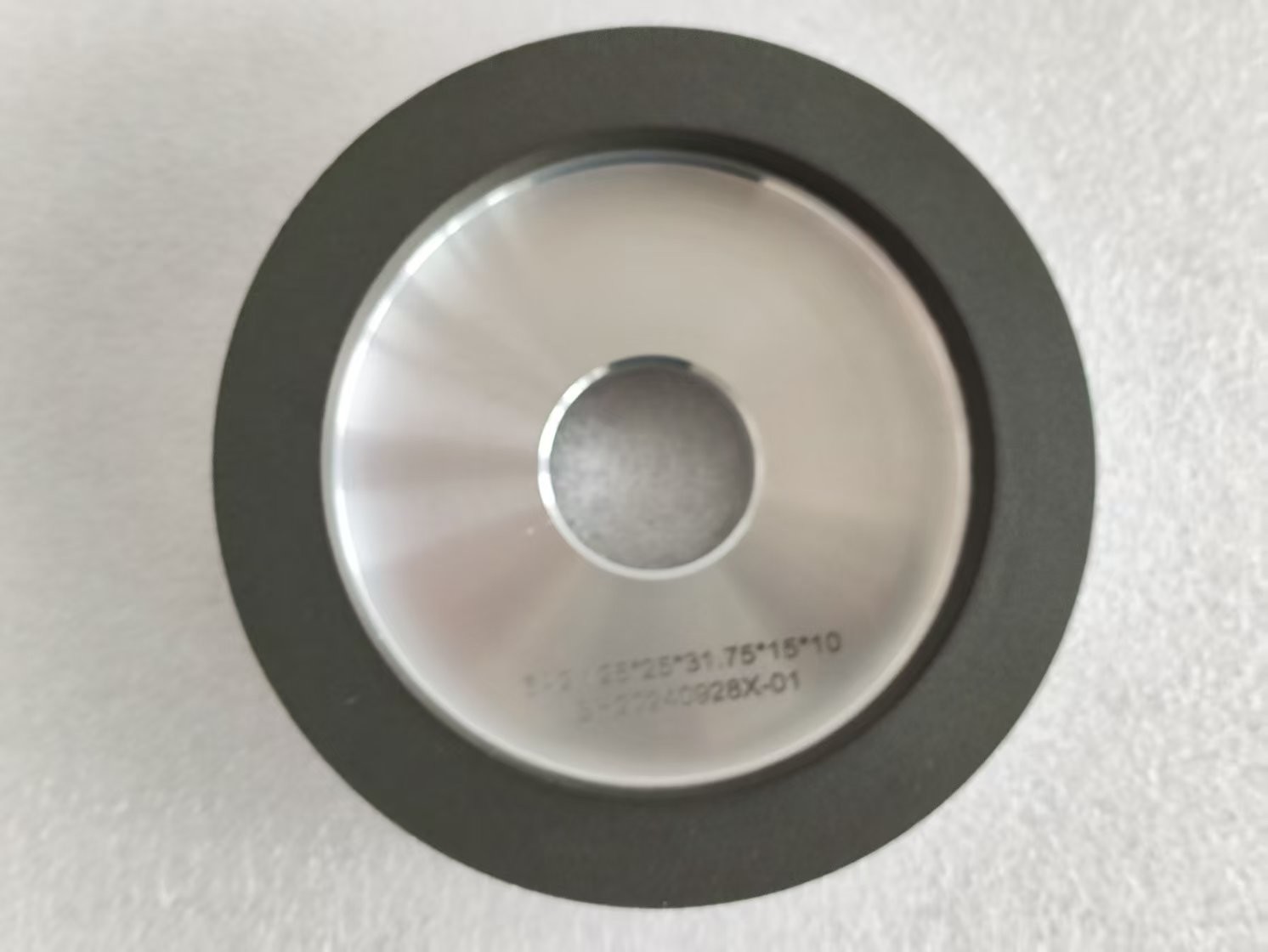

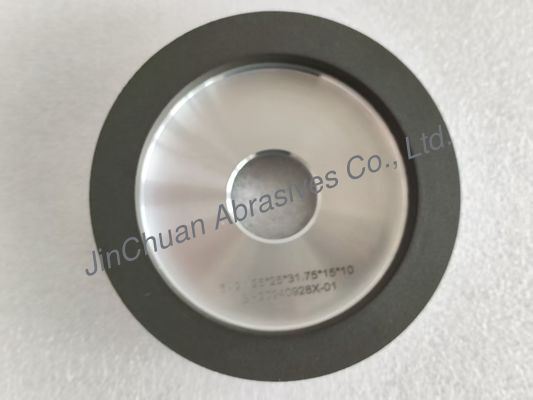

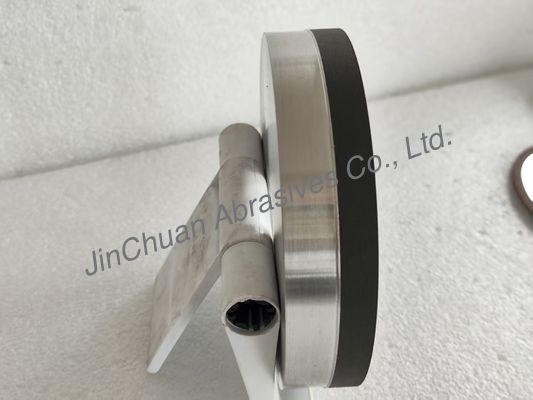

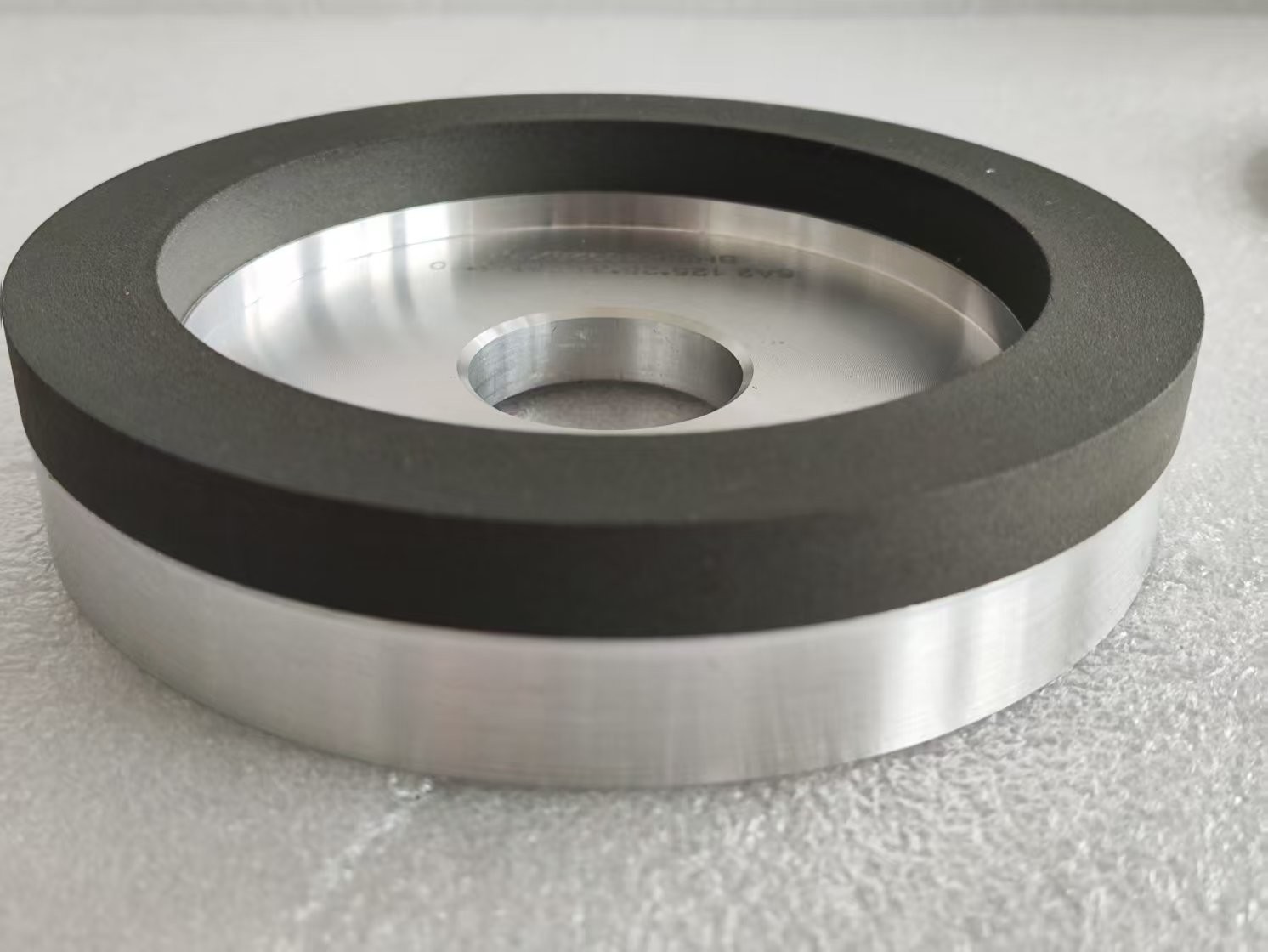

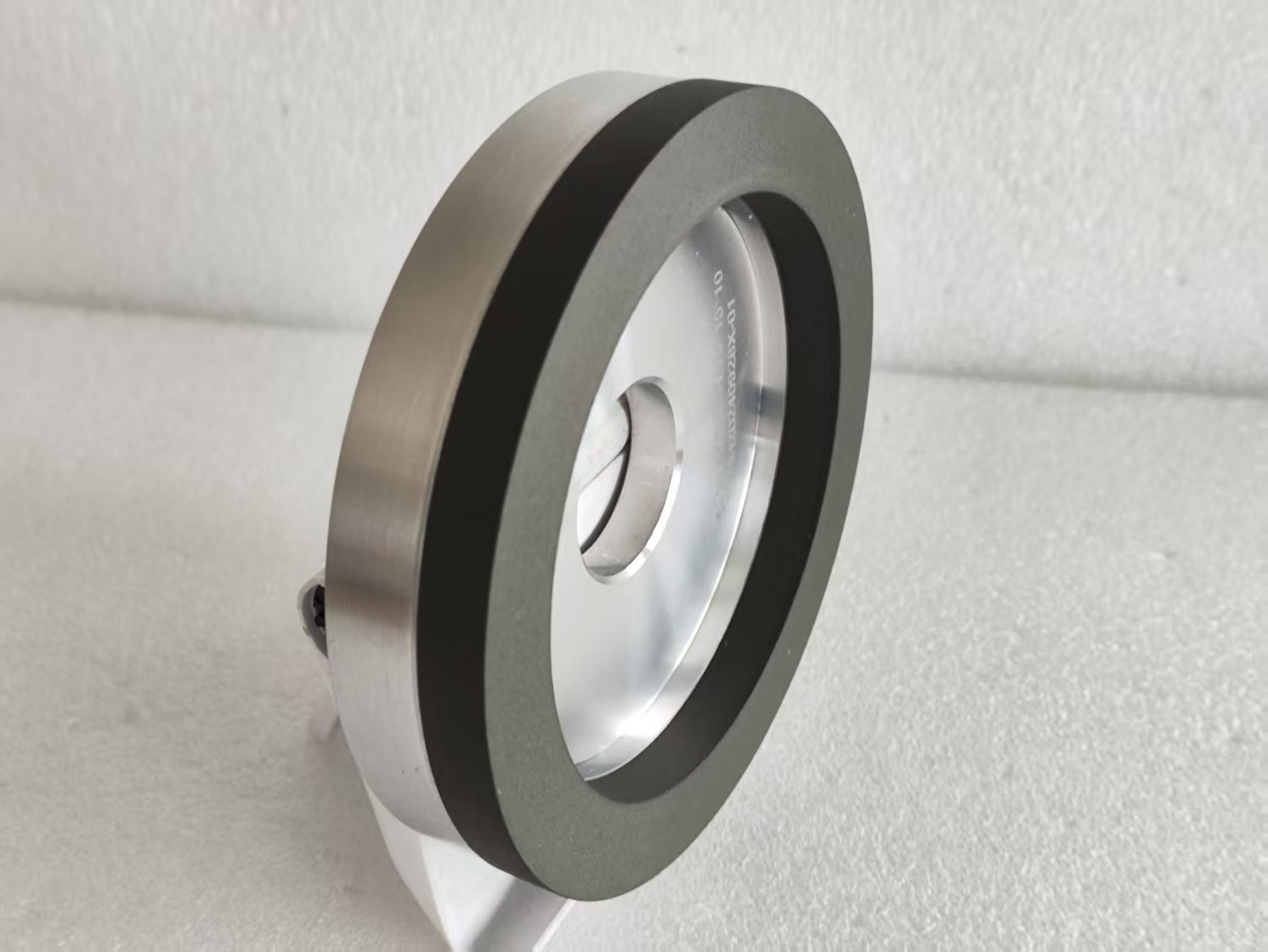

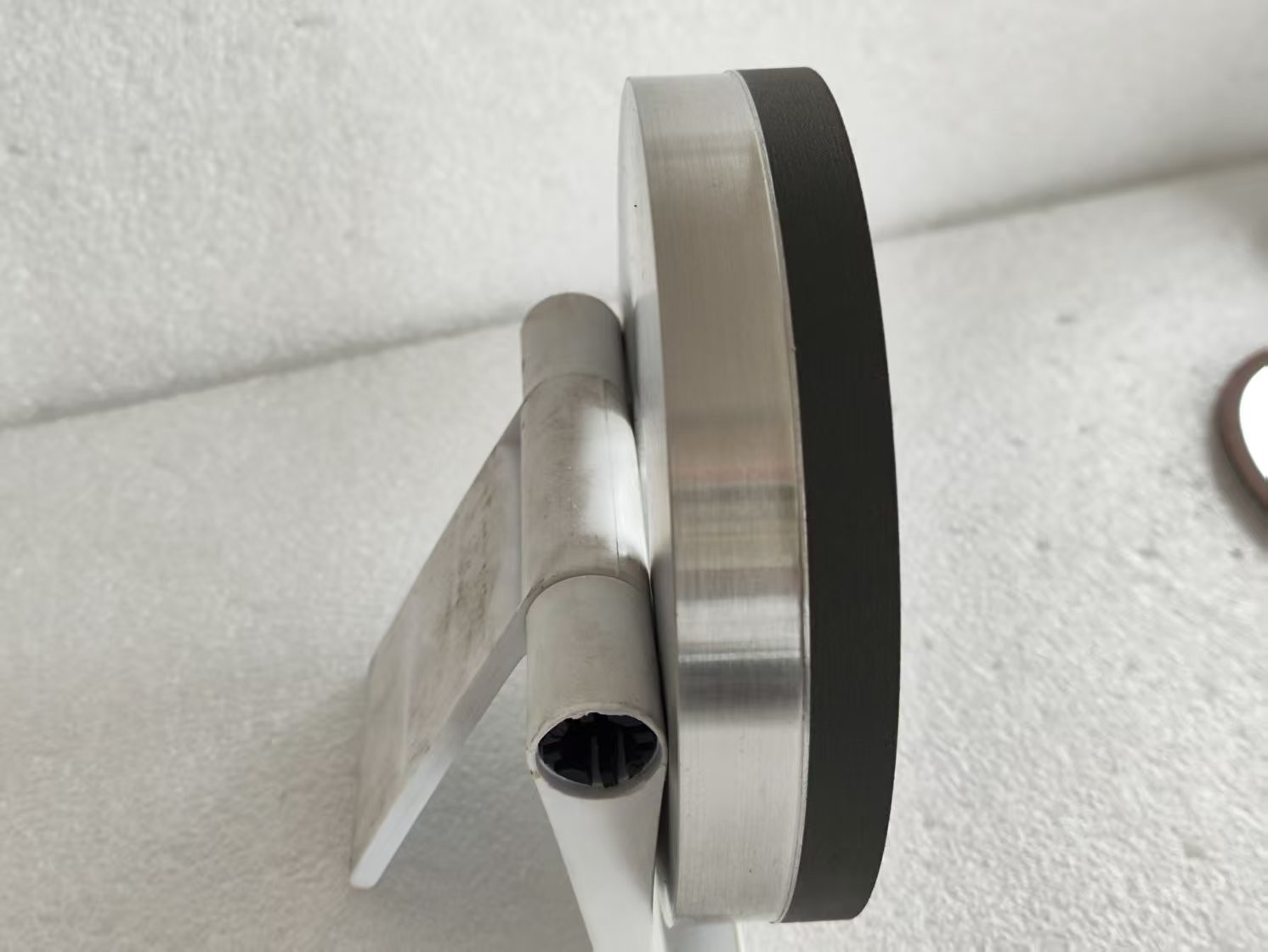

High-Performance Resin Bond Grinding Wheel 6A2 CBN Grinding Wheel 125mm

High-Performance Resin Bond Grinding Wheel 6A2 CBN Grinding Wheel 125mm​

Resin bond diamond grinding wheels can be designed for both wet and dry grinding modes, showing good free cutting qualities.

Grit size incl. Mesh 80/100#(D181), 100/120#(D151), 120/140#(D126), 140/170#(D107), 170/200#(D91), 200/230#(D76), 230/270#(D64), 270/325#(D54), 325/400#(D46)

CBN (Cubic Boron Nitride)** is a super-hard synthetic abrasive, second only to diamond in hardness.
- Ideal for grinding **hard ferrous materials** (e.g., hardened steels, HSS, tool steels, alloys).
- Retains sharpness longer than conventional abrasives (like aluminum oxide) and generates less heat.
- Suitable for high-precision and high-speed grinding.

Advantages Over Conventional Wheels
- Longer lifespan than aluminum oxide wheels.
- Better heat dissipation.
- Maintains profile accuracy for precision grinding.

Applications
- **Tool & Cutter Grinding** (e.g., end mills, drills, inserts).
- **Surface Grinding** of hardened steels.
- **CNC Grinding** for precision components.
- **Aerospace & Automotive** (grinding high-strength alloys).

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you
