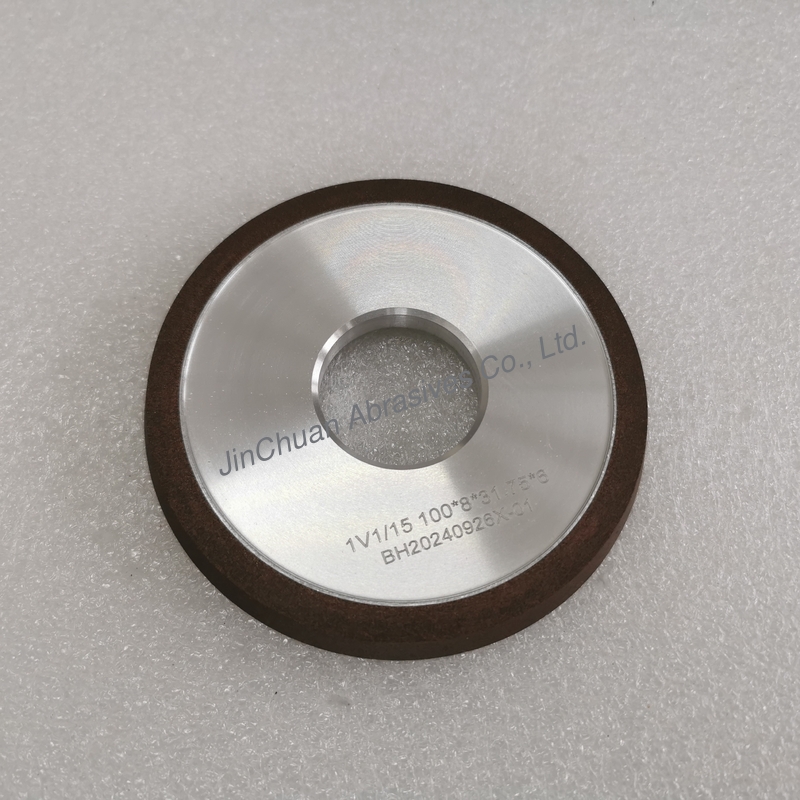

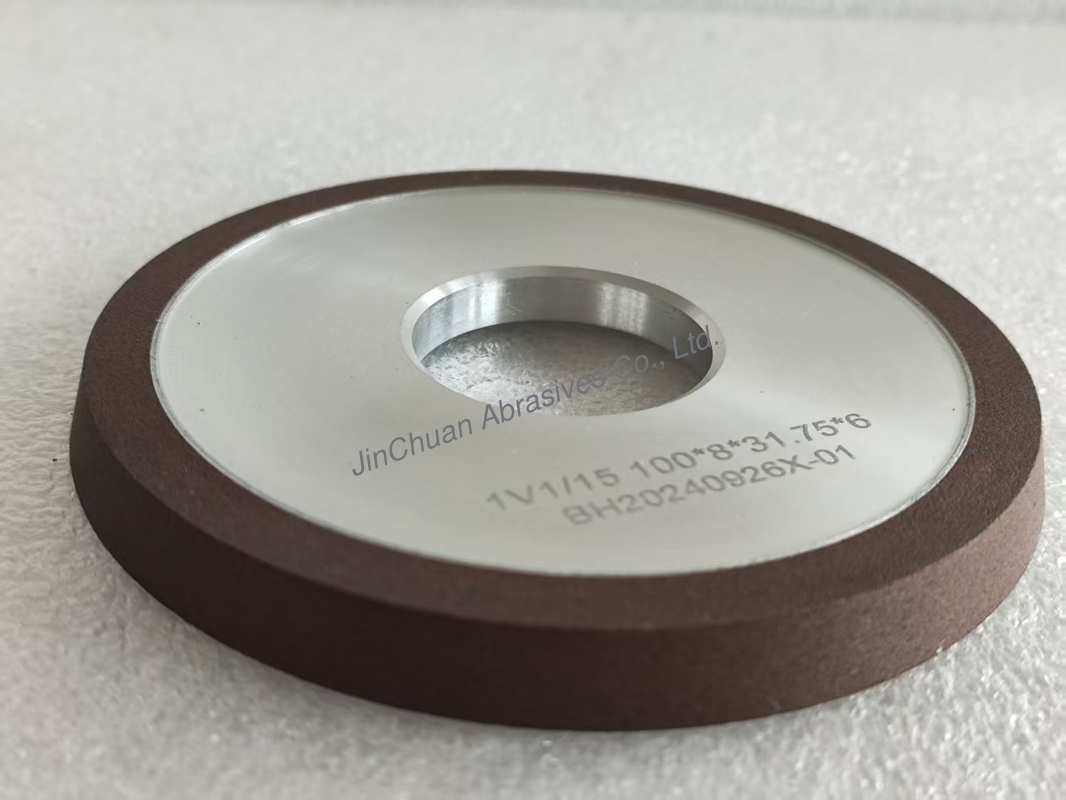

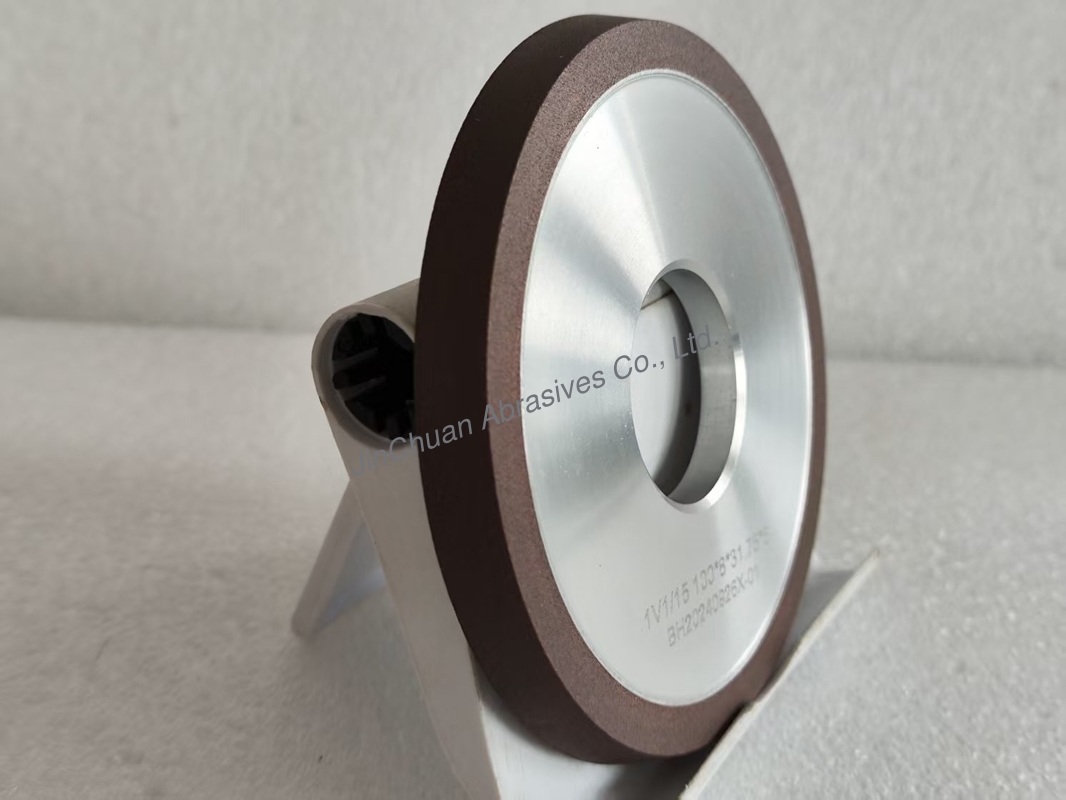

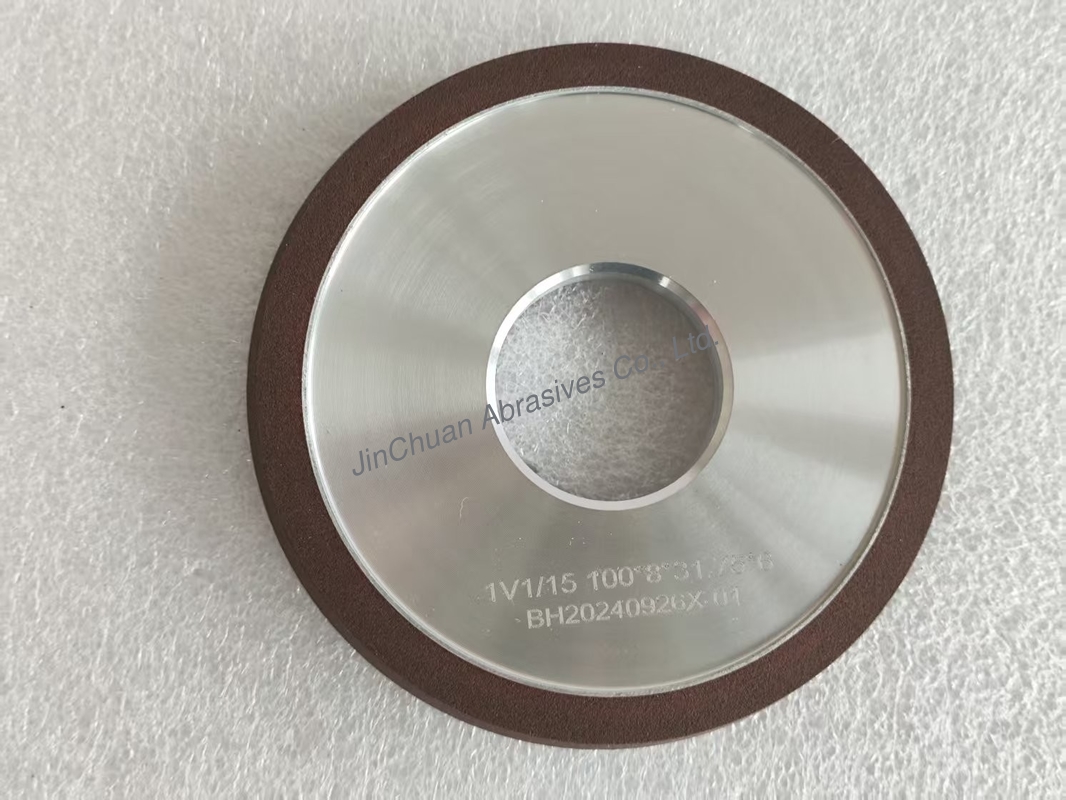

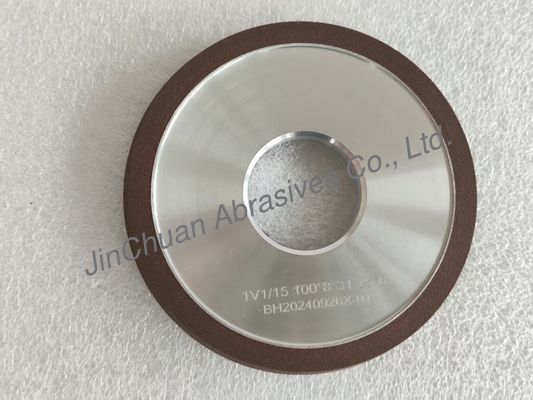

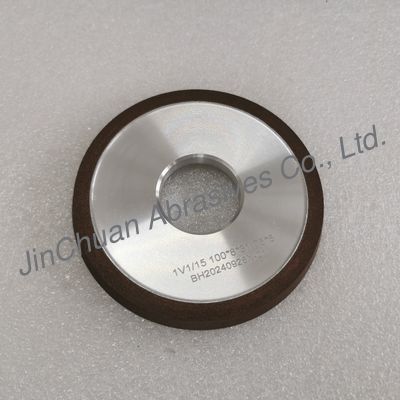

1V1/15° 100*8*31.75*6mm D91 C125 Wet-Grinding Resin Bond Diamond Grinding Wheel
Product Details
| Colour: | Silver,Brown | Diameter: | 100mm |
|---|---|---|---|
| Thickness: | 8mm | Inner Hole: | 31.75mm |
| Abrasive Width: | 6mm | Grit: | D91 |
| Concentration: | 125% | Angle: | 15° |
| Dry/wet Grinding: | Wet | Binder: | Resin |
| Base Material: | Aluminum | Hs Code: | 6804211000 |
| Drawing: | As U Need | ||
| Highlight |
15° Resin Bond Grinding Wheel,1V1 Resin Bond Grinding Wheel,8mm Thickness Resin Bond Grinding Wheel |
||
Product Description
Description
The 1V1 resin bond diamond grinding wheel is a commonly used precision grinding tool, especially suitable for processing hard and brittle materials (such as cemented carbide, ceramics, semiconductors, gemstones, glass, etc.). The following is the key information about this product:
| Size | Diameter | Thickness | Inner hole | Abrasive width | Grit | Concentration | Dry/Wet Grinding | Angle |
| mm | 100 | 8 |
31.75 |
6 | D91 | 125% | Wet | 15° |
Of course, We can customize the size according to your requirements
D: Diameter, T: Thickness, H: Inner hole, V: Angle , X: Abrasive width
Resin Bond Advantages
1,Small grinding force and high surface finish of workpiece.,
2,Low heat resistance, suitable for low temperature grinding.
3,Suitable for processing with high precision and low roughness requirements.
Typical Applications
Industry: tool manufacturing, electronic component processing, optical glass fine grinding.
Machine tools: surface grinders, tool grinders, CNC precision grinders.
Notes
1,Speed: It must match the rated speed of the machine tool. Resin grinding wheels are usually marked with the maximum working linear speed (such as 35-50m/s).
2,Balance requirements: Static balance correction is required before high-precision grinding.
3,Dressing: Silicon carbide dressing rods or diamond dressing pens can be used.
Payment and Shipping
We accept various payment terms, including T/T, L/C, WesternUnion, and PayPal. The Resin Bond Grinding Wheel comes in a sturdy cardboard box with foam padding to ensure safe transport and storage. Delivery time may vary depending on the destination, but typically takes between 5-10 business days.
Company introduction
Zhengzhou Jinchuan abrasive abrasive co., LTD. Is committed to providing the most advanced diamond and cubic boron nitride products.We have experienced engineers and technical experts, professional industrial knowledge and technical services to help customers find the best solutions.
Looking forward to cooperation.
