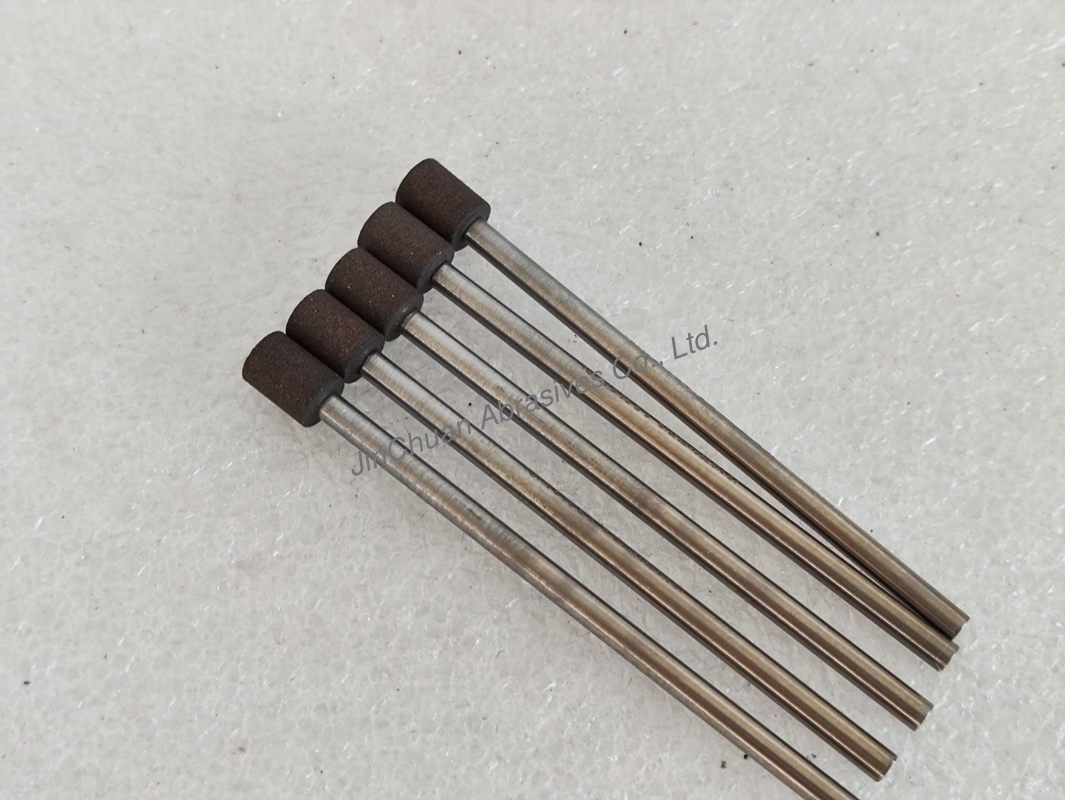

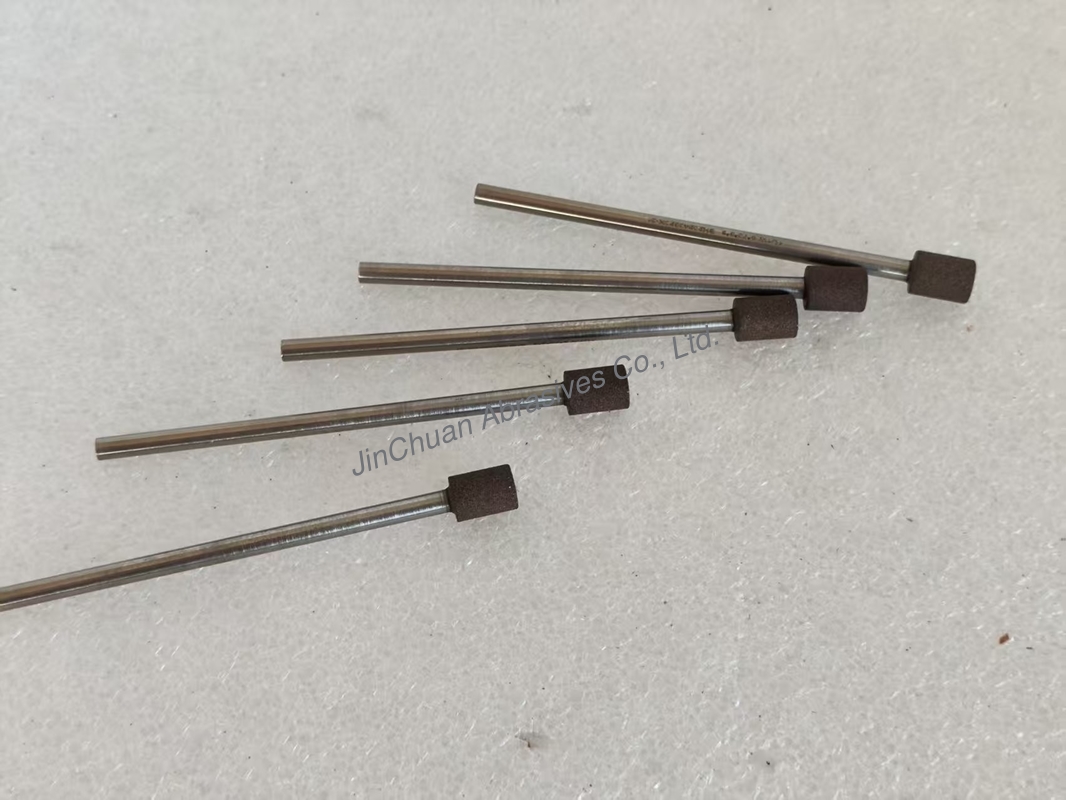

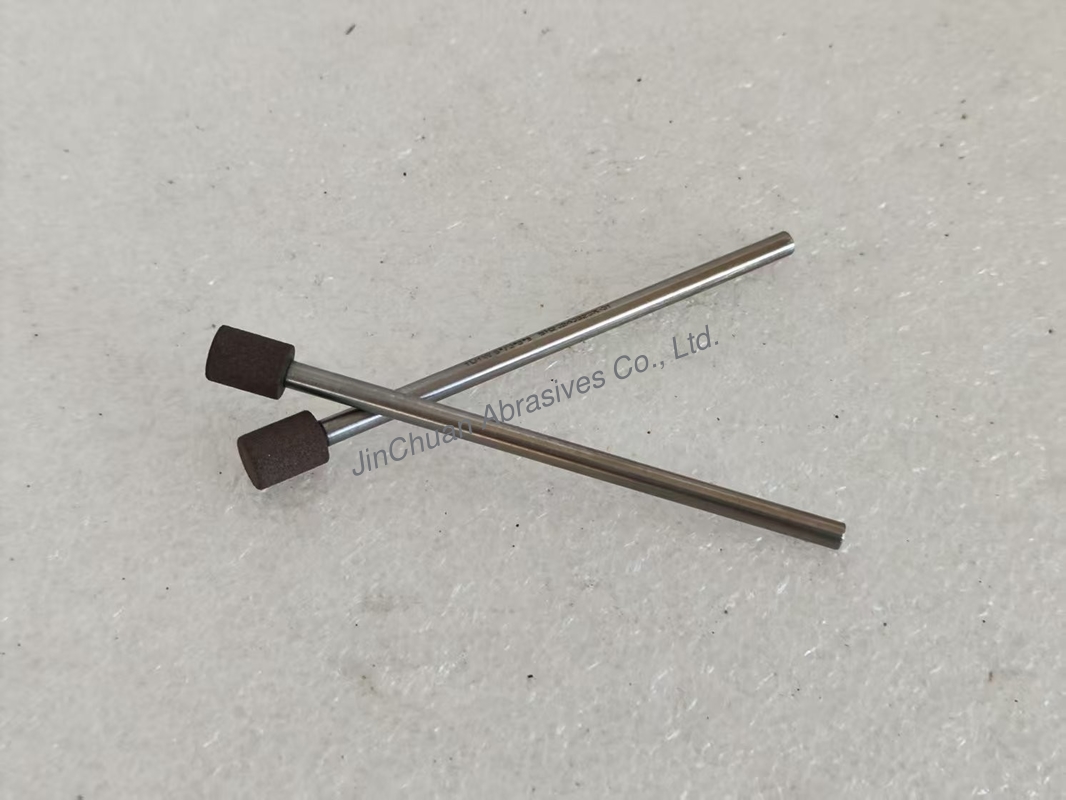

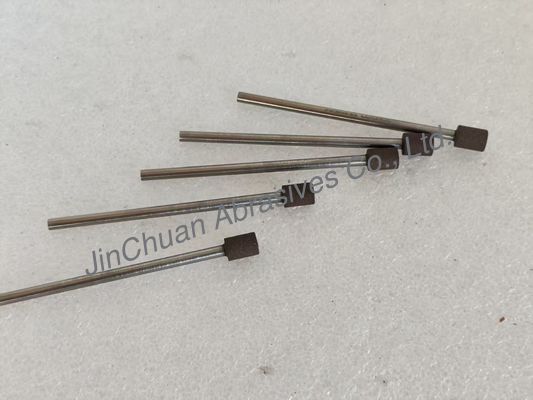

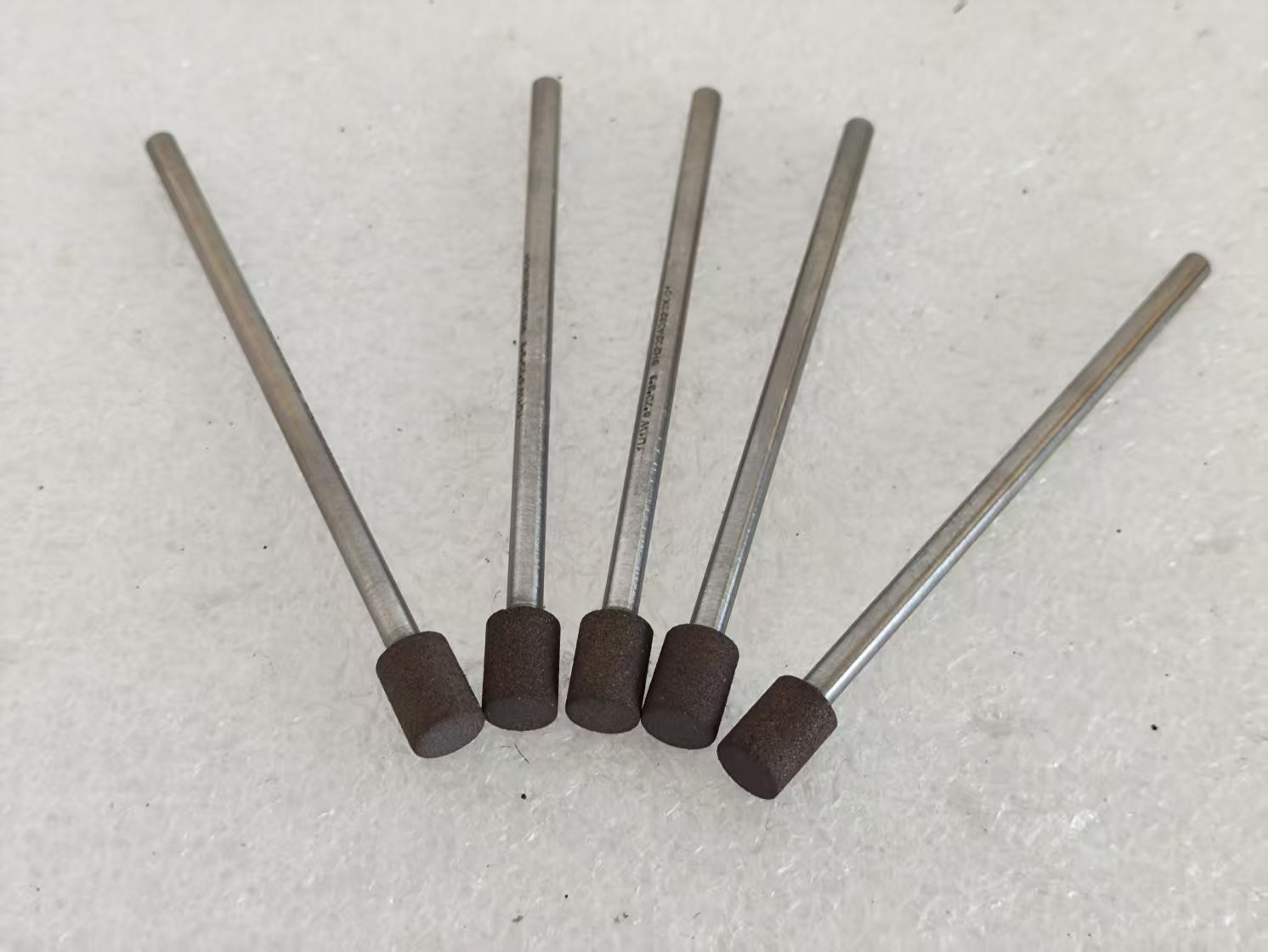

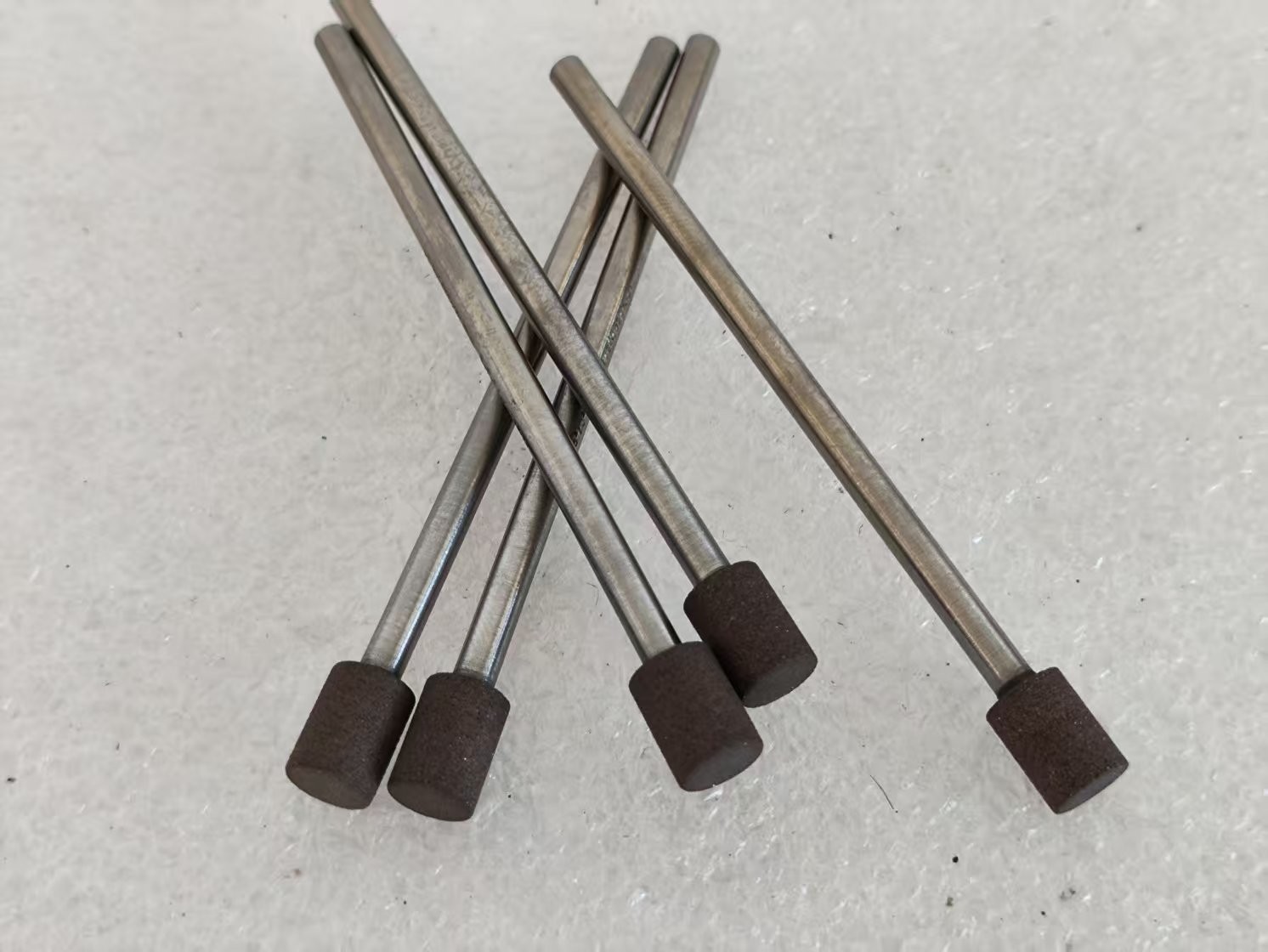

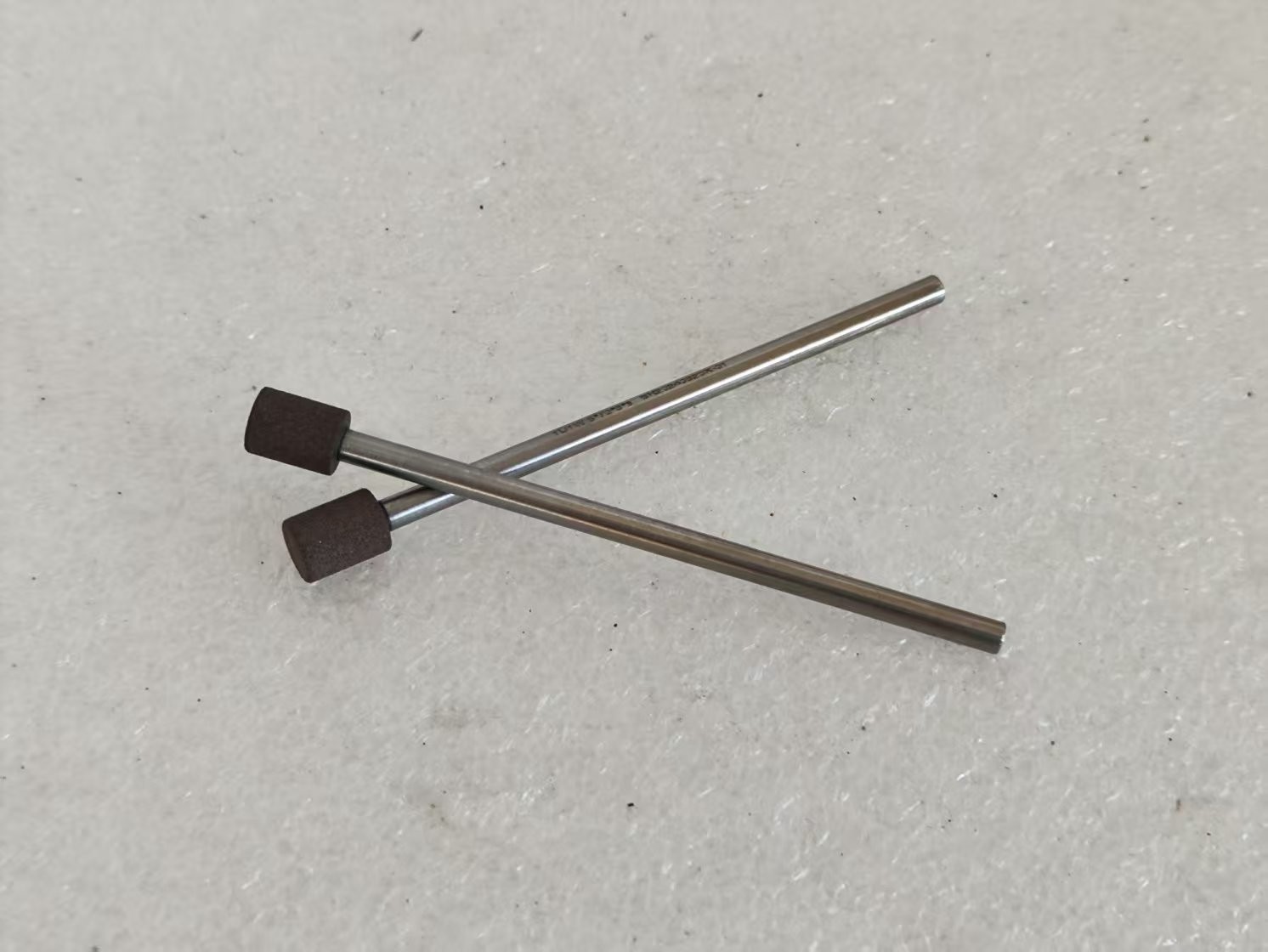

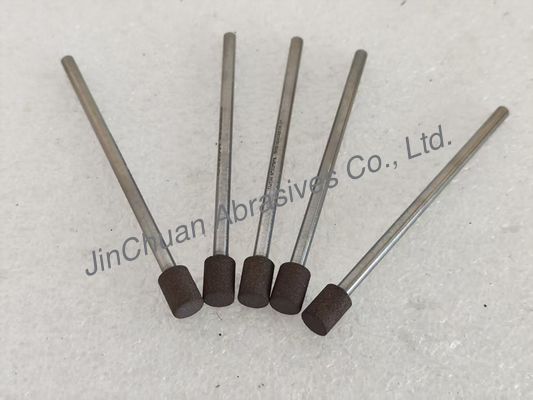

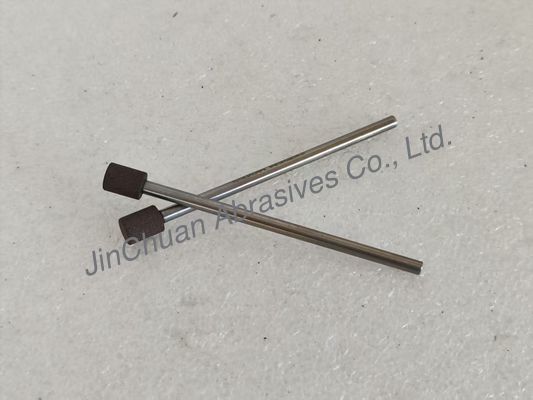

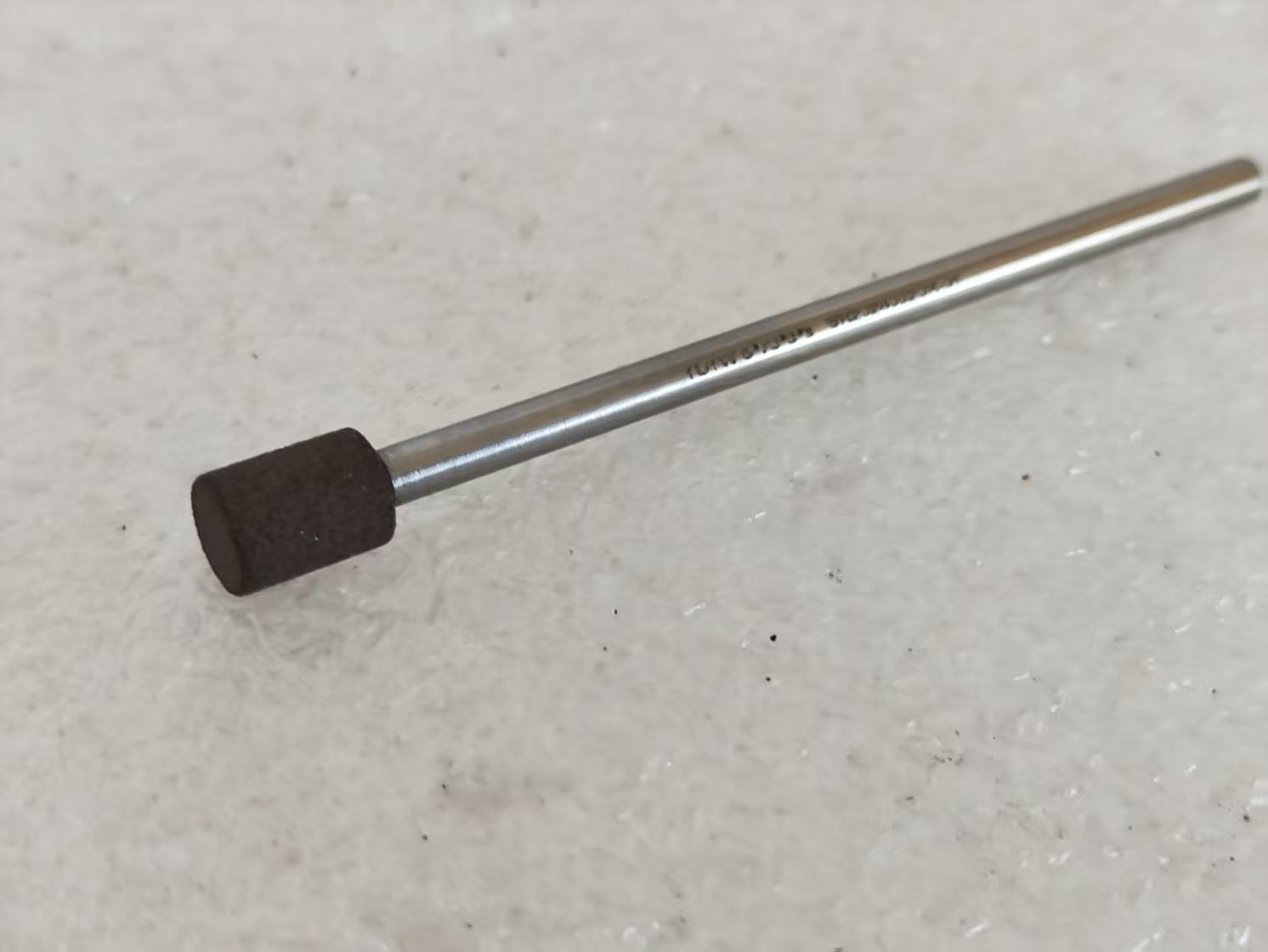

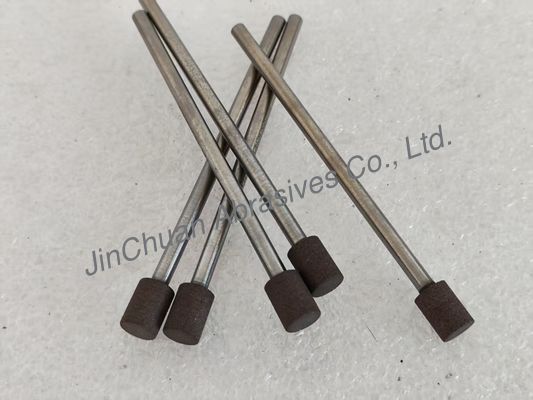

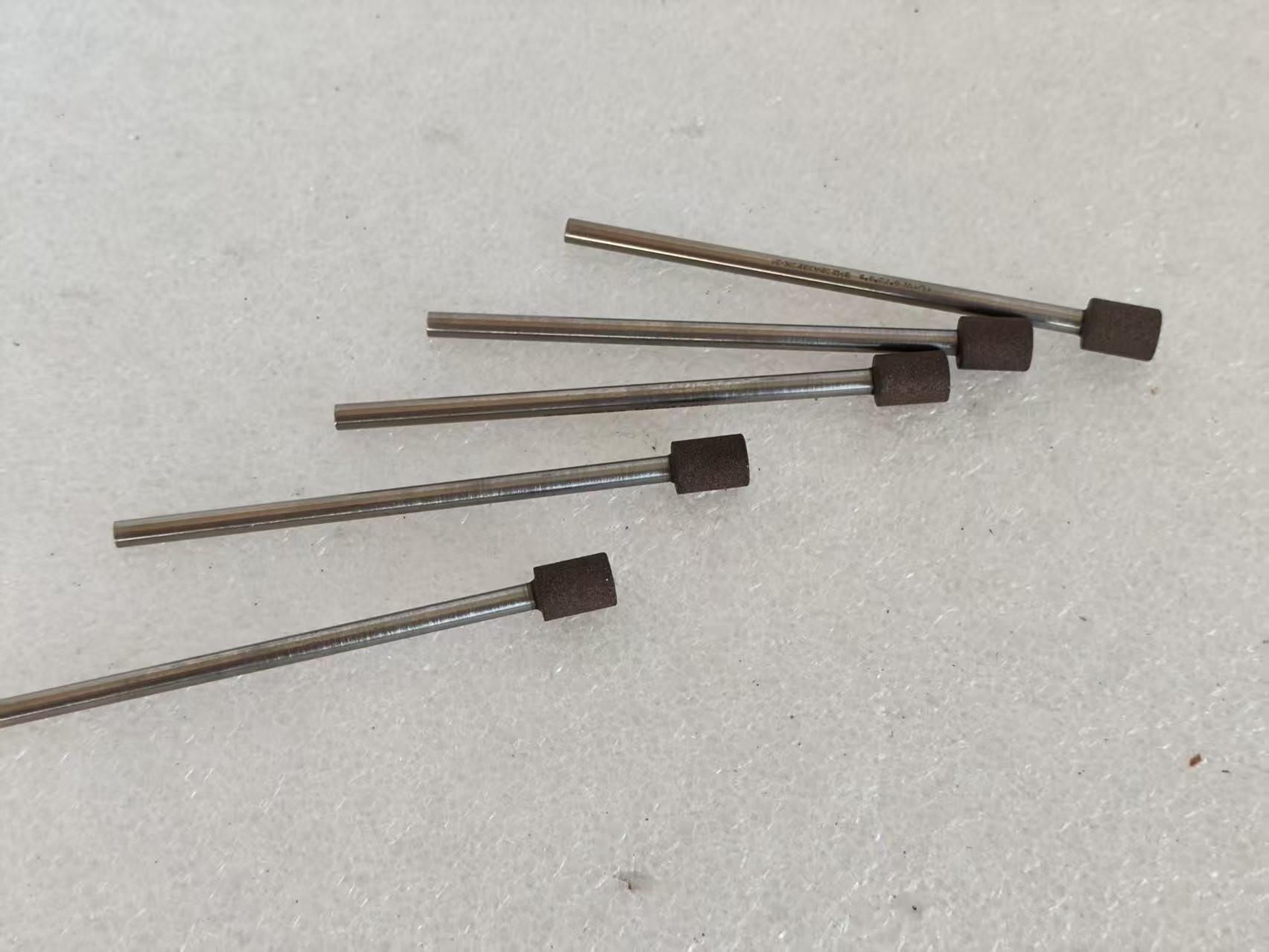

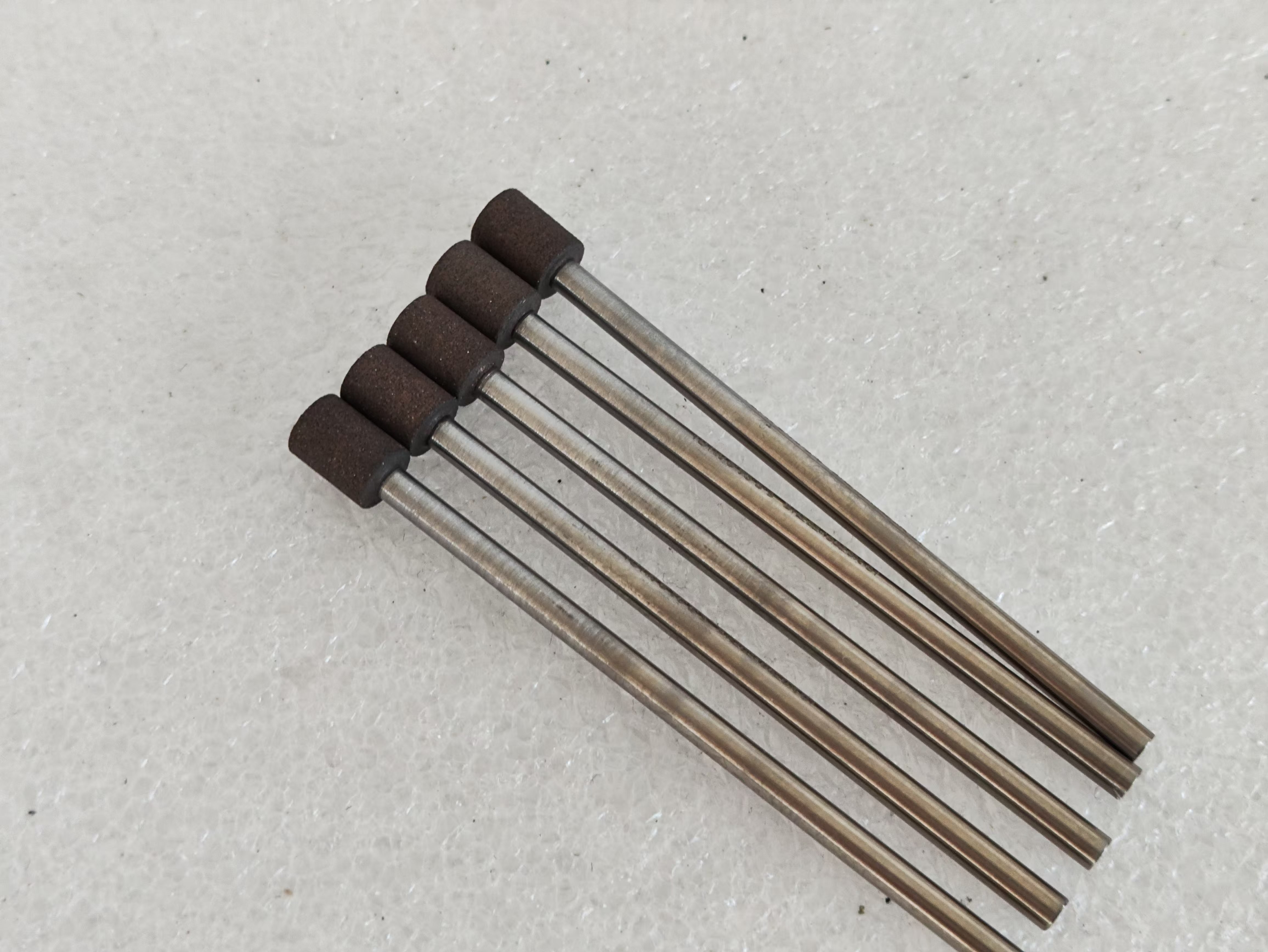

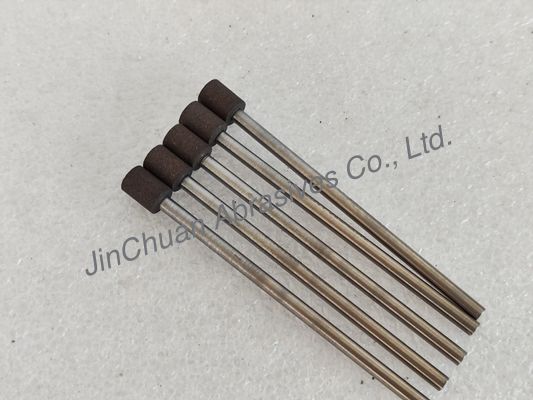

1U1W Grinding Points Cbn Mounted Points For Grinding And Polishing
Product Overview Of Diamond mounted points
Diamond and CBN grinding points are available in many different bonding types. Most is galvanic bonding, in which a coating of abrasives is "applied" to the base material. In addition,we offers grinding points with a metal or resin bonding in which the diamond grits are completely embedded in the bonding. Finally, vacuum brazed bonding , in which the grit is directly welded to the base material – for even better service lives and maximum cutting efficiency.
Suitable materials of the Grinding Pins
1. steel
2. stainless steel
3. ultra hard steel
4. reverted steel
5. aluminum alloy
6. magnesium alloy
7. titanium alloy
8. dental mold/resin grinder
9. glass and stone
Main Data Of Diamond Mounted Point
| Name |
CBN Mounted Point |
|
| Bond |
Resin bond , Vitrified bond , Metal bond &Electroplated |
Material |
Aluminium, Steel, etc |
| Abrasive |
Diamond and CBN |
Packing |
purple box, 1pcs /box |
| Size |
D:25mm-500mm T: 5mm-40mm H:10mm-127mm |
OEM/ODM |
Available |
| Type code |
1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. |
| Usage |
Mainly used for grinding , sharping and polishing . Widely used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc |
| Sample Cost |
Depend on the size and quantity |
Competitive Advantages
1.We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
FAQ:
1.What material does your product use ?
Our product abrasives are diamond or CBN , which are electroplated, resin, vitrified, or metal bonded.
2.Do you offer samples ?
Yes, In order to start the new and happy cooperation , we can provide our customers sample for testing at the first order , we believe that you will be satisified with our product quality.
3. Can we go to visit your factory ?
Of course yes , welcome to visit our factory , you can see our production capacity and technoly. Remeber to contact our sales first before your visit.
4.How can you guarantee the quality ?
We examine the quality 3 times before strat the delivery , first : pre-production , second : post-production , third : before delivery . So do not worry about this.
NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
