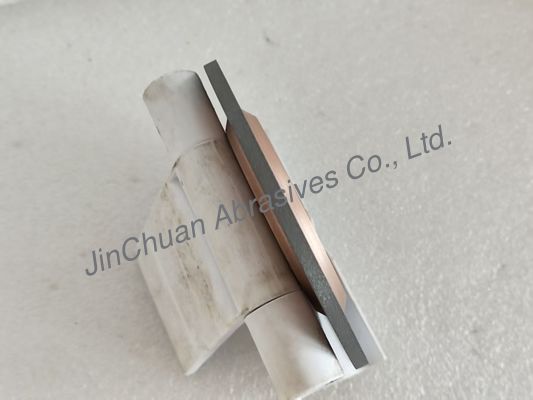

14A1 Hybrid Wheel Grinding Disc Hybrid Bond Abrasive Grinding Wheel

14A1 Hybrid Wheel Grinding Disc Hybrid Bond Abrasive Grinding Wheel

  • Highlight

    Hybrid Bond Abrasive Grinding Wheel

    ,

    14A1 Abrasive Grinding Wheel

    ,

    14A1 Hybrid Wheel Grinding Disc

  • Package
    Carton Box
  • Wheel Size

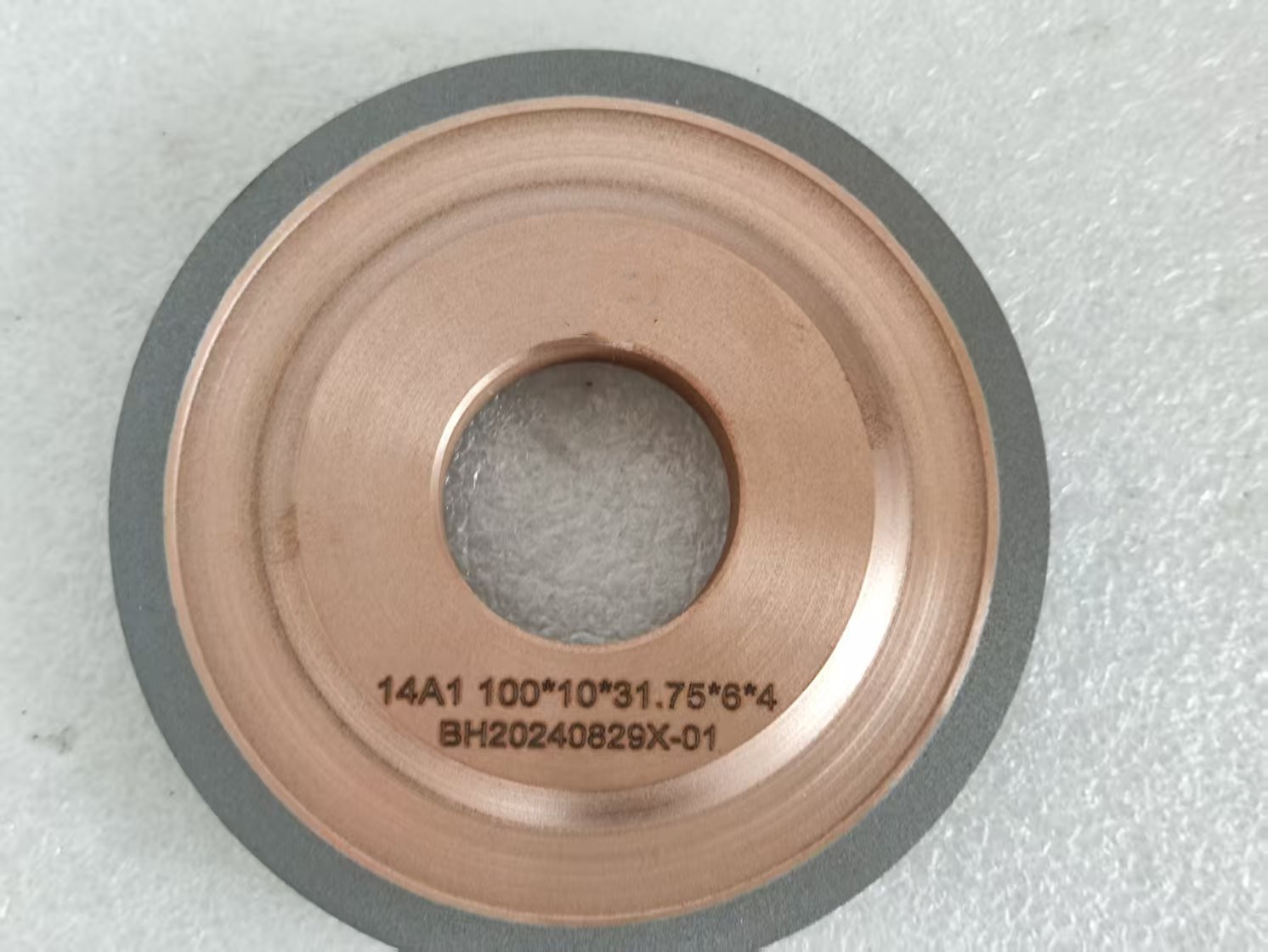

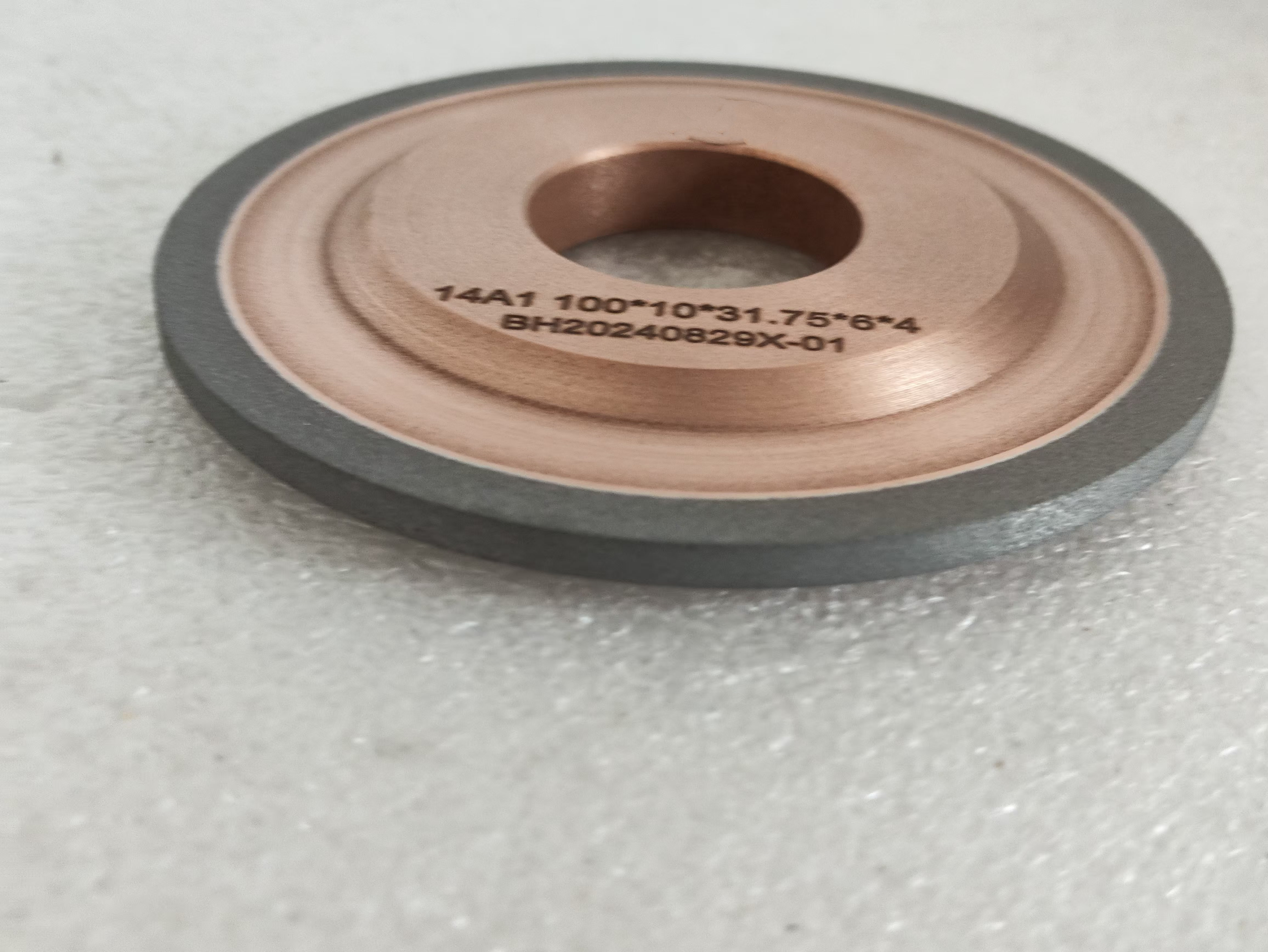

    100*10*31.75*6*4mm
  • Concentration
    C100
  • Colour
    Gray
  • Abrasives
    Diamond
  • Delivery
    By Express
  • Mesh
    D64
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO
  • Model Number
    14A1
  • Minimum Order Quantity
    5
  • Price
    Negotiable
  • Packaging Details
    Wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T
  • Supply Ability
    1000/month

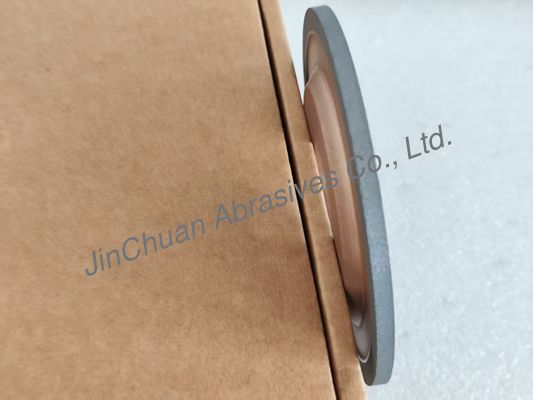

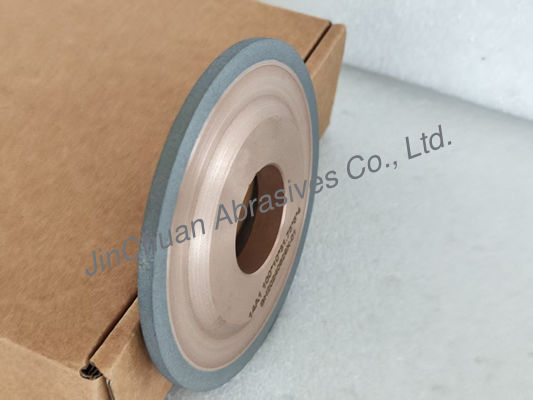

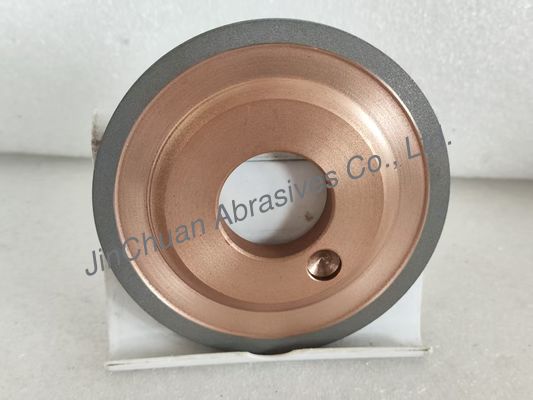

14A1 Hybrid Wheel Grinding Disc Hybrid Bond Abrasive Grinding Wheel

14A1 hybrid wheel grinding disc hybrid bond abrasive grinding wheel





Hybrid bond grinding wheels are mainly used in superhard alloy tools, bearings, molds; precision ceramics; polycrystalline diamonds and boron nitride; stone; magnetic materials; semiconductors; jewelry; aviation; automotive; printing paper products and other industries.

Most of hybrid grinding wheels are suitable for carbide (tungsten steel) milling cutters, drills and other tools to efficiently grind the flutes.





Size Diameter Thickness Inner hole Grit Size
  100mm 10mm 31.75mm

D64  C100





Advantages

1. High stability. The company is engaged in the production of diamond grinding wheel for a long time, and the technology is stable and reliable.

2. Good cutting force. Use specially formulated metal bond to ensure good cutting force and high efficiency.

3. Good shape retention. Special formula ensures that the sharp corners are not easily worn.

4. Self-sharpness is good. In the case of ensuring the cutting force, the good self-sharpness can be kept stable cutting force.

5. Different formulas. Different power grinders have a matching formula to meet different effects.

Applications

Hybrid Diamond & CBN Grinding wheels can be utilized in numerous grinding applications. These include but are not limited to:

Flute grinding
Gashing
Cutoff
Endwork
Outside Diameter grinding
Pinch / Peel grinding
Insert grinding

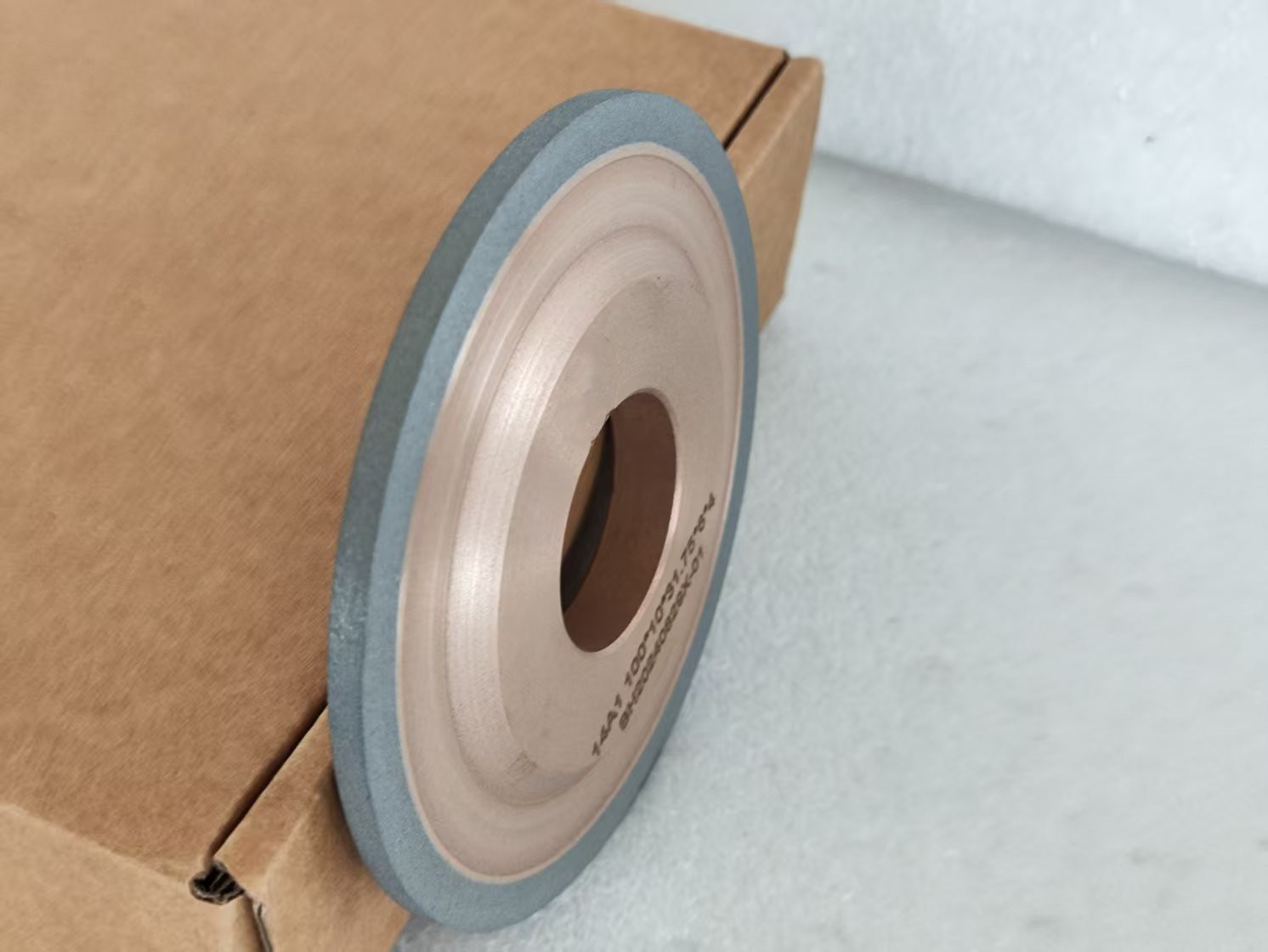

14A1 Hybrid Wheel Grinding Disc Hybrid Bond Abrasive Grinding Wheel 0



If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you



NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
