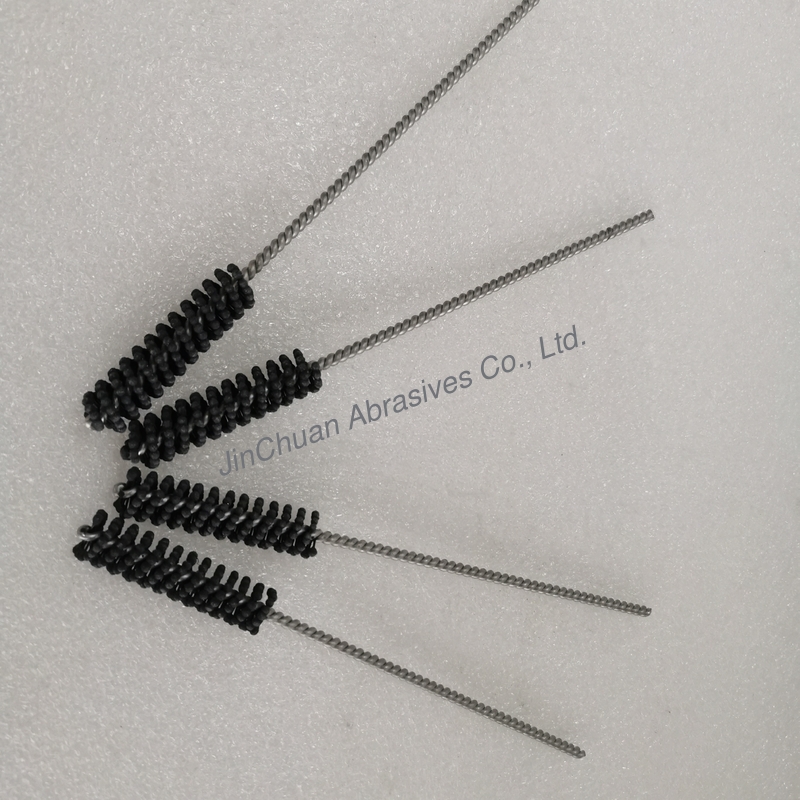

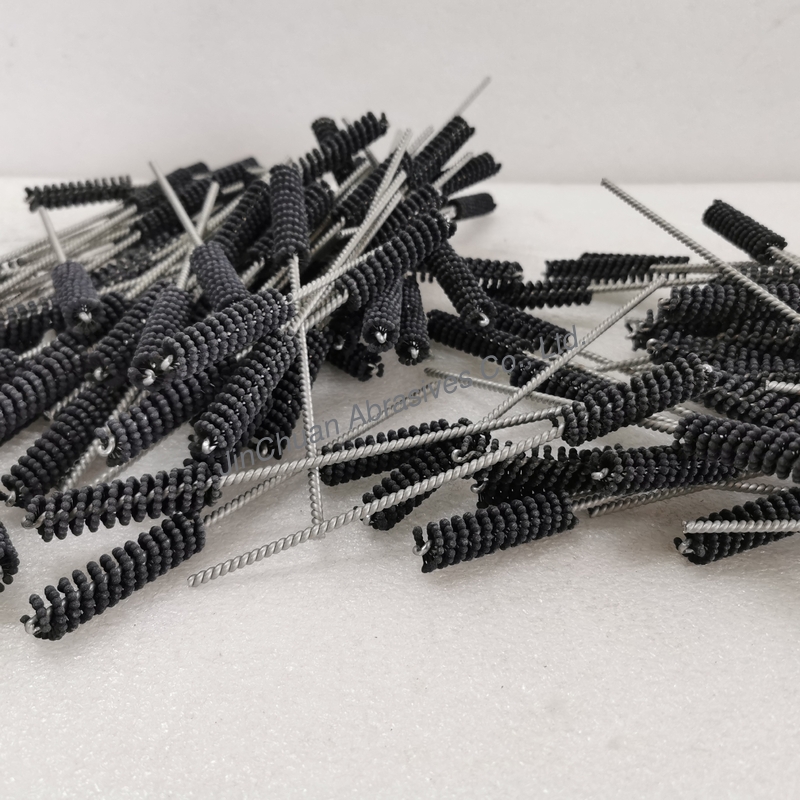

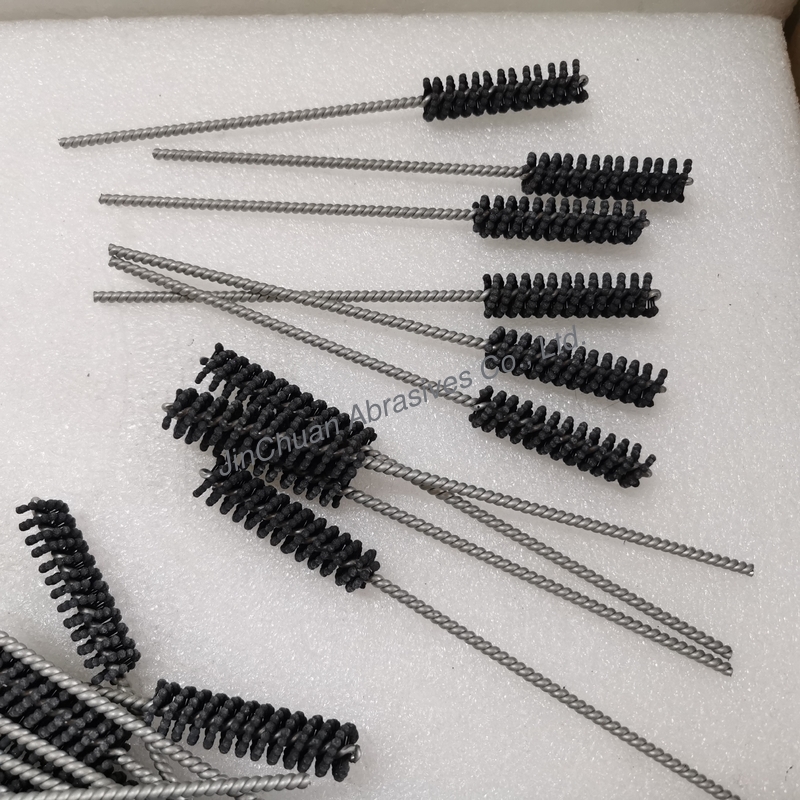

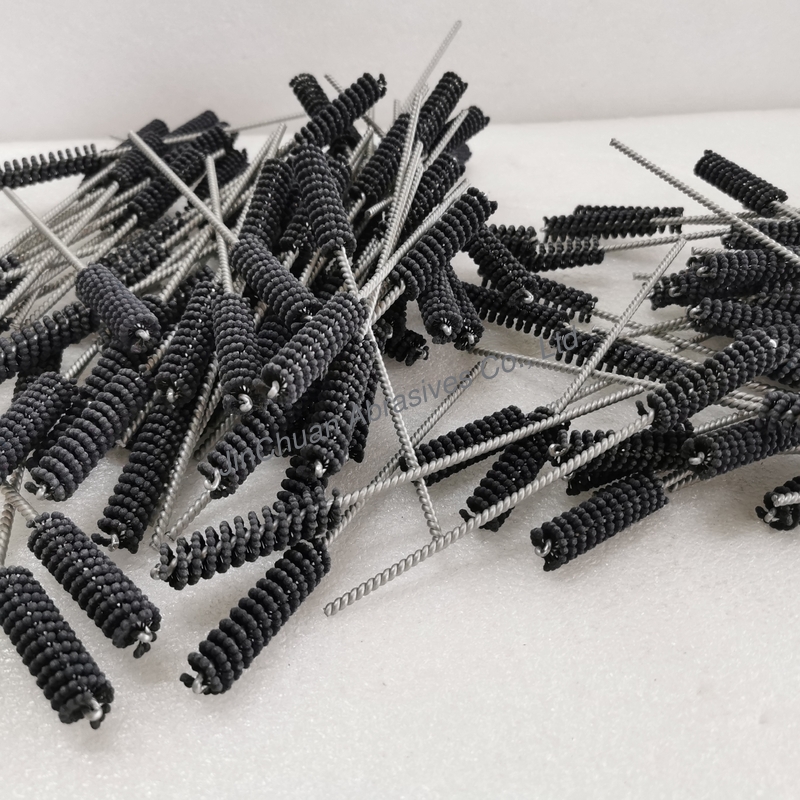

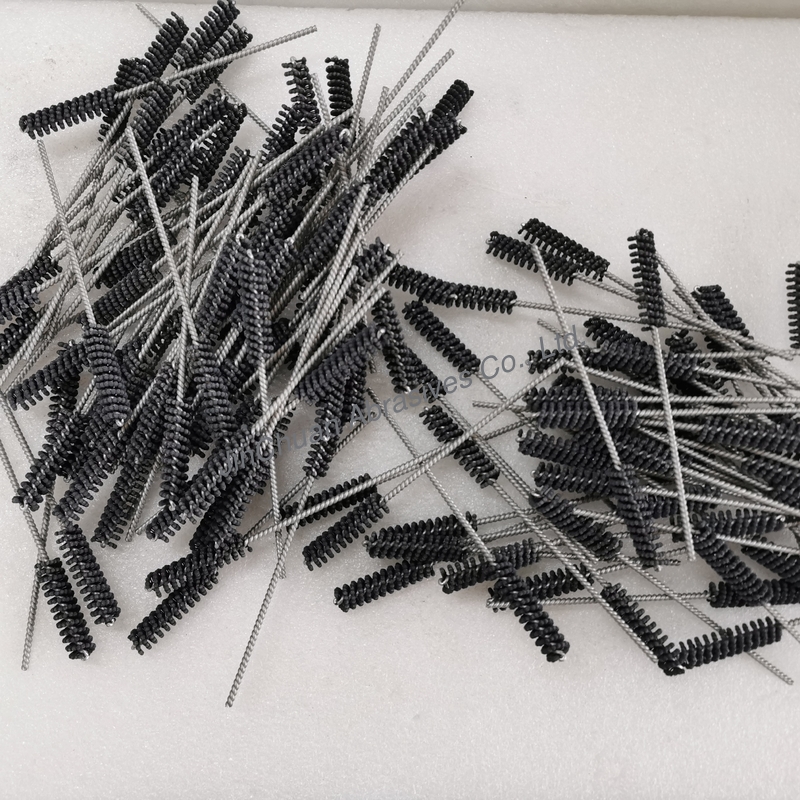

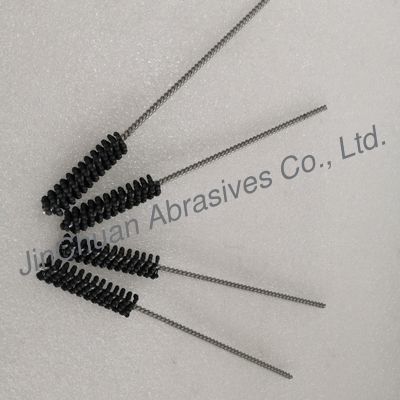

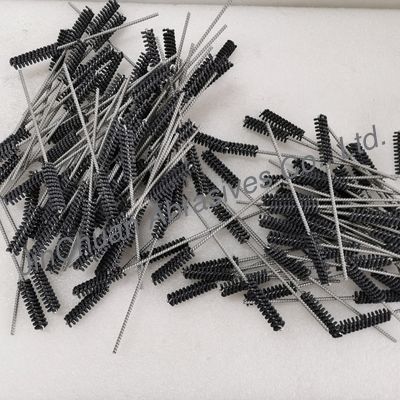

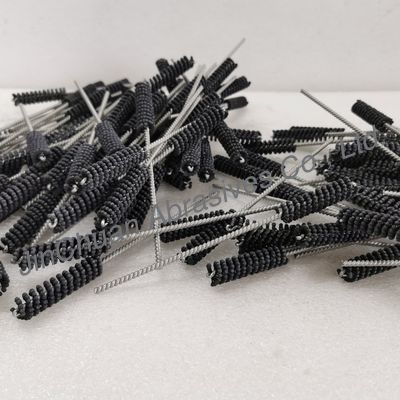

Honing Brushes For Precision Hole Polishing And Internal Hole Machining Installed On CNC Milling Machine Tools
Product Details
| Type: | Customizable | Function: | The Inner Surface Of The Hole Is Finely Ground |
|---|---|---|---|
| Size: | 170*50*13.5mm | Product Name: | Honing Brush |
| Color: | Black | Usage: | Fine Grinding |
| Brush Diameter: | 13.5mm | Application: | Inner Hole 、Surface Finishing |
| Handle: | Metal | Handle Length: | 170mm |
| Easy To Use: | No Special Skills Required | Feature: | High Efficiency |
| Durability: | Long-lasting | Grit: | 240# |
| Packing: | In Cartons | Brush Material: | Silicon Carbide |
| Highlight |
Precision Hole Flexible Honing Brush,Cylinder Flexible Honing Brush,Customized Flexible Honing Brush |
||
Product Description
Product Description:
This tool is called Flex-Hone and is widely used in industrial deburring, platform honing, deglazing, polishing, edge blending and chamfering. It is a rod with protruding nylon wire containing hundreds of small abrasive balls. The abrasive in the nylon wire can be various abrasives such as boron carbide, black silicon carbide, green silicon carbide, brown corundum, white corundum or diamond.
Honing brushes have standard sizes:
Standard total length of rod: 200-500mm, length of brush: 60-150mm, diameter of brush: 20-200mm.
Common particle size of honing brush: 120#-320#
Recommended speed range for CNC milling machines for honing brushes: 500-1400 RPM.
| Abrasive: |
Brown Boron Carbide, Black Boron Carbide, Black Silicon Carbide, Green Silicon Carbide, Brown Corundum, White Corundum |
Dressing: |
No Need |
|---|---|---|---|
| Application: | It Mainly Used For Precision Hole Polishing And Cylinder | Benefit: |
High temperature performance Strong corrosion resistance |
| Install: |
Installed on CNC milling machine |
Color: |
Blank, Brown, Green,White |
| Product size: |
customized |
Delivery time: | 7-15 days |
Product Application:
Honing is a common process, similar to grinding, which is the processing of the inner surface of a cylinder, tube or hole after precision machining and grinding. It is the last process after grinding to obtain the precise shape and high-quality surface finish of the workpiece.
During the honing process, the workpiece is fixed, and the honing head is connected to the machine tool spindle in a floating manner. When processing parts, nylon wire can be bent arbitrarily, naturally fit the inner hole contour of the workpiece, and can grind uneven inner holes; it can enter grooves, cracks and other places that are difficult for ordinary tools to enter, remove burrs, and passivate sharp edges into smooth and uniform arcs, achieving the ideal effect of deburring, edge passivation and surface finishing. It can help you remove tiny burrs on the surface of the hole after finishing and improve the finish of the inner hole.
It can be used to process cast iron, hardened steel and bronze, and it is widely used to process cylinder bore, oil cylinder bore, valve bore and various gun bore in mass production.
Honing is mainly used for hole machining. In the process of hole honing, the original hole center is used to guide. Processing aperture range and depth can be customized.
Questions and Answers:
1.Q: Can I get some samples or make customization according to the drawings and requirements?
Yes, sample orders are welcome
2.Q: Are there any items in stock?
A: For most items, we have stocks and will arrange timely delivery.
3.Q: Can I use my own logo?
A: Yes, customized logo and design can be produced in bulk, but we need authorization.
4.Q: What is the supply capacity of this honing brush?
A: Supply 20000 pieces per month.
5.Q: What is the payment method?
A: We can accept payment by T/T, Western Union, PayPal, payment link.
6.Q: What are your shipping methods?
A: UPS, DHL, Fedex, EMS, etc.
The drawing of Honing Brushes:
A: Total length (mm.) B: Length of silicon carbide (mm.) C: Brush head diameter (mm.)
Precautions for use:
Working speed Recommended linear speed: 15-35 m/s (refer to product label for details)
Wearing protection: Wear goggles and gloves during operation to ensure ventilation of the work area.
Feed control: Avoid over-pressing the brush surface to prevent overheating or deformation of the brush wire.
Regular inspection: Check the integrity of the brush wire before use. If it is broken or unevenly worn, it needs to be replaced in time.
Applicable equipment: Angle grinder, vertical grinder, CNC machine tool, robot automation unit.
Company profile:
Our company focuses on the research and development and production of industrial surface treatment tools, has ISO 9001 certification, and provides standard and customized honing brush solutions. Our products are based on high precision and long life as the core advantages, serving customers in the global automotive, aviation, energy and other industries.
Wish a happy cooperation !
