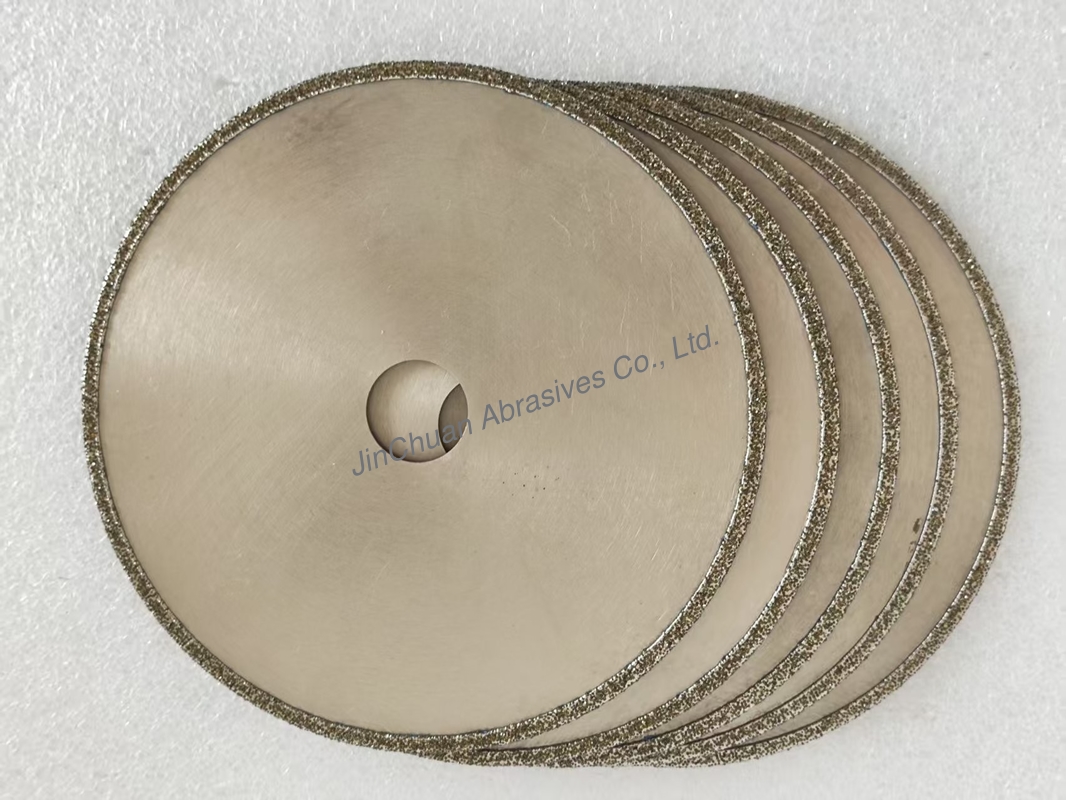

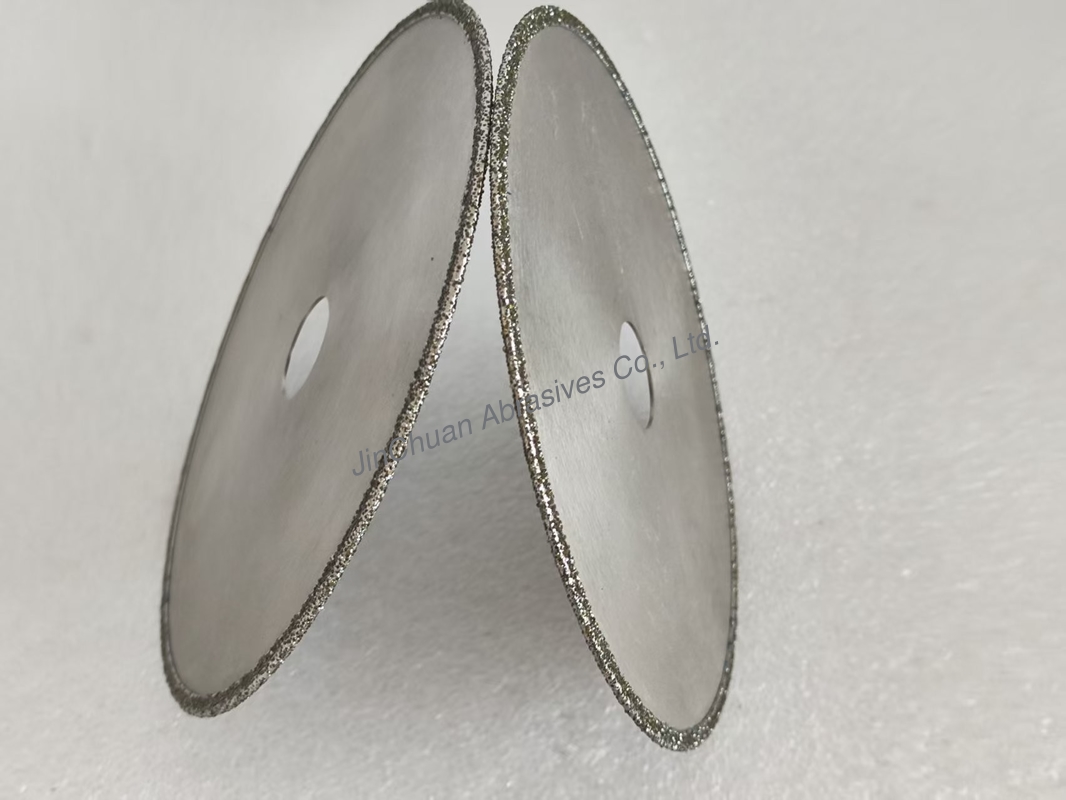

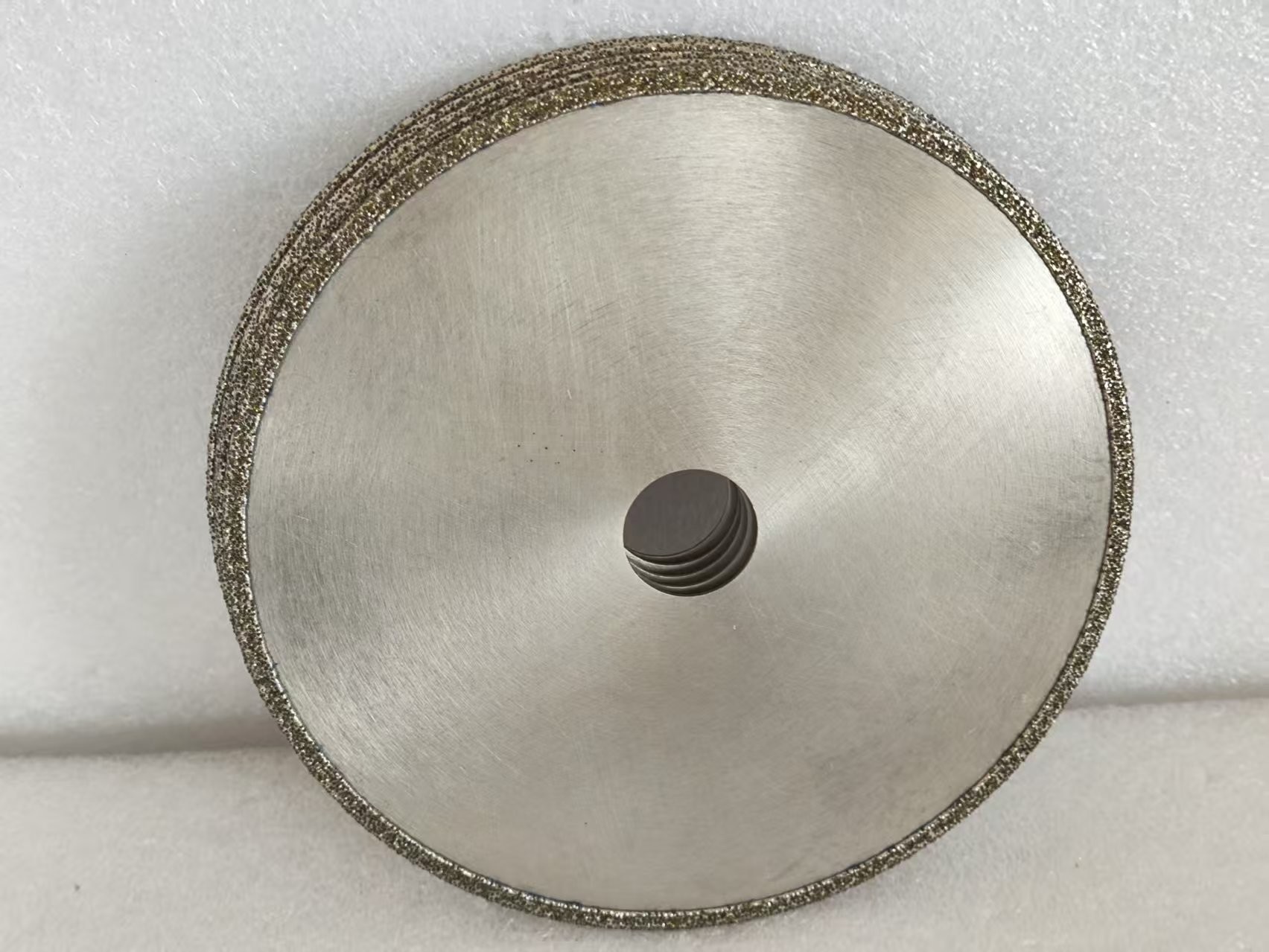

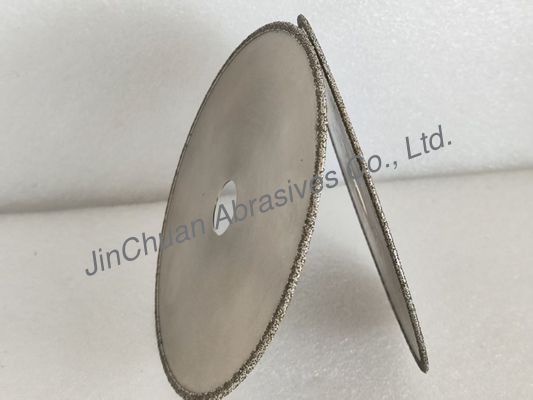

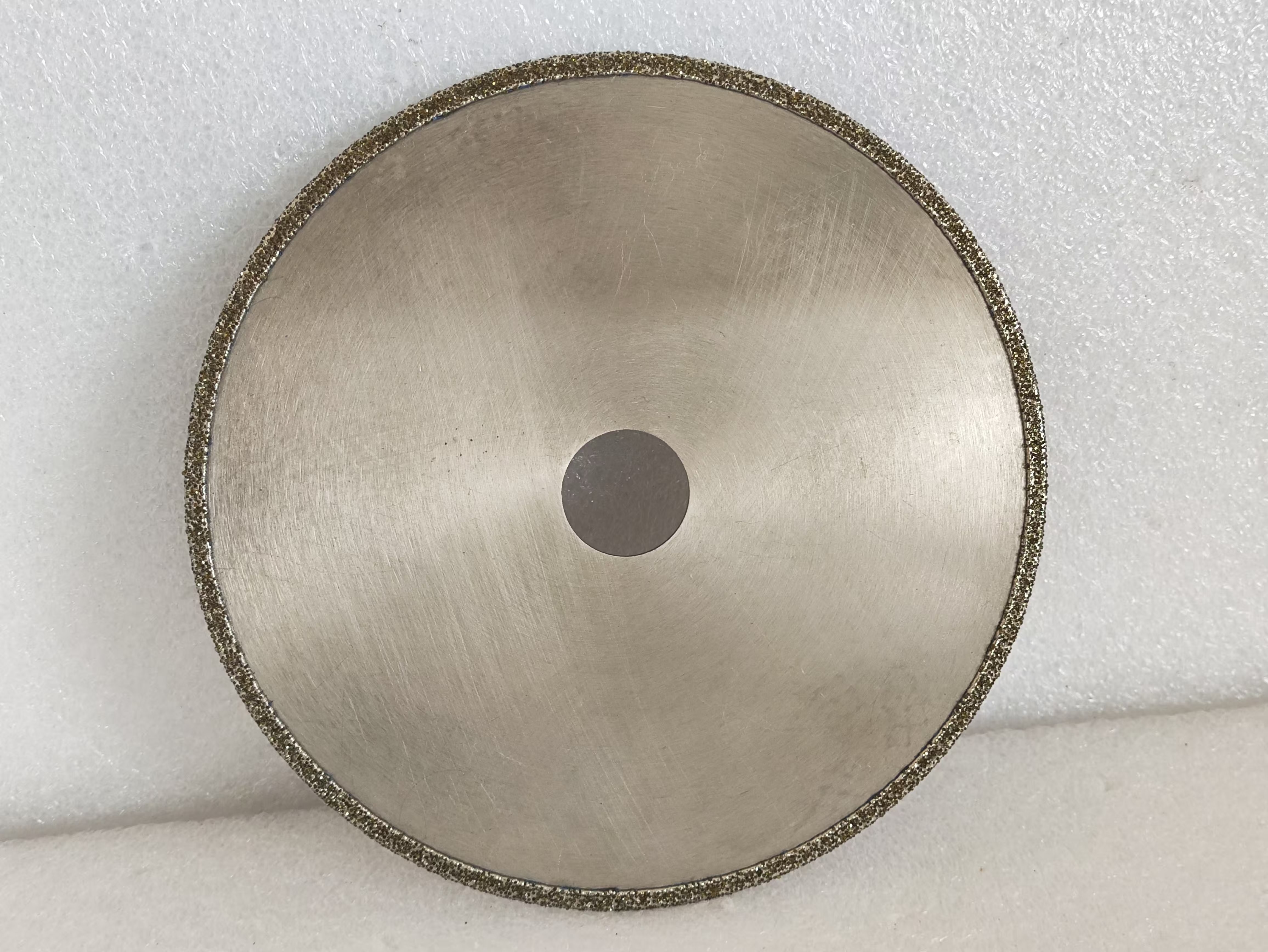

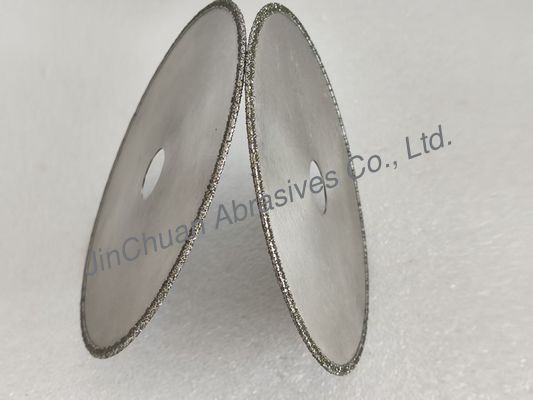

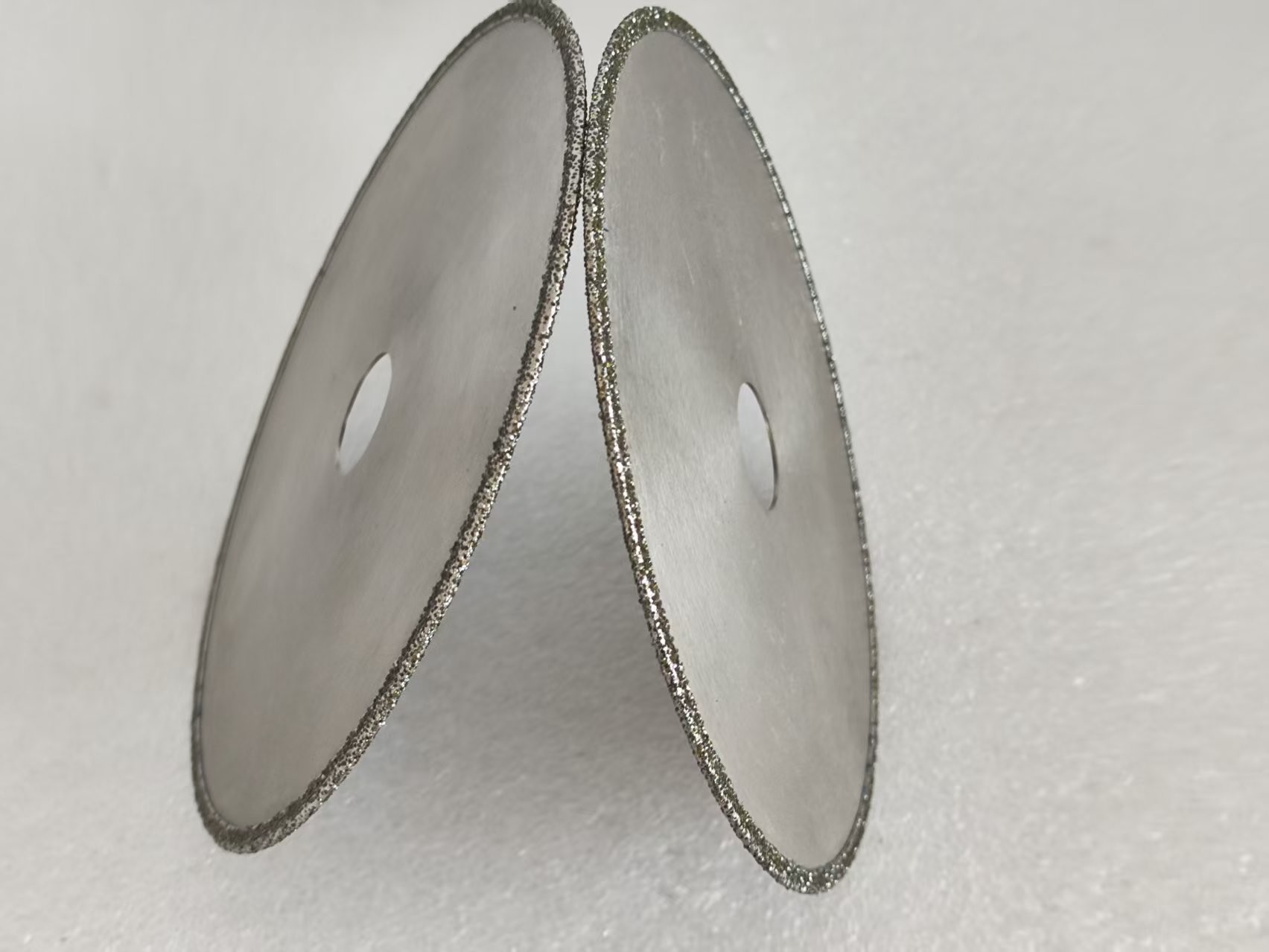

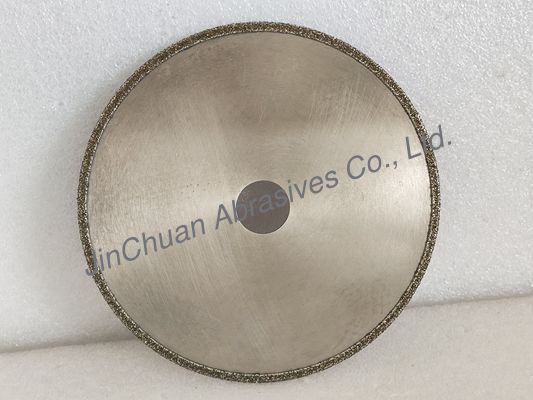

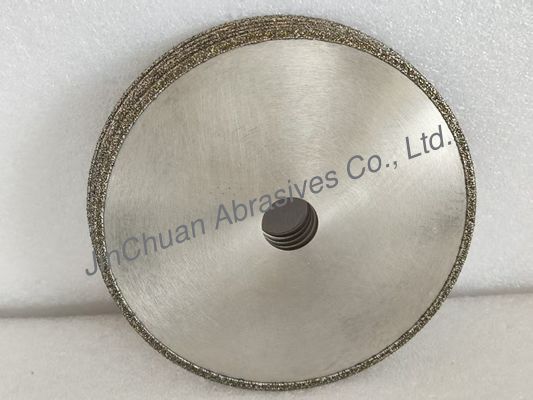

1A1R 135*2*20*3 D30/35 Electroplated Diamond Cutting Disc
Product Details
| Name: | Diamond Grinding Cutting Disc | Size: | 135mm |
|---|---|---|---|
| Abrasive: | Diamond | Hardness: | High |
| Usage: | Grinding | Color: | Golden |
| Grit Size: | D30/35 | Viscosity: | As Required |
| Diamond Class: | First Class | Advantage: | High Efficient |
| Shape: | Round | Thickness: | 2mm |
| Application: | Grinding And Polishing | Technique: | Electroplating |
| Hs Code: | 6804211000 | Body: | Steel |
| Abrasive Width: | 3mm | Inner Hole: | 20mm |
| Highlight |
Electroplated Diamond Grinding Cutting Disc,1A1R Electroplated Diamond Grinding Cutting Disc,Electroplated Diamond Grinding Cutting Disc |
||
Product Description
1A1R Electroplated Diamond Cutting Blade Product Description
Product Name: 1A1R Electroplated Diamond Cutting Blade
Product Introduction:
1A1R Electroplated Diamond Cutting Blade adopts double-layer electroplating process to evenly consolidate high-strength diamond abrasive on the surface of steel substrate to form an ultra-thin, high-precision cutting tool. Designed for efficient cutting of hard and brittle non-metallic materials (such as ceramics, glass, quartz, semiconductors, stone) and super-hard alloys, it has the characteristics of narrow incision, low loss, and high surface finish. It is suitable for high-end fields such as precision electronic component processing, optical device separation, and gem cutting.
Product features:
Ultra-thin high-precision design
Thickness range: 0.1mm-2.0mm, the incision width can be controlled within 0.2mm, and the material loss is extremely low.
The roughness of the cutting surface reaches Ra≤0.1μm, reducing the subsequent polishing process.
Ready to use, no trimming required
The electroplating process ensures that the diamond abrasive grains are evenly distributed and sharp, and high-speed cutting can be performed out of the box to improve efficiency.
No binder dust pollution, suitable for clean workshops (such as semiconductors, optical manufacturing environments).
Excellent heat dissipation and life
Open base design, with heat dissipation holes , reduces cutting thermal stress and extends service life.
Diamond abrasive grains are resistant to high temperatures＞800°C, suitable for dry cutting or minimal lubrication processing.
Specification
| diameter | inner bore | thickness | Abrasive width |
granularity |
| 135mm | 20mm | 2mm | 3mm | 30/35 |
Of course, if you need other sizes, we can customize them according to your drawings.
Company Profile:
Our company focuses on the research and development and production of electroplated superhard tools. We have fully automatic electroplating lines and precision testing laboratories. Our products have passed ISO 9001 and SGS certification. We provide 1A1R standard and customized electroplated diamond cutting blades, serving customers in the global electronics, optics, and jewelry processing industries, and are committed to providing customers with cost-effective precision cutting solutions.
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you
