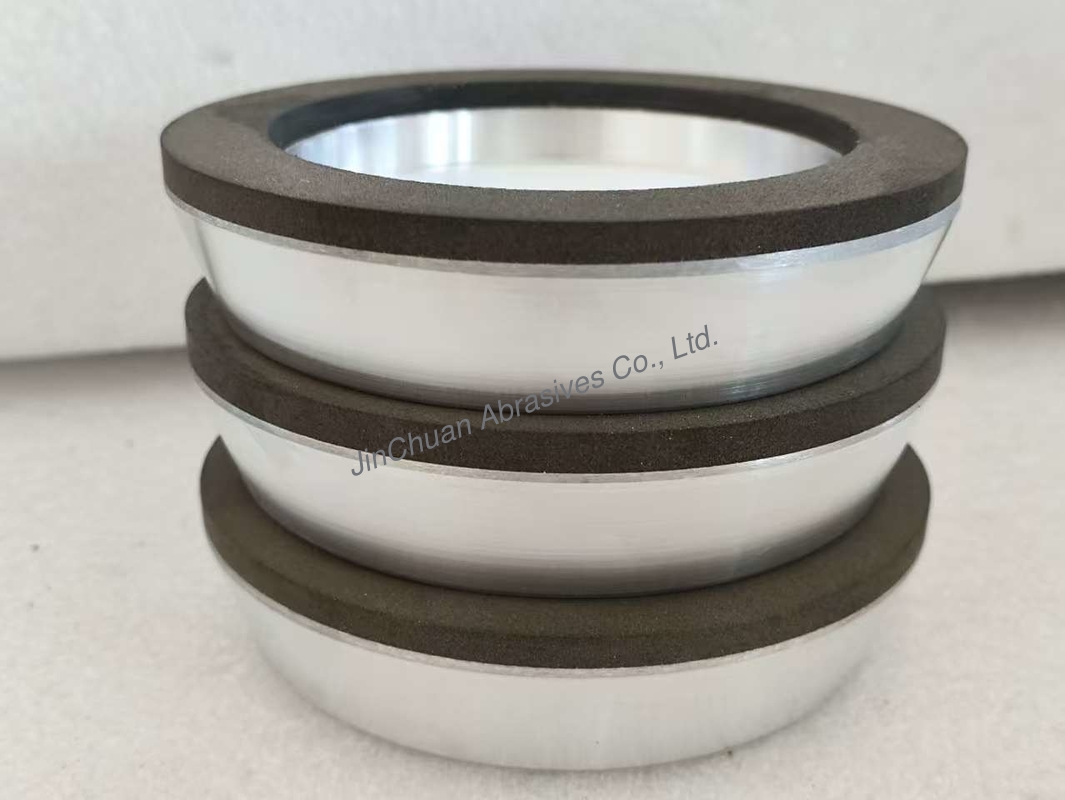

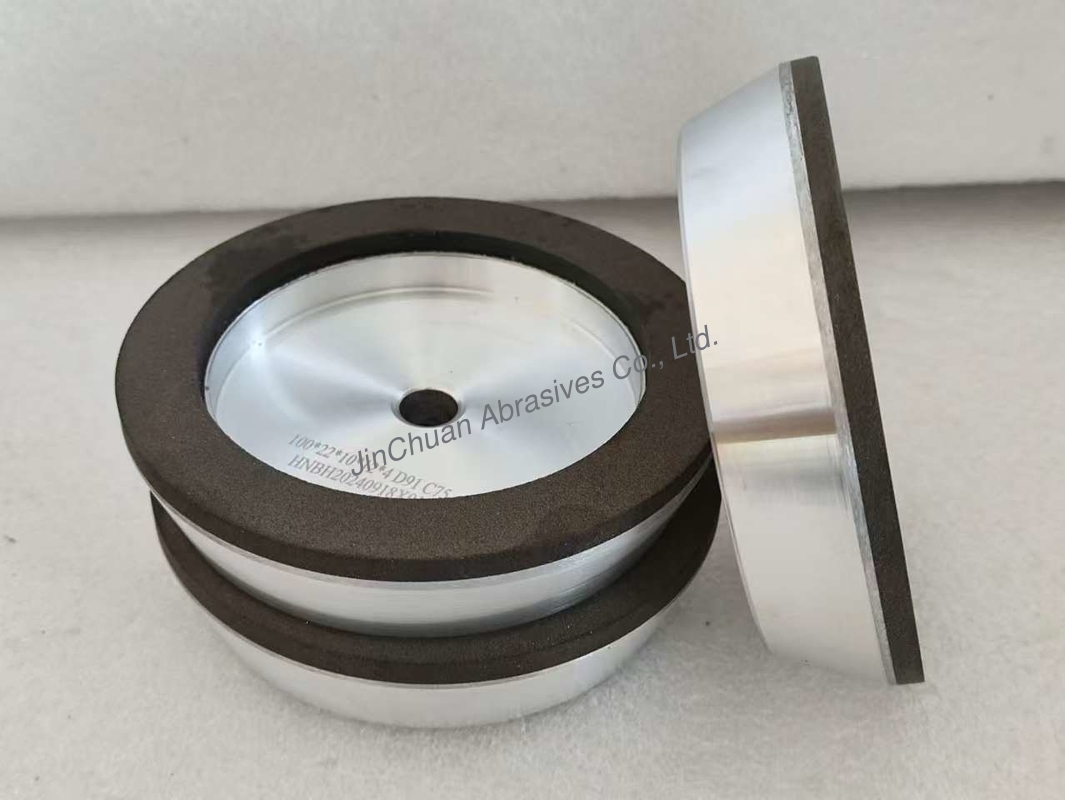

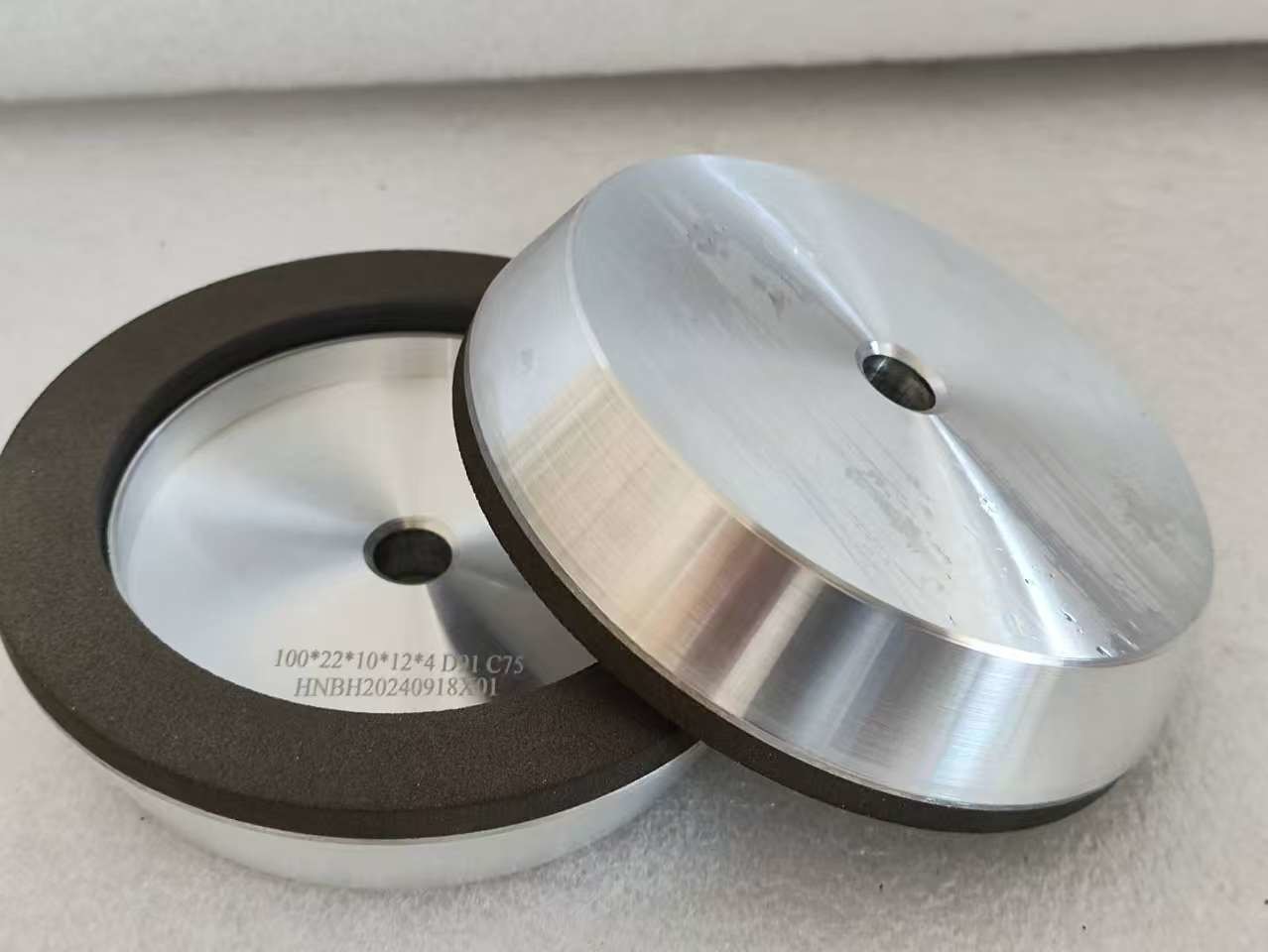

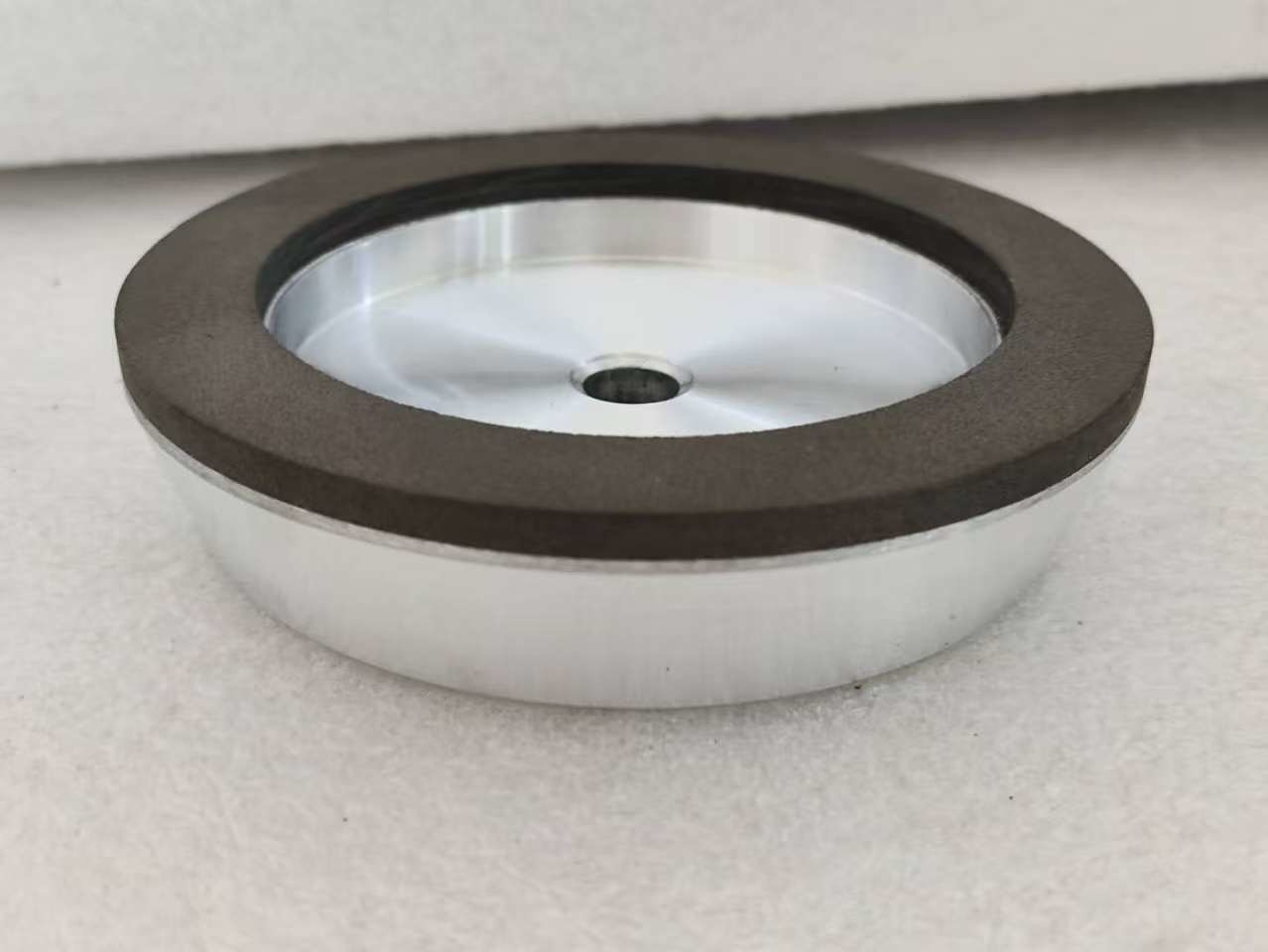

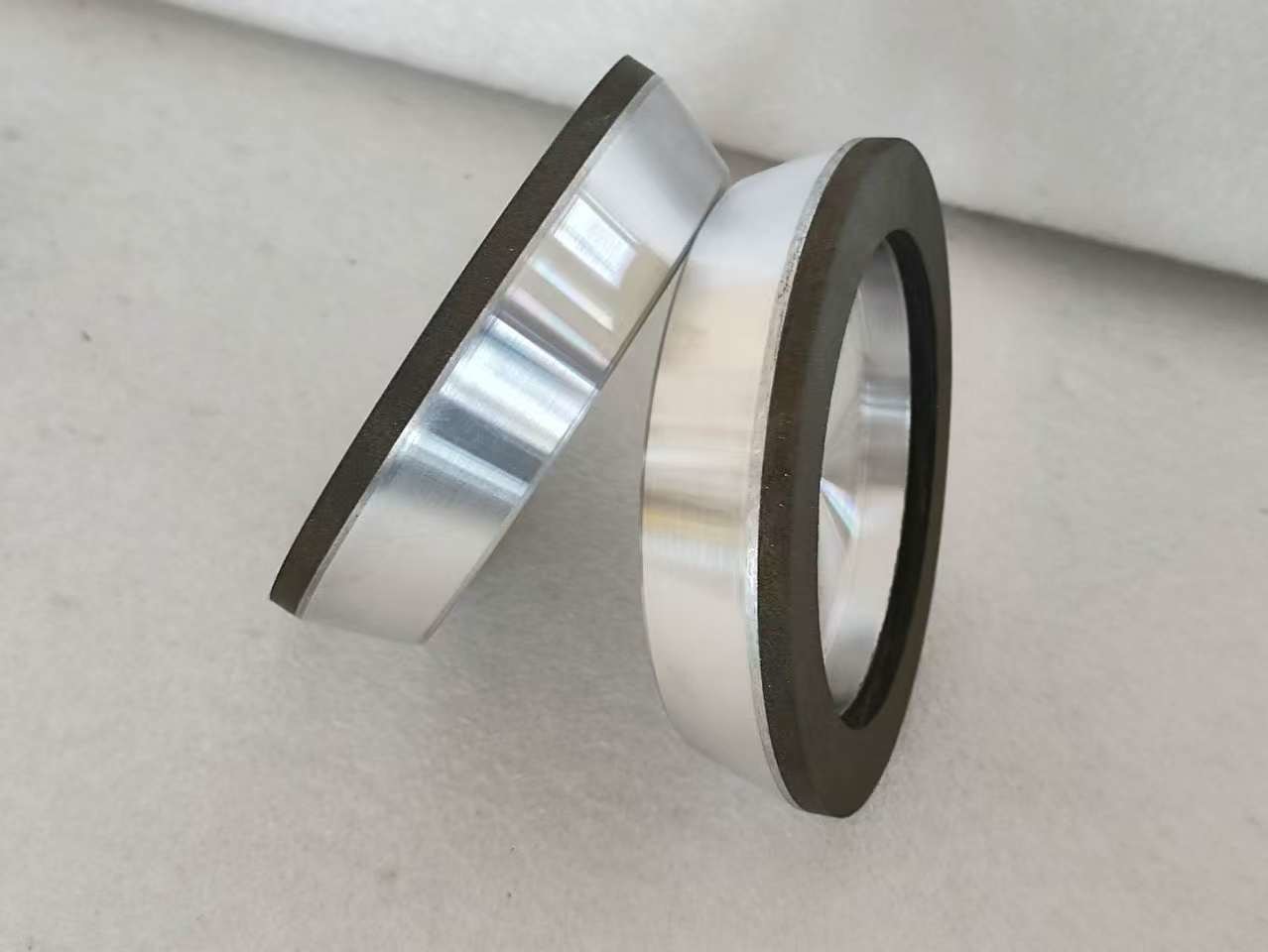

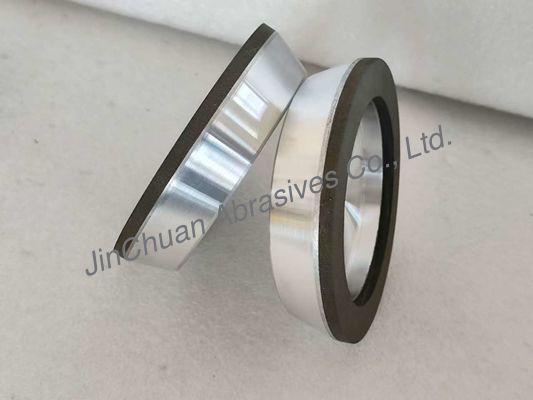

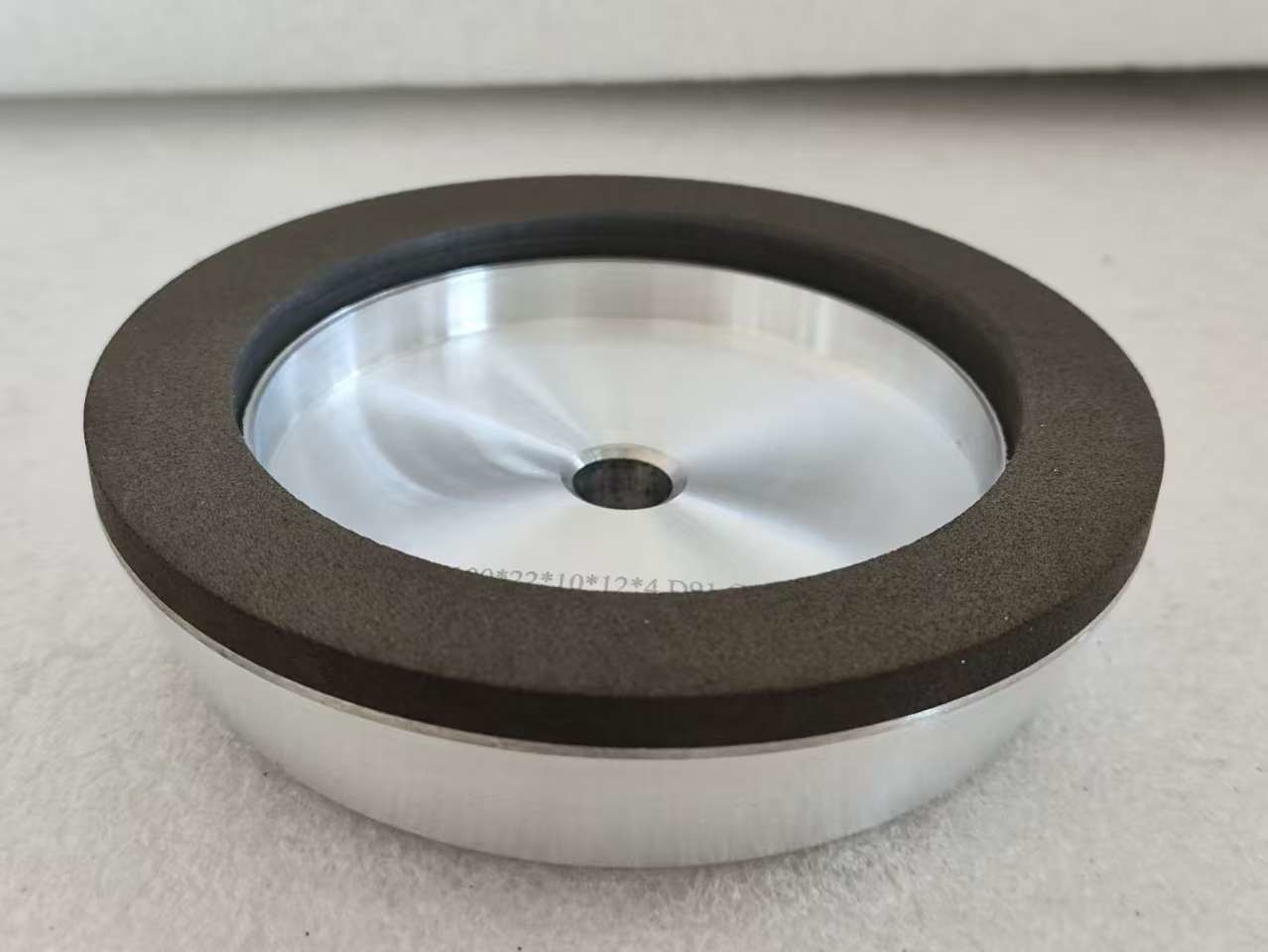

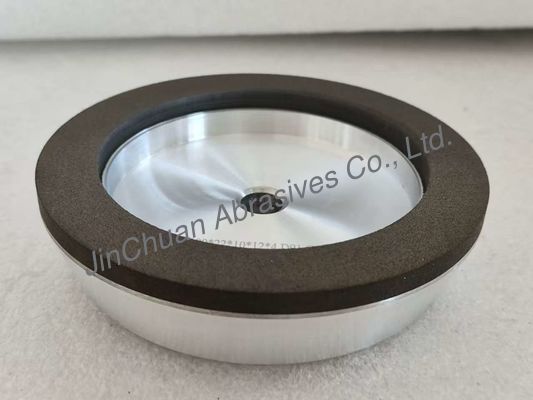

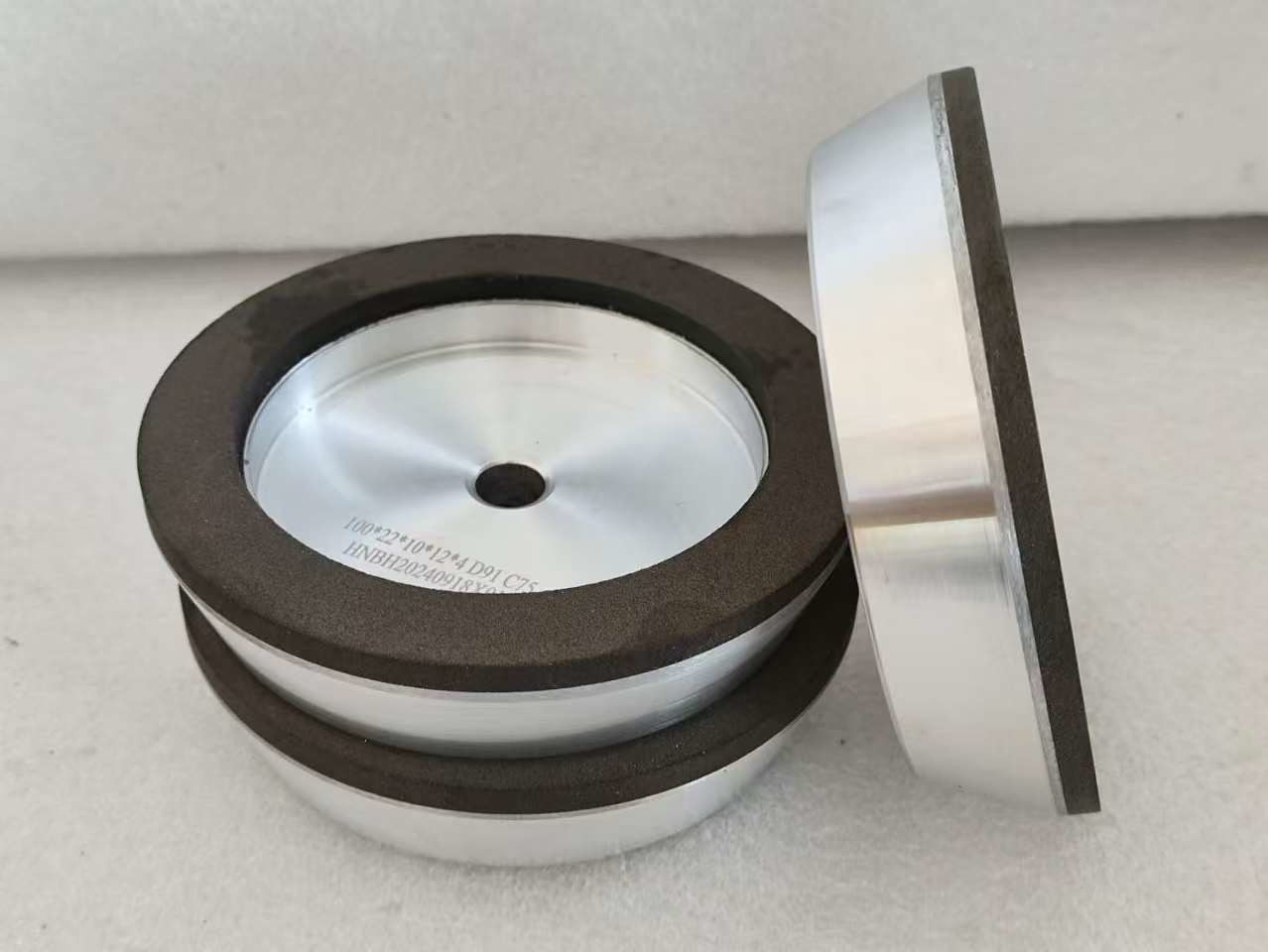

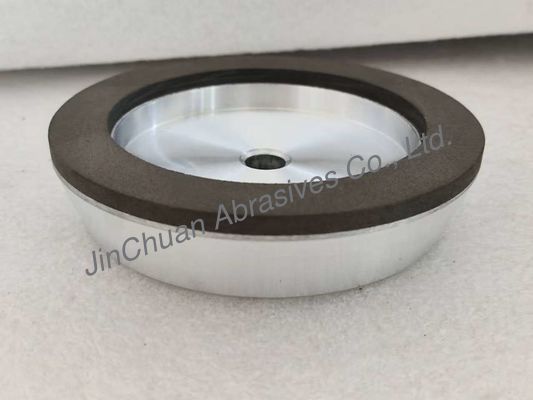

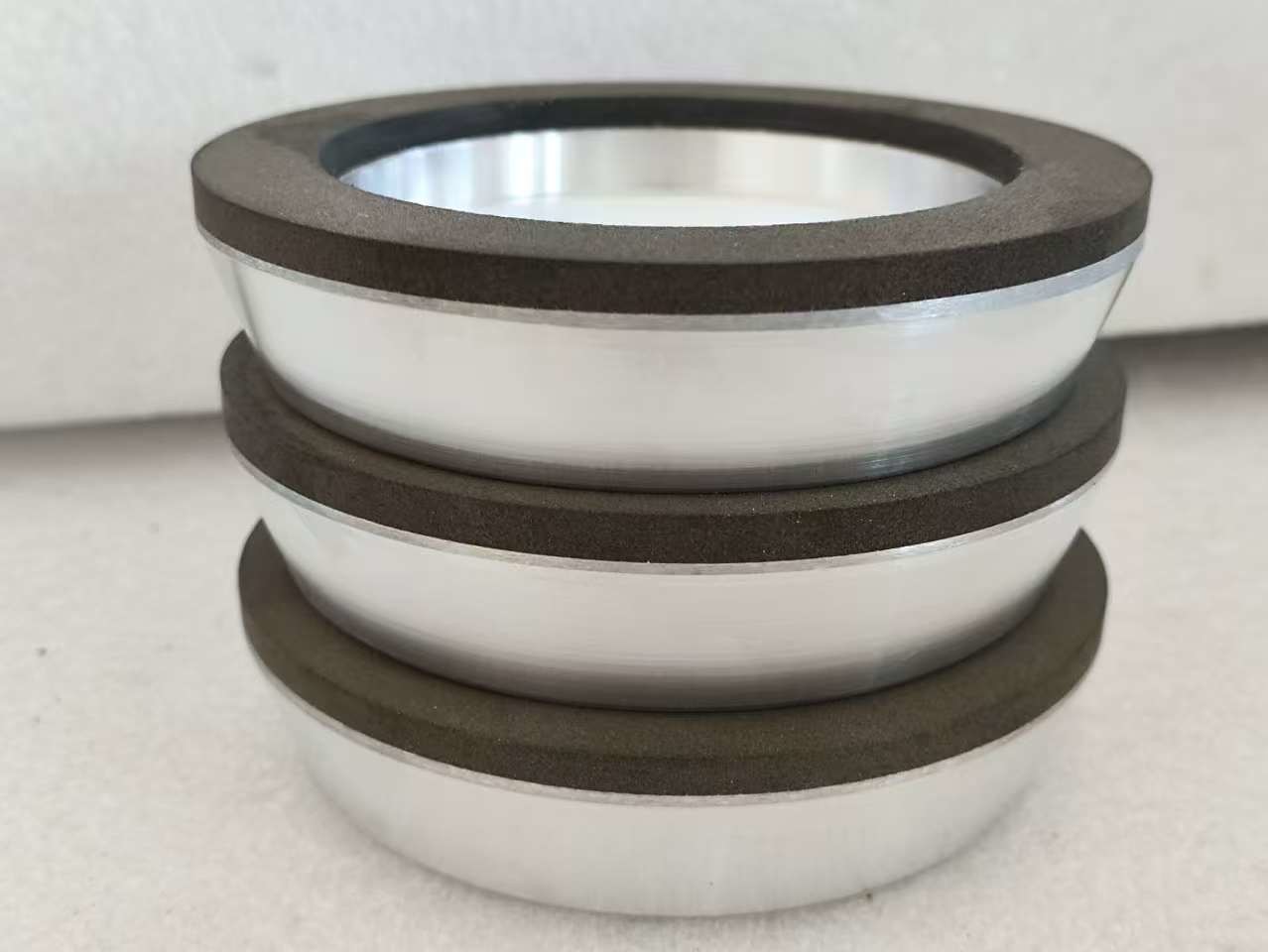

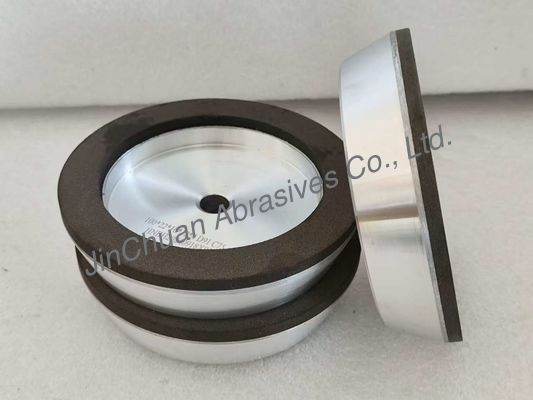

6A2 100*22*10*12*4 D91 Resin Diamond Cup Grinding Wheel
Product Details
| Features: | High Cutting Efficiency, Good Self-sharpening, Long Service Life | Usage: | Dry/Wet |
|---|---|---|---|
| Abrasive: | Diamond D91 | Wheel Size: | 100*22*10*12*4mm |
| Wheel Thickness: | 22mm | Packing: | Export Special Box |
| Abrasive Material: | 1 Class | Colour: | Gray |
| Type: | 6A2 | Body Material: | Aluminum |
| Product: | Resin Diamond Grinding Wheel | HS Code: | 6804211000 |
| Highlight |
100*22*10*12*4 Resin Diamond Cup Grinding Wheel,D91 Resin Diamond Cup Grinding Wheel,6A2 Resin Diamond Cup Grinding Wheel |
||
Product Description
Product Application
Resin bond is an organic agent. The resin bond grinding wheel made with this bond has high strength, certain elasticity, low heat resistance, good self-sharpening, easy manufacturing and short process cycle. It can manufacture grinding wheels with working speeds higher than 50m/s and extremely thin grinding wheels. Its application range is second only to that of vitrified bonds, and is widely used in rough grinding, rough grinding, cutting and free grinding, such as grinding steel ingots, deburring castings, etc. It can manufacture high-speed, high-gloss grinding wheels, heavy-duty, cutting and various special grinding wheels.
There are many special resin bond diamond grinding wheels for fast cold cutting. These grinding wheels are particularly suitable for grinding carbide tools (such as saws, milling cutters, drills, end mills, etc.). In addition, these tools can also be used for precision grinding operations of carbide molds, rollers and carbide wear parts. Resin bond grinding wheels are the first choice for ceramic precision machining and grinding ceramic tungsten carbide and thermal spray coatings.
The drawing of Resin Bond Diamond Cup Wheel 6A2
| D | T | H | W | X |
| diameter | thickness | Inner hole | Abrasive width | Abrasive Depth |
| 100mm | 22mm | 10mm | 12mm | 4mm |
| E Customized by customer needs | ||||
Of course other sizes can be customized.
Why us?
1,We are factory production, the price is favorable
2,Experienced in making sure that the cutting edge is sharp and the cutting surface is smooth and wear resistant.
3,Using mirror grinding technology, the production of large space design
4,Fast chip removal speed, high cutting efficiency, dynamic balance test
5,We have regular sizes and can also be customized according to the drawings
Looking forward to your inquiry!
