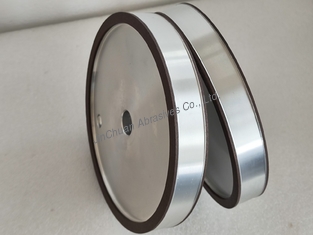

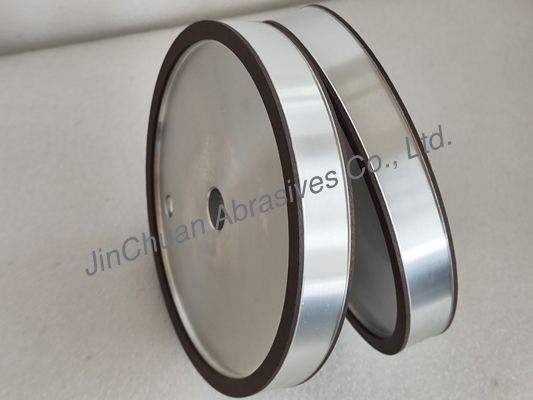

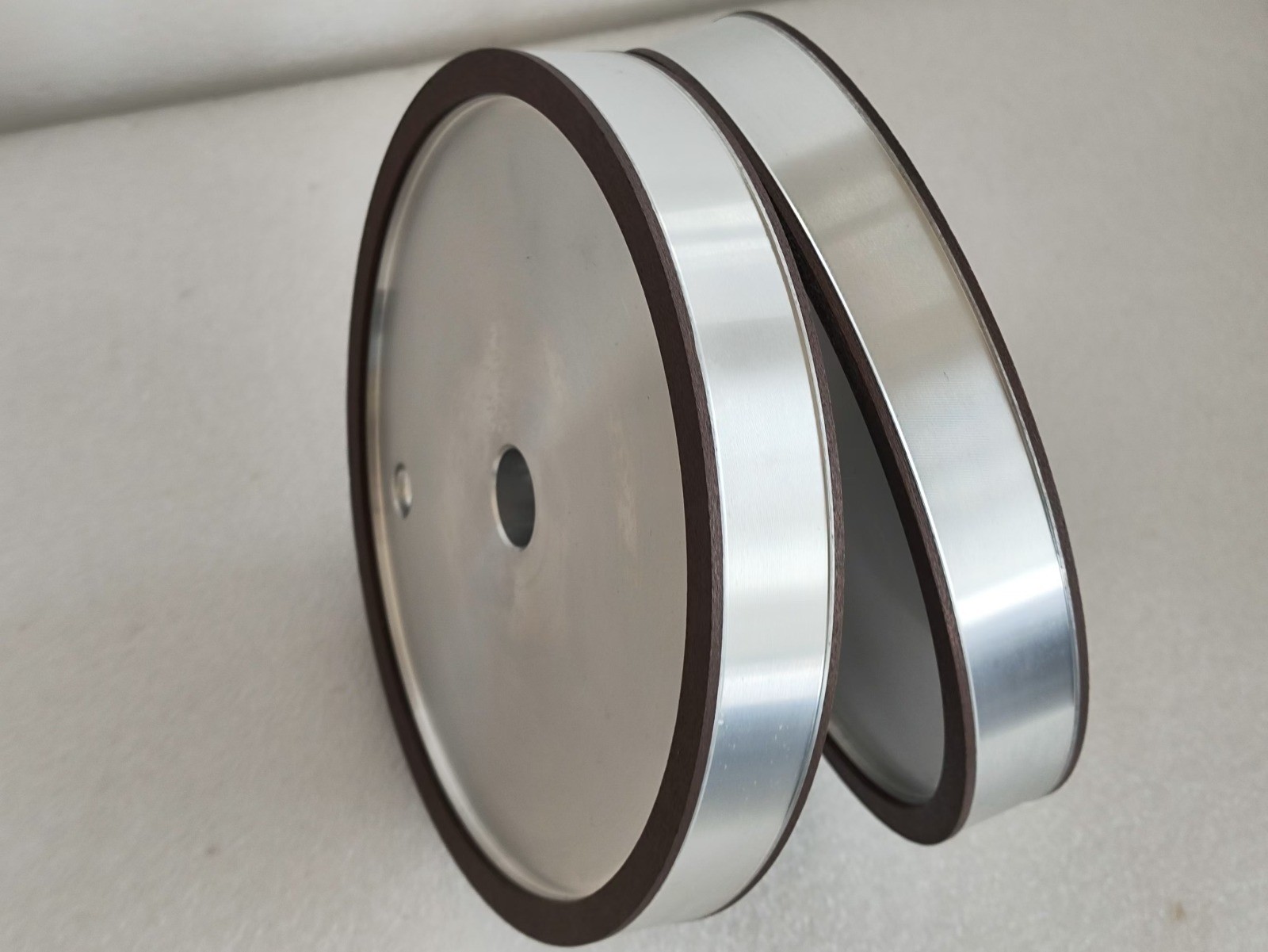

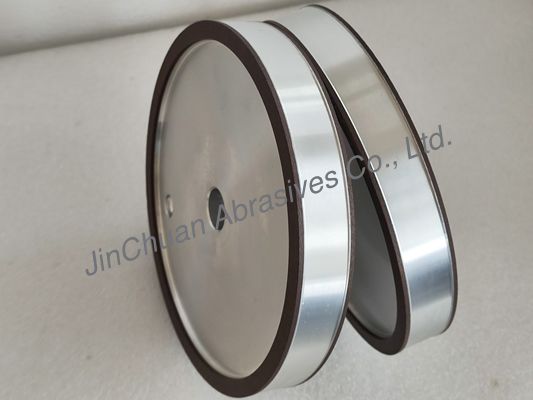

9A3 Resin Bond Diamond Grinding Wheel For Hard And Brittle Materials
Product Details
| Shape: | Round | Usage: | Grinding |
|---|---|---|---|
| Bond Agent: | Resin | Delivery: | By Express |
| Package: | Carton Box | HS Code: | 6804211000 |
| Abrasives: | Diamond | Application: | Processing Of Hard And Brittle Materials |
| Highlight |
9A3 Resin Bond Grinding Wheel,Hard Resin Bond Grinding Wheel |
||
Product Description
9A3 Resin Bond Diamond Grinding Wheel Product Description
Product Name: Resin Bond Diamond Grinding Wheel
Product Overview:
Resin bond diamond grinding wheels are super-hard abrasive tools made by hot pressing diamond as the abrasive and resin as the binder. They are characterized by high grinding efficiency, high machining accuracy, and long service life. These wheels are widely used for grinding hard and brittle materials such as cemented carbide, ceramics, glass, and semiconductors.
Product Features:
High Grinding Efficiency;
High Machining Accuracy;
Long Service Life;
Wide Application Range;
Multiple Specifications Available;
The drawing of 9A3 Resin Bond Diamond Wheel:
Product size(mm):
| D | T | H | W | X |
| 75 | 15~20 | 16,19.05,20,22 | 4,5,6 | 2,3,4,5 |
| 125 | 20~25 | 19.05,20,22,32 | 4,5,6,8,10 | |
| 175 | 20~30 | 32 | 4,5,6,8,10,12,15 | |
| 230 | 20~40 | 32,75 | ||
| 300 | 25~50 | 75,127 | 8,10,12,15 | |
| 350 | 127 |
Of course other sizes can be customized.
Application picture reference(Machine and wheel pictures):
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
