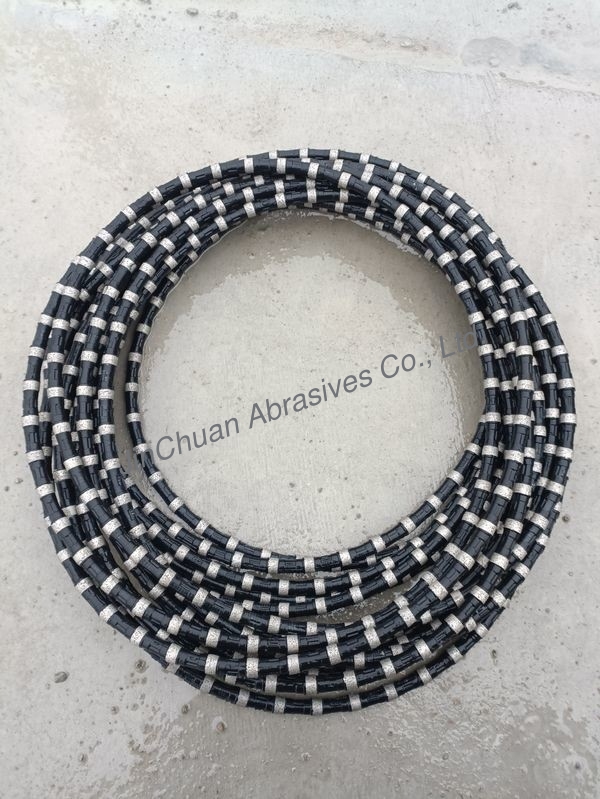

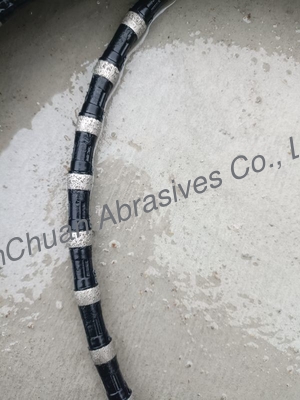

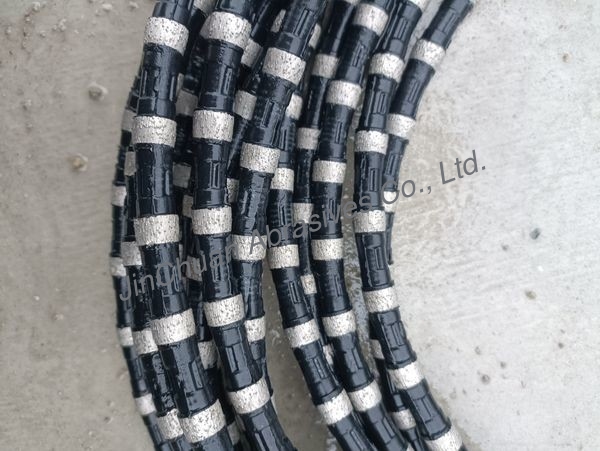

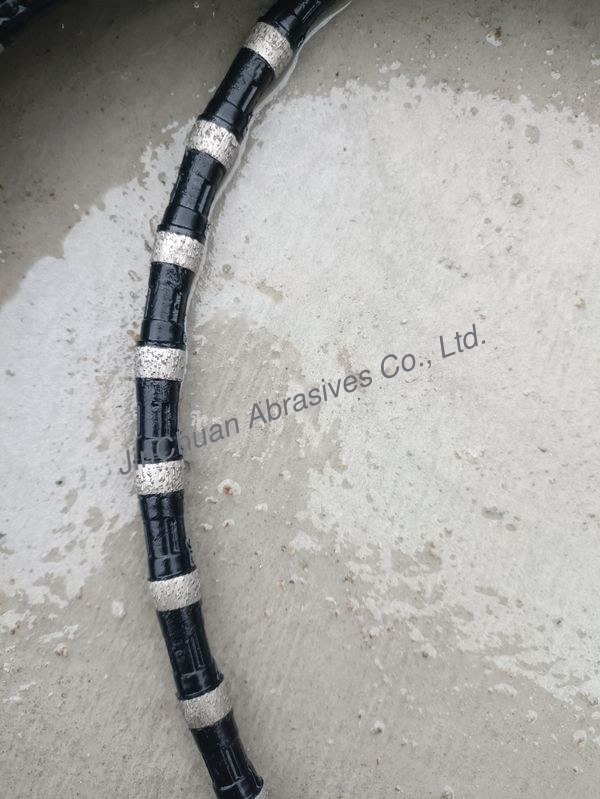

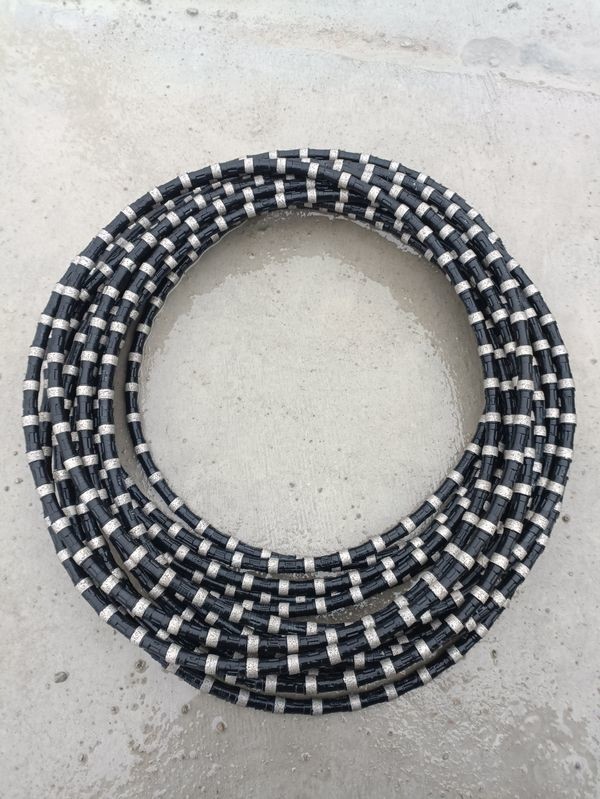

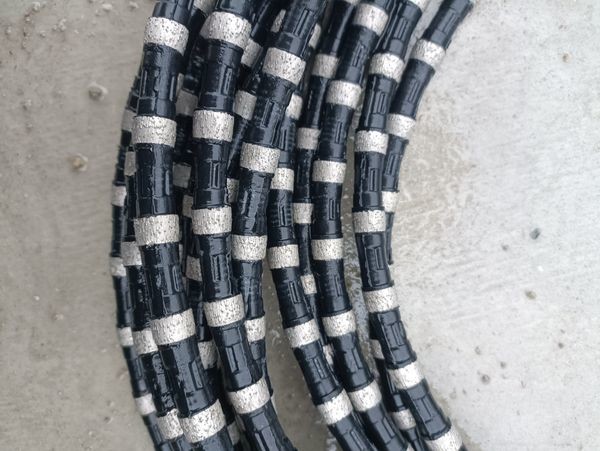

Name: Sintered Diamond Wire Saw For Reinforced Concrete Sawing And Cutting
Brand: ZHENGZHOU JINCHUAN ABRASIVES CO., LTD.
SKU: as required
Price: 402.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Bonding Agent: Sintered

Abrasive: Diamond

Usage: Cutting And Sawing

Size: Requiered

Advantage: High Efficient

Highlight:

diamond wire saw machine

Diamond Wire Saw For Reinforced Concrete

Sintered Diamond Wire Saw

Basic Infomation

Place of Origin: China

Brand Name: JC

Certification: ISO9001:2015,ISOCE16949

Model Number: as required

Payment & Shipping Terms

Packaging Details: Carton

Gallery

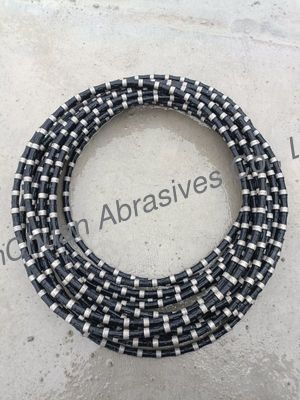

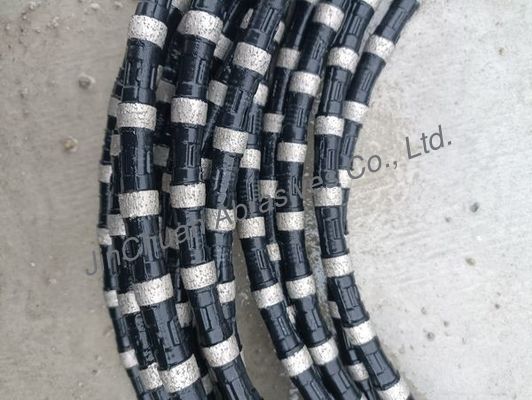

Sintered Diamond Wire Saw For Reinforced Concrete Sawing And Cutting

Product Description

Specifications

Type: Diamond Wire Saw

Application: Cutting,Granite Quarrying

Material: Diamond,steel,Diamond Wire Saw,rubber

Usage: Granite Quarrying,Rock Cutting,Stone Carving,diamond Wire Saw

Product Name: 11.5mm Fast Cutting Rope Quarry Diamond Wire Saw,Small Diameter Diamond Wire Saw For Stone Cutting,Diamond Saw Ropes

Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience

Beads Type: Sintered

Diameter: 11.5mm

Business Type: Manufacturer,Manufacturer And Trading

High Light:

10m2/h Granite Diamond Wire Saw

Sintered Beads Diamond Wire Saw

11.5mm Granite Quarrying Tools

Product Description

Diamond wire saw for granite quarring

The characteristics:

1: The diamond wire quarrying technique can highly improve the quarrying efficiency, reduce the waste of mining resource,
2: It can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment protection.
3: Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
4. The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
5. The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
6. Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).

Specification	Reinforcement	Beads number	Cutting material	Line speed	Cutting speed	Wire life
Φ11.5mm	Rubber	40/m	Hard granite	18-22m/s	7-10 m2/h	8-15m2/m
Φ11.5mm	Rubber	40/m	Middle hard granite	22-25m/s	10-15 m2/h	15-25m2/m
Φ11.5mm	Rubber	40/m	Soft granite	25-30m/s	15-20 m2/h	25-40m2/m
