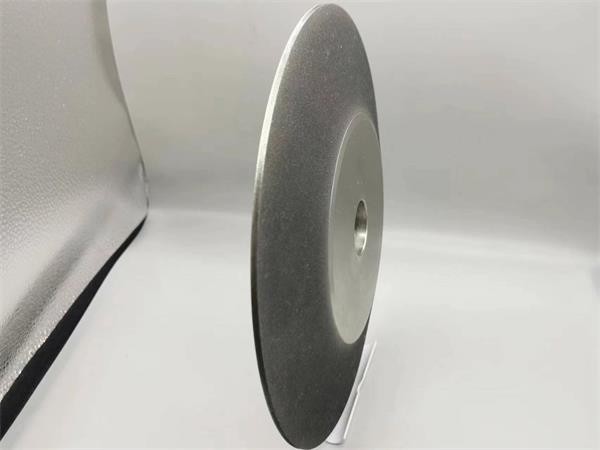

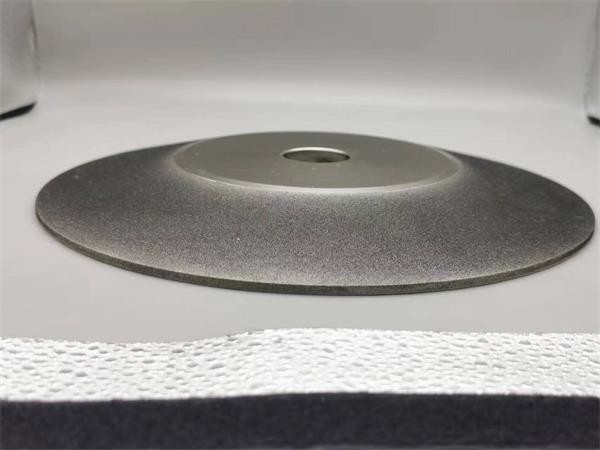

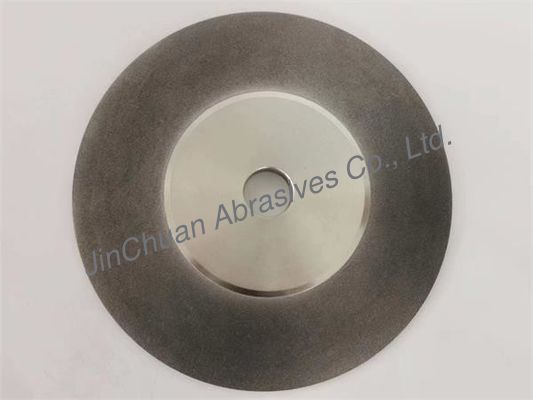

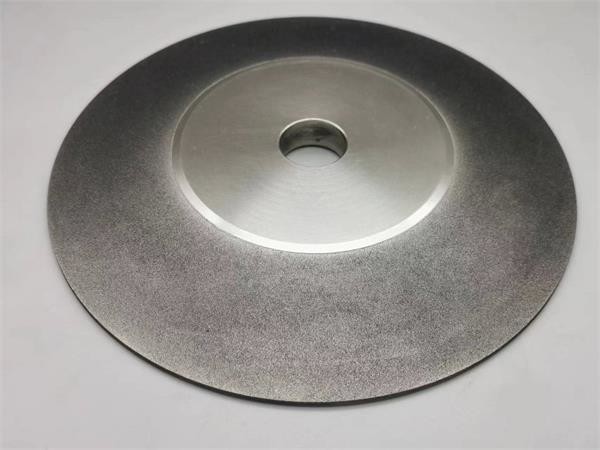

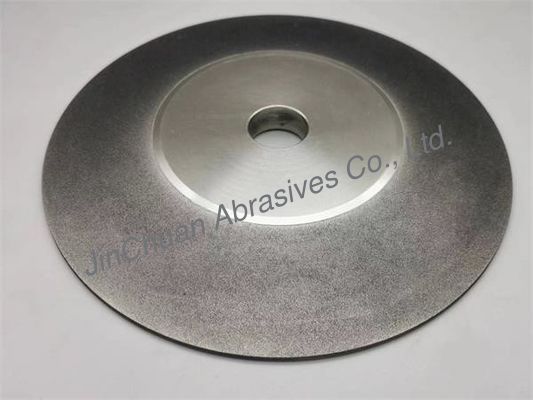

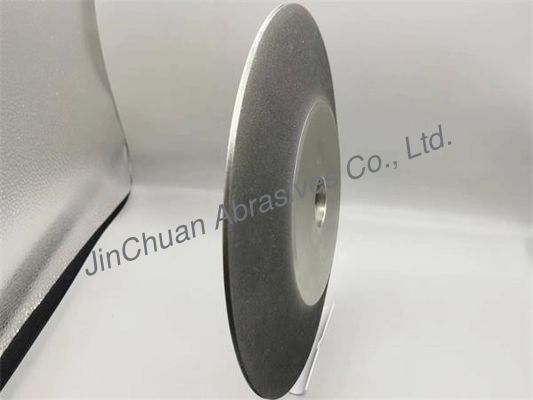

1Y1 Shape B200/230 Grit 245mm Diameter Electroplated CBN Grinding Wheel for Precision Grinding

The 1Y1 electroplated CBN grinding wheel (1Y1/15 245*19.3*31.75*15, angle B200/230) combines low heat generation with precise shape retention. Cubic boron nitride (CBN) is widely recognized throughout the industry as the most suitable abrasive grain for grinding hardened alloys, as it does not generate high temperatures during operation.

This thermal stability stems from CBN's excellent thermal conductivity: heat disperses quickly, assisted by the shape of the wheel's metal body. The wheel also delivers an extremely long working life and an excellent stock removal rate — the maximum amount of material removed from a workpiece — which means the operator does not need to return afterward to dress and shape the workpiece.

When properly cared for, the lifespan of CBN grinding wheels is extremely long and nearly indefinite. The wheels are highly durable thanks to the strong bond formed between the supporting steel hub and the abrasive grains.

• Aerospace
• Power generation & wind turbines
• Composites
• Sharpening
• Tool & die
• Dental
• Oil & gas
• Mining
• Automotive
