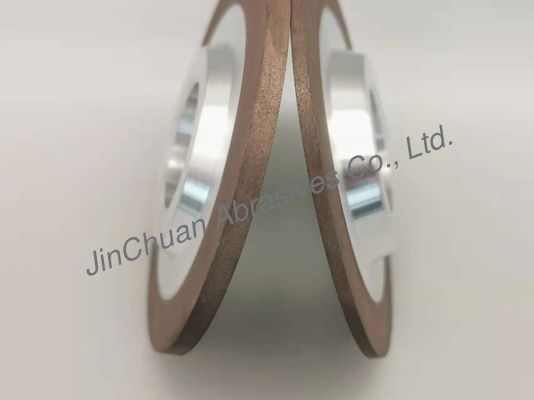

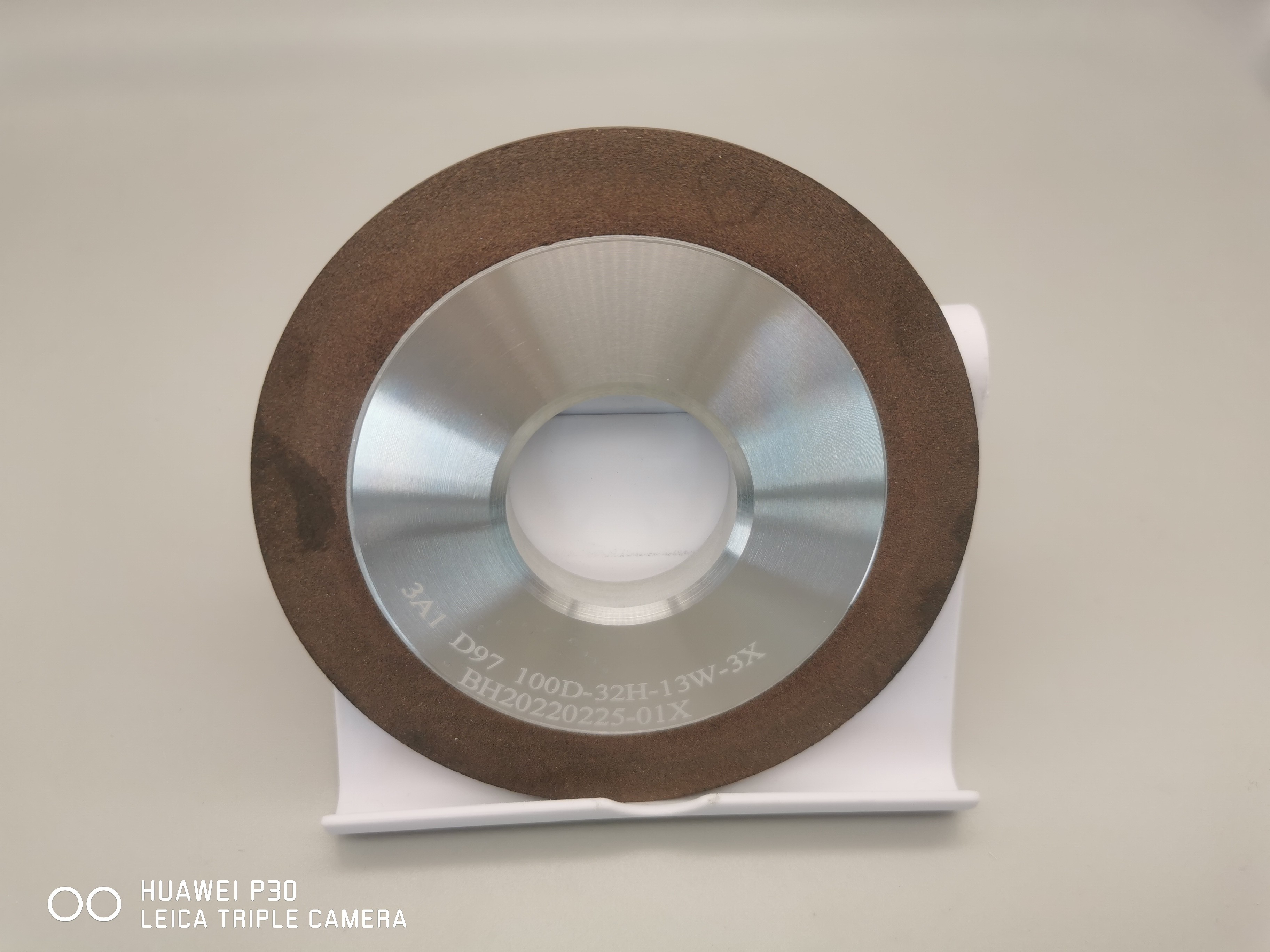

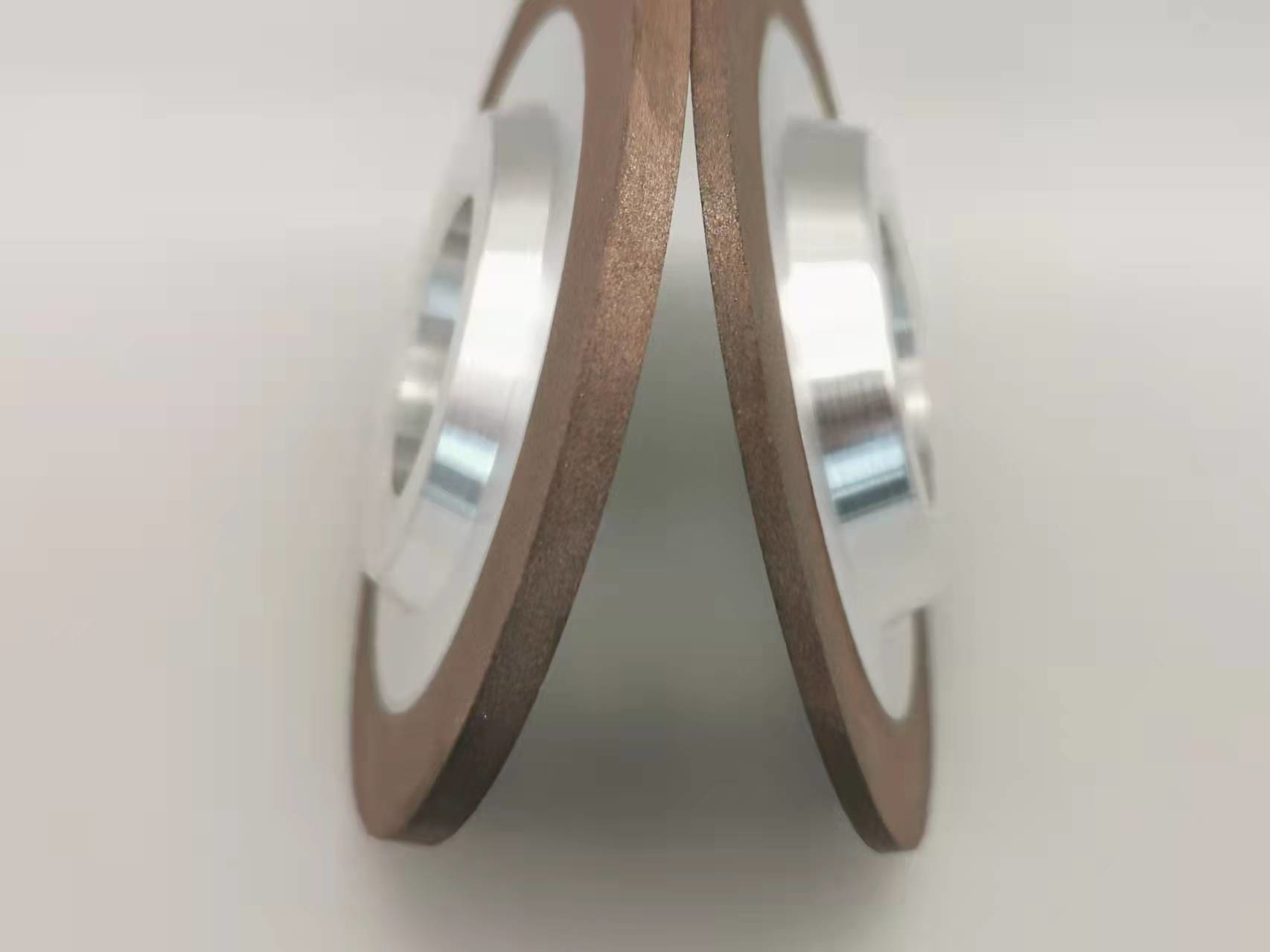

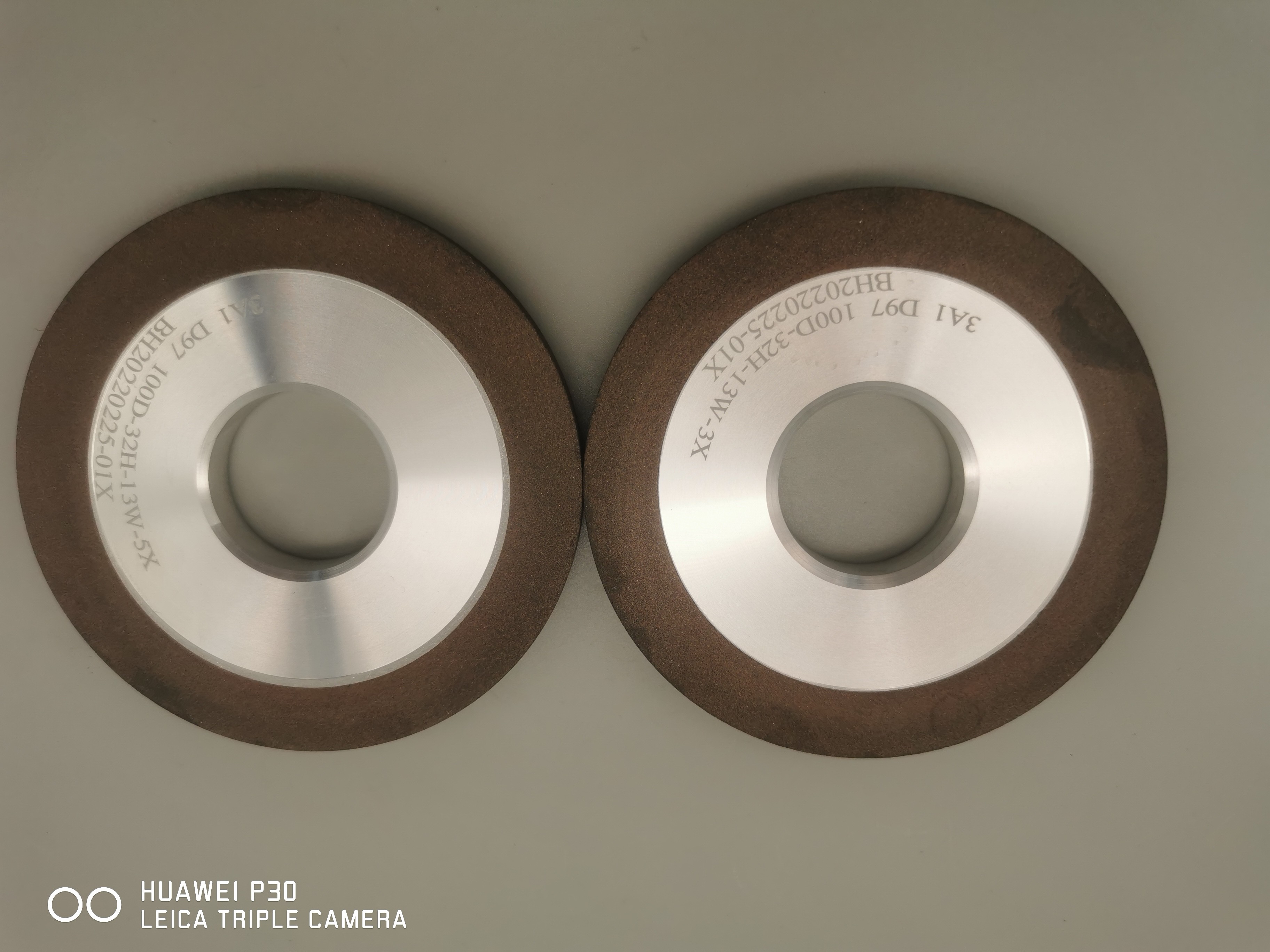

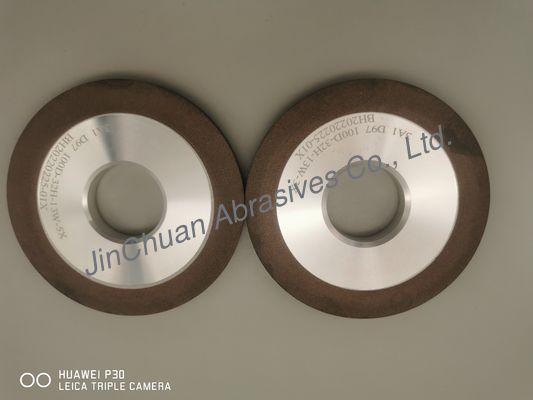

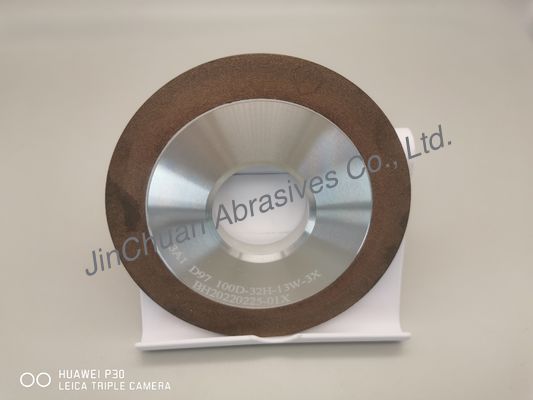

3A1 Resin Bonded Diamond Grinding Wheel 100*32*13*3mm Polishing Dressing Disc

Resin Bonded Diamond Grinding Wheel Disc 3A1 100*32*13*3mm Polishing Dressing Disc

Resin bond diamond grinding wheels can be designed for both wet and dry grinding modes, showing good free cutting qualities.

Grit size incl. Mesh 80/100#(D181), 100/120#(D151), 120/140#(D126), 140/170#(D107), 170/200#(D91), 200/230#(D76), 230/270#(D64), 270/325#(D54), 325/400#(D46)

Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.

Advantages

light weight ,easy to take

Excellent surface roughness and flatness

High processing speed working fast

Low temperature curing of grinding wheel, short production cycle, convenient, quick and simple equipment and supply process

Applications

Mainly used for grinding high-hard alloys, non-metallic materials, cutting hard and brittle hard alloys, non-metallic minerals, etc. Such as cemented carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, etc.Specially used to all kinds of sbrssives machine

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you
