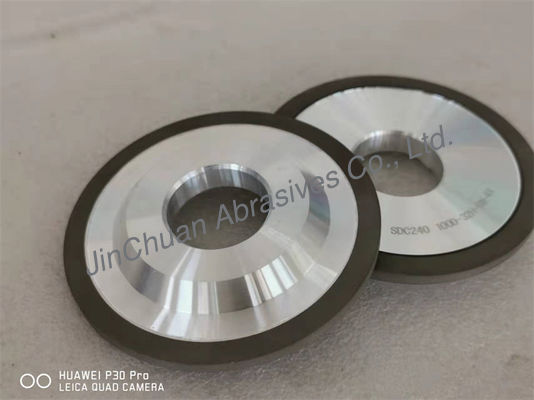

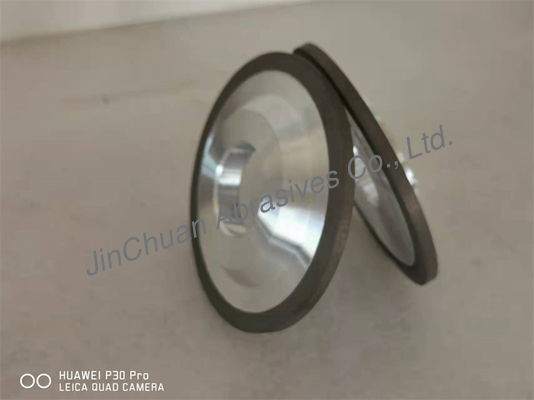

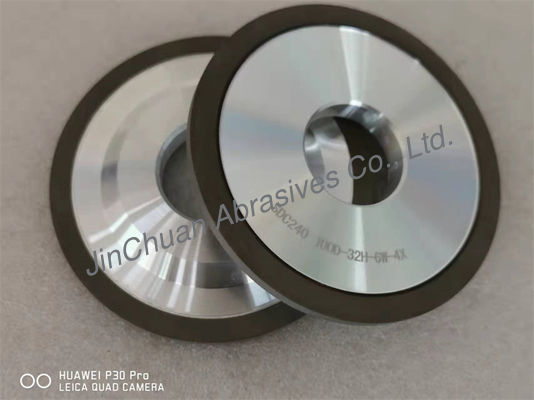

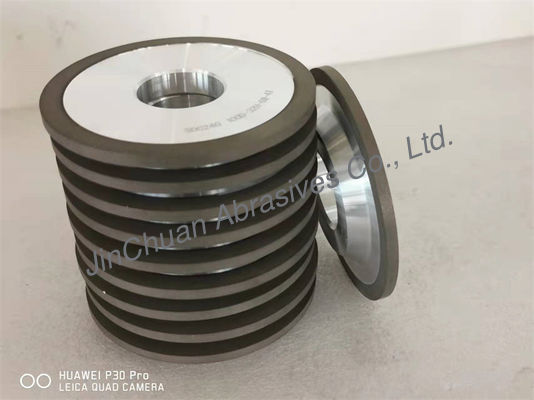

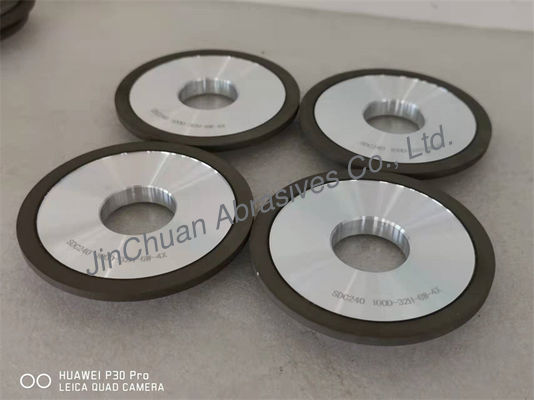

Resin Bond Diamond Abrasive Grinding Wheel 3A1 100*11*32*6*4 D240# 100%
Product Details
| Packing: | Carton Box | Size: | 100mm |
|---|---|---|---|
| Concentration: | 100% | Colour: | Green |
| Abrasive: | Diamond | Delivery: | By Express |
| Highlight |
3A1 Diamond Abrasive Grinding Wheel,D240# Diamond Abrasive Grinding Wheel,Resin Bond Diamond Abrasive Grinding Wheel |
||
Product Description
Resin Bond Diamond Abrasives Grinding Wheel 3A1 100*11*32*6*4 D240# 100%
Production Features
The Wheels Are made of high quality diamond and specially modified resin
our factory has professional technology and equipment, which can shape resin diamond grinding wheel with various complicated surface.
High grinding efficiency, and grinding wheel consumption is relatively slow
Good self-sharpening, small heat loss during grinding, not easy to block, reduce the phenomenon of working burn during grinding
The grinding wheel has a certain elasticity, which is beneficial to improve the surface roughness of the workpiece. Mainly used in fine grinding, semi-finishing, knife grinding, polishing, etc.
| Size | Diameter | Thickness | Inner hole | Grit Size |
| 4" | 100mm | 11mm | 32mm |
D80/100
|
Advantage
light weight ,easy to take
Excellent surface roughness and flatness
High processing speed working fast
Low temperature curing of grinding wheel, short production cycle, convenient, quick and simple equipment and supply process
Applications
Mainly used for grinding high-hard alloys, non-metallic materials, cutting hard and brittle hard alloys, non-metallic minerals, etc. Such as cemented carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, etc.Specially used to all kinds of sbrssives machine
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
